240W matrix amplifier of 2 zones in 100V
3701567911330
02693
This multizone matrix amplifier is available in 240W
Reference: AM-2240-2 - Code: 02693
In Stock
Delivered within 48/72h
For professionals
To log inFor individuals
Contact usProduct sheet in PDF format
Description :
AM-2 Series: 240W 2-zone matrix amplifiers
They offer a complete solution for multi-zone calls and multi-source selection systems (1 source per zone max).
• 3 XLR microphone inputs with configurable DC 24V phantom power
• MIC 1 priority via Talk Over
• 2 auxiliary RCA inputs
• REC OUT outputs by zone RCA
• Dry contact for sound system cut-off
• FM tuner module and MP3, USB and SD player
• Bluetooth receiver module for streaming from your mobile phone, tablet or laptop

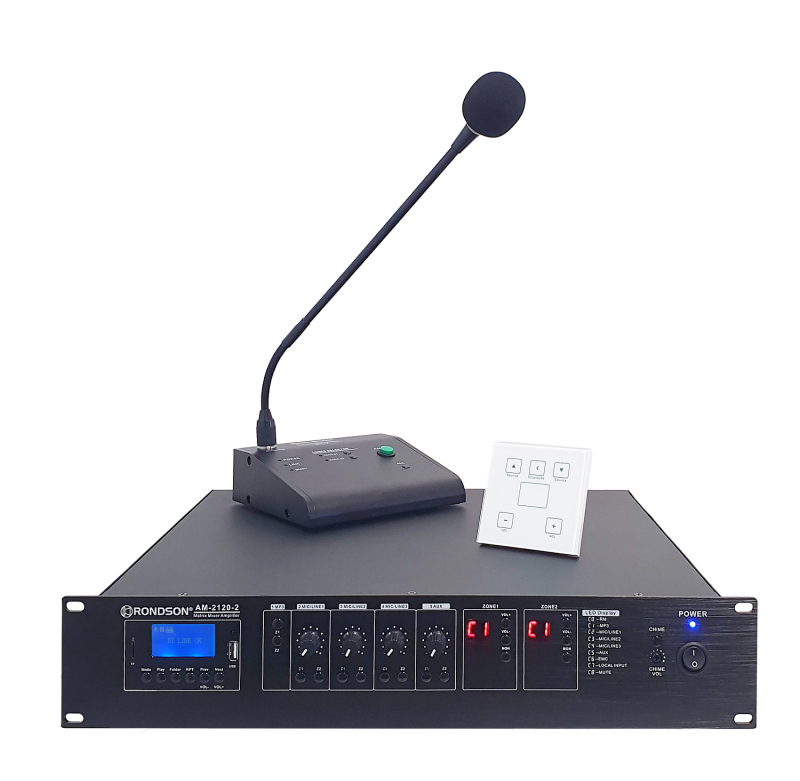

• Call microphone console MIC-2 and compatible wall panel PM-2 (RJ45)
• Output level meter for each channel
• Thermal, overload and short circuit protection
| FEATURES | AM-2120-2 | AM-2240-2 | AM-500-2 |
| Type |
2-channel amplifier |
||
| Power |
2 x 120W |
2 x 240W |
2 x 500W |
|
Integrated sources |
MP3 / USB / SD / TUNER / BLUETOOTH |
||
|
Food |
AC 230V – 50 / 60 Hz - DC 24V |
||
|
Speaker output |
100V, 8 - 16 Ω, 2 channels |
||
|
Inputs/Sensitivity |
MIC/LINE 1-3: 60 dB - 16 dB / 20 kΩ balanced LINE 1: 20 dB / 20 kΩ balanced 2 RJ45: 0 dB / 600 Ω balanced |
||
|
Tone adjustment |
Bass: ±15 dB at 100 Hz High frequencies: ±10 dB at 10 kHz |
||
|
Bandwidth |
60 Hz – 15,000 Hz (± 3 dB) |
||
|
Signal-to-noise ratio |
≥ 72 dB |
||
|
Consumption |
300 W |
600 W |
1200 |
|
Total harmonic distortion |
<0.5% |
||
|
Protection and cooling |
Fan, thermal protection, overload and short circuit |
||
| Dimensions (W x D x H) |
484 x 405 x 88 mm |
||
| Weight |
6.6 kg |
9.6 kg |
13.7 kg |
