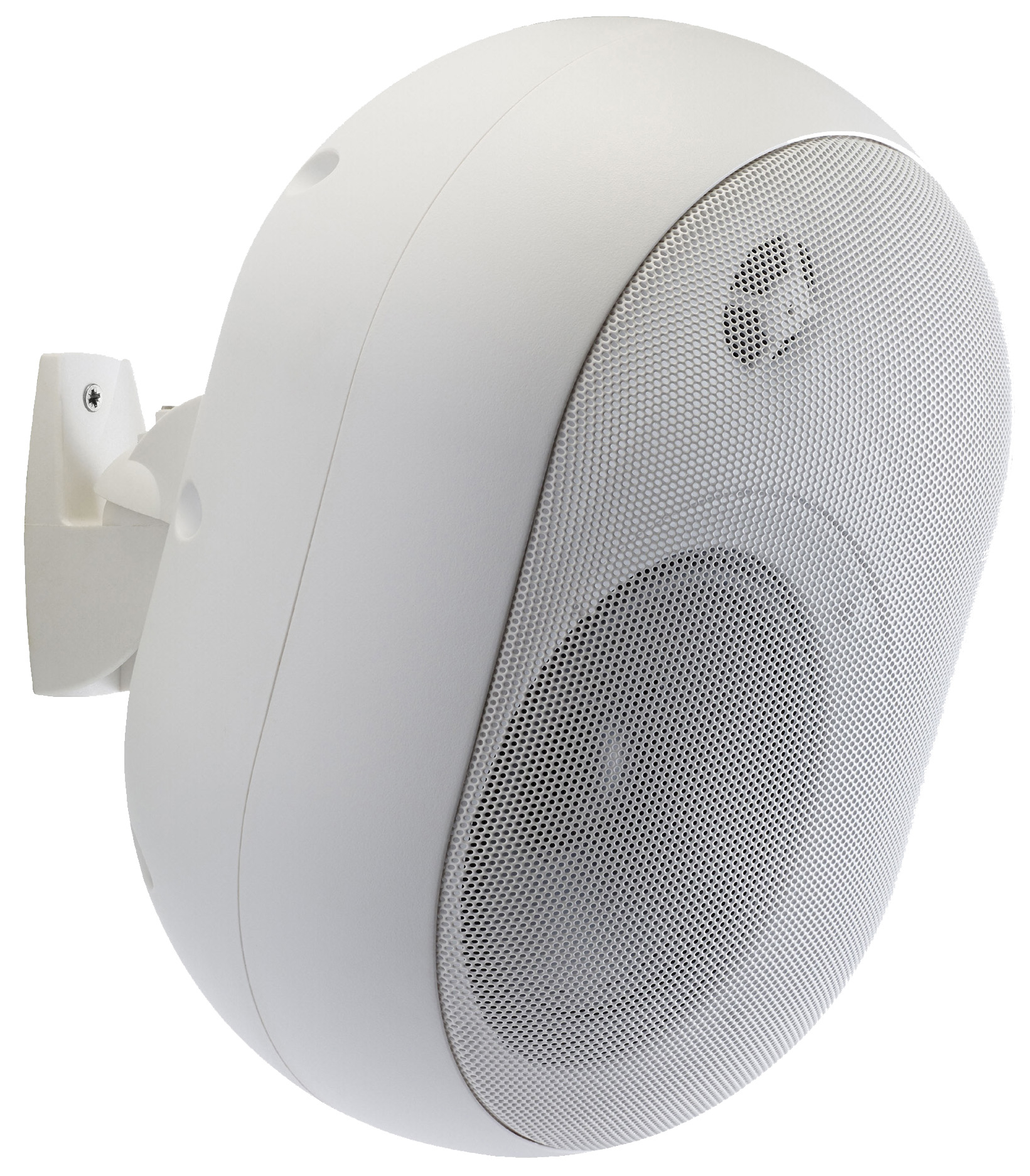

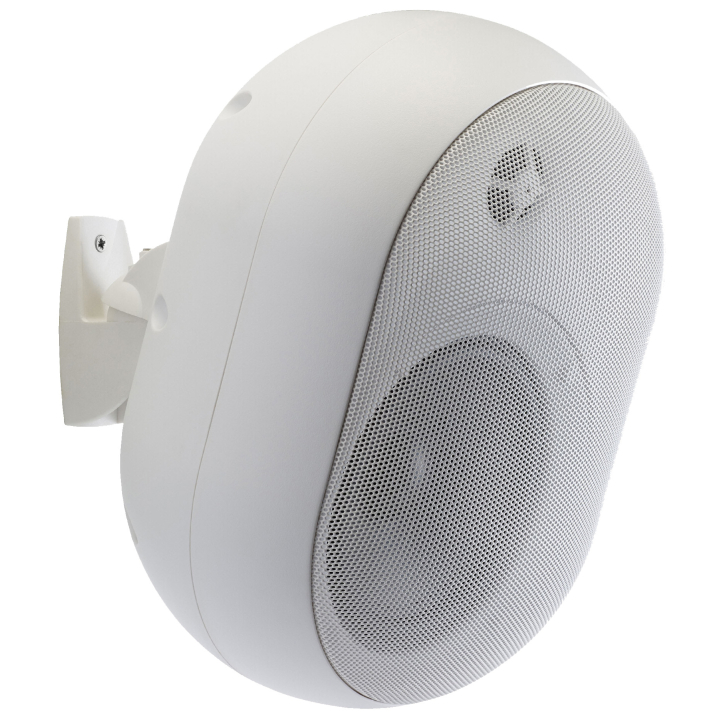

30 W tropicalised compact loudspeakers
Reference : PLS-30WPB
SKU : 02497
EAN13 : 3701567903366
Weatherproof 30W compact speakers in 2 colours :
Reference : PLS-30WPB - Code : 02497
Reference : PLS-30WPN - Code : 02498
Description
- Compact wall-mounted loudspeakers with a rounded shape, designed for indoor and outdoor applications with IP55 protection class.
- Grille and fixing bracket in tropical aluminium, woofer with polypropylene membrane, enclosure to be protected as little as possible from direct exposure to rain.
- For use in 70 and 100 Volt lines or in low impedance 4 Ω.
- Rear panel power adjustment by switch
- Vertical and horizontal swivel mounting and screws included.
- Applications: Sports halls, aquatic complexes, café terraces.
|
SPECIFICATIONS |
PLS-30WPB - PLS-30WPN |
|
Type |
Compact 2-way speaker |
|
Material |
ABS case + Aluminium grille |
|
Colour |
White or Black |
|
Speaker |
Ø 13 cm + Tweeter / 5" |
|
Sensitivity |
88 dB / 1 W / 1 m |
|
Frequency Response |
60 - 20 000 Hz |
|
Directivity |
120° |
|
BI Line Power |
4 Ω – 40 W RMS |
|
100 Volts Line power |
30 - 15 - 7,5 - 3,75 W RMS |
|
100 V Impedances |
330 / 500 / 750 / 1 KΩ |
|
Connecting |
Cable on gland |
|
Dimensions |
178 x 236 x 255 mm |
|
Weight |
2,38 kg |
|
Protection rating |
IP 55 |
|
Fixation |
Swivel mounting bracket |
Product Details
-
Brand
-
ReferencePLS-30WPB
-
SKU02497
-
EAN133701567903366
