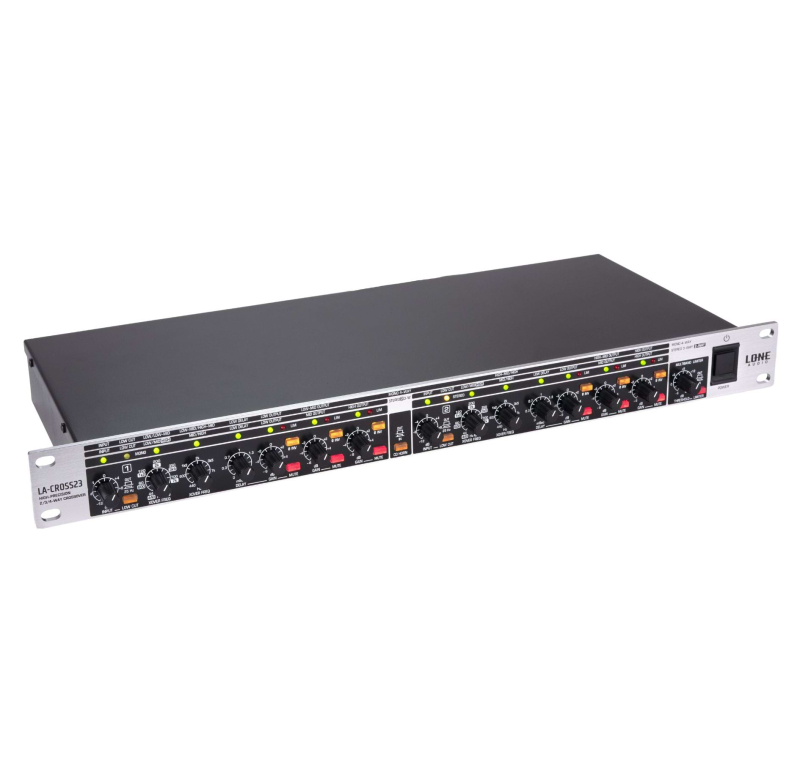

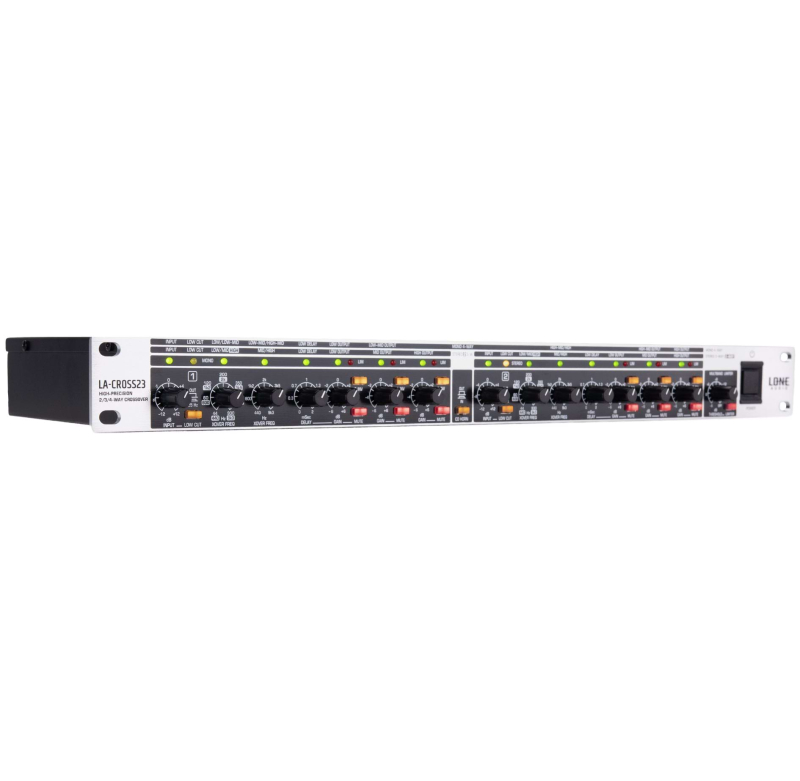

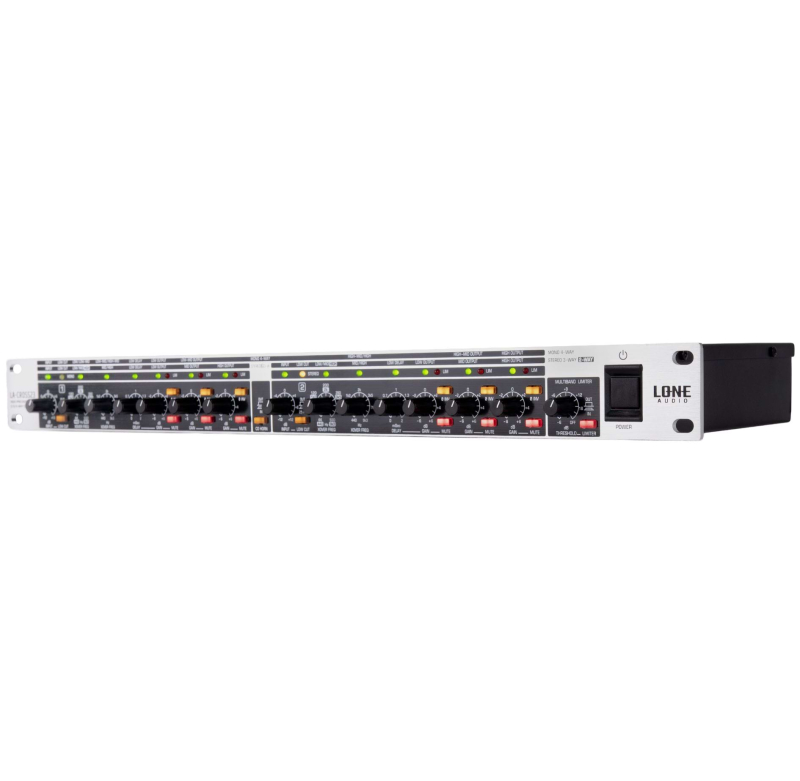

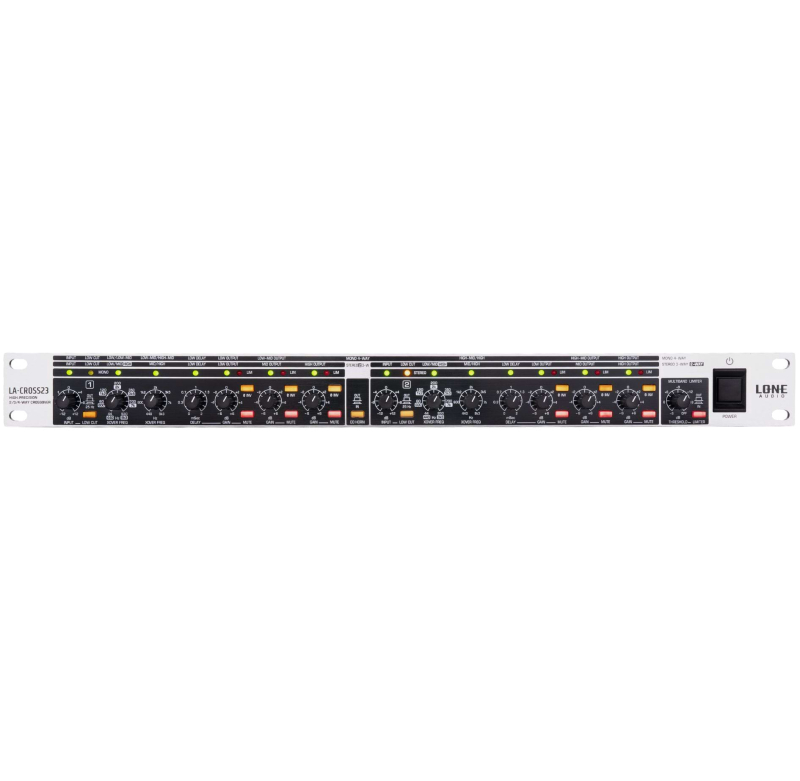

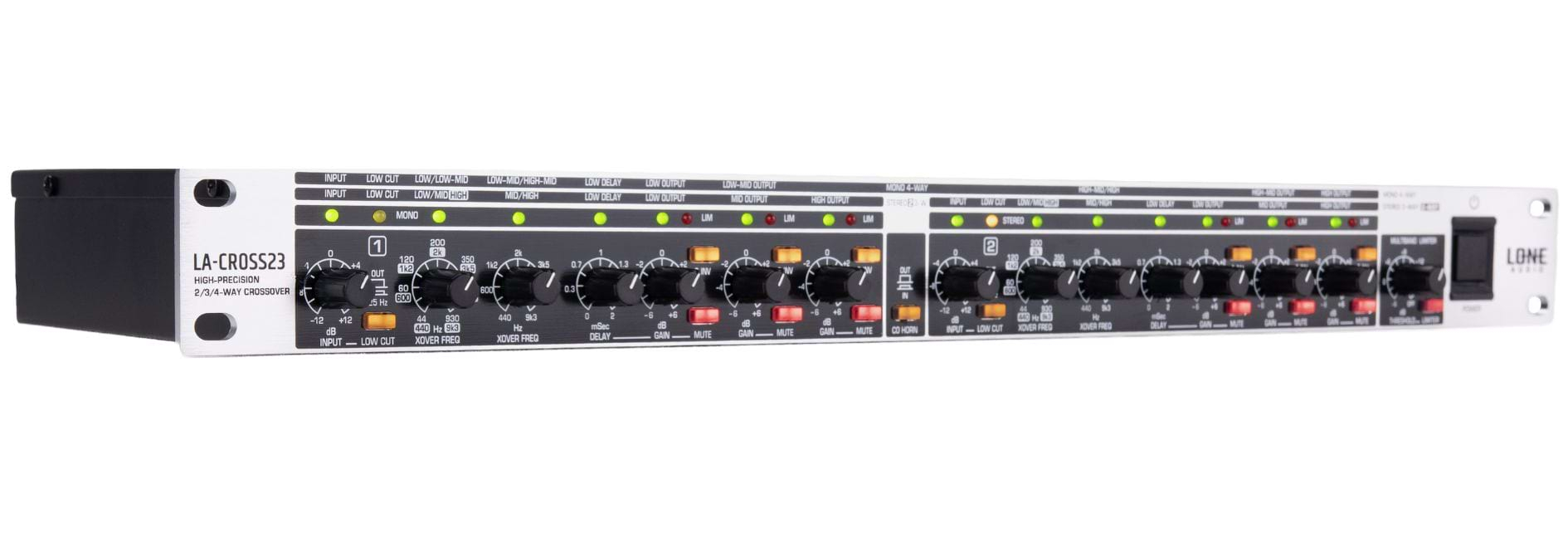

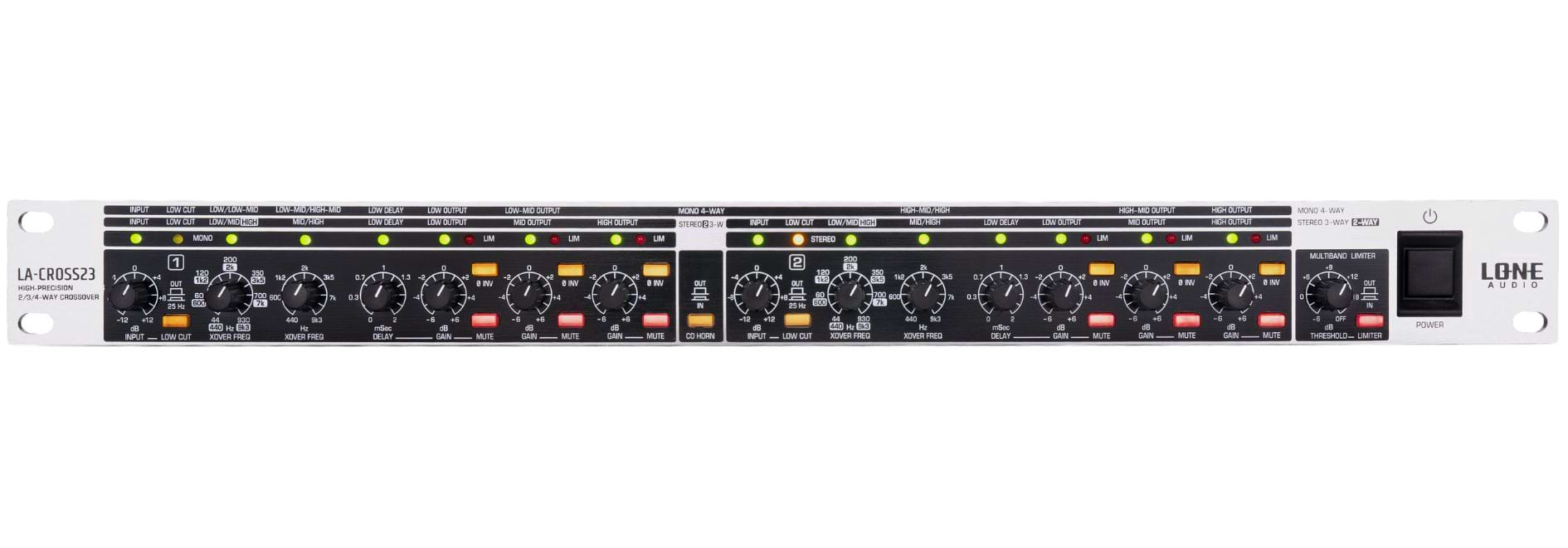

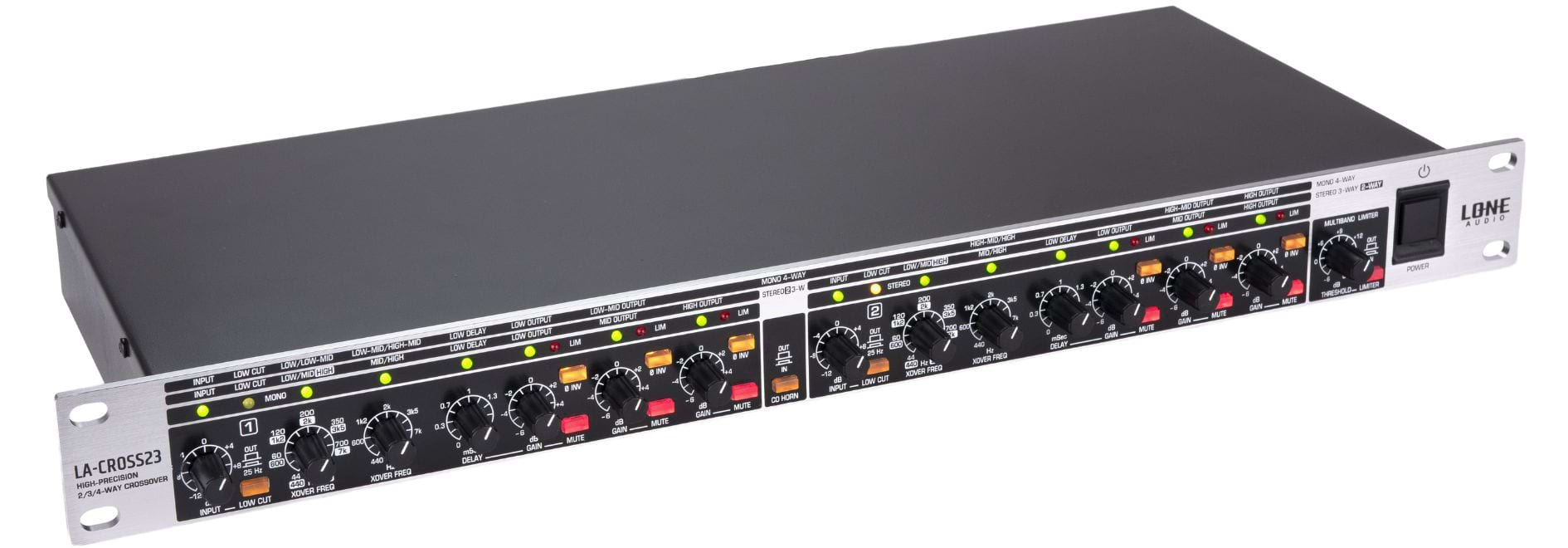

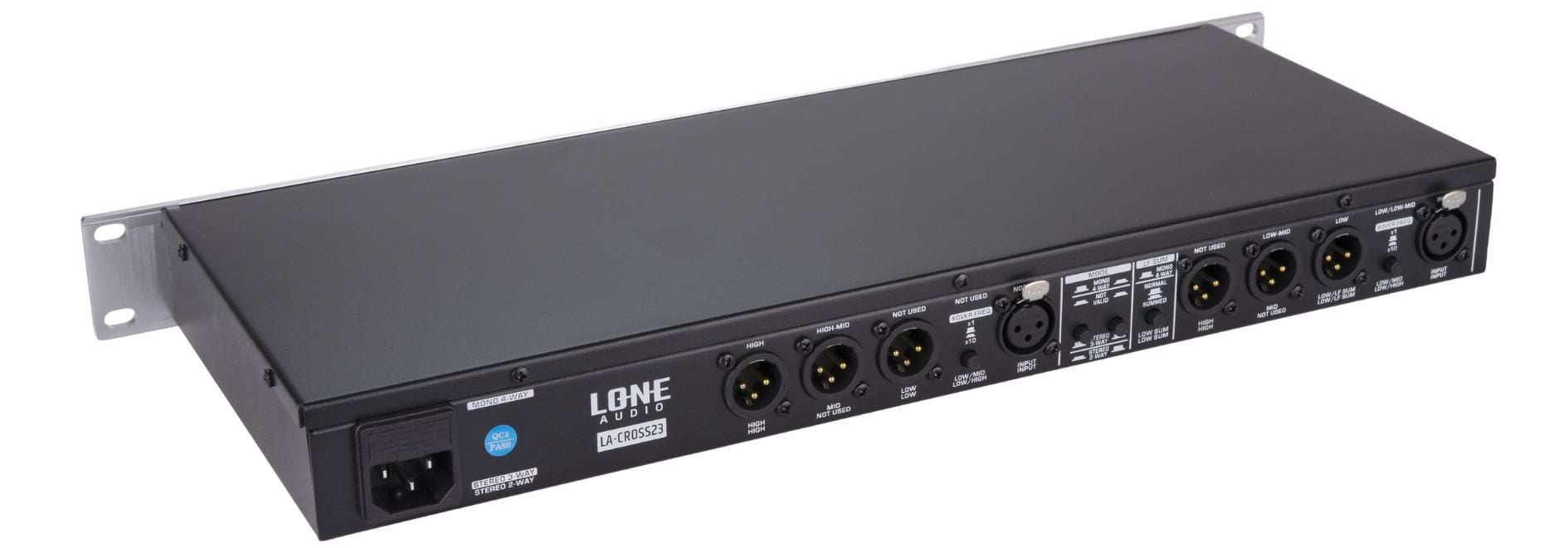

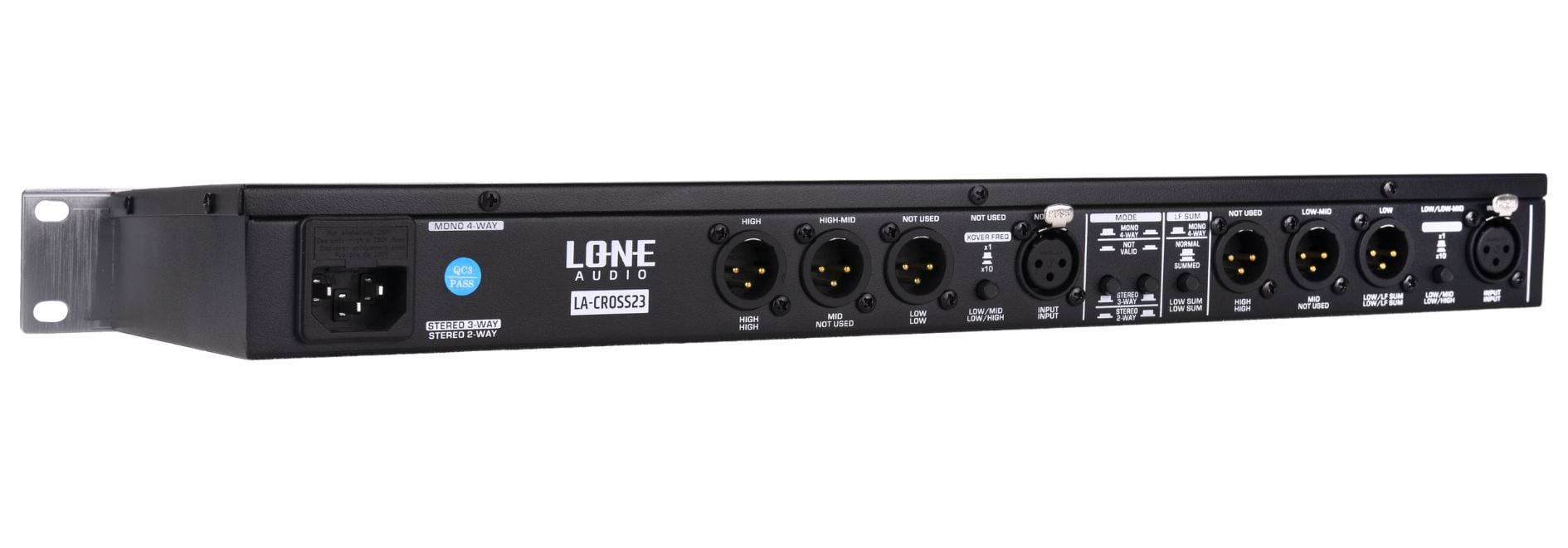

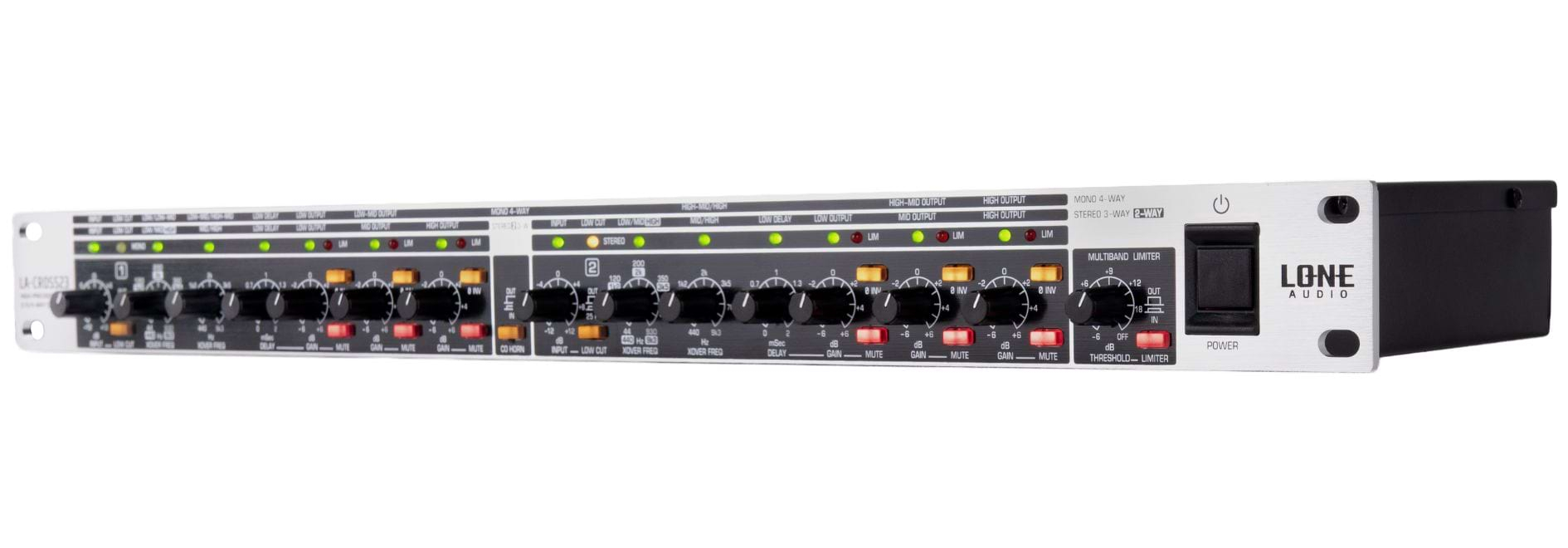

2-way stereo or 3-way mono active crossover
LA-CROSS23
3701567913273
02843
1U rack-mountable 2-way stereo or 3-way mono active crossover
Improve frequency separation with this rack-mountable crossover, guaranteeing precise, optimised sound distribution.
Available soon
In Stock
Delivered within 48/72h
For professionals
To log inFor individuals
Contact usProduct Sheet in PDF
Description :
Active 2-way stereo or 3-way mono rack-mount crossover
Features :
Equipped with :
-
2-way stereo or 3-way mono mode
- Dedicated subwoofer output
- Linkwitz-Riley filter with 24 dB/octave slope
- Independently adjustable subwoofer frequency range

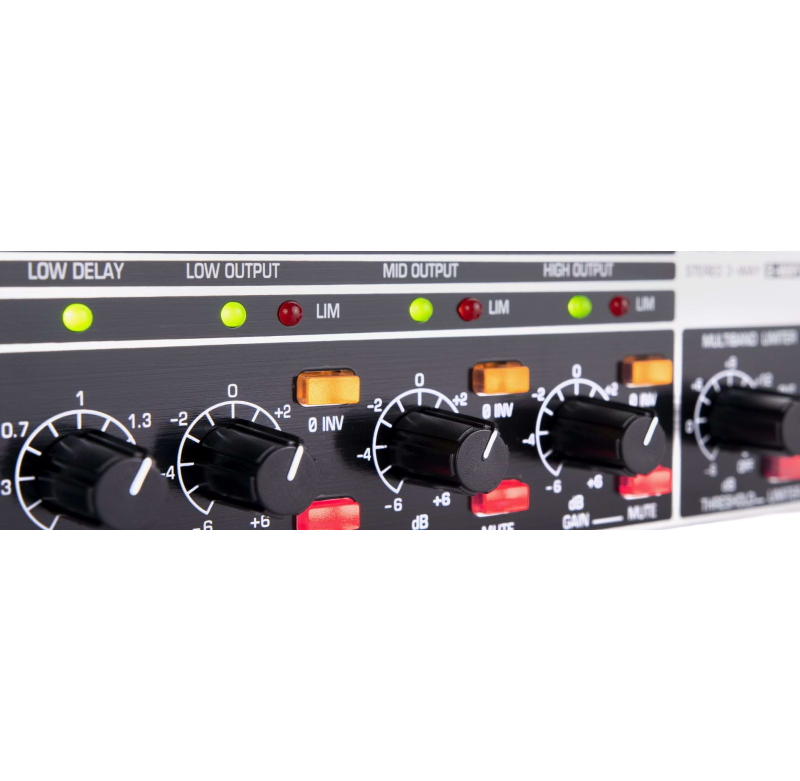

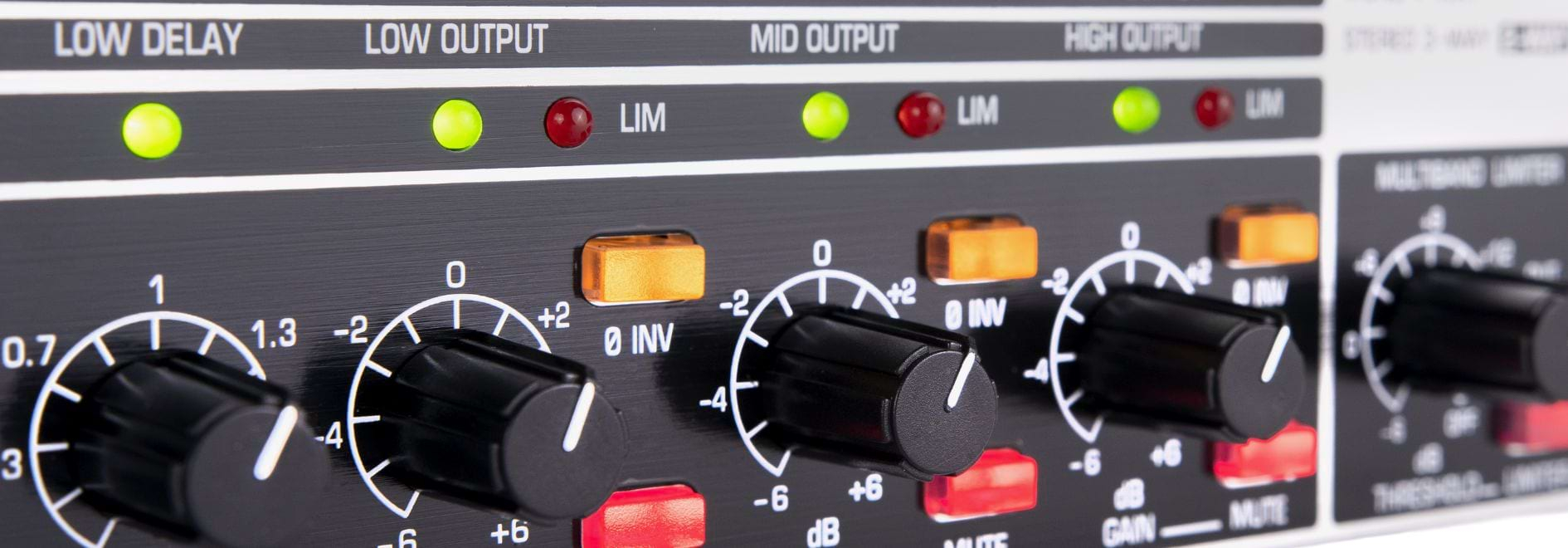

- Individual gain controls and Mute switches on each band

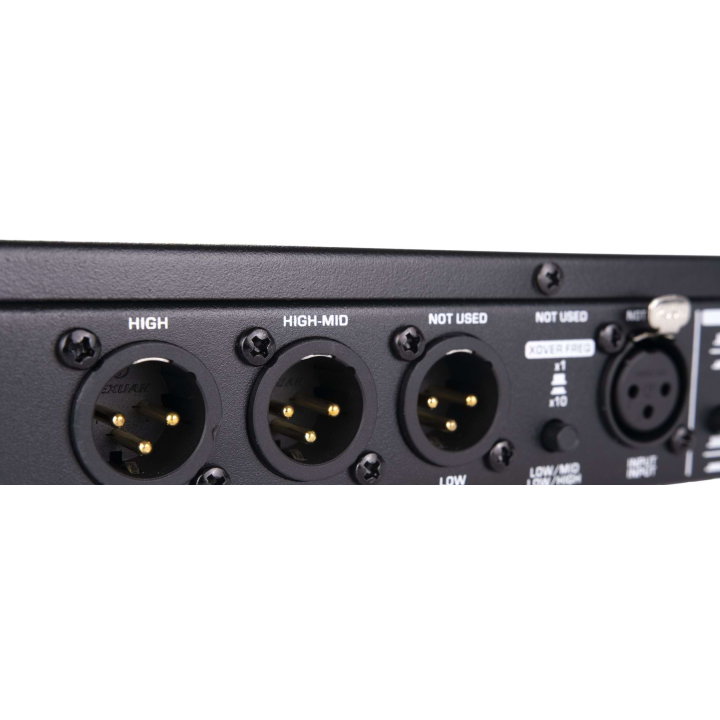

- 2 balanced XLR inputs with gold-plated contacts

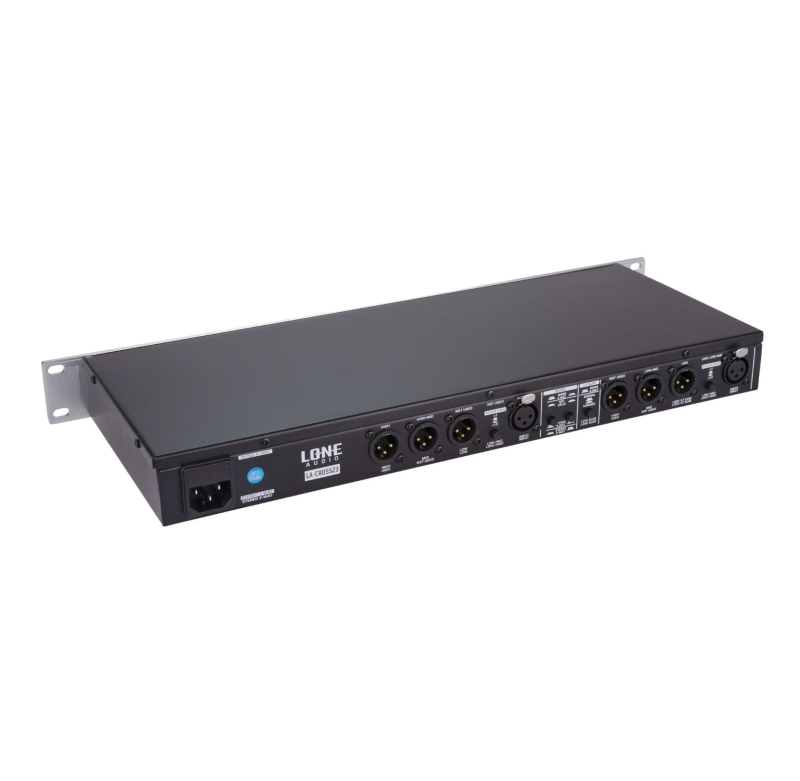

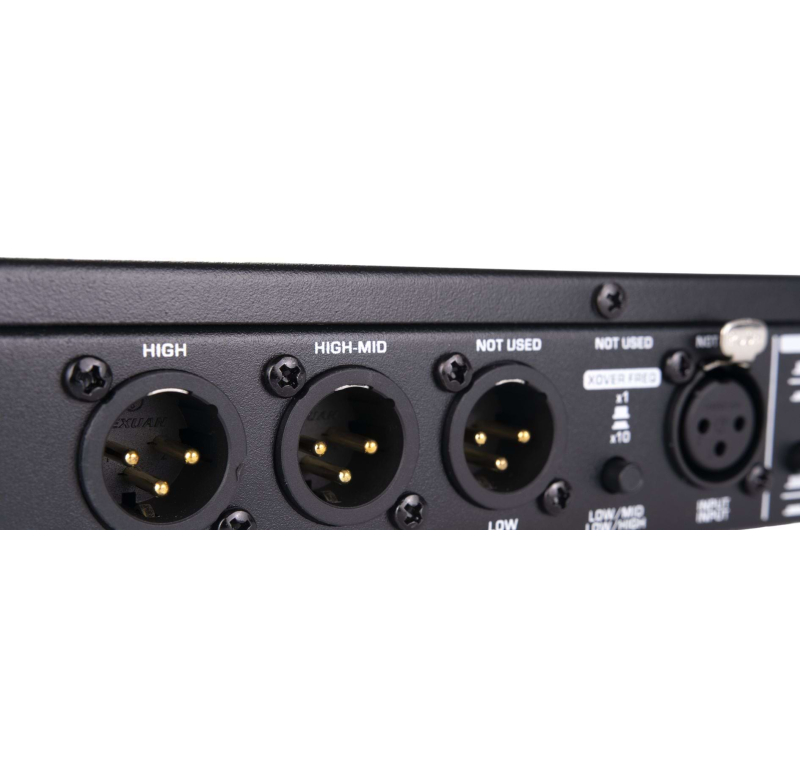

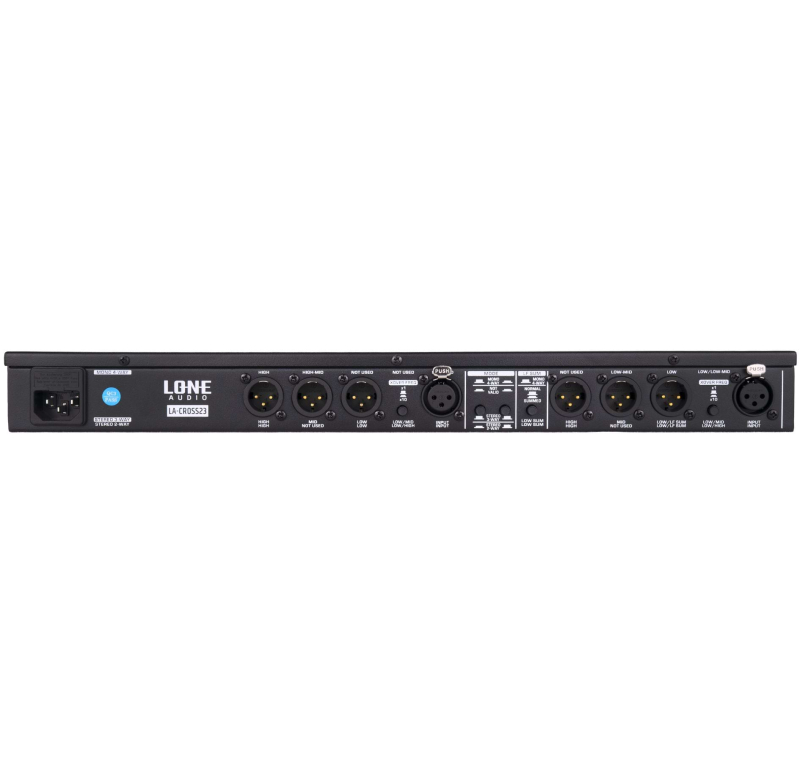

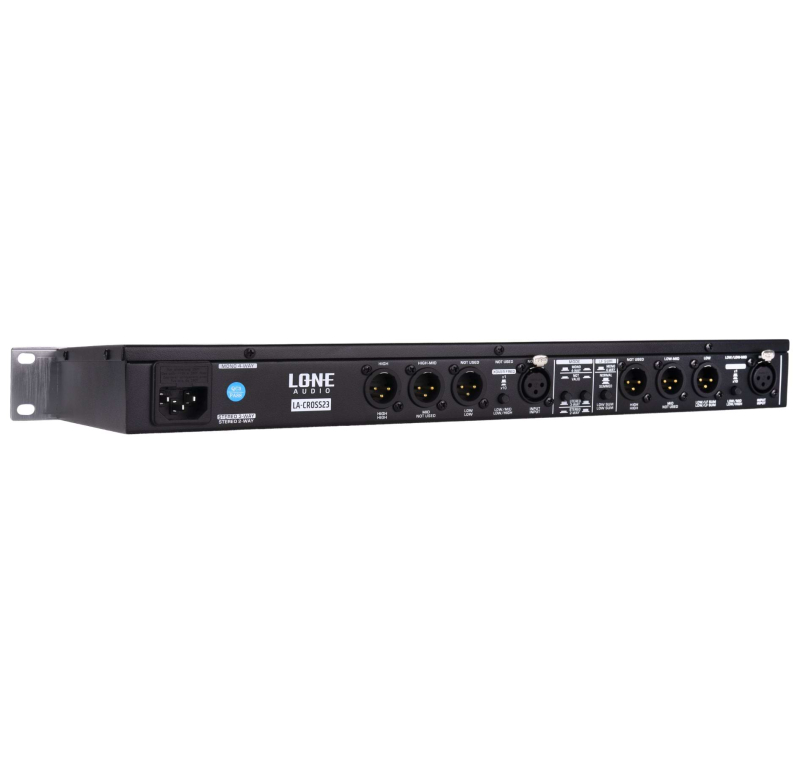

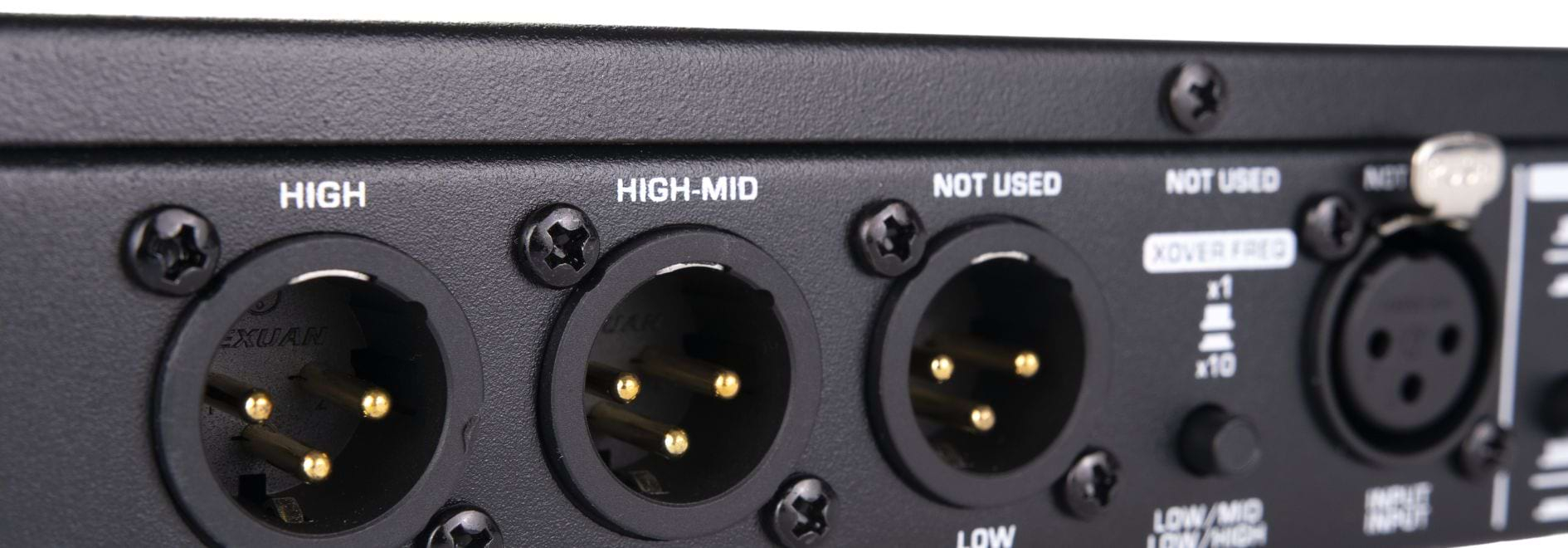

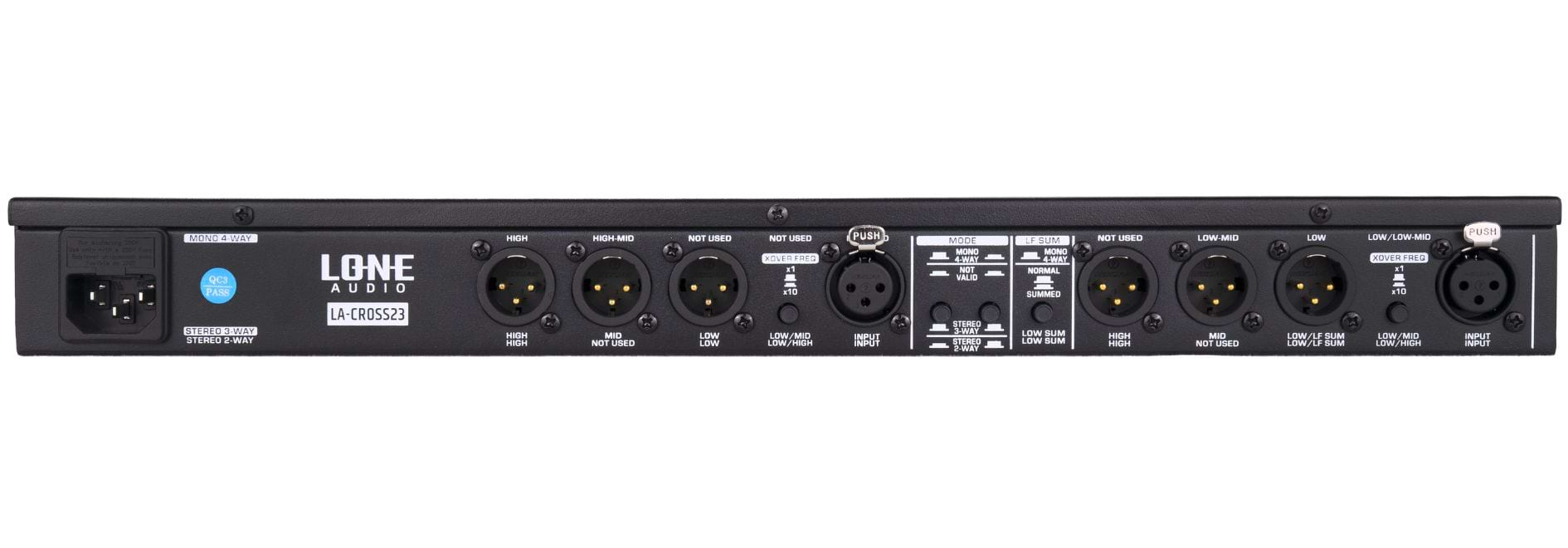

- 5 balanced XLR outputs with gold-plated contacts
- Switchable 25 Hz low-pass filter to protect speakers from infrasound
- High-visibility status LED
- Integrated power supply 100-240V, 50-60 Hz
- Dimensions (H x W x D): 44 x 483 x 147 mm
- Weight: 1.6 kg
| SPECIFICATIONS | LA-CROSS23 |
| Type | Crossover |
| 2 channel stereo |
Yes |
| Digital |
No |
| EQ |
Yes |
| Delay |
Yes |
| 3 channel stereo |
Yes |
| Dimensions (H x W x D) | 44 x 483 x 147 mm |
| Weight |
1,6 kg |
