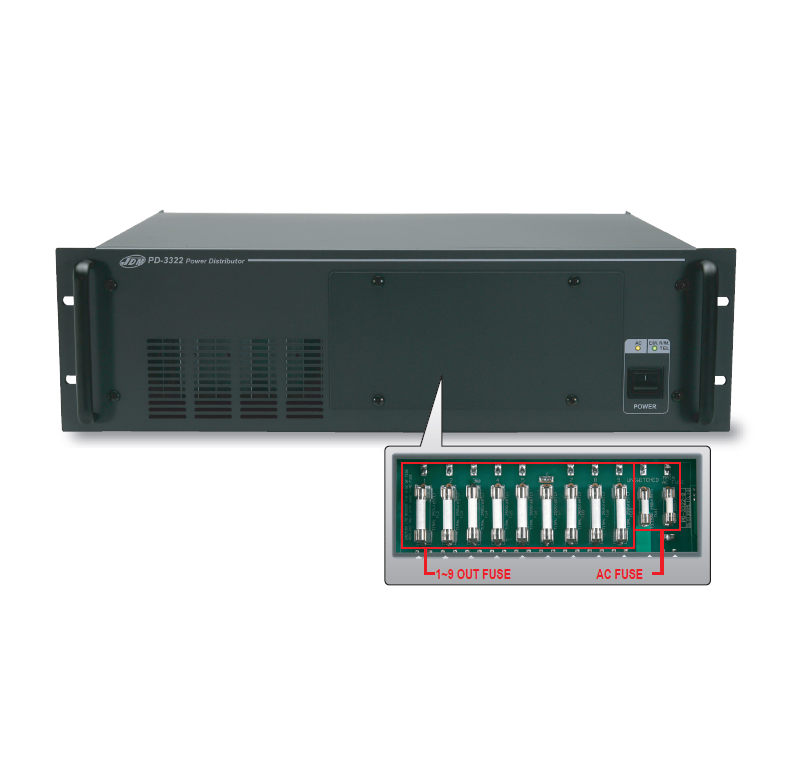

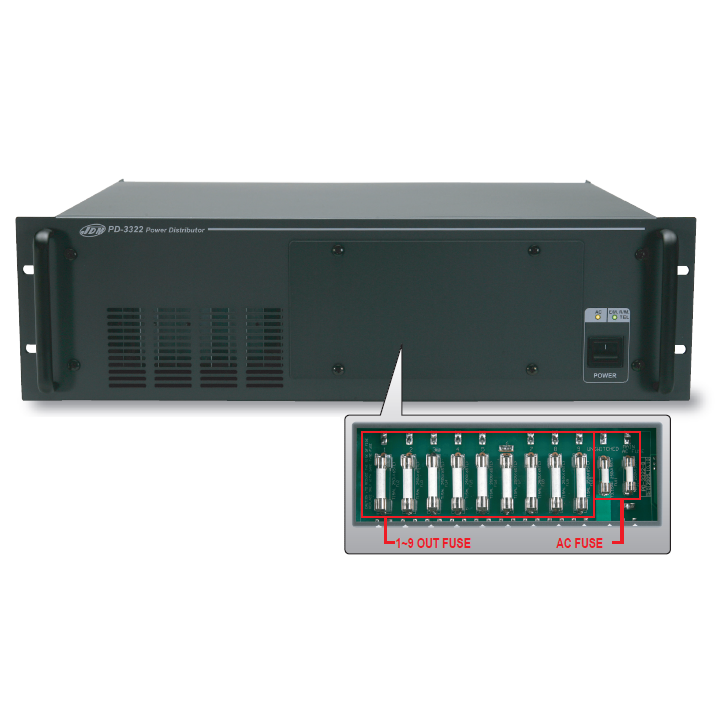

AC/DC power distributor

Name: AC/DC power distributor
Brand: JD-MEDIA
SKU: PD-3322

Reference : PD-3322

SKU : 01077

EAN13 : 8809267793241

AC/DC power supply unit

220V-240V/24V

Stackable 19" 3U

Types d'applications

PPMS/POMSE

PD-3322

Fiche Produit

Description

AC mains socket for powering a rack-mounted system • 2 x 24V DC outputs for powering devices operating on 24V only
Remote control for the 24V DC power supply to a rack-mounted system in the event of a mains power failure when the PD-3322 is switched ON
When the power supply is switched to OFF in the event of an emergency, such as a fire alarm or activation via the remote control console’s microphone, the power supply to the distributor is switched to ON to supply power to the system
Internal short-circuit protection for 24V DC (returns to normal operation in the event of a remote-controlled short circuit)

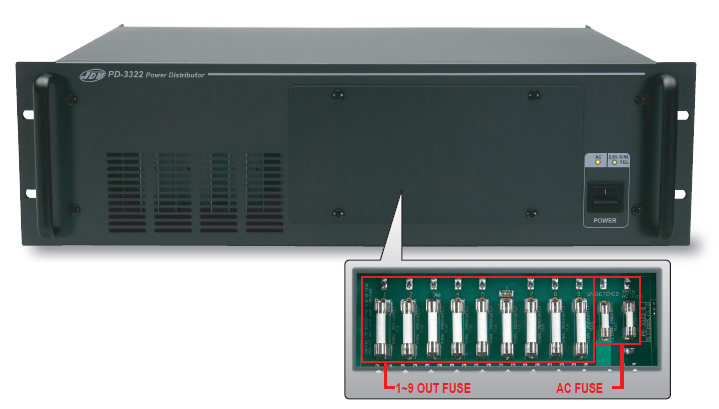

1 fuse per socket (accessible from the front panel) • Power-up noise-reduction circuit
Operating sequence: when the unit is switched to ON, power is supplied to AC sockets 7 to 9 (to power the preamplifiers) and then to AC sockets 1 to 6. When the unit is switched to OFF, power is cut off from AC sockets 1 to 6 and then from AC sockets 7 to 9.

Power consumption

122 W DC 24 V / 3 A
Alimentation

AC 230 V / 50 Hz – DC 24 V
Alimentation DC

24 V / 1,5 A max. X 2
Alimentation AC

Allumé 1-6 / 230 V AC / 7000 VA (30 A) 120 V AC / 3600 VA (30 A) Allumé 7 – 9 : 115 VA max. chacun
Eteint

Eteint : 360 VA max.
Dimensions (W × D × H)

483 x 350 x 133 mm (3 U)
Weight

8.5 kgs
