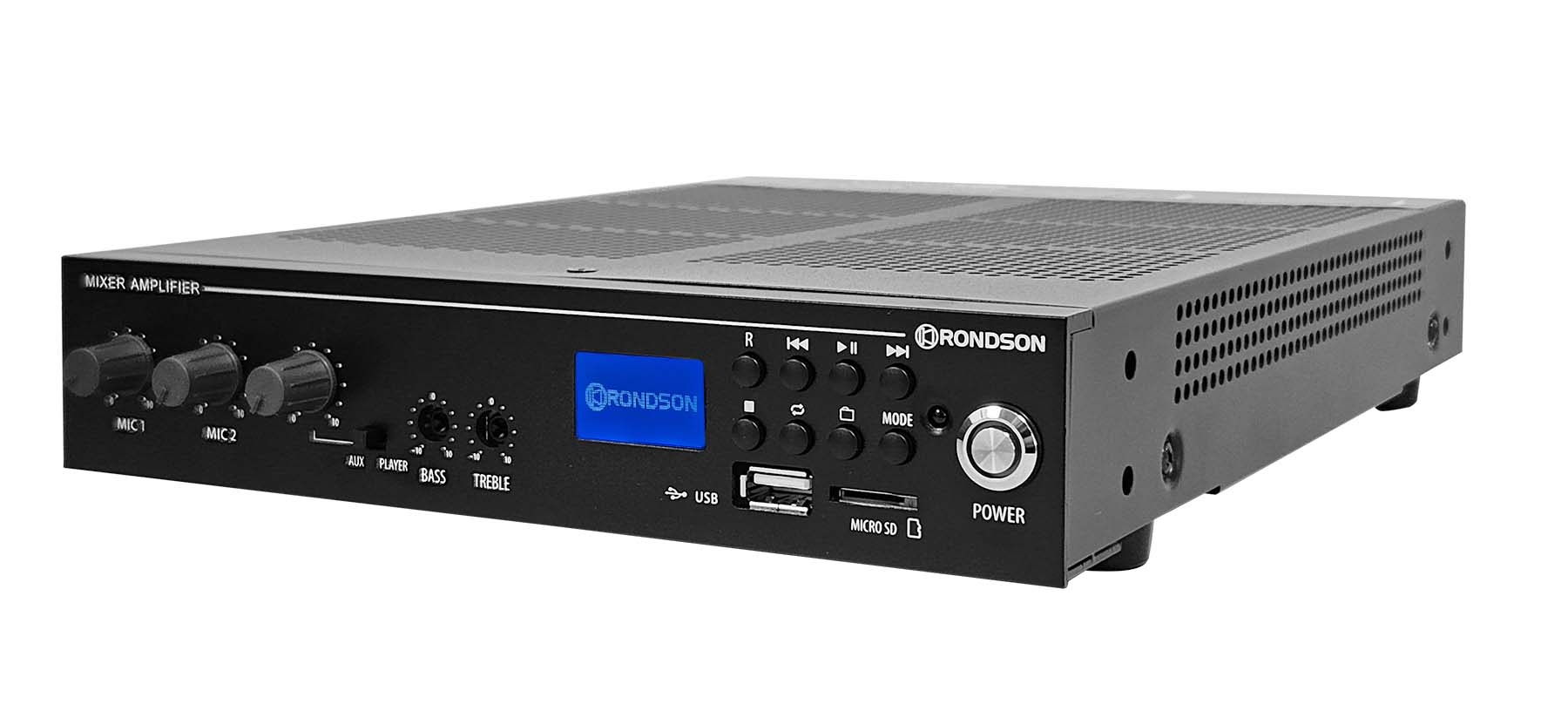

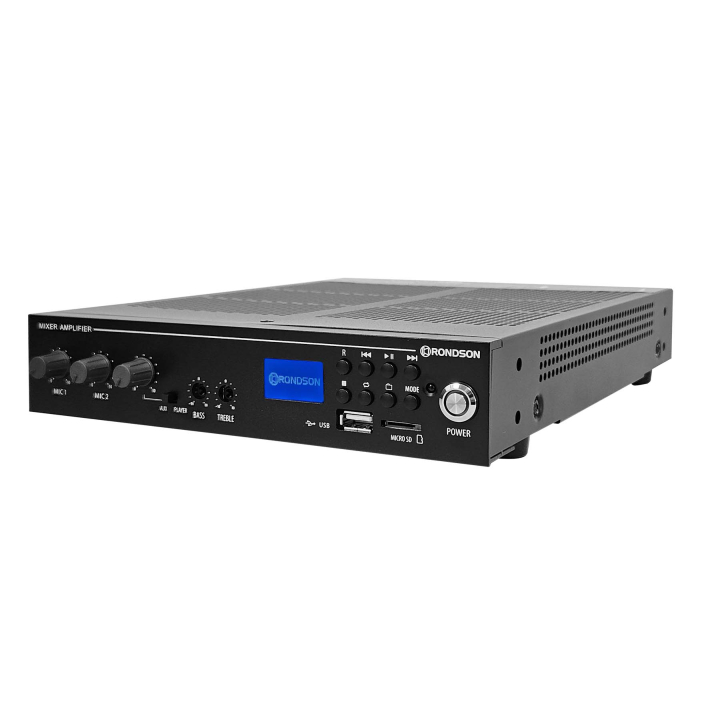

bluetooth 240W Compact Amplifier

This mixer amplifier is available in a 240W RMS version.

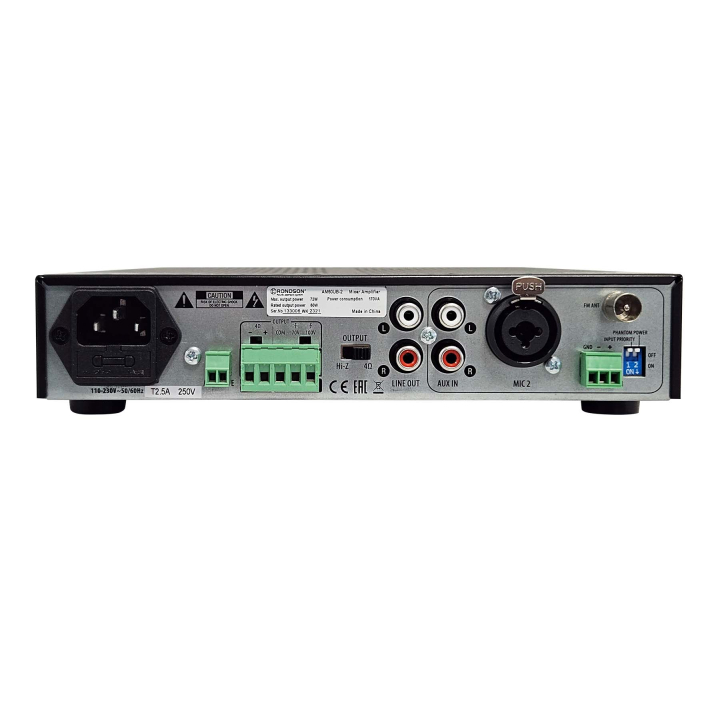

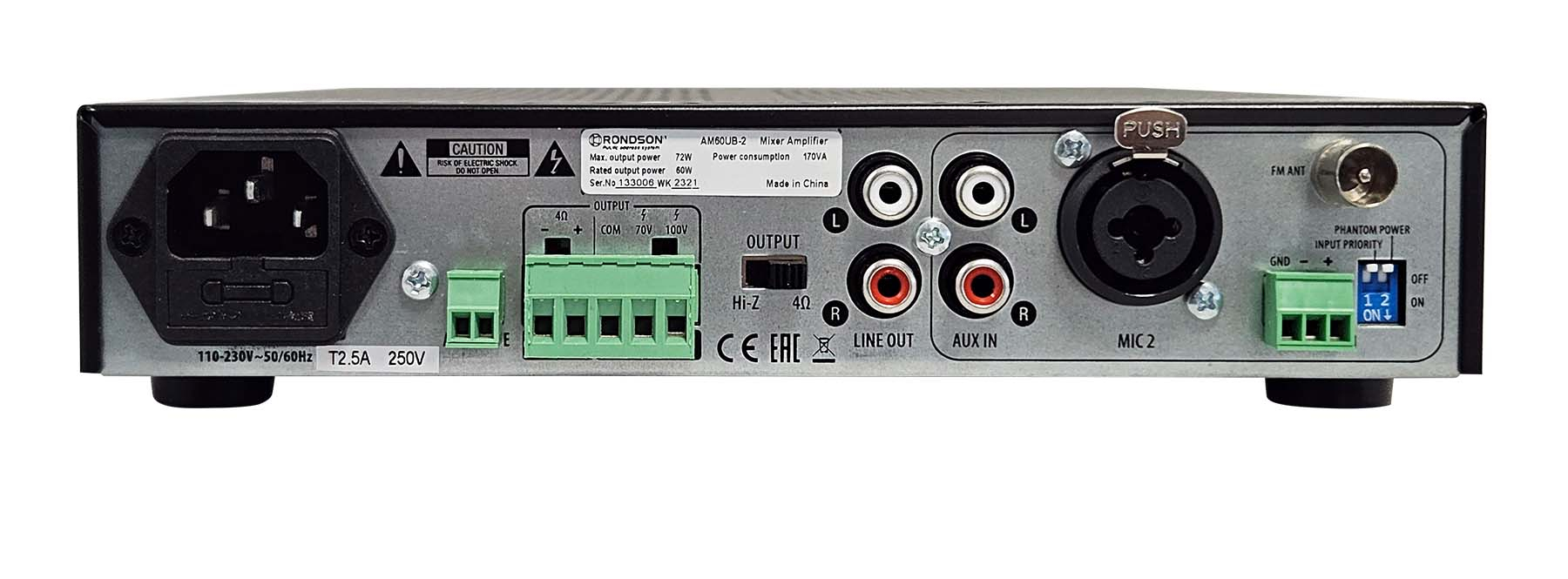

It offers 25 V, 70 V and 100 V speaker outputs, as well as a low impedance of 4 Ω.

It operates when connected to the mains supply (115 V – 230 V – 50/60 Hz) or via a 24 V backup power supply.

USB/SD recorder and Bluetooth

Features:

It is equipped with :

- AM/FM tuner and USB/SD/Bluetooth player
- 1 balanced XLR combo MIC input, including 2 switchable 15 V phantom power supplies

- Outputs on euroblock terminals for 70V and 100V or 8 Ω
- 1 AUX RCA input
- 1 RCA LINE output
- 1 individual volume control per input, bass and treble control

- Priority function (mute)
- Siren triggered by front panel on/off button - Thermal, overload and short-circuit protection

Options :

This amplifier can be racked with the following brackets:
- EQ-4000 : 1U bracket kit compatible with AMUB-2 - 19 " rack
- EQ-4500 : 1U bracket kit compatible with AMUB-2 - 19" half rack
