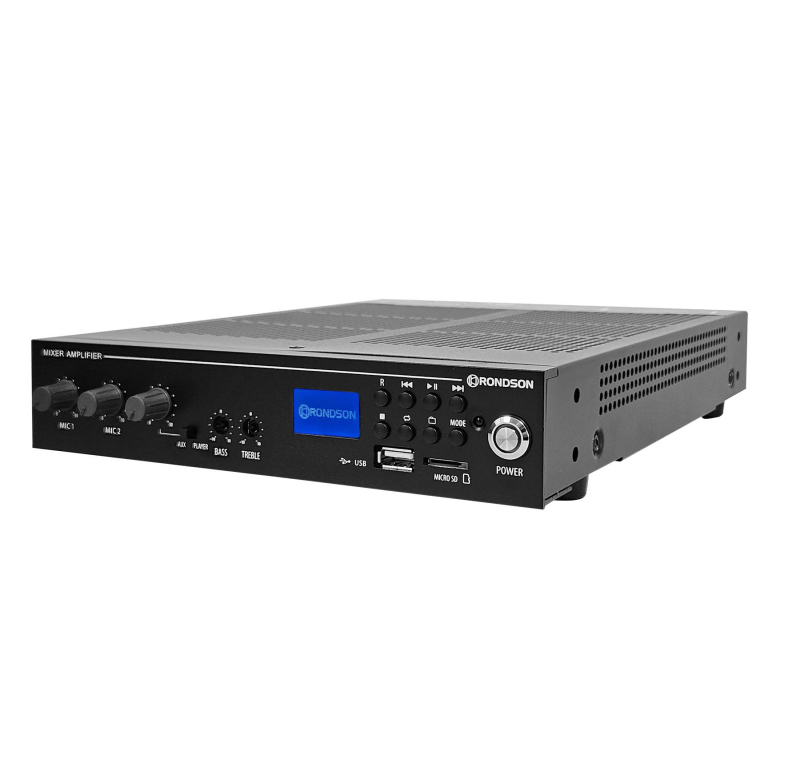

bluetooth 240W Compact Amplifier
3701567911491
02728
240W power mixer-amplifier
Standard operation at 70V, 100V and 4 Ω for low impedance.
Operates on 230V - 50/60Hz mains.
Integrated tuner, USB and Bluetooth player
In Stock
Delivered within 48/72h
For professionals
To log inFor individuals
Contact usDatasheet PDF
Features:
It is equipped with :
- AM/FM tuner and USB/SD/Bluetooth player
- 1 balanced XLR combo MIC input, including 2 switchable 15 V phantom power supplies

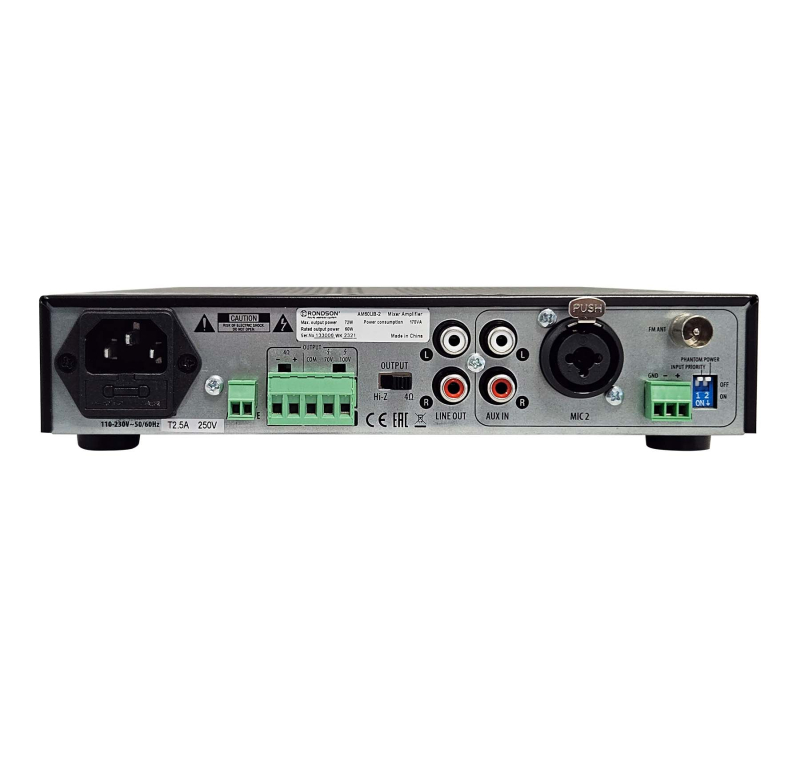

- Outputs on euroblock terminals for 70V and 100V or 8 Ω
- 1 AUX RCA input
- 1 RCA LINE output
- 1 individual volume control per input, bass and treble control
- Priority function (mute)
- Siren triggered by front panel on/off button - Thermal, overload and short-circuit protection
Options :
This amplifier can be racked with the following brackets:
- EQ-4000 : 1U bracket kit compatible with AMUB-2 - 19 " rack
- EQ-4500 : 1U bracket kit compatible with AMUB-2 - 19" half rack
| SPECIFICATIONS |
AM 240UB |
|
| Type |
Mixing amplifier 240 W |
|
|
Integrated sources |
TUNER / BLUETOOTH USB / SD / MP3 PLAYER |
|
|
Power supply |
AC 110V / 240V – 50 Hz - DC 24V |
|
|
Speaker output |
On-line 70 and 100V In low impedance 4 Ω |
|
|
Output power |
240WRMS |
|
|
Frequency Response |
80 Hz – 16 000 Hz |
|
|
Signal to Noise Ratio |
MIC:>60dB LINE:>70dB MEDIA PLAYER : > 60 dB |
|
|
Consumption |
400 W |
|
|
Total harmonic distortion |
<1% |
|
|
Protection and cooling |
Fan, Thermal protection, overload and short-circuit |
|
| Dimensions (W x D x H) |
44x215x315 mm DEMIRACK |
|
| Weight |
3 kg |
|
