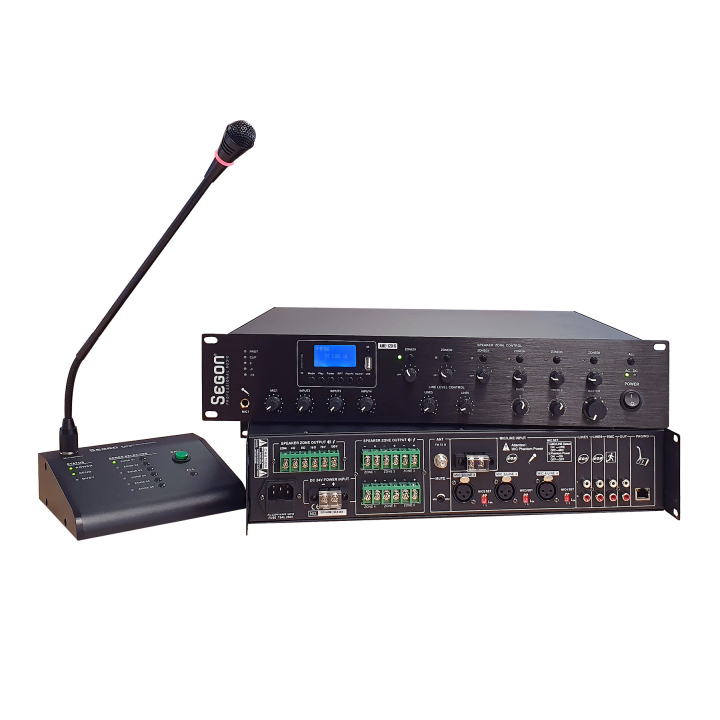

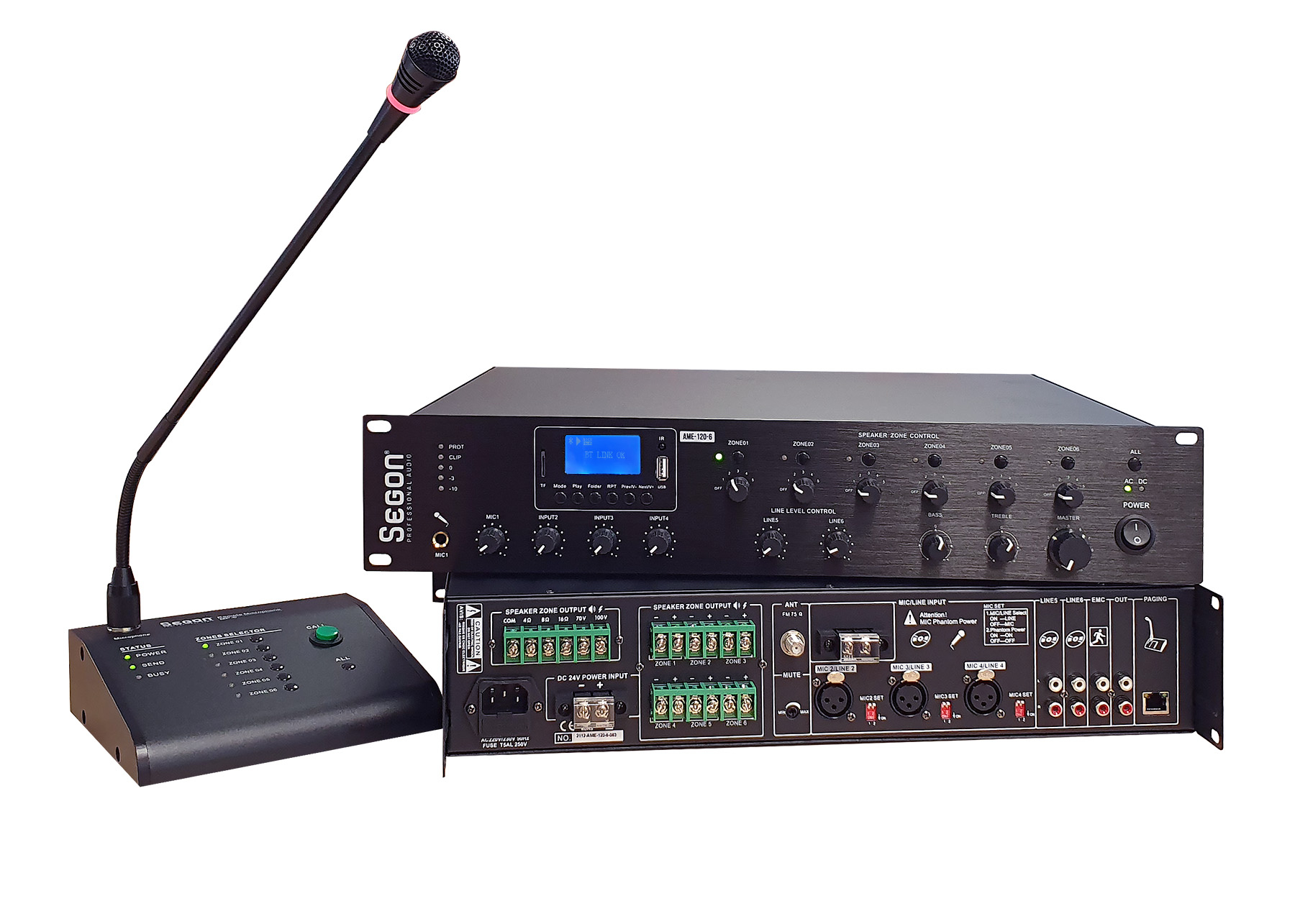

120W 6-Zone Preamplifier Amp with Tuner, USB and Bluetooth audio sources

Name: 120W 6-Zone Preamplifier Amp with Tuner, USB and Bluetooth audio sources
Brand: SEGON PROFESSIONAL AUDIO
SKU: AME-120-6

Reference : AME-120-6

SKU : 02630

EAN13 : 3701567910210

120W 6-zone preamplifier

Multimedia player (Tuner / MP3 / USB / SD / Bluetooth)

100V line

24V DC

19" rack-mountable (2U)

Power output

120 W

Sources Audio

BLUETOOTH

Coupure sono

Zones

Notice d'utilisation

AME-120-6

Description

These mixer amplifiers are available in three power ratings: 120W, 240W, and 500W.

7 audio inputs available.

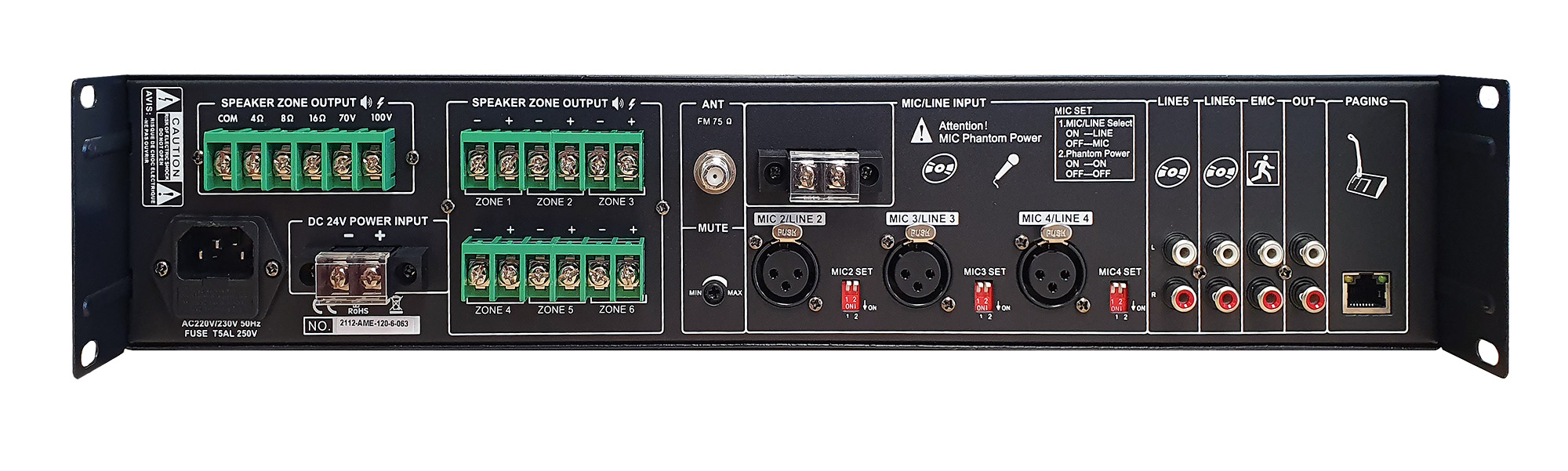

They offer 100V speaker outputs as well as 4, 8 and 16 Ω low impedance outputs.

It operates on 230 V – 50/60 Hz mains power.

They are equipped with a Bluetooth reader module / RDS tuner / USB / SD.

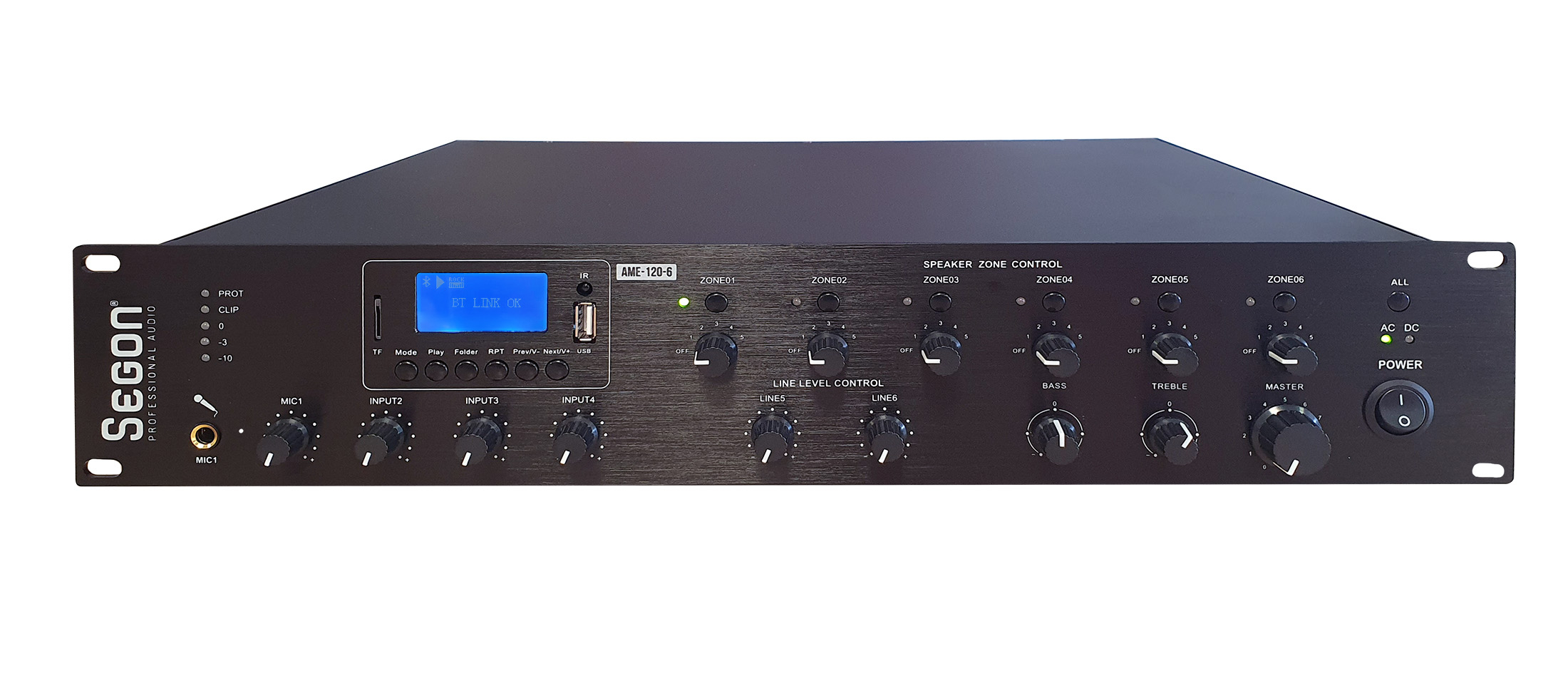

Master volume, Volume of the 6 inputs
1 AUX Mini JACK 3.5 input for input 6 (front panel)
1 MIC JACK input for input 1 (front panel)

FM TUNER player with RDS function that can store up to 16 radio stations

USB and SD card reader - max. 16 GB, FAT32 - plays MP3 or WMA files via USB stick or SD card

Bluetooth 2.1 reader

Indicator lights: Power supply, Signal, Protection, Clip

Thermal protection, overload and short circuit protection

Rackable: Brackets included

Type

Amplificateurs-mélangeurs à zones
Output power

120W
Power consumption

200W
Signal-to-noise ratio

70 dB
Alimentation

AC 230V - 50/60 Hz - DC 24V
Distorsion harmonique totale

0.1 %
Bande passante

80 Hz – 16 000 Hz (± 3 dB)
Protection et refroidissement

Ventilateur, Protection thermique, surcharge et court-circuit
Entrées / Sensibilité

MIC : 2,5 m V - Canal 1 à 4 LINE : 250m V - Canal 1 à 2 EMC : 250 mV
Impédance niveau de sortie

100 V (42 Ω), 70 V (21 Ω) 31 V (4 Ω)
Music On Hold : 0 dB / 600 Ω Symétrique Pré AMP OUT et LINK OUT : 0 dB / 600 Ω Asymétrique
Dimensions (W × D × H)

418 x 318 x 88 mm
Egaliseur graphique

125 Hz, 250 Hz, 500 Hz, 1 kHz, 2 kHz, 4 kHz, 8 kHz
