Mixing amplifier 60W bluetooth

Reference : AME-60-6
SKU : 02629
EAN13 : 3701567910098

60W mixing amplifier with integrated FM TUNER, MP3, USB, SD and Bluetooth audio source module

Power output
TUNER
BLUETOOTH
USB
SD
Coupure sono
Zones
Share

Description

Description :

Mixing amplifier 60W

It offers 100V, 70V and 4, 8 and 16 Ω low impedance loudspeaker outputs.

It operates on a 240 V - 50/60 Hz mains supply.

Features :

  • Volume and tone control of the 3 inputs, Master volume (front panel)
  • Gain Control, Talkower Switch and Phantom Power adjustment (rear panel)
  • 1 Mini JACK 3.5 for input 3 (front panel)
  • 1 balanced XLR input for input 1
  • 1 balanced JACK input and 2 RCA for inputs 2 and 3
  • 1 Tele-paging and Mute output on Euroblock terminal board
  • 1 Music on Hold output on Euroblock terminal block
  • 1 Loudspeaker output on Euroblock terminal block

Audio source module :

  • FM TUNER player offers up to 16 radio stations
  • USB, SD reader can read MP3 or WMA files via USB memory stick or SD card (storage capacity 128Mb - max. 16Gb)
  • Built-in Bluetooth module (TUB-3), audio streaming from smartphone, tablet, PC or any other Bluetooth-enabled device
  • Multilingual settings
  • Indicators : Power, Signal, Protection
  • Thermal protection, overload and short-circuit protection

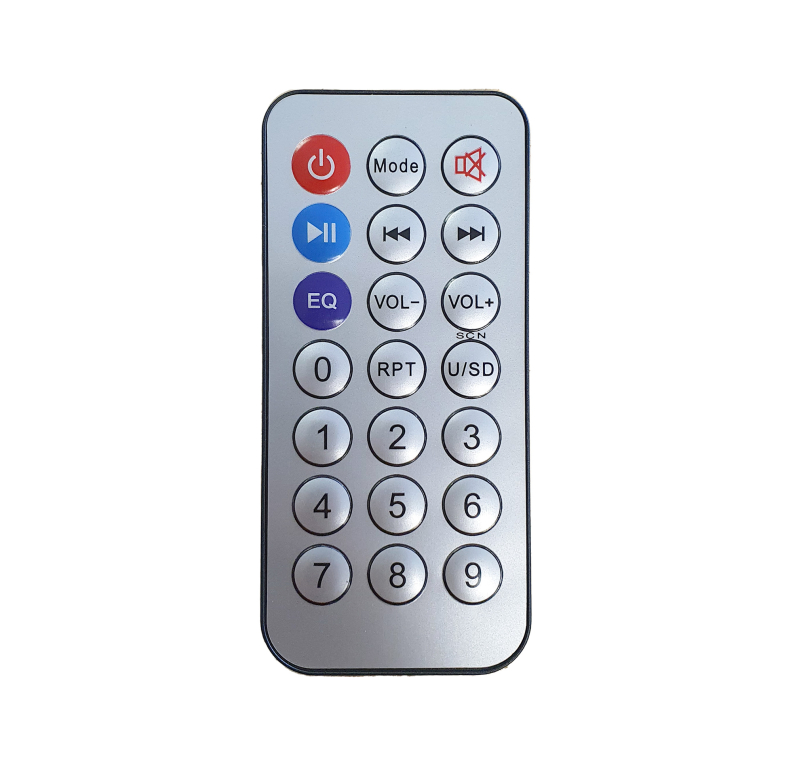

  • infrared remote control
SPECIFICATIONS

AME-60-6
Type

Mixing amplifier 60W

Integrated sources

MP3 / USB / SD / TUNER / BLUETOOTH

Power supply

AC 110V / 240V – 50 / 60 Hz

Speaker output

70 and 100V, 4, 8 and 16 Ω

Inputs/Sensitivity

Input: 0 dB / 20 kΩ balanced

Link: 0 dB / 20 kΩ balanced

Frequency Response

80 Hz – 16 000 Hz

Signal to Noise Ratio

70 dB

Consumption

100 W

Total harmonic distortion

<0,5%

Protection and cooling

Fan, Thermal protection, overload and short-circuit
Dimensions (W x D x H)

418 x 402 x 88 mm
Weight

8,2 kg

Product Details

  • Brand
  • Reference
    AME-60-6
  • SKU
    02629
  • EAN13
    3701567910098
