6-Zone Preamplifier Amp with Tuner, USB and Bluetooth audio sources

Reference : AME-240-6
SKU : 02631
EAN13 : 3701567910180

240W preamplifier amplifiers

6 zones

100V Line

Multimedia player

Power output
Sources Audio
Coupure sono
Zones
Share

Description

Product sheet in PDF format

Description:

These mixer amplifiers are available in three power ratings: 120W, 240W, and 500W.

7 audio inputs available.

They offer 100V speaker outputs as well as 4, 8 and 16 Ω low impedance outputs.

It operates on 230 V – 50/60 Hz mains power.

They are equipped with a Bluetooth reader module / RDS tuner / USB / SD.

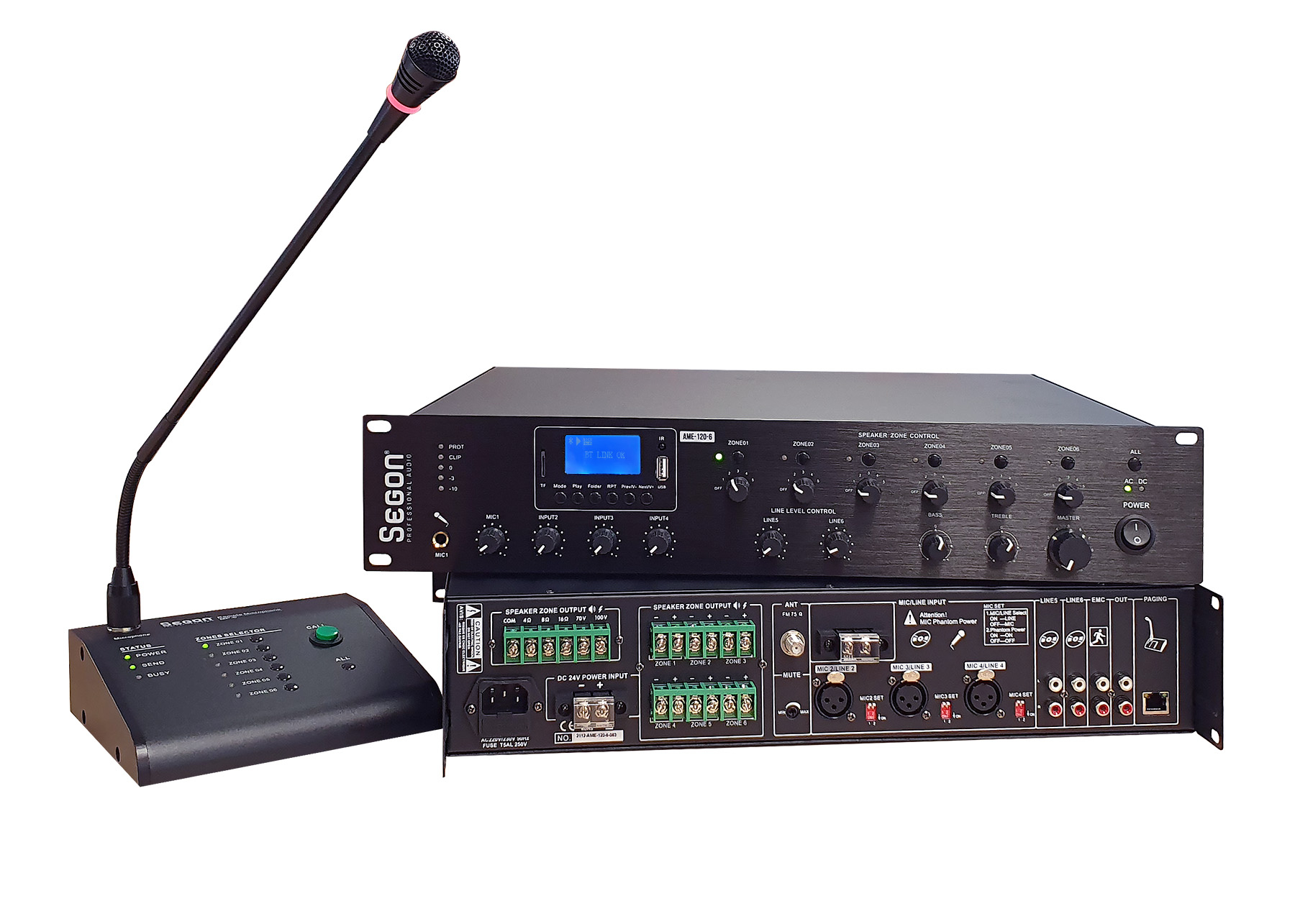

The MP-6 microphone console is compatible with this series of amplifiers for remote calling and control.

Features:

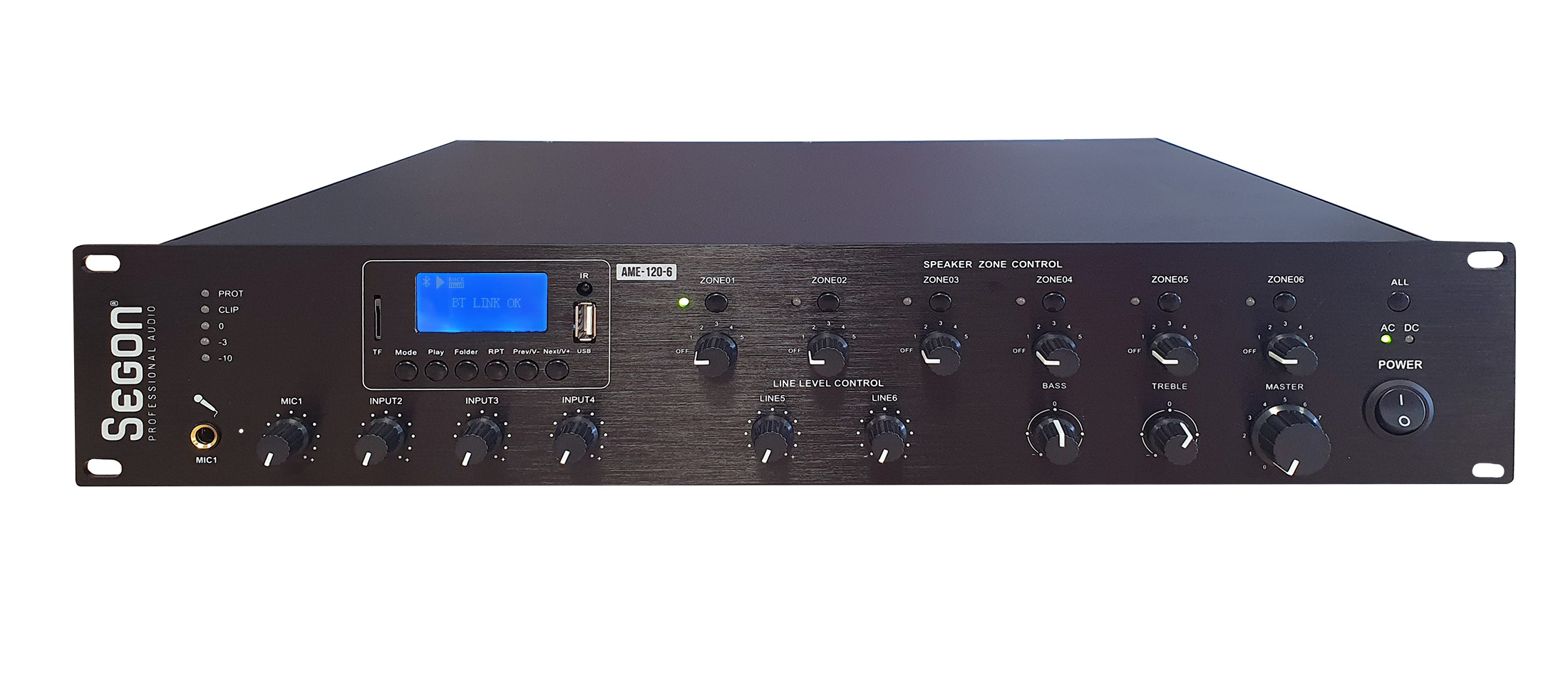

Master volume, Volume of the 6 inputs
1 AUX input 3.5 mini jack for input 6 (front panel)
1 MIC input jack for input 1 (front panel)
Gain control adjustment for all inputs
Talkower switch for inputs 1 and 2

Multimedia module

FM TUNER player with RDS function that can store up to 16 radio stations

USB and SD card reader - max. 16 GB, FAT32 - plays MP3 or WMA files via USB stick or SD card

Bluetooth 2.1 reader

Indicator lights: Power supply, Signal, Protection, Clip

Thermal protection, overload and short circuit protection

Rackable: Brackets included

FEATURES American Medical Equipment American Medical Equipment 240-6 American Medical Equipment 500-6
Type

Preamplifier amplifiers with audio sources: Tuner, MP3, USB, SD, Bluetooth
Food AC 230 V / 50 - 60 Hz
Output power 120 W 240 W 500

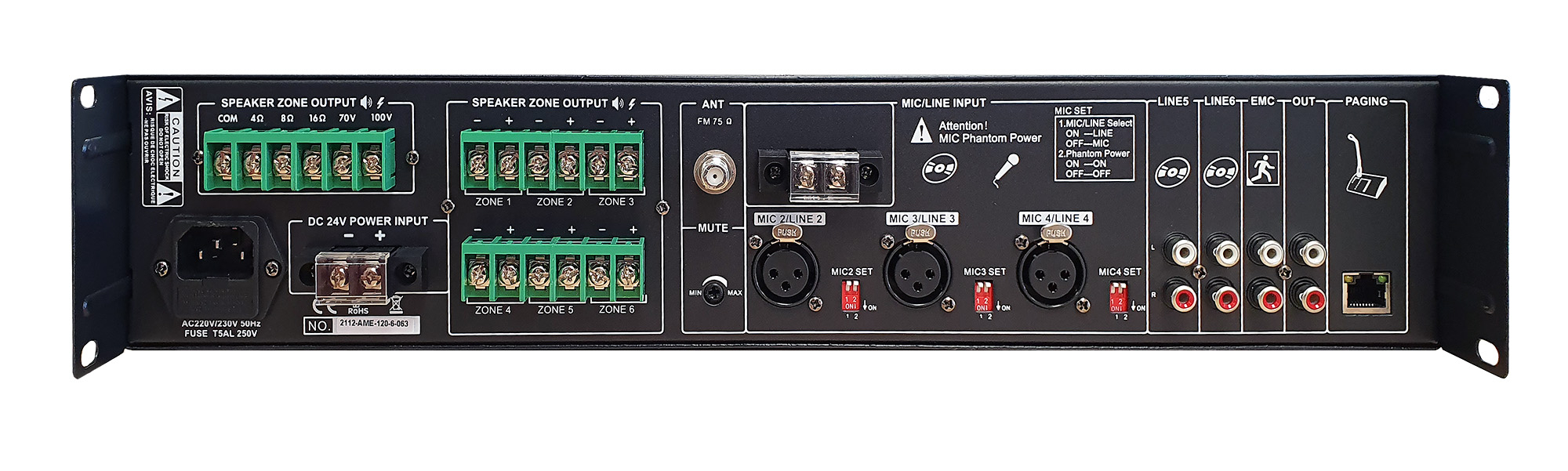

HP outputs

low impedance 4, 8 and 16Ω

70 and 100 volts online
Inputs / Sensitivity

MIC: -50 dB to -6 dB / 20 kΩ balanced / channels 1 to 3

LINE: -30 dB to 14 dB / 20 kΩ unbalanced / channels 4 to 6

RJ-45: 0 dB / 20 kΩ balanced

Tele-paging: -17 dB / 600 Ω balanced

AMP IN LINK IN: 0 dB / 10 kΩ unbalanced
Output level / impedance

Music on hold: 0 dB / 600 Ω balanced

Pre AMP OUT and LINK OUT: 0 dB / 600 Ω unbalanced
Total harmonic distortion

0,1 %
bandwidth

80 Hz - 16,000 Hz
signal-to-noise ratio

greater than 81 dB
Graphic equaliser (+12dB)

125 Hz, 250 Hz, 500 Hz, 1 kHz, 2 kHz, 4 kHz, 8 kHz
Display

Power indicator

Loop power VU meter

compression gauge
Dimensions (W x D x H)

418 x 402 x 88 mm
Weight 9,5 12

14.5 kg

Product Details

  • Brand
  • Reference
    AME-240-6
  • SKU
    02631
  • EAN13
    3701567910180
