Wireless microphone stand
3701567905452
02348
Wireless call microphone stand
Frequency: 605 to 615 Mhz
27 channels available
In Stock
Delivered within 48/72h
For professionals
To log inFor individuals
Contact usDescription :
The JS-90C is a wireless microphone call station that supports remote announcements.
Equipped with an independent receiver, the microphone station can be connected by infrared synchronisation and allows the receiver box to be moved up to 50 m away.
It can also be used as a conference system by connecting several JS-90C microphone stations (up to 8).
Settings :
- Automatic infrared "sync" function
- Frequency range: 605 - 615 MHz, 27 channels available
- (the range can be modified if necessary)
- Reception distance up to 50m
- Receiver to be connected to an amplifier input
Transmitter :

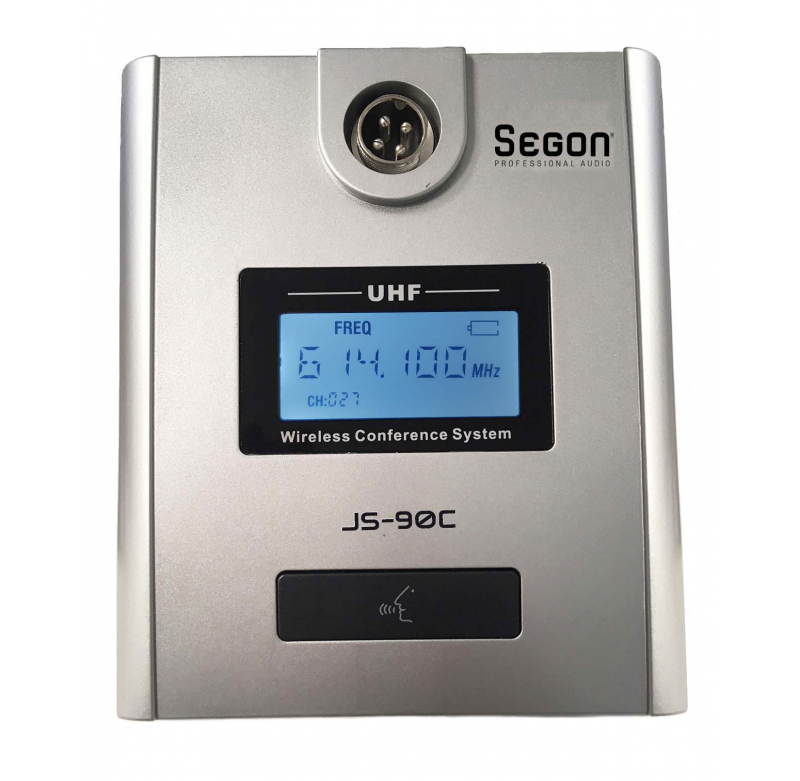

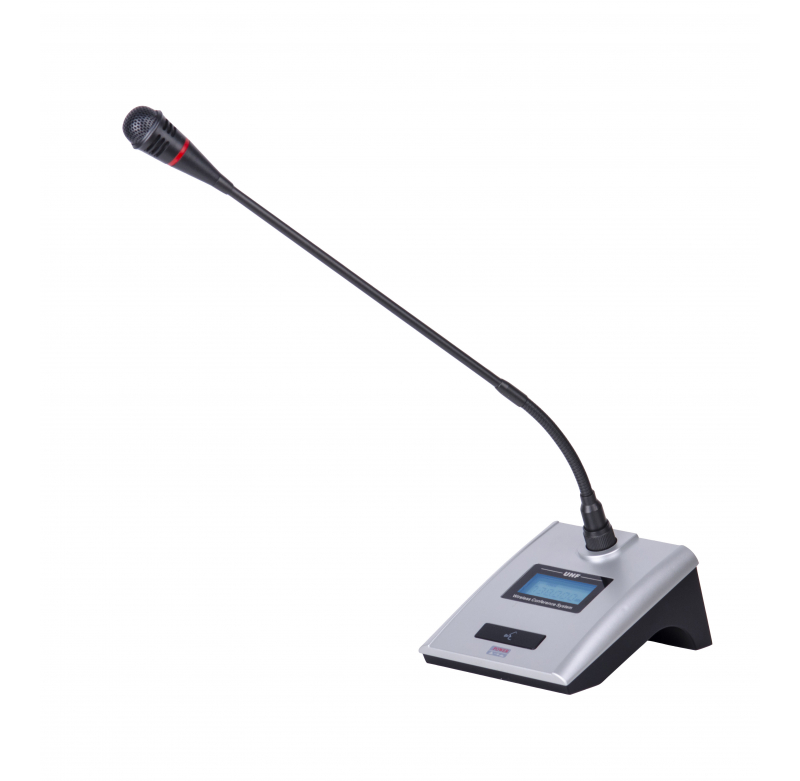

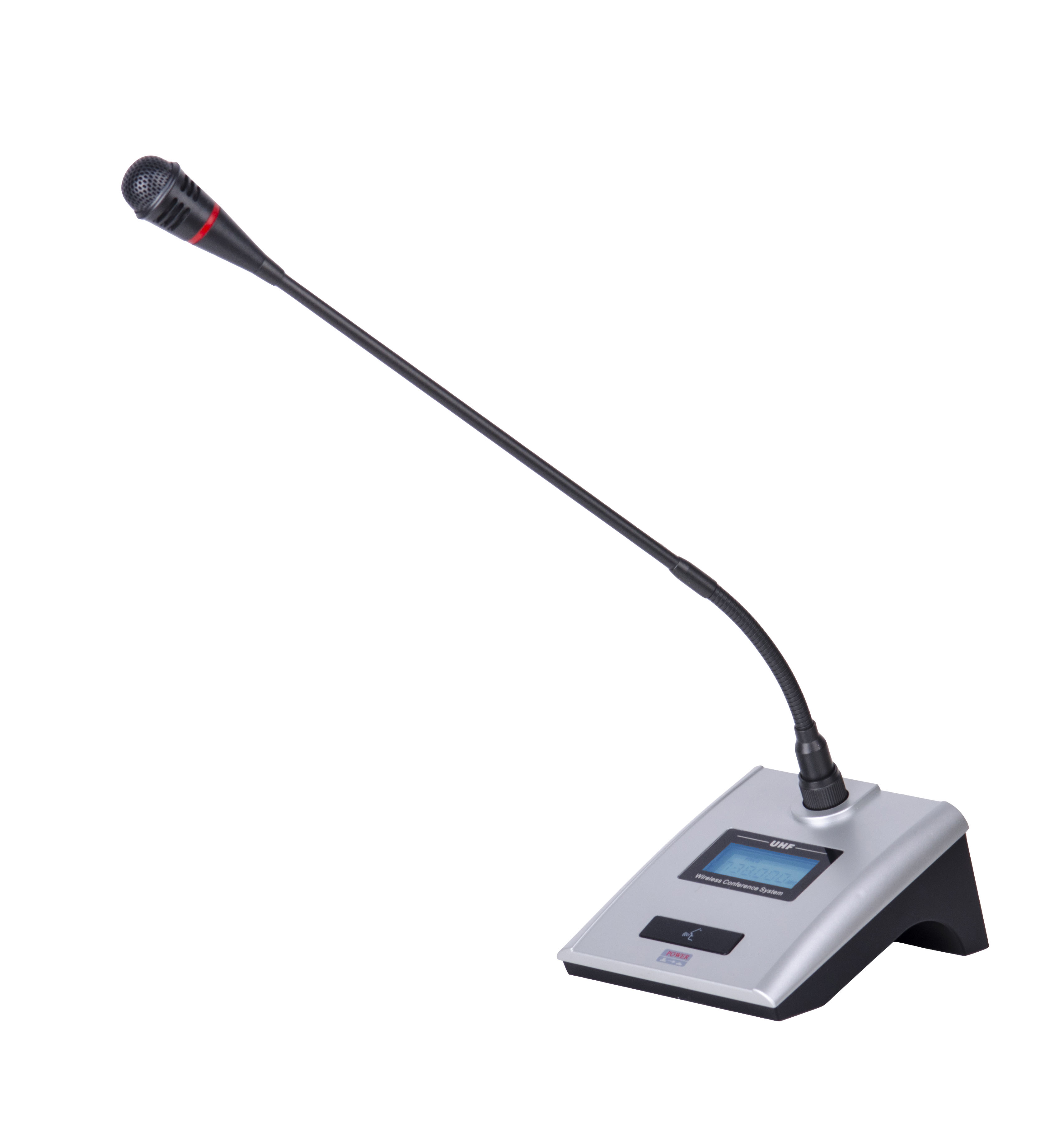

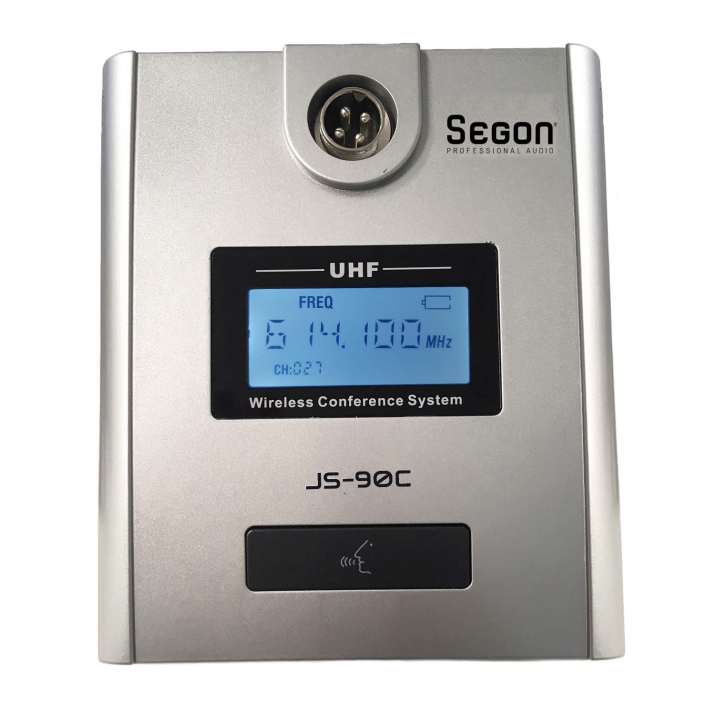

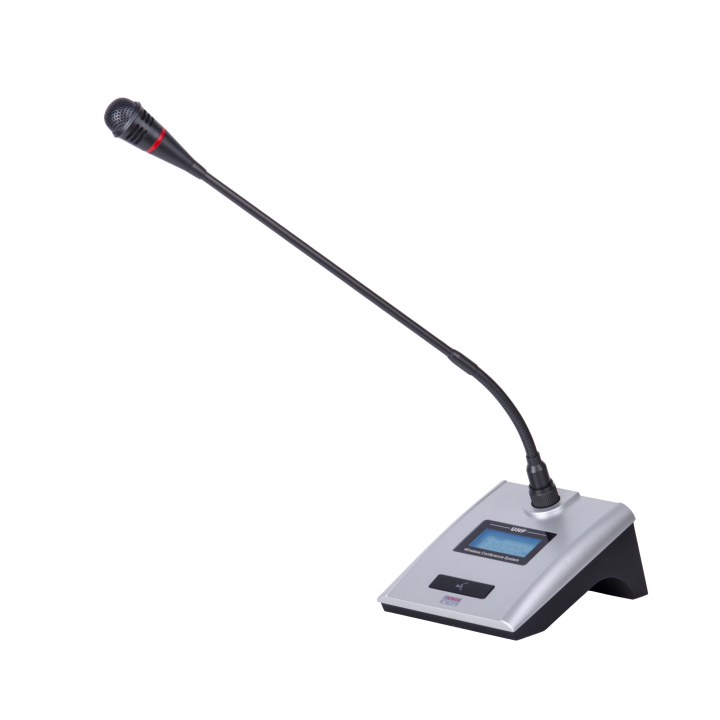

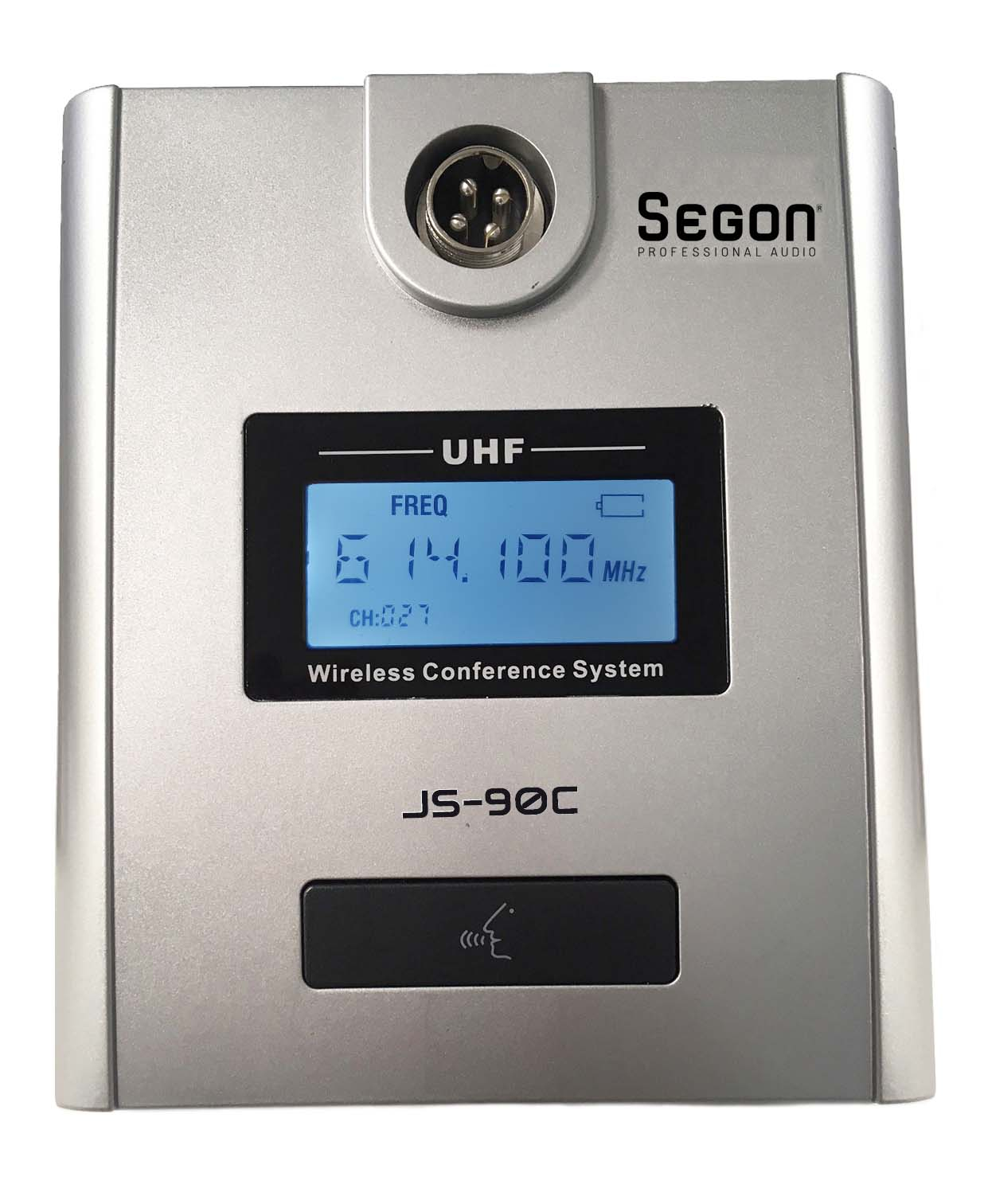

- Gooseneck case with speech button
- Frequency display on LCD screen
- Power supply batteries 2 x 1.5V AA
- Short impulse for speaking
- Long impulse for end of speech

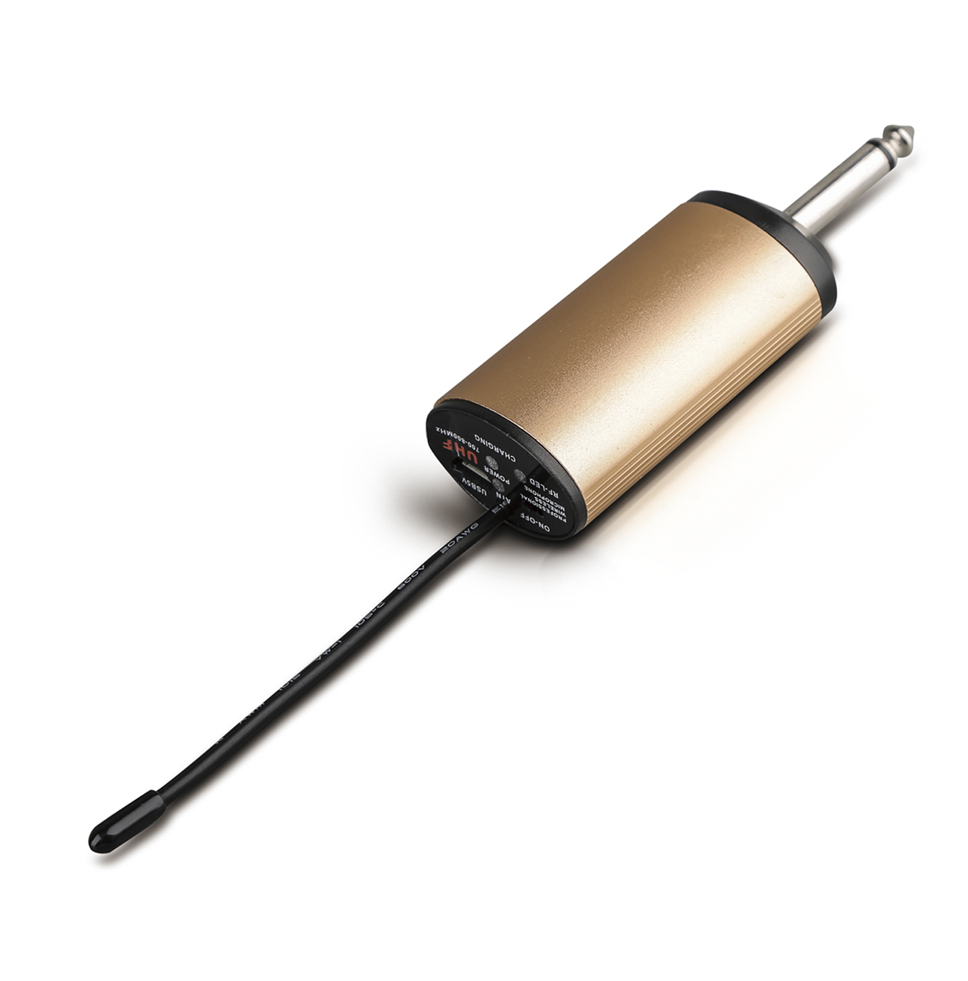

Receiver :
- Box with 6.35 mm jack, infrared antenna
- Recharging GR-USB (Li-ion Battery)
- ON/OFF switch
| SPECIFICATIONS | JS-90C |
| Type | Wireless microphone stand |
| System | PLL |
| Mode | FM |
| Frequency Response | 80 Hz – 15 000 Hz (± 3 dB) |
| Connection | Infrared |
| Total harmonic distortion | < 0,1 % |
| Transmitter | RF output: 11 Mw - Battery: 2 x 1.5 V AA |
| Receiver |
Sensitivity: 12 dBuV Sensitivity setting: 12-32 dBuV Audio input level : XLR - 0-0.5V / 600 Ω JACK - 0-0,5V / 5 K Rechargeable battery: Li-ion |
| Operating temperature | 10 °C + 40 °C |
| Dimensions (W x D x H) |
120 x 155 x 70 mm (Transmitter box) 46 mm (gooseneck) 180 x 30 mm (Receiver box) |
| Weight |
0,650 Kg (transmitter box) 0.05 kg (receiver box) |
