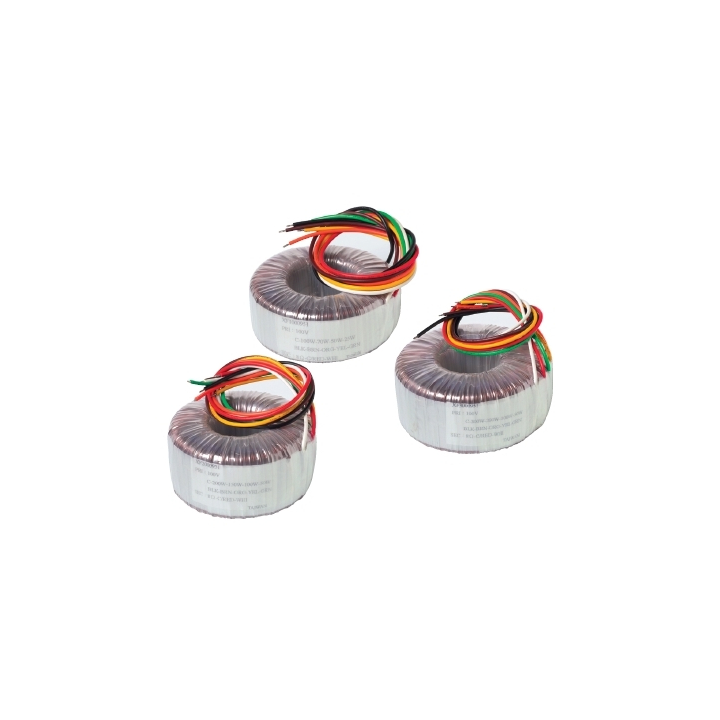

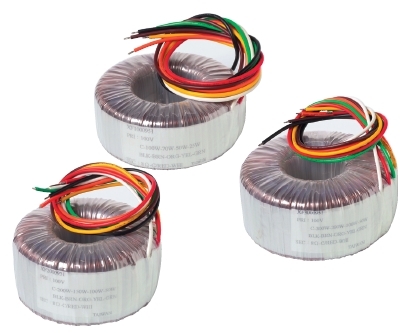

Audio torics transformers 8 Ω
Reference : TOR 100
SKU : 00190
EAN13 : 3701567901539
Audio torics transformers 8 Ω
Reference : TOR 100 - Code : 00190
Reference : TOR 300 - Code : 00192
Description
- The presence of an external 100 V line transformer is essential on an amplifier or loudspeaker which does not have one and which must be connected to the 100 Volt network.
- Each of the transformers offered here can be used for this purpose.
- Bandwidth: 42 - 20000 Hz
- Efficiency: 90%.
- Supplied with metal cup, 2 rubber washers and 1 fixing screw.
| SPECIFICATIONS | TOR 100 | TOR 300 |
| Primary Watts Impedances | 25 / 50 / 70 / 100 W - 100 V 400 / 200 / 142 / 100Ω | 50 / 100 / 200 / 300 W – 100 V 200 / 100 / 50 / 33Ω |
| Secondary | 8 Ω | 8 Ω |
| Dimensions mm | 103 x 40 x 45 | 115 x 40 x 60 |
| Weight | 1,400 kg | 2,800 kg |
Product Details
-
Brand
-
ReferenceTOR 100
-
SKU00190
-
EAN133701567901539
