Impedance meter

Name: Impedance meter
Brand: RONDSON
SKU: EM480B

Reference : EM480B

SKU : 00758

EAN13 : 3701567906923

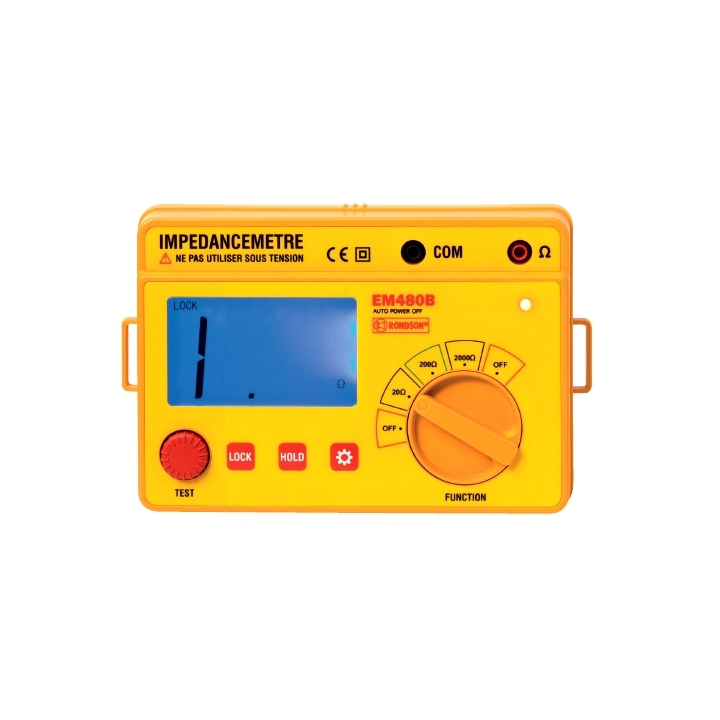

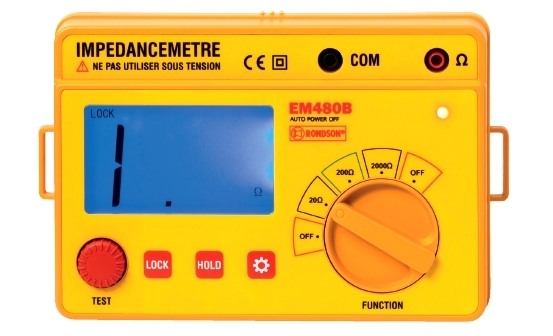

Impedance meter, measuring device for testing the impedance of loudspeakers or loudspeaker lines at 1 Khz

EM480B

Description

It has 3 test ranges 20, 200 and 2000 Hz which allows testing both home cinema and Public Address 100 Volt line.
Large backlit LCD screen
Data reading function
Hold function for data backup
Low battery indicator
Timer function (test display for 30 seconds)
Auto power off (the unit switches off after 15 minutes)

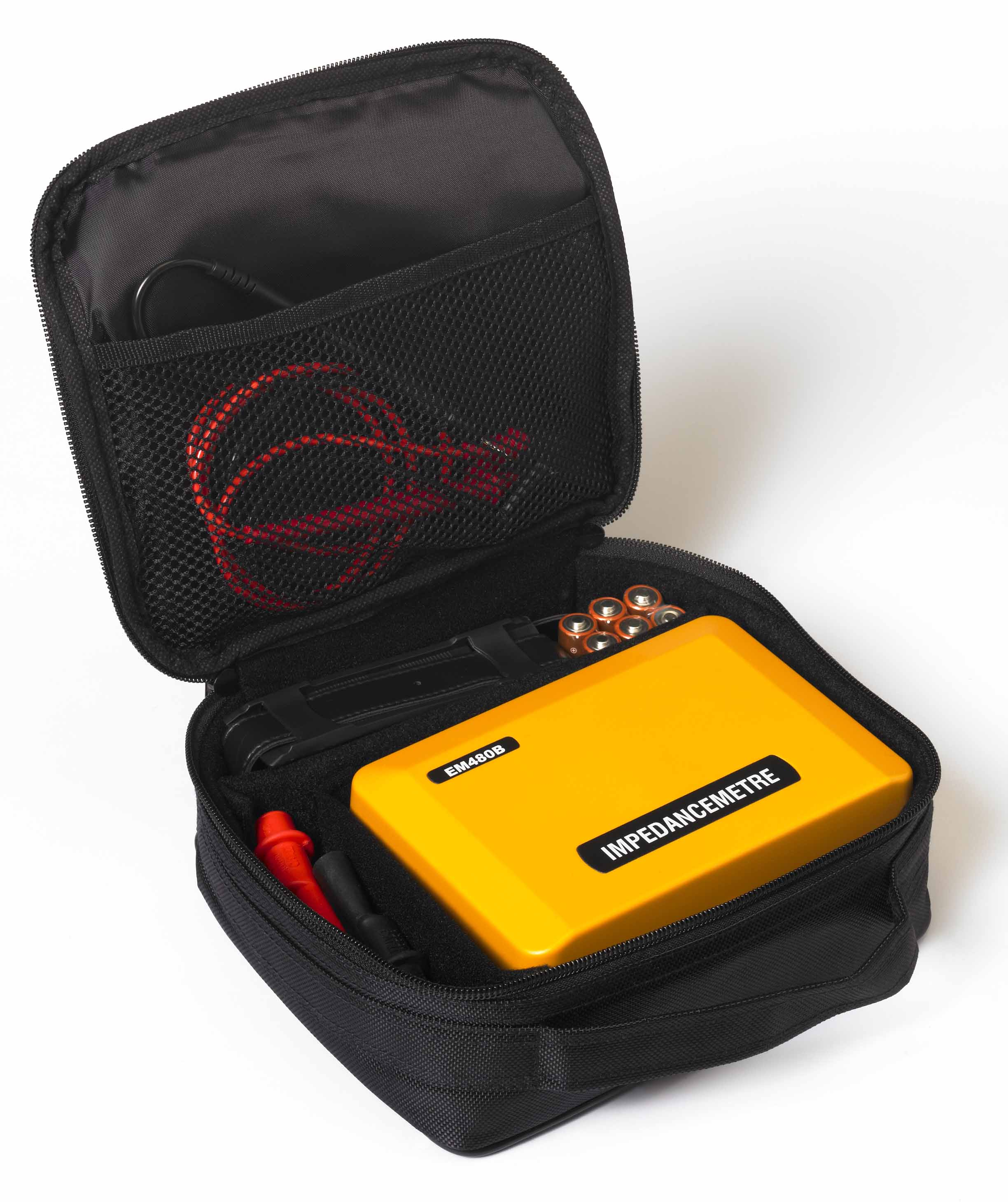

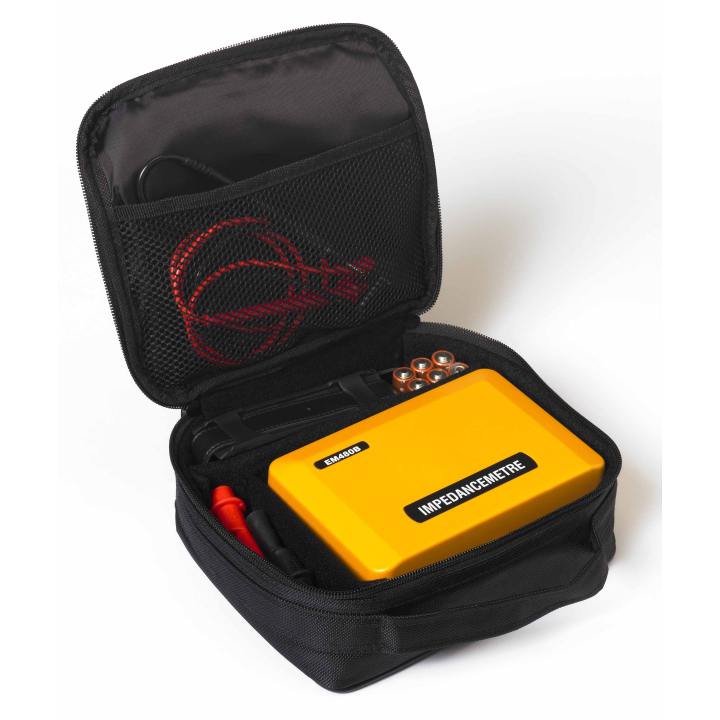

It comes with shoulder strap, carrying case with handle, measuring cord with alligator clip adapters
NOTE: Not suitable for 100V power systems below 10 Watts.

SPECIFICATION	EM480B
Type	Impedance meter
Test range	20 Ω - 200 Ω - 2 000 Ω
Resolution	10 mΩ - 100 mΩ - 1 Ω
Accuracy	± 2 %
Frequency Response	1 kHz
Power supply	Depending on the selected power (X1 / X10 / X100) between 5 mA and 50 mA
Power supply	9 V DC (6 batteries 1,5 V AA)
Dimensions (L x P x h)	168 x 110 x 62 mm
Weight	0,485 kg (with batteries)
