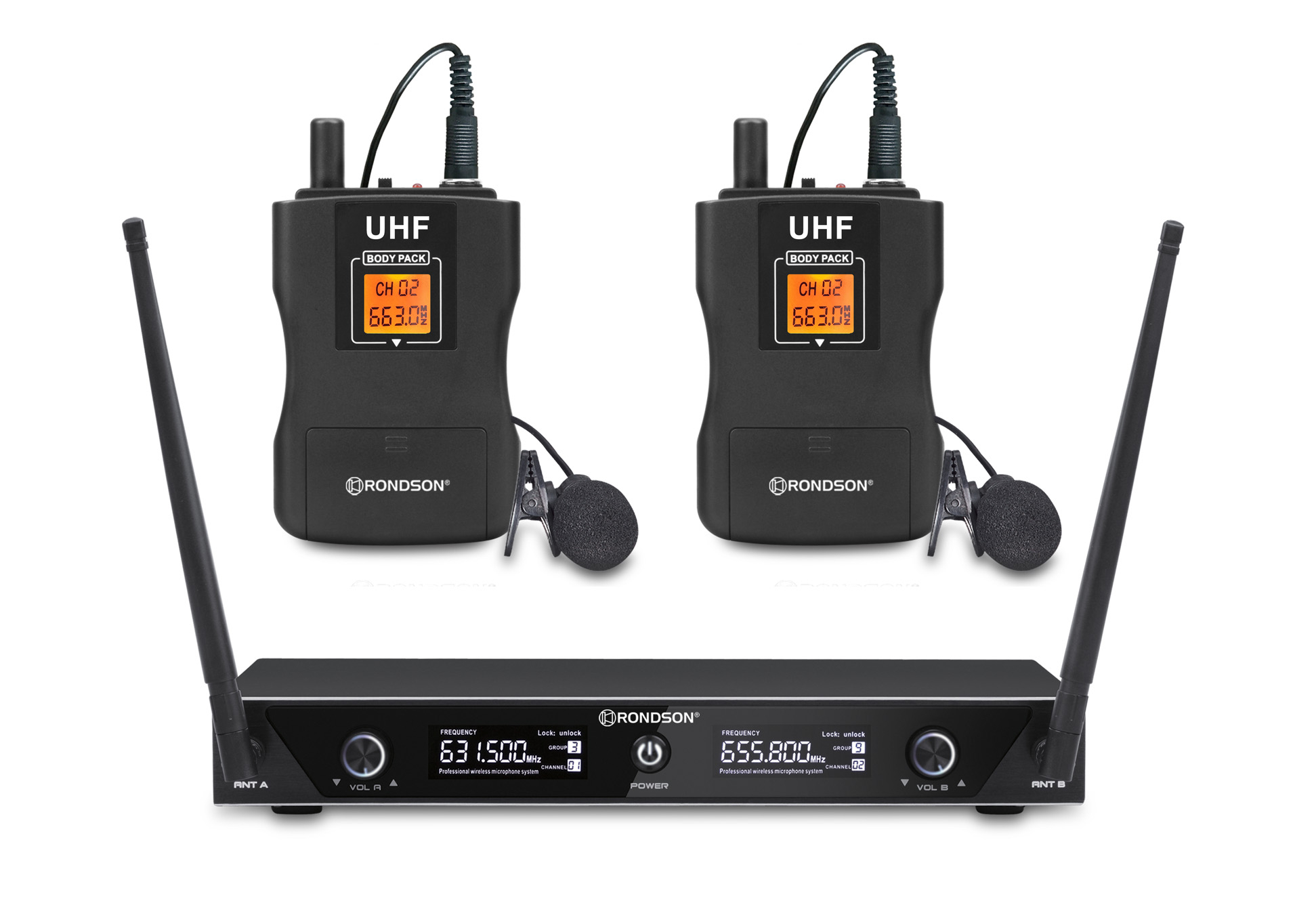

Dual UHF receiver set with 2 lapel microphones

Reference : BE-1020/2BP
SKU : 02522
EAN13 : 3701567909542

UHF Receiver Microphone Set

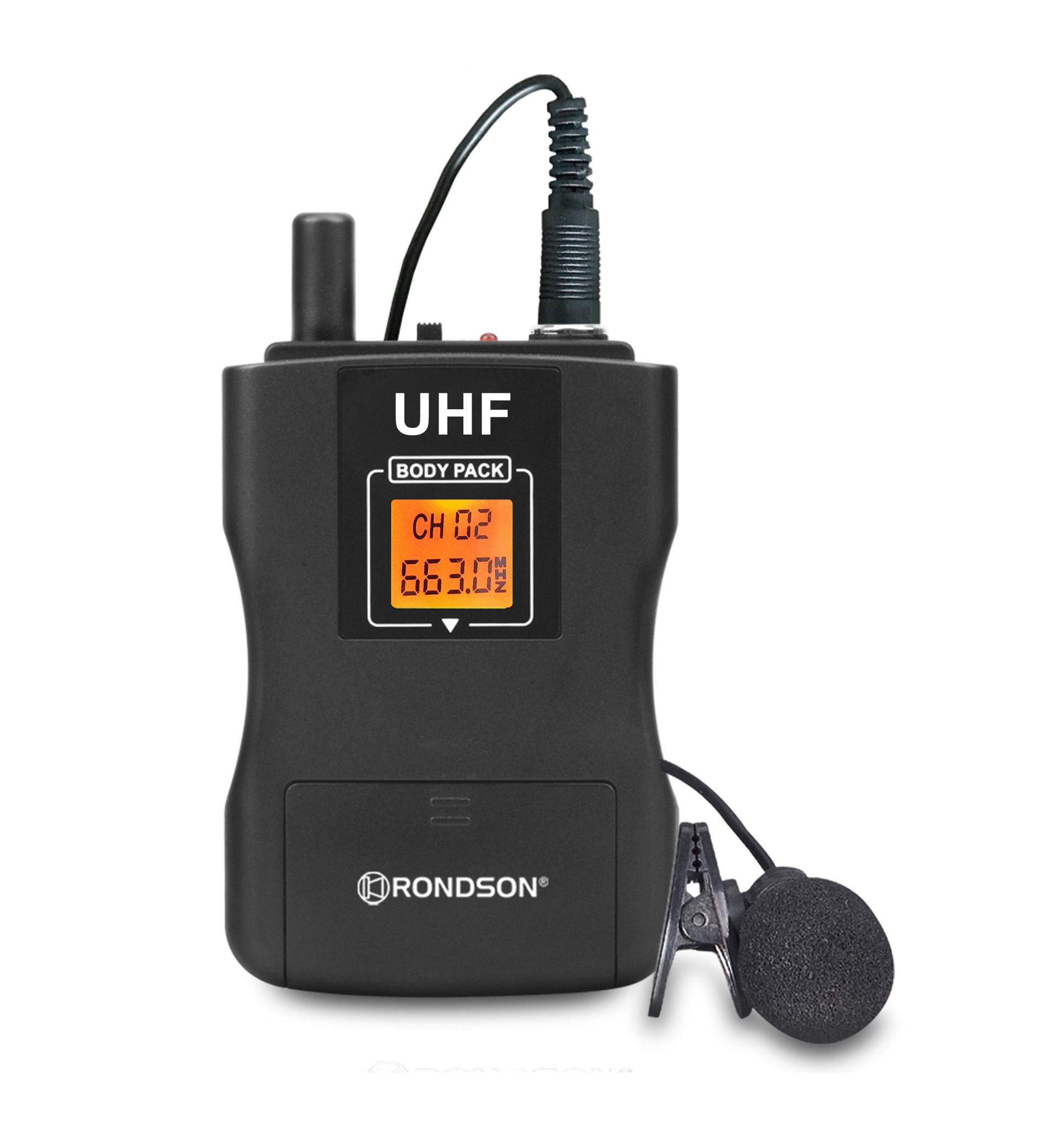

2 lavalier microphones and 2 head-worn microphones

4 sets available with 2 fixed frequency ranges

10 mW

Fréquences Mhz
Canaux
Type de Micro
Share

Description

  • Dual channel UHF receiver equipped with selectable PLL synthesised receiver modules
  • Automatic reception system
  • Anti-interference system for simultaneous operation of several units
  • Reception distance of 50 metres
  • Transmitter power: 10 mW
  • Function display on LCD screen
  • Infrared "sync" function to transmit the frequency to the transmitters.
  • Ideal for professional vocal or audio applications, speeches, animations, etc.
  • 1 jack cord (mix output) and 2 XLR cords

Product Details

  • Brand
  • Reference
    BE-1020/2BP
  • SKU
    02522
  • EAN13
    3701567909542

Data sheet

  • Output impedance
    600 Ω
  • Power consumption
    5 W
  • Reception method
    Récepteur double UHF 2 canaux
  • System
    Synthétisé PLL
  • Frequency stability
    ± 10 ppm
  • Image rejection ratio
    50 dB
  • Signal-to-noise ratio
    90 dB
  • Audio output level
    400 mV, Symétrique/Asymétrique
  • Prises d’antenne
    2 x BNC
  • Alimentation
    DC 12V - 700 mA
  • Affichage
    LCD
  • Distorsion harmonique totale
    0,5 %
  • Bande passante
    50 - 15 000 Hz

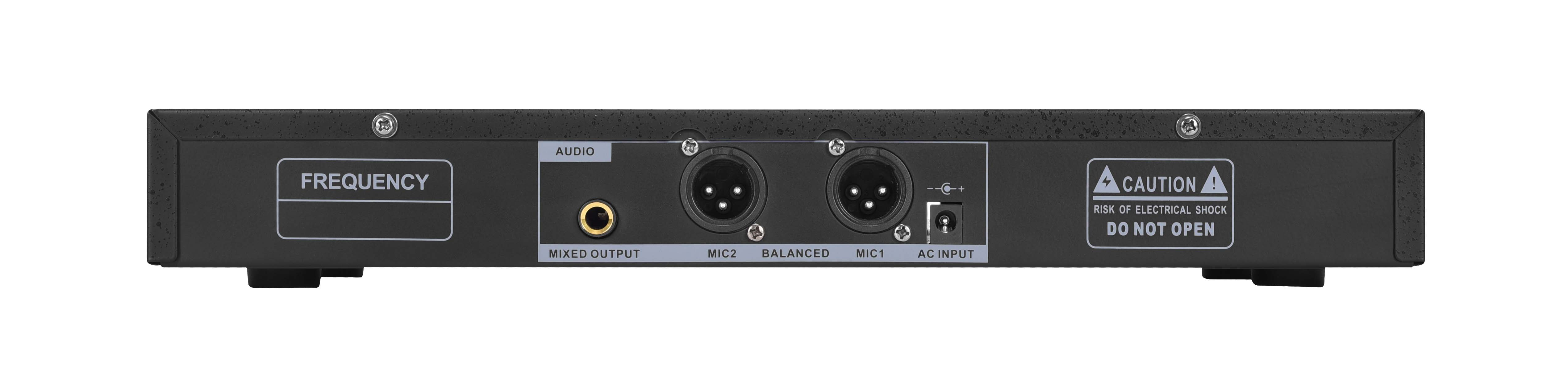

  • Prises sortie audio
    2 XLR symétrique, 1 Jack asymétrique
  • Sensibilité
    -90 dBuV
  • Batteries or rechargeable batteries
    2 x AA / 1,5 V (non livrées)
  • Dimensions (W × D × H)
    350 x 175 x 46 mm (non rackable)
  • Weight
    2,75 Kg (récepteur + micro main)
  • Boîtier micro cravate / Micro main
    BE-1020BP / BE-1020MIC
