Dual HF microphones with independent Bluetooth receiver

Name: Dual HF microphones with independent Bluetooth receiver
Brand: LONE AUDIO
SKU: LA-MICDUO

Reference : LA-MICDUO

SKU : 02725

EAN13 : 3701567911897

Wireless Bluetooth microphone kit :
Dual HF microphones with independent Bluetooth receiver
Frequency: 640 to 690 MHz
50 channels available

LA-MICDUO

Download (1.18MB)

Description

DATA SHEET IN PDF

Description :

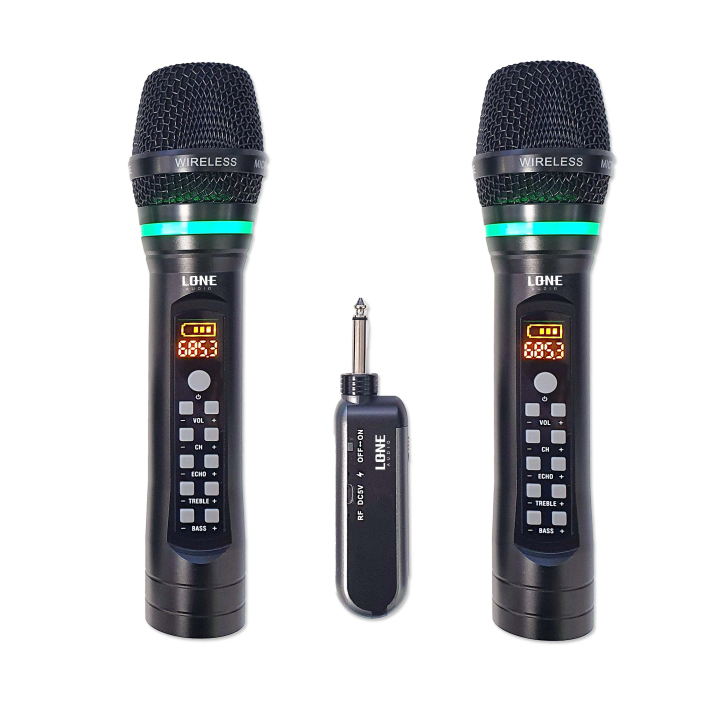

The LA-MICDUO dual wireless microphone is ideal for speaking on the move.
Fitted with an independent receiver, the 2 hand-held microphones connect via infrared synchronisation, allowing the user to move up to 60 m away.

Settings :

Automatic infrared "sync" function
Frequency range: 640 - 690 MHz
Reception distance up to 60m

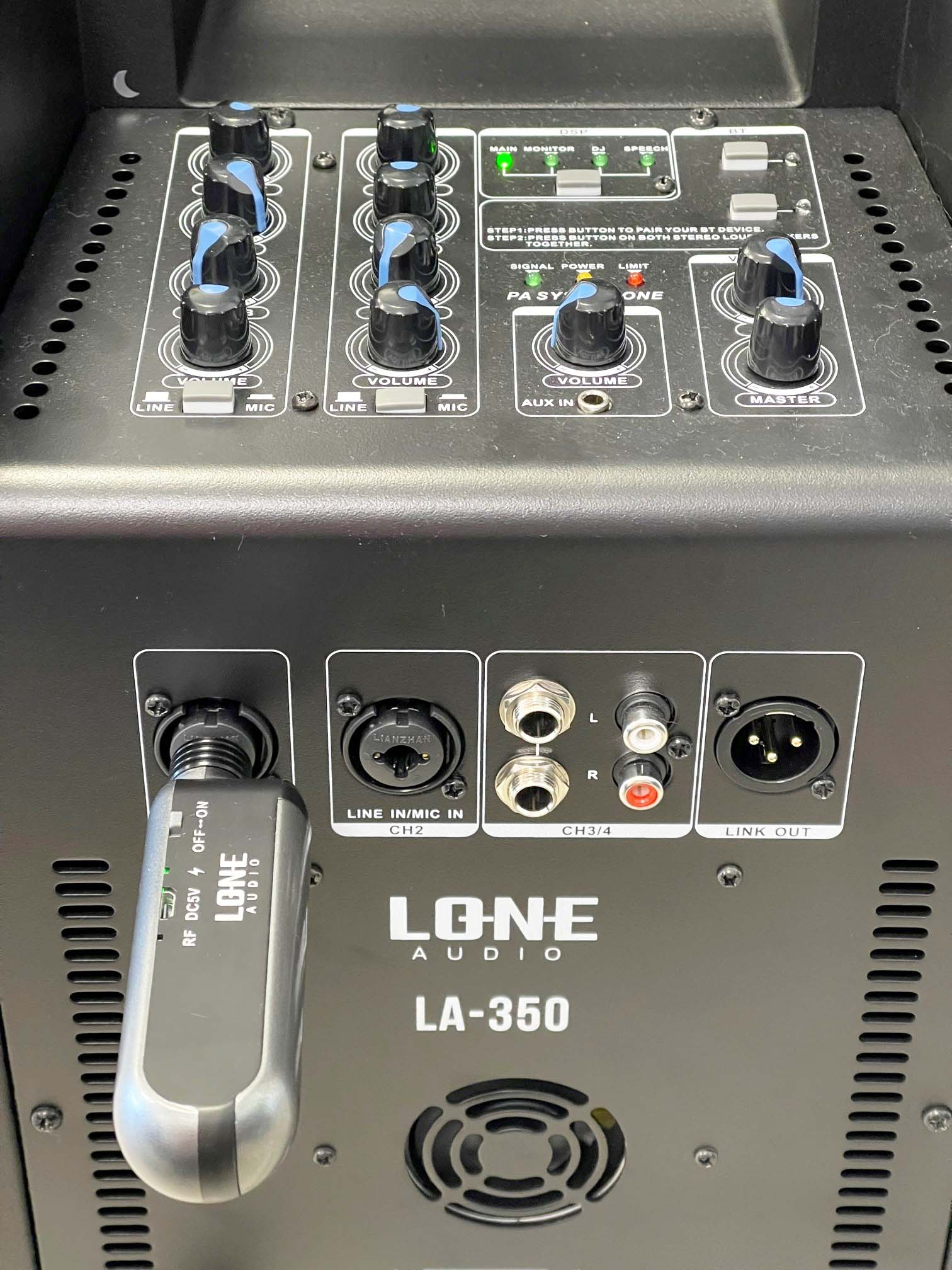

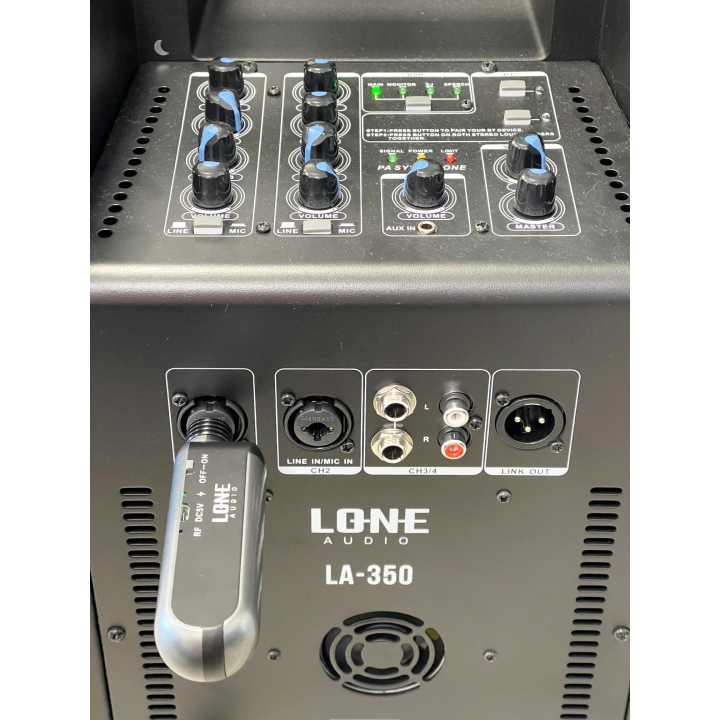

Receiver to be connected to the input of an amplifier, amplified loudspeaker or portable PA system

Transmitter :

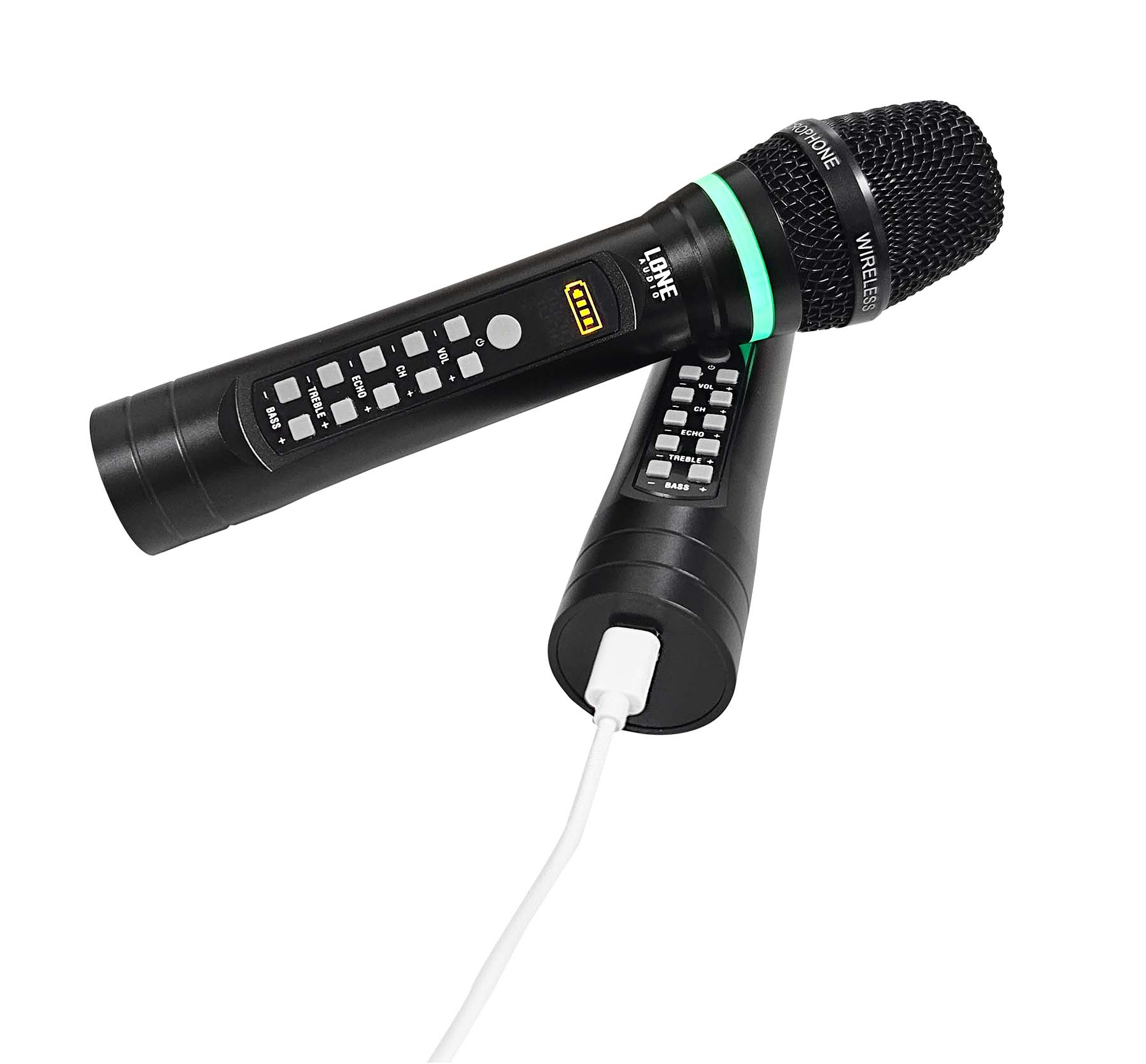

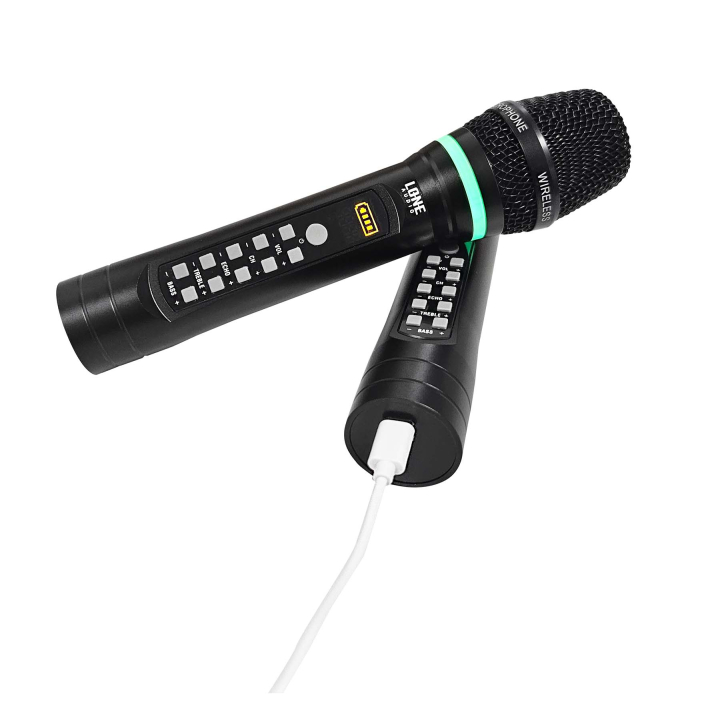

Handheld microphones with front panel controls (channels, volume, echo, treble, bass)
Frequency displayed on LCD screen
DC 5V lithium battery power supply
Short pulse for speaking
Long pulse for end of speech

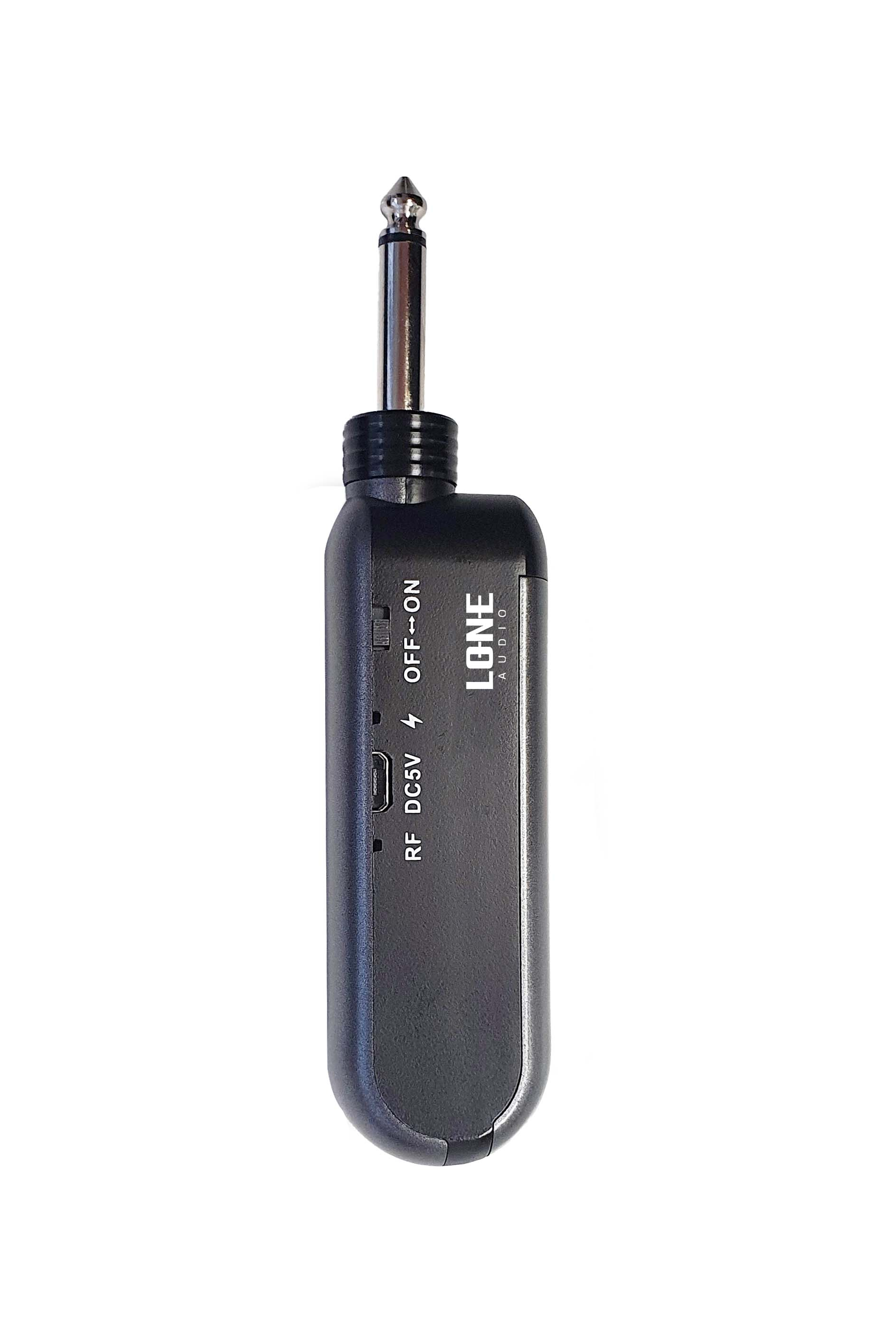

Receiver :

Box with 6.35 mm jack, infrared antenna
Recharging GR-USB (Li-ion Battery)
ON/OFF switch
DC5V power supply

SPECIFICATIONS	LA-MICDUO
Type	Dual HF microphones with independent Bluetooth receiver
System	PLL
Mode	FM
Frequency Response	50 Hz – 15 000 Hz (± 3 dB)
Connection	Infrared
Total harmonic distortion	< 0,3 %
Transmitter	DC5V power supplyA
Receiver	Sensitivity: 12 dBuV Sensitivity setting: 12-32 dBuV Audio input level : XLR - 0-0.5V / 600 Ω JACK - 0-0,5V / 5 K Rechargeable battery: Li-ion
Operating temperature	10 °C + 55 °C
Dimensions (W x D x H)	50 x 50 x 215 mm (Transmitter box) 125 x 30 mm (Receiver box)
Weight	0,650 Kg (transmitter box) 0.15 kg (receiver box)
