Dual UHF receiver set with 1 handheld and 1 lapel microphone

Name: Dual UHF receiver set with 1 handheld and 1 lapel microphone
Brand: RONDSON
SKU: BE-1020/MIC/BP

Reference : BE-1020/MIC/BP

SKU : 02523

EAN13 : 3701567909535

There are 4 fixed frequency ranges available :

1°) 655 and 669 MHz

2°) 663 and 676.6 MHz

3°) 658.1 and 670.4 MHz

4°) 664.1 and 687.1 MHz

Fréquences Mhz

- 655 - 669 MHz

- 663 - 676.6 MHz

- 658.1 - 670.4 MHz

- 664.1 - 687.1 MHz

Canaux

Type de Micro

BE-1020 et BE-1040

BE-1020/MIC/BP

Description

Professional quality dual UHF microphone set!

Dual channel UHF receiver equipped with selectable PLL synthesised receiver modules
Automatic reception system
Anti-interference system for simultaneous operation of several units
Reception distance of 50 metres
Transmitter power: 10 mW
Function display on LCD screen
Infrared "sync" function to transmit the frequency to the transmitters.
Ideal for professional vocal or audio applications, speeches, animations, etc.
1 jack cord (mix output) and 2 XLR cords

SPECIFCATIONS	BE-1020
Reception method	2 Channel
System	Synthesized PLL
Frequency stability	± 10 ppm
Image interferes rate	> 50 dB
Signal-to-noise ratio	> 90 dB
Sensitivity	- 90 dBuV
Harmonic distortion	< 0,5 %
Frequency Response	50 – 15 000 Hz
Output impedance	600 Ω
Audio output level	- 400 mV, symmetrical/asymmetrical
Display	LCD

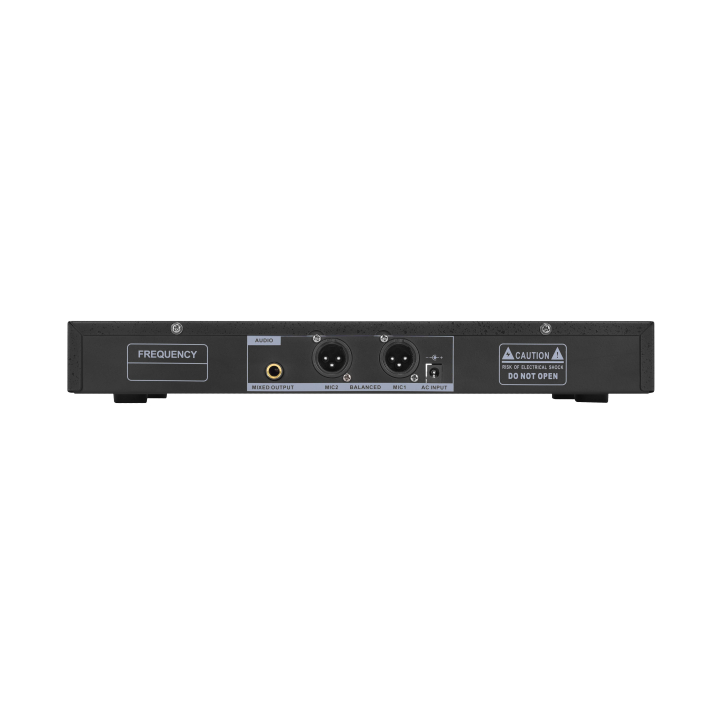

Audio output jack	2 XLR symmetrical, 1 jack asymmetrical
Antenna sockets	2 x BNC in front panel
Power supply	DC 12V - 700 mA
Dimensions (W x D x H)	350 x 175 x 46 mm (not rackable)
Weight	2,75 Kg
Consumption	< 5 W

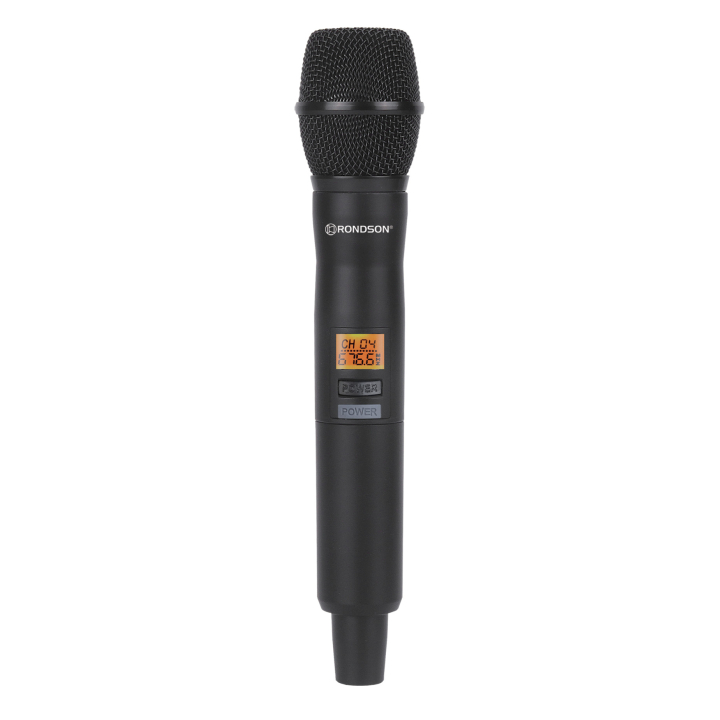

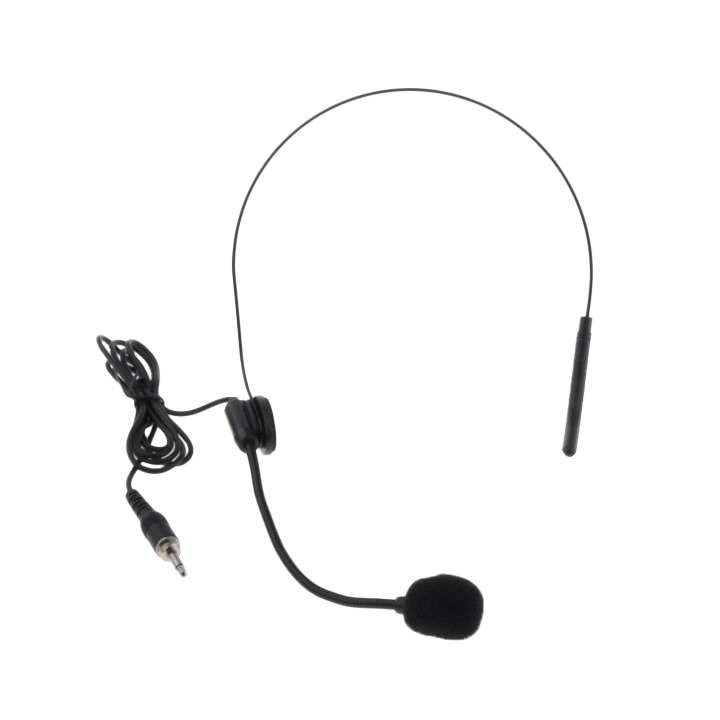

Lapel microphone Hand Microphone	BE-1020BP BE-1020MIC
Batteries	2 x AA / 1,5 V (not delivered)
