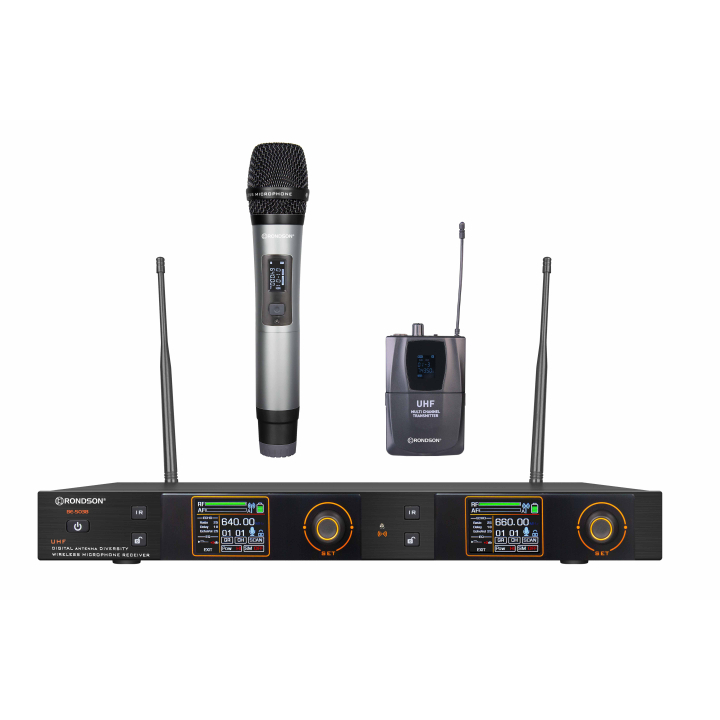

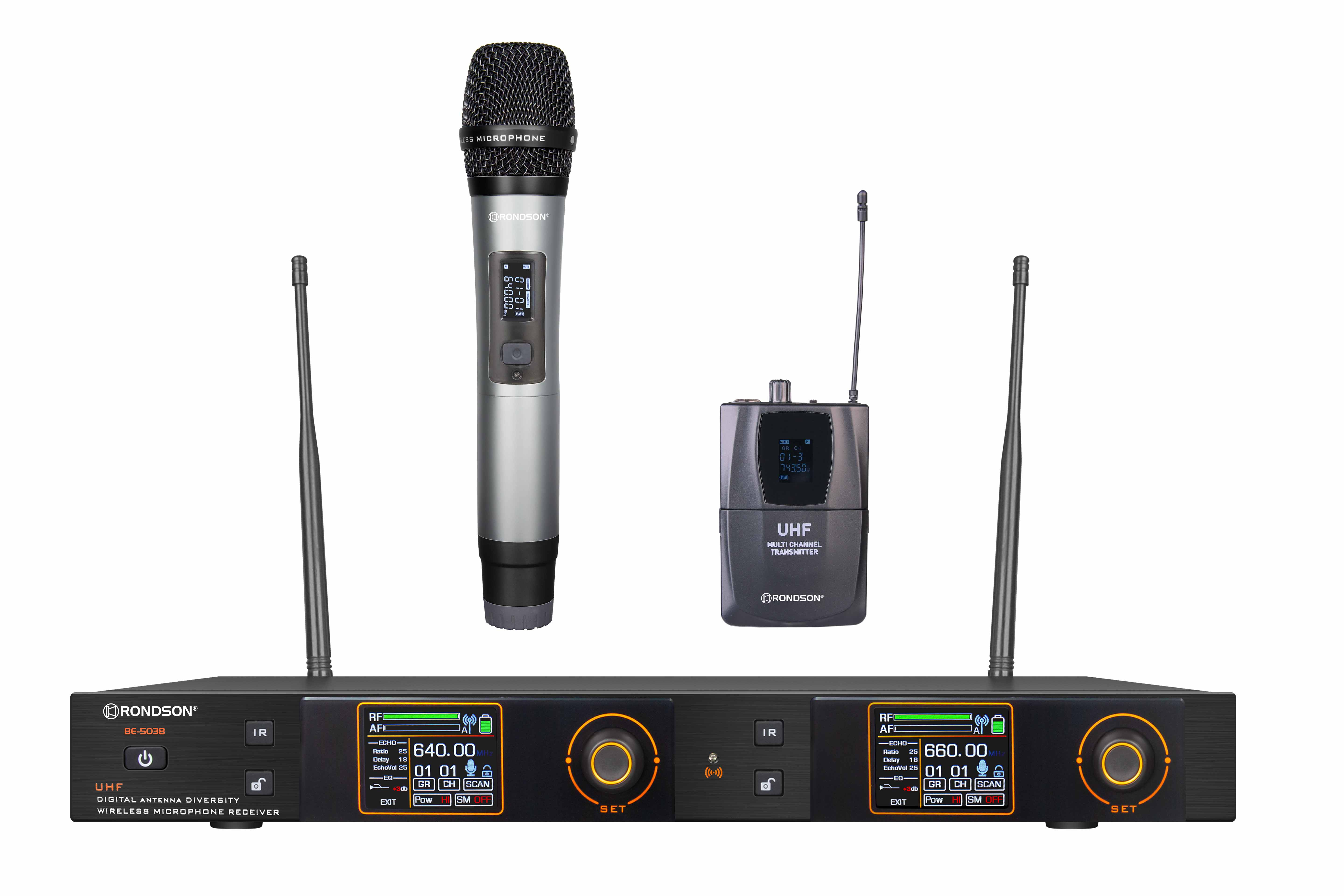

Double UHF set with 1 hand microphone and 1 lapel microphone

Reference : BE-5038/H-83/PT-10
SKU : 02155
EAN13 : 3701567909276

TRUE DIVERSITY UHF Receiver Microphone Set

Handheld microphone and lavalier microphone

660 to 690 MHz – 20 selectable frequencies

30 mW

Canaux
Fréquences modulables
Share

Manuel d'utilisation BE-5038

Download (2.36MB)

BE-5038/H-83/PT-10

Download (2.42MB)

Description

  • Dual channel UHF receiver equipped with
  • True diversity automatic reception system
  • Anti-interference system for simultaneous operation of several units
  • Reception distance from 10 to 150 metres
  • Function display on LCD screen
  • Infrared "sync" function to transmit the frequency to the transmitters.
  • Ideal for professional vocal or audio applications
  • 1 jack cord (mix output) and 2 XLR cords
  • Brackets supplied

Product Details

  • Brand
  • Reference
    BE-5038/H-83/PT-10
  • SKU
    02155
  • EAN13
    3701567909276

Data sheet

  • System
    Synthétisé PLL
  • Output impedance
    600 Ω
  • Reception method
    True diversity 2 CANAUX
  • Frequency stability
    ± 0,005 %
  • Image rejection ratio
    + 80 dB
  • Signal-to-noise ratio
    + 105 dB à 1 KHz
  • Audio output level
    - 12 dB
  • Prises d’antenne
    2 x BNC
  • Alimentation
    DC 12-18 V 500 mA
  • Affichage
    LCD
  • Distorsion harmonique totale
    0,5 %
  • Bande passante
    30 - 20 000 Hz
  • Prises sortie audio
    XLR symétrique
  • Sensibilité
    - 107 dBm
  • Handheld microphone
    H-83
  • Batteries or rechargeable batteries
    2 x AA / 1,5 V (livrées)
  • Dimensions (W × D × H)
    482 x 190 x 44 mm (1 U)
  • Weight
    3 kg

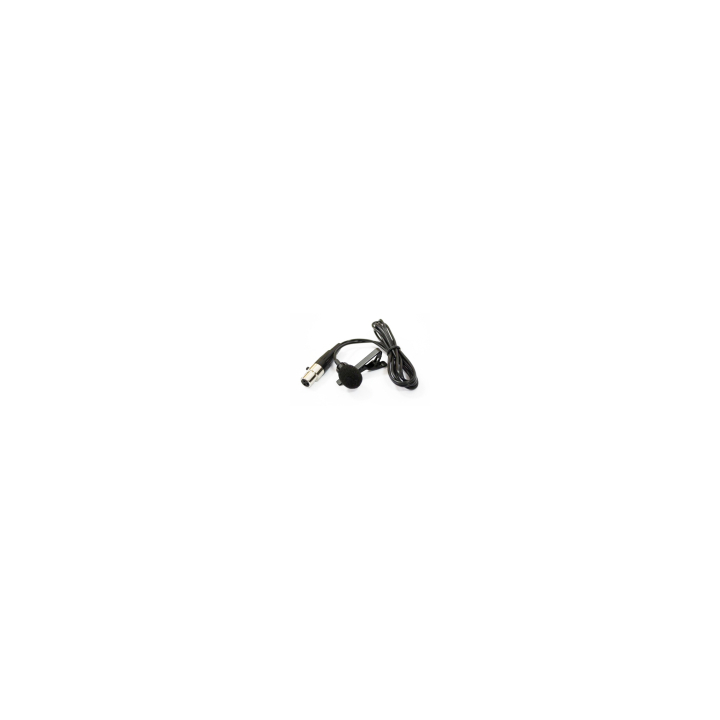

  • Boîtier émetteur + micro cravate
    PT-10/CM-506
