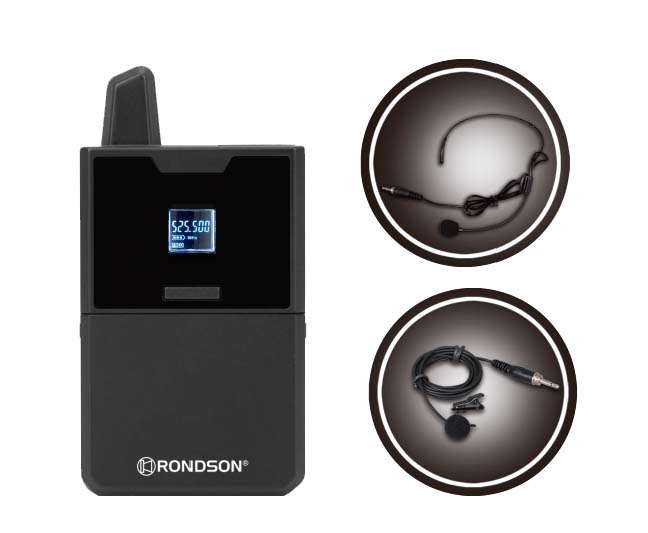

Dual UHF receiver set with 2 lapel microphones

Reference : BE-2020/2BP
SKU : 02591
EAN13 : 3701567909405

UHF Receiver Microphone Set

2 lavalier microphones and 2 head-worn microphones

500 to 700 MHz – 200 selectable frequencies

10 mW

Share

Description

Professional quality dual UHF microphone set!

  • Dual channel UHF receiver equipped with selectable PLL synthesised receiver modules
  • Automatic reception system
  • Anti-interference system for simultaneous operation of several units
  • Reception distance of 50 metres
  • Transmitter power: 10 mW
  • Function display on LCD screen
  • Infrared "sync" function to transmit the frequency to the transmitters.
  • Ideal for professional vocal or audio applications, speeches, animations, etc.

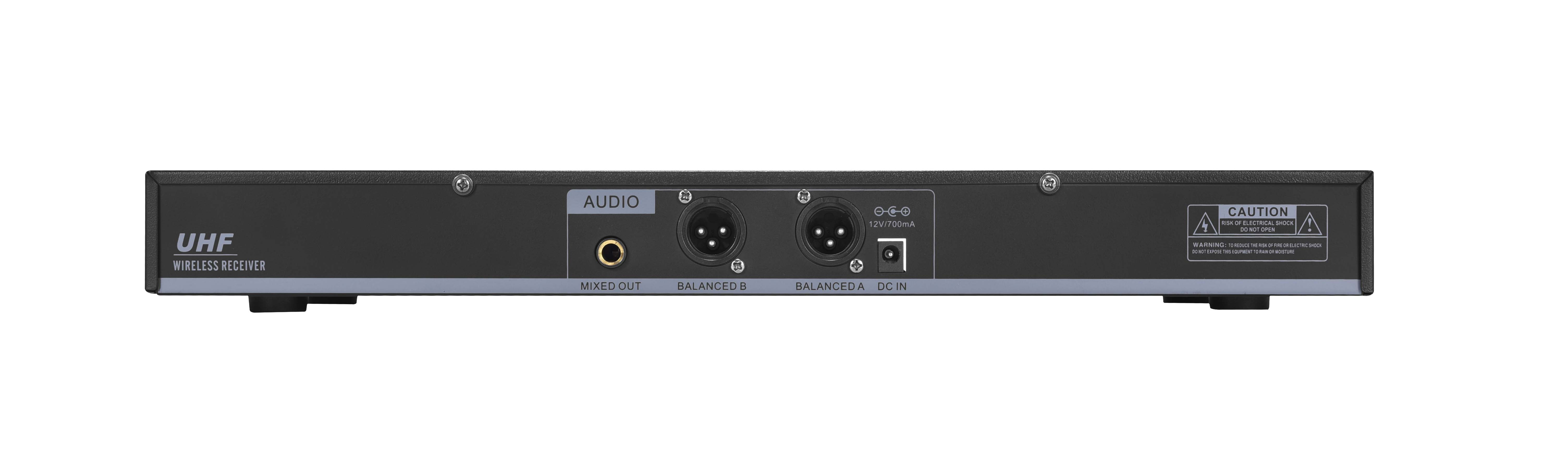

  • 1 jack cord (mix output) and 2 XLR cords

Product Details

  • Brand
  • Reference
    BE-2020/2BP
  • SKU
    02591
  • EAN13
    3701567909405

Data sheet

  • System
    Synthétisé PLL
  • Output impedance
    600 Ω
  • Power consumption
    5 W
  • Reception method
    2 canaux
  • Frequency stability
    ± 0,005 %
  • Image rejection ratio
    + 100 dB
  • Signal-to-noise ratio
    + 105 dB à 1 KHz
  • Audio output level
    - 400 mV, symétrique/asymétrique
  • Prises d’antenne
    2 x BNC en face avant
  • Alimentation
    DC 12V - 700 mA
  • Affichage
    LCD
  • Distorsion harmonique totale
    0,5 %
  • Bande passante
    60 – 18 000 Hz
  • Prises sortie audio
    2 XLR Mâles symétrique, 1 jack Femelle asymétrique
  • Sensibilité
    - 12 dBuV
  • Batteries or rechargeable batteries
    2 x AA / 1,5 V (livrées)
  • Dimensions (W × D × H)
    444 x 180 x 51 mm
  • Weight
    2,75 Kg (récepteur + micro main)
  • Microphone cravate
    BE-2020BP
