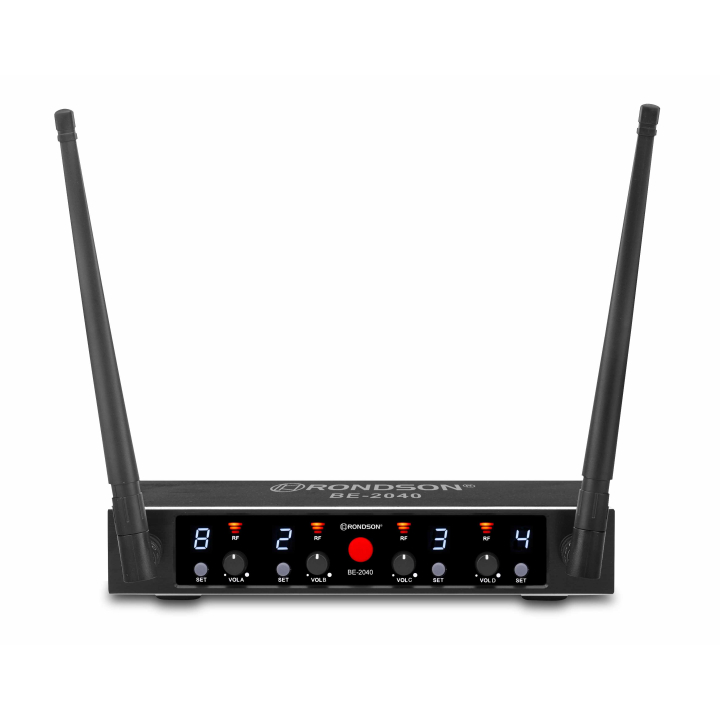

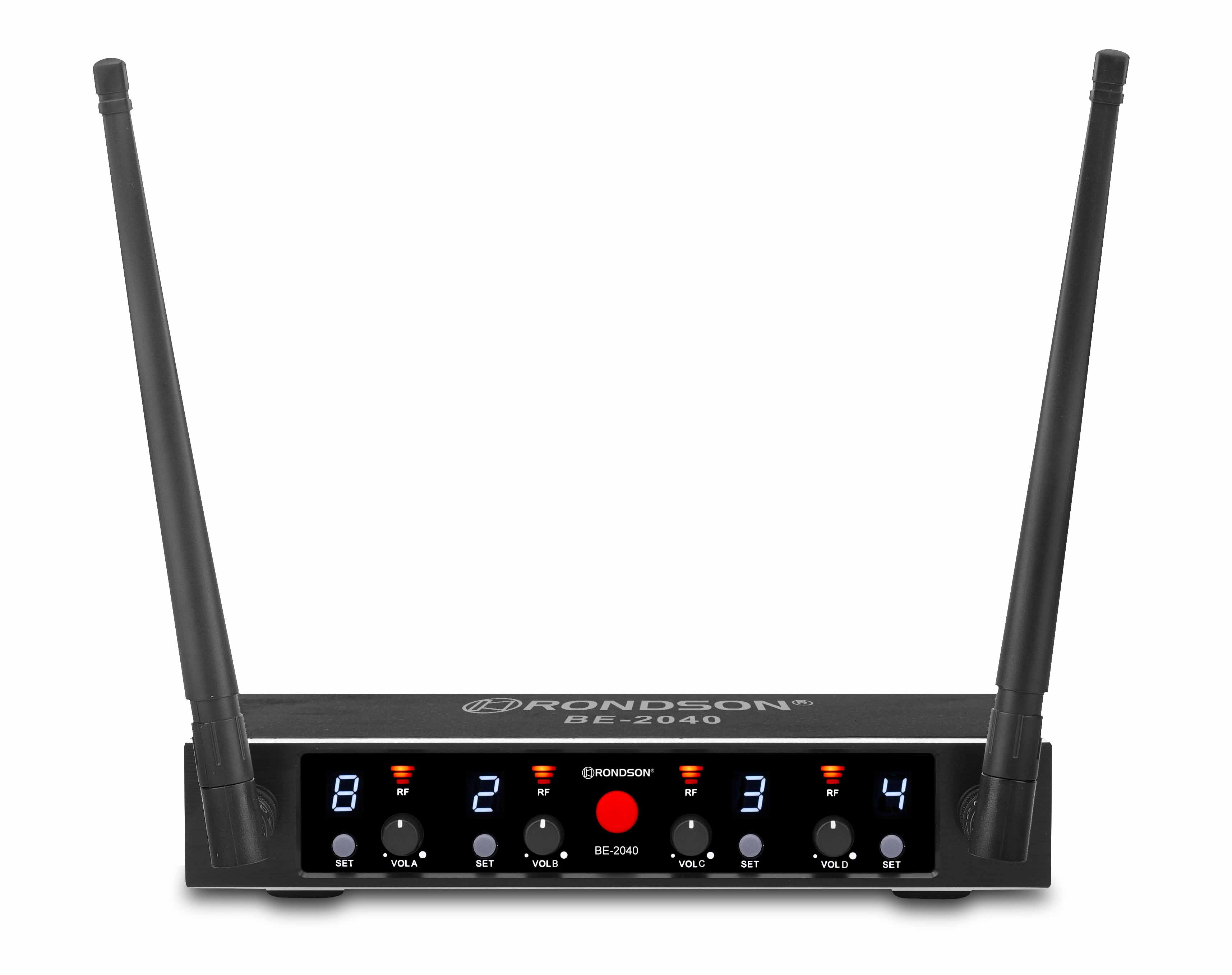

Dual UHF receiver set with 2 bodypack microphones

Reference : BE-2040/2MIC/2BP
SKU : 02595
EAN13 : 3701567909351

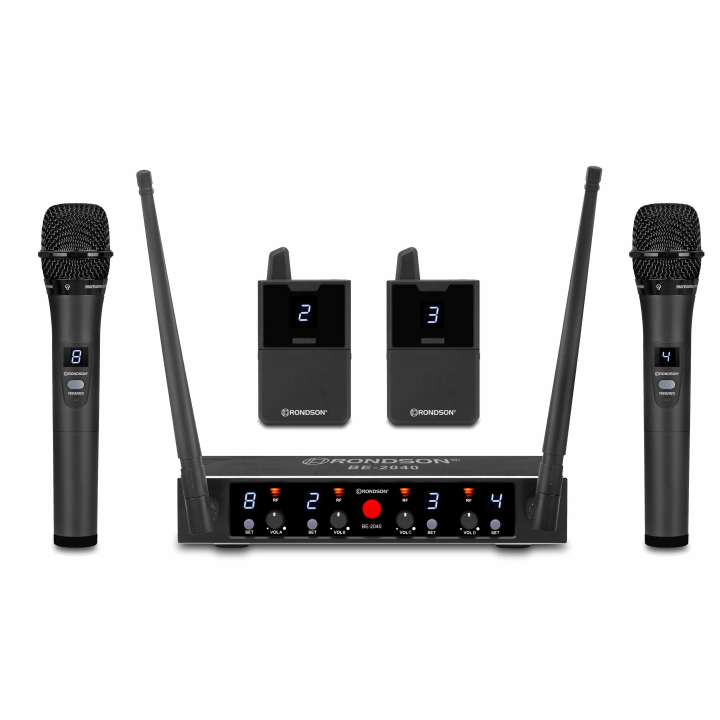

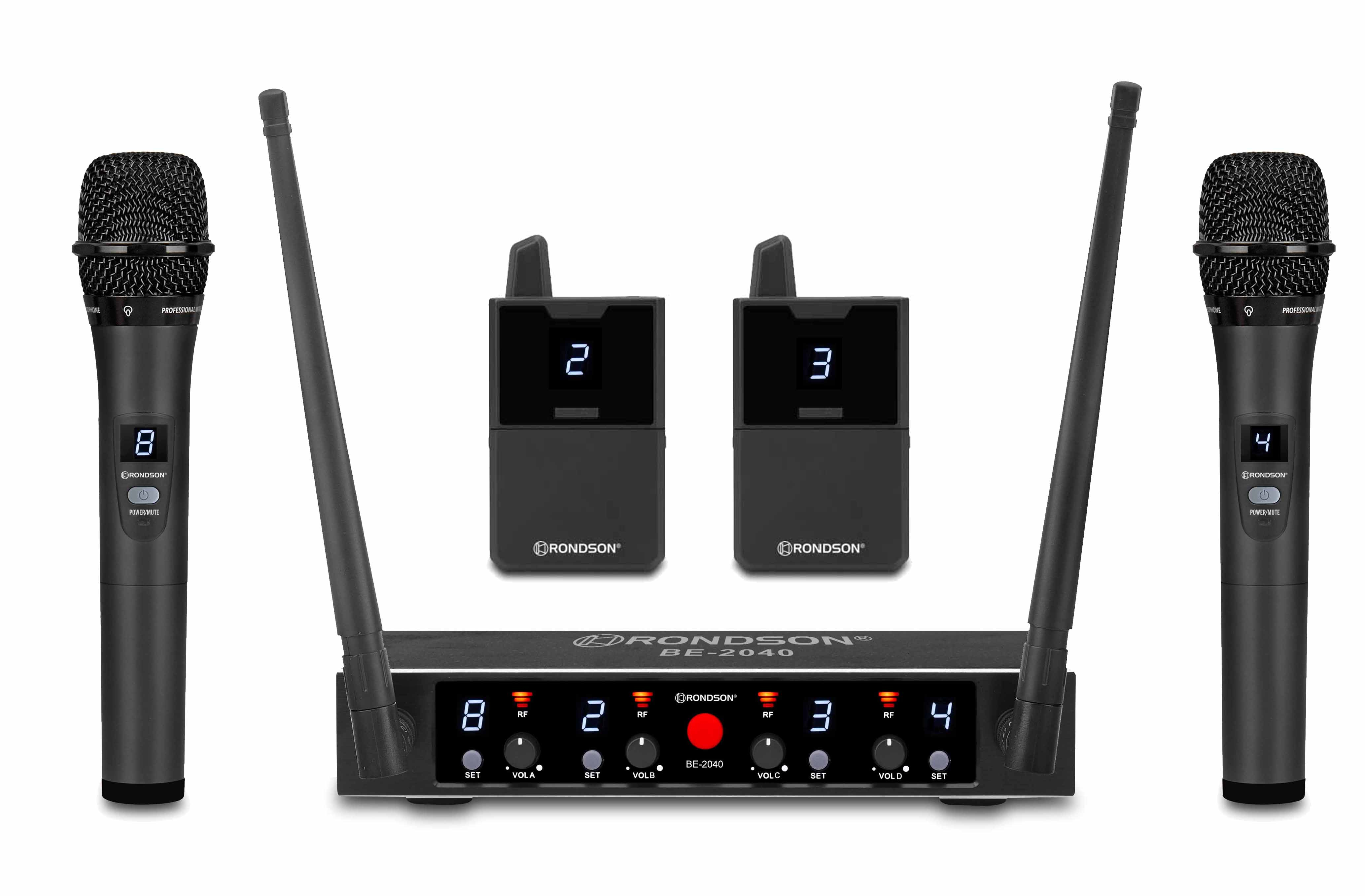

UHF Receiver Microphone Set

2 handheld microphones, 2 lavalier microphones and 2 headset microphones

500 to 700 MHz – 200 selectable frequencies

10 mW

Share

Description

Professional quality dual UHF microphone set!

  • Dual channel UHF receiver equipped with selectable PLL synthesised receiver modules
  • Automatic reception system
  • Anti-interference system for simultaneous operation of several units
  • Reception distance of 50 metres
  • Transmitter power: 10 mW
  • Function display on LCD screen
  • Infrared "sync" function to transmit the frequency to the transmitters.
  • Ideal for professional vocal or audio applications, speeches, animations, etc.
  • 1 jack cord (mix output) and 2 XLR cords

Product Details

  • Brand
  • Reference
    BE-2040/2MIC/2BP
  • SKU
    02595
  • EAN13
    3701567909351

Data sheet

  • System
    Synthétisé PLL
  • Output impedance
    600 Ω
  • Power consumption
    5 W
  • Reception method
    Récepteur UHF 4 canaux
  • Frequency stability
    ± 10 ppm
  • Image rejection ratio
    50 dB
  • Signal-to-noise ratio
    90 dB
  • Audio output level
    400 mV, Symétrique/Asymétrique
  • Prises d’antenne
    2 x BNC
  • Alimentation
    DC 12V - 1000 ma
  • Affichage
    LCD
  • Distorsion harmonique totale
    0,5 %
  • Bande passante
    50 - 15 000 Hz

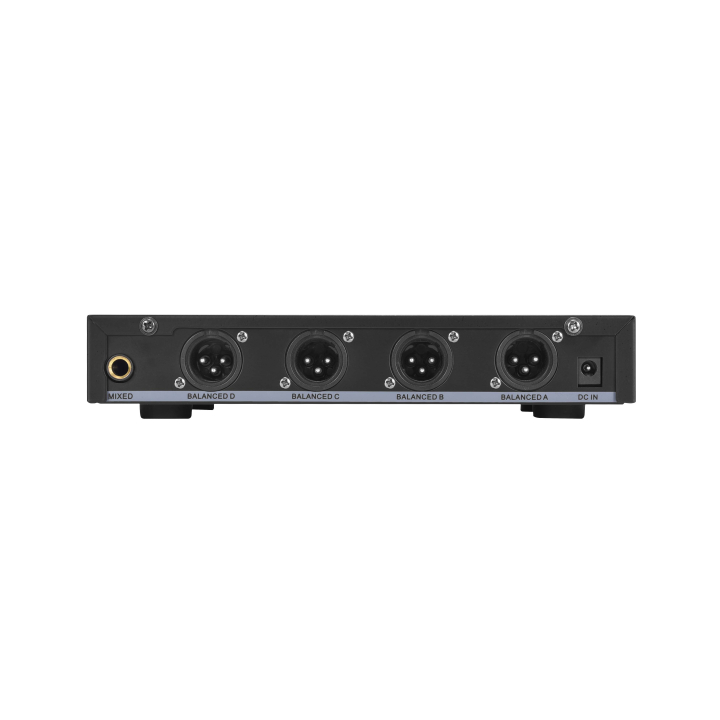

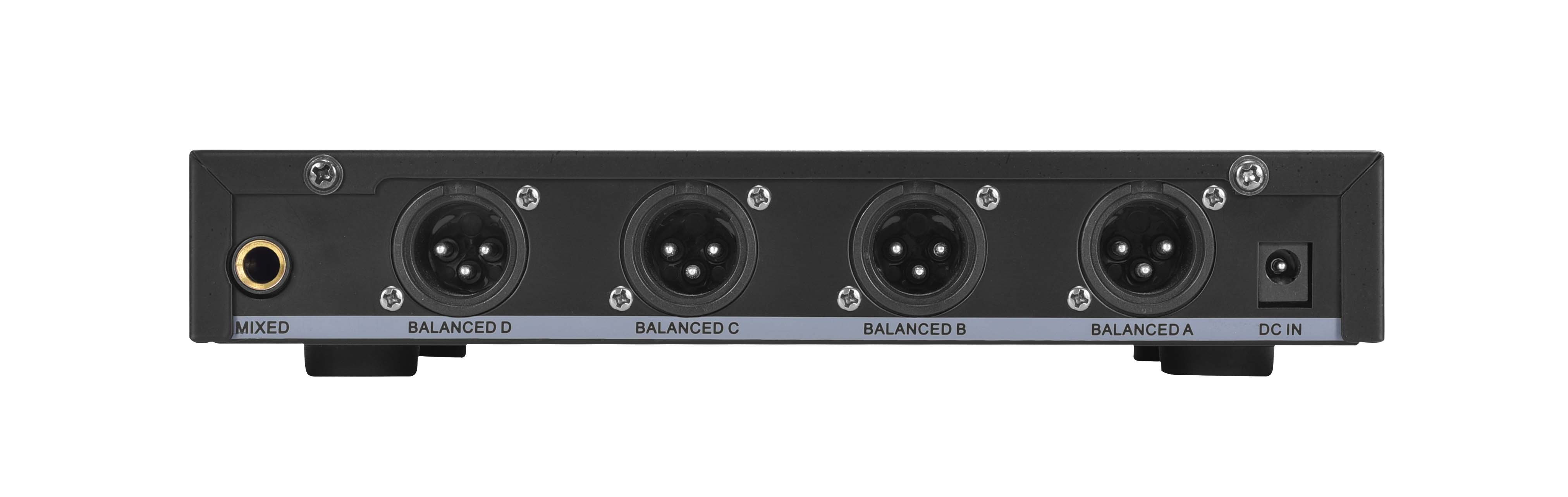

  • Prises sortie audio
    4 XLR symétrique, 1 Jack asymétrique
  • Sensibilité
    - 80 dBuV
  • Dimensions (W × D × H)
    480 x 180 x 46 mm ( non rackable)
  • Weight
    2,75 Kg (récepteur + micro main)

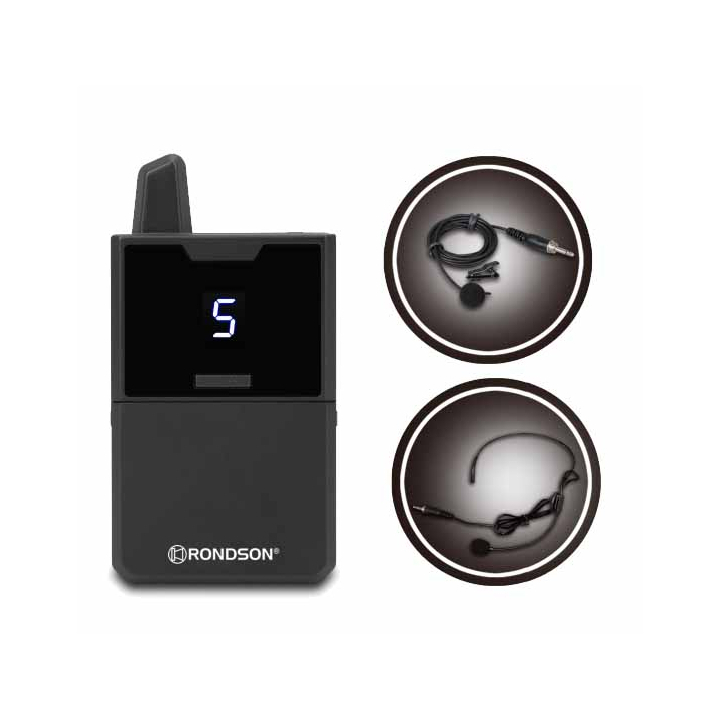

  • Boîtier micro cravate / Micro main
    BE-2040BP / BE-2040MIC
