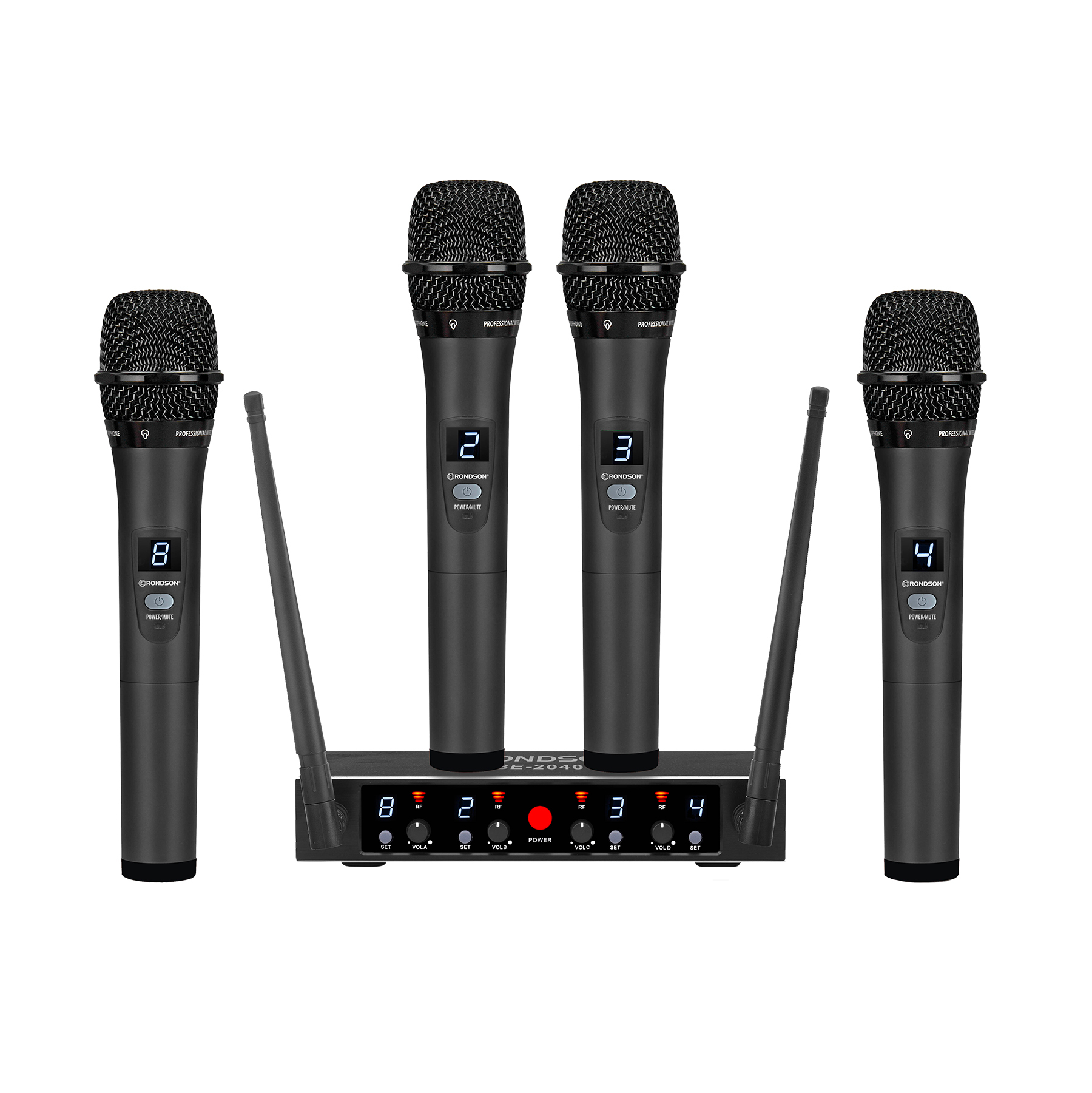

4-channel UHF microphone system with 4 handheld microphones

Name: 4-channel UHF microphone system with 4 handheld microphones
Brand: RONDSON
SKU: BE-2040/4MIC

Reference : BE-2040/4MIC

SKU : 02593

EAN13 : 3701567909368

4 channel UHF receiver box set with handheld microphones

Selectable frequencies 500 to 700 MHz :

Transmitting power : 10 mW

Description

Professional-quality UHF set!

Selectable frequencies available: - 500 - 700 MHz

It is equipped with a receiver

• UHF receiver equipped with receiver modules on 4 fixed frequencies (4 channels)

• Automatic PLL reception system

• Anti-interference system for simultaneous operation of multiple sets

• Reception distance of 50 metres

• Function display on LCD screen

• Infrared ‘sync’ function for transmitting the frequency to the transmitters

• Ideal for voice, singing or professional audio applications on stage

• 1 jack cable (mix output)

• Transmitter power: 10 mW

• Modulation type: FM

• Deviation: 22 KHz

• Information display on LCD screen

• Battery voltage: 3V (2 x 1.5V AA batteries)

• Continuous operating time: 5 hours

FEATURES	BE-2040/4MIC
Reception method	4 CHANNELS
System	PLL synthesised
Frequency stability	< + 10 ppm
Image interference rate	> 50 dB
Signal-to-noise ratio	> 90 dB
Sensitivity	- 80 dBuV
Distorsion harmonique	< 0,5 %
Bandwidth	50 Hz – 15 000 Hz (± 3 dB)
Output impedance	600 Ω
Audio output level	400 mV, Symmetrical/Asymmetrical
Display	LCD

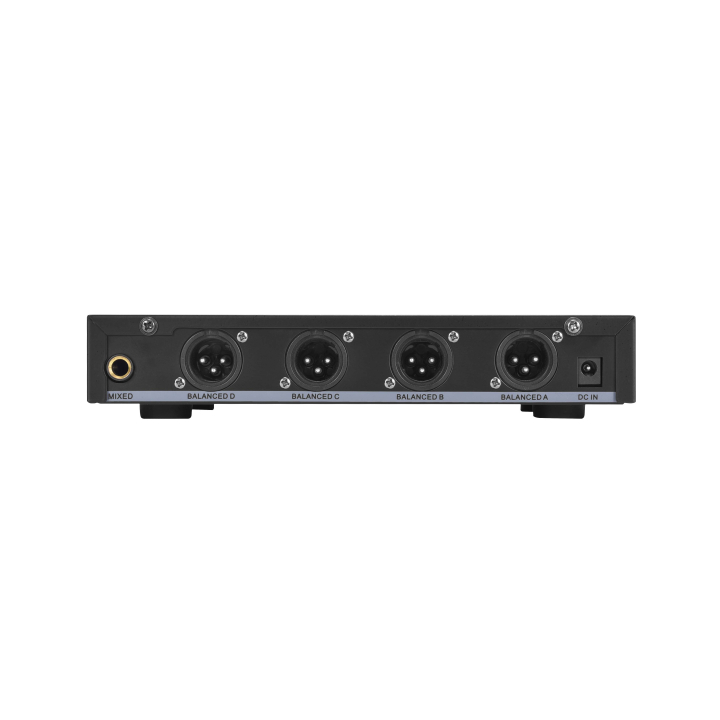

Audio output jack	4 balanced XLR, 1 unbalanced jack
Connections	2 x BNC on front panel
Power supply	DC 12V - 1000 ma
Dimensions (W x D x H)	480 x 180 x 46 mm (not rack-mountable)
Weight	2,75 Kg
Consumption	< 5 W
Micro cravate Micro main	BE-2040BP BE-2040MIC
Batteries or rechargeable batteries	2 piles AA / 1,5 V (incluses)
