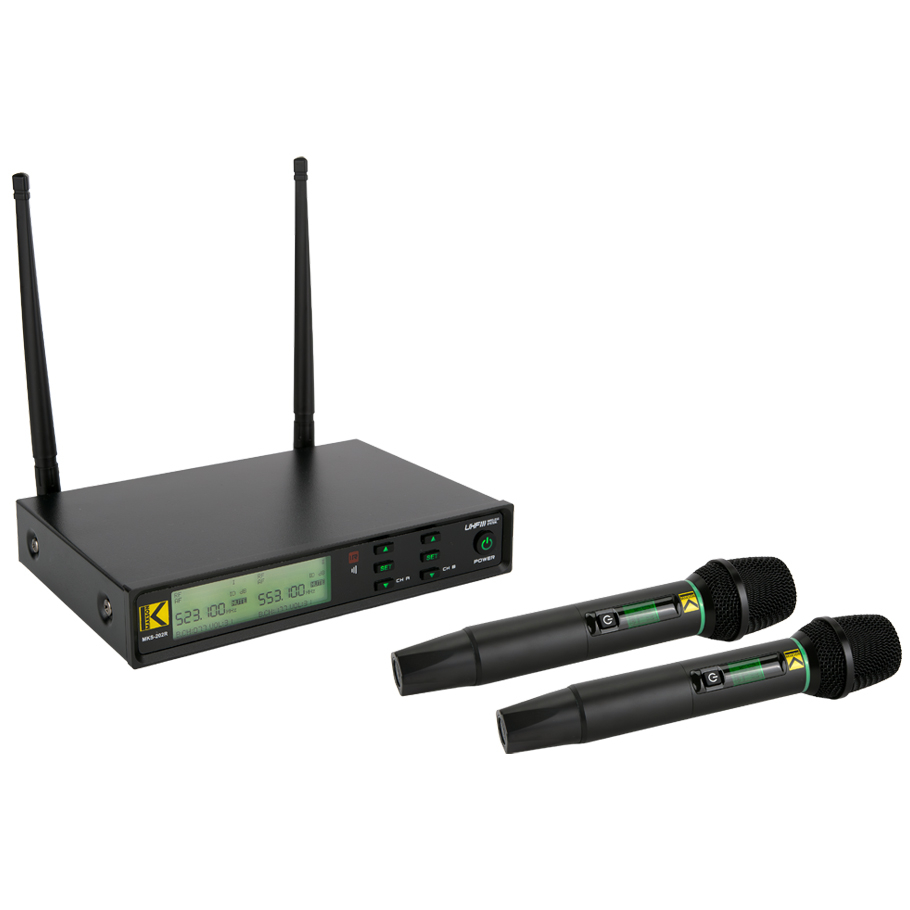

Dual channel HF microphone system with 2 hand microphones

Reference : MKS-202R
EAN13 : 3701567914263

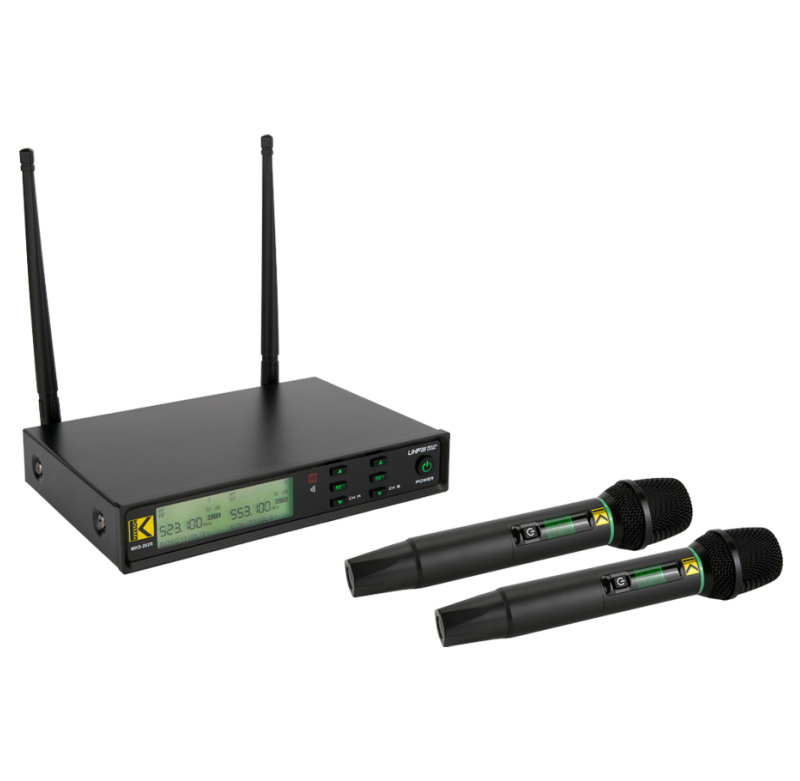

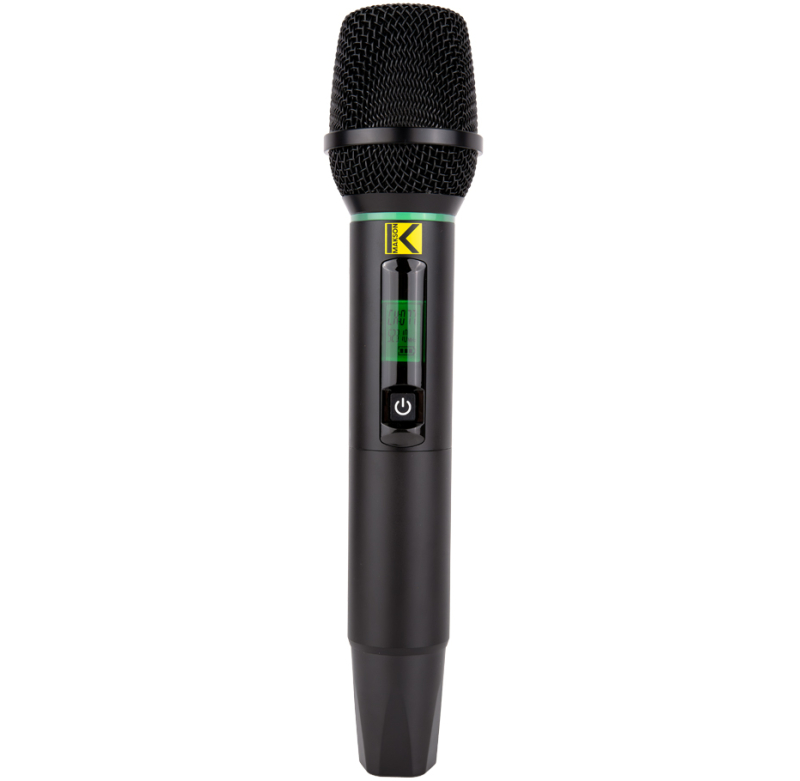

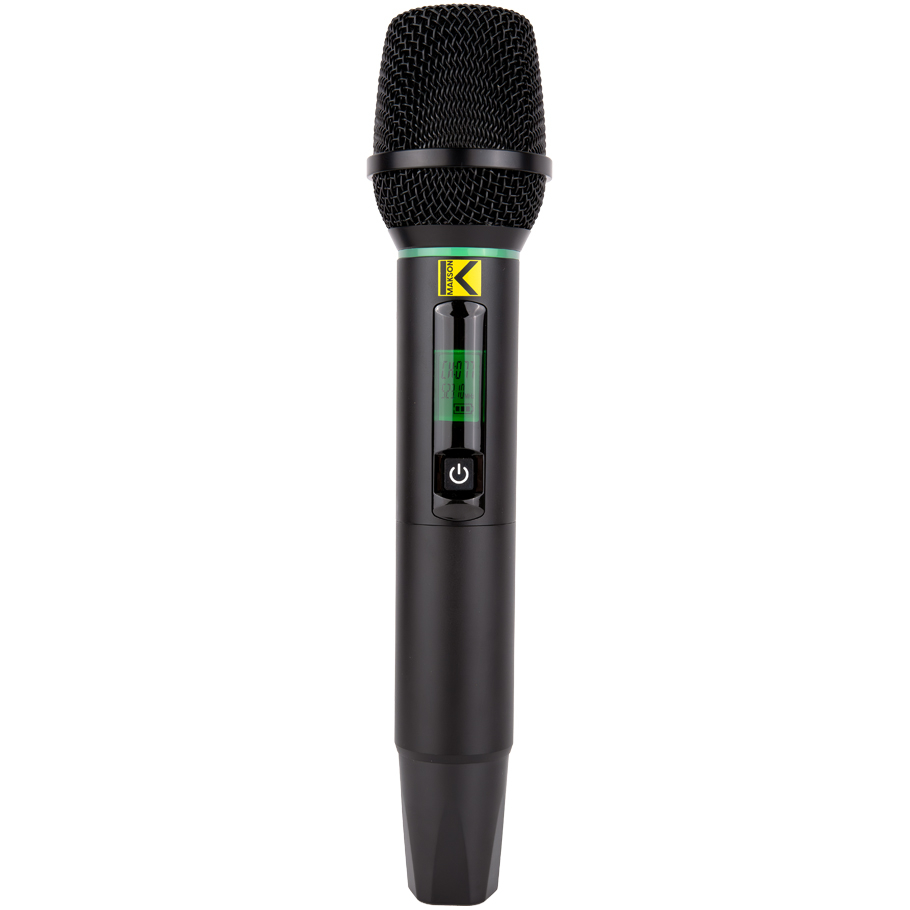

Dual-channel UHF receiver set with 2 handheld microphones.

  • 4 fixed frequencies between 500 and 700 MHz
  • Transmission power: 10 mW
Canaux
Type de Micro
Share

Description

Professional Wireless Microphone Set

Product Data Sheet (PDF)
Download MKS-202R product sheet in PDF

Description

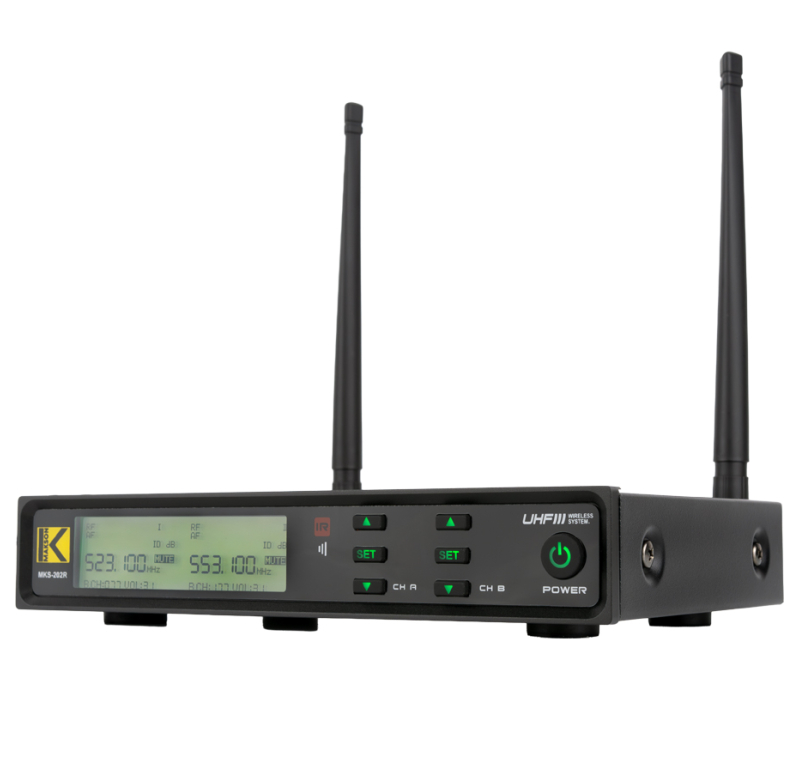

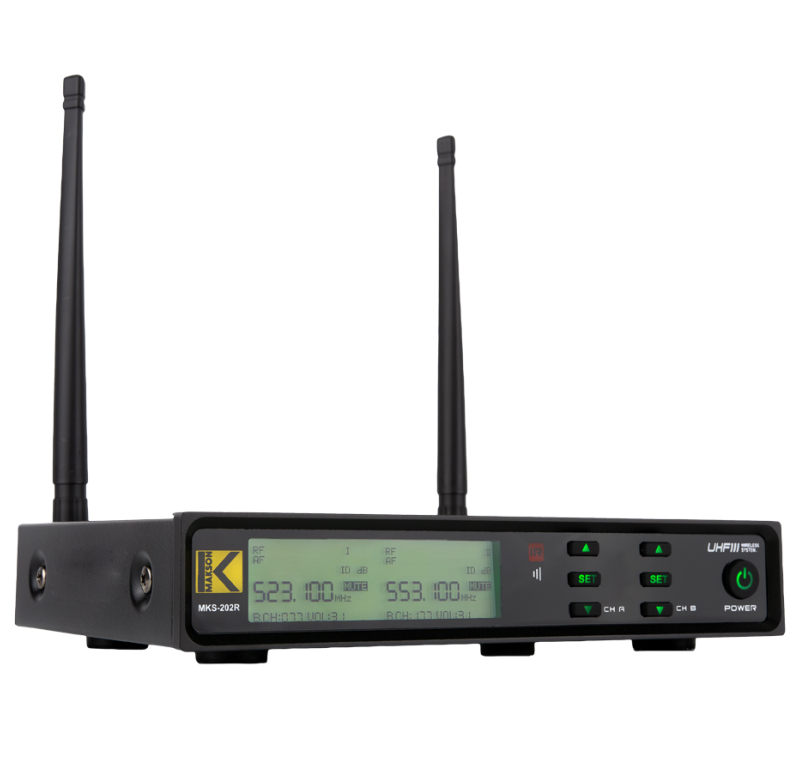

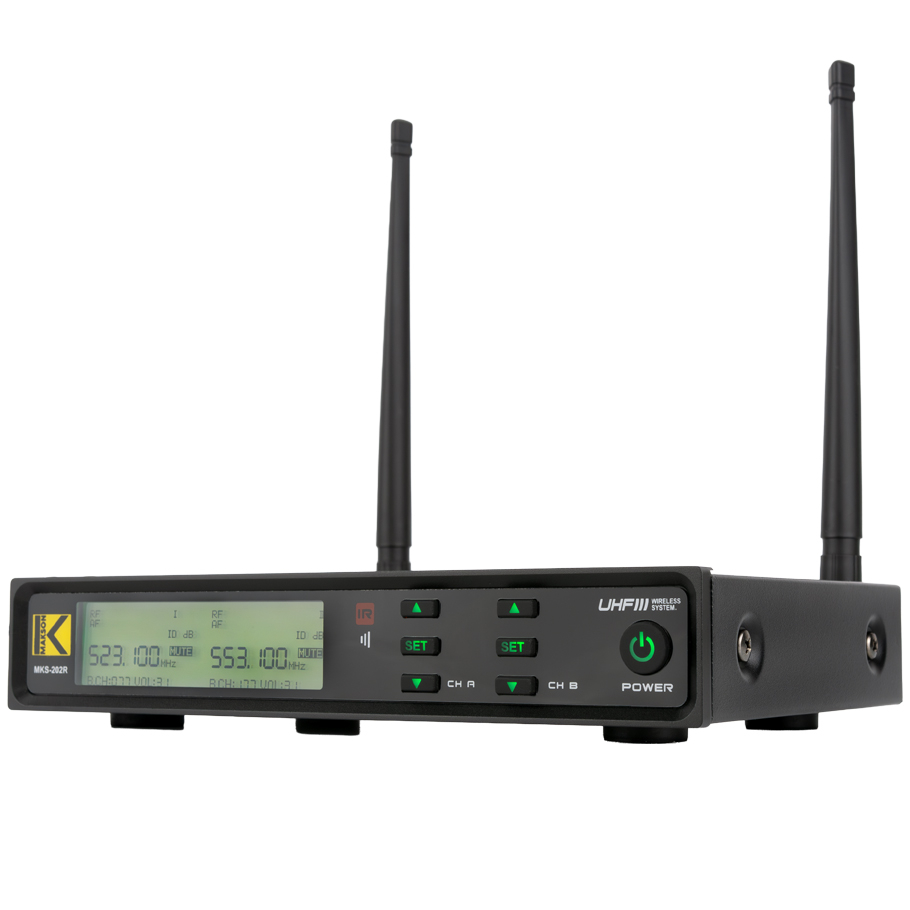

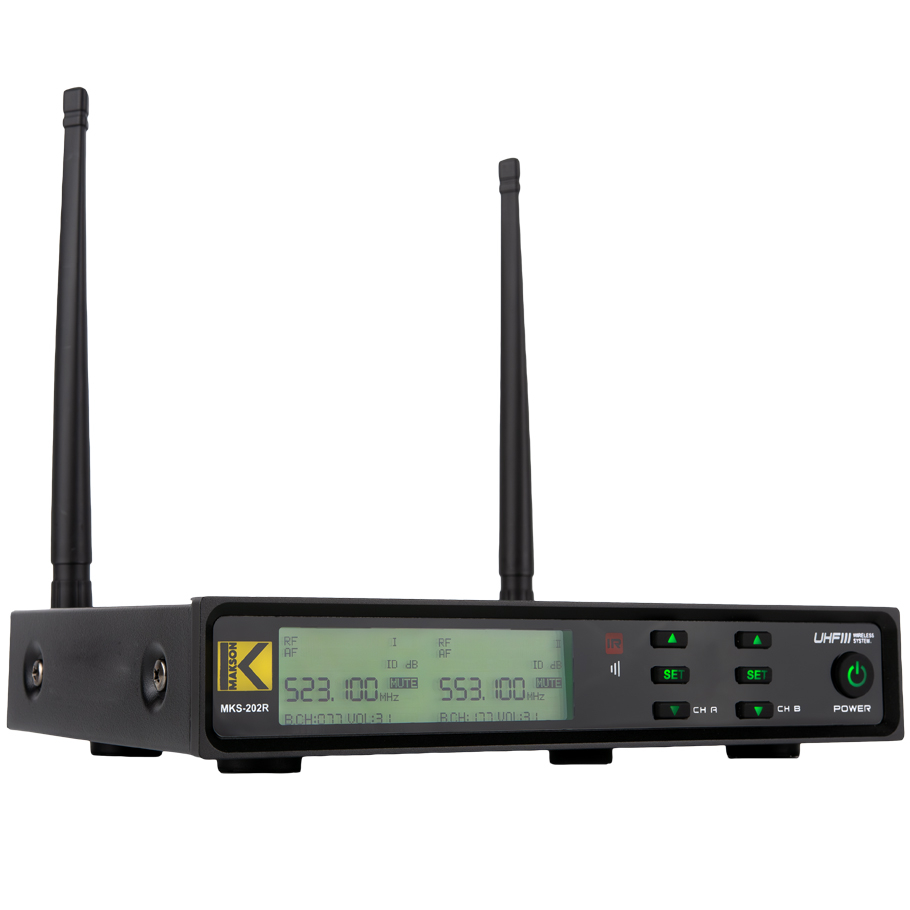

  • Dual-channel UHF receiver with selectable PLL synthesized receiver modules
  • Operating distance of 50 meters
  • Automatic reception system
  • Anti-interference system for simultaneous operation of multiple sets

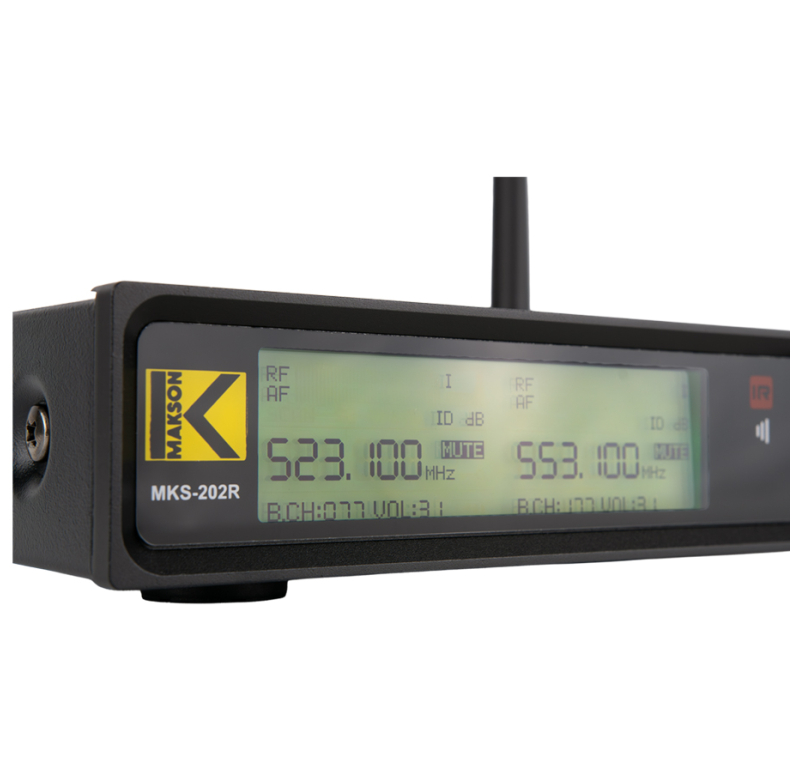

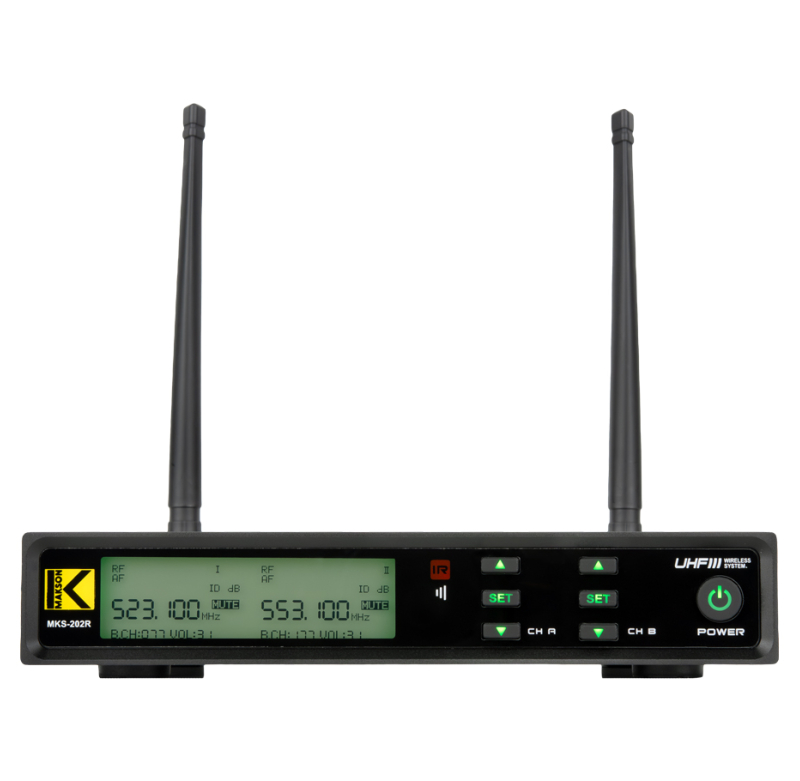

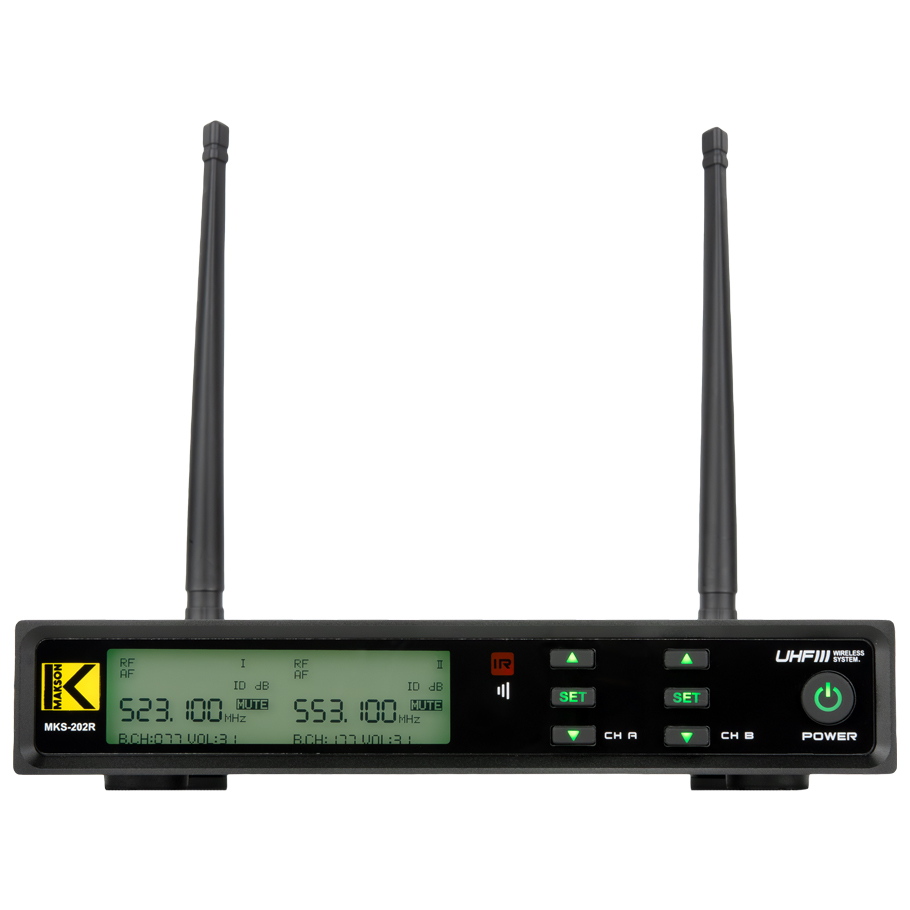

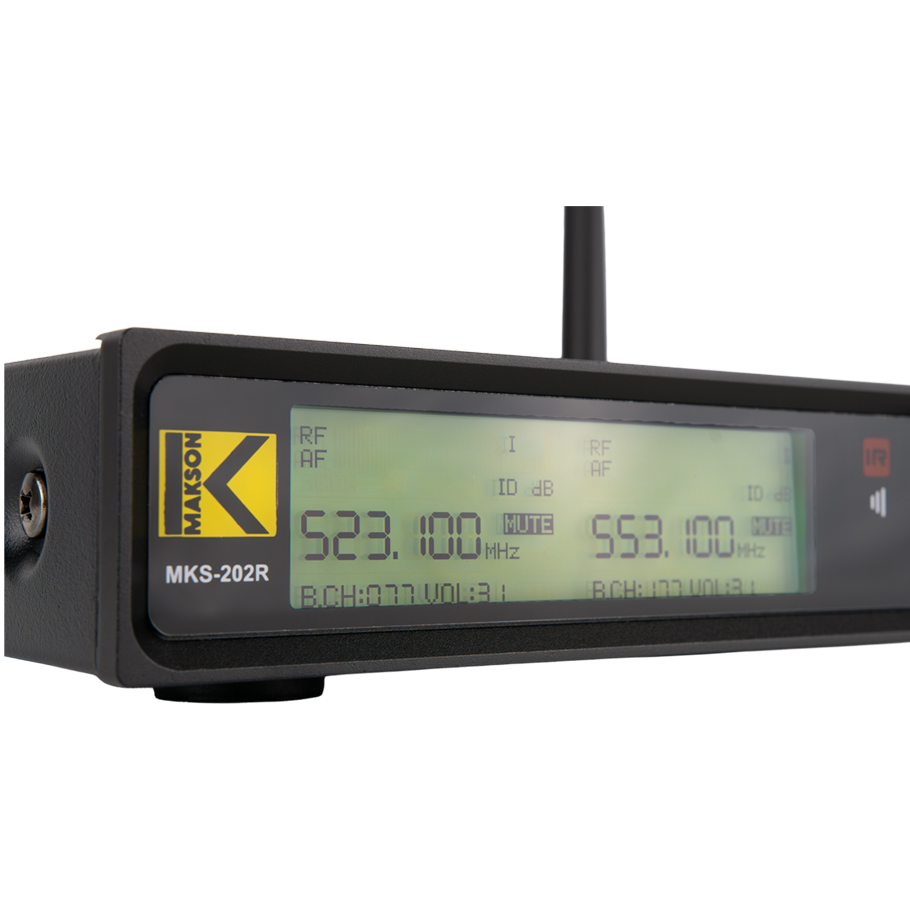

  • LCD display for function monitoring
  • Infrared "sync" function to transmit frequency to transmitters
  • Ideal for vocal applications (singing or professional audio), speeches, and events
Technical Specifications — MKS-202R
Specifications MKS-202R
Reception Method 2 channels
System PLL Synthesized
Frequency Stability ± 10 ppm
Image Rejection Rate > 50 dB
Signal-to-Noise Ratio > 90 dB
Sensitivity - 90 dBuV
Harmonic Distortion < 0.5 %
Frequency Response 50 - 15,000 Hz
Output Impedance 600 Ω
Audio Output Level - 400 mV, balanced/unbalanced

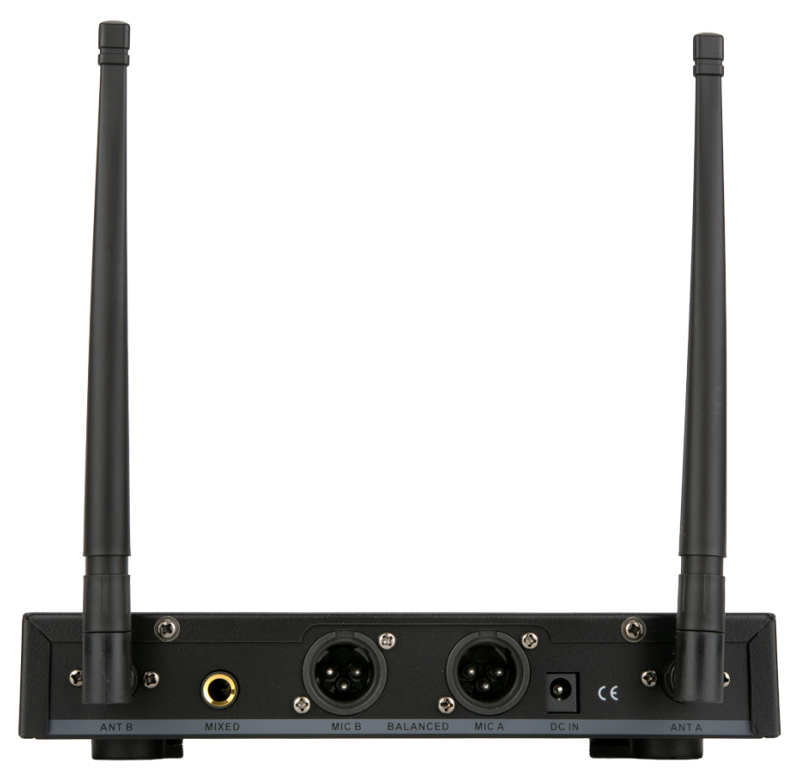

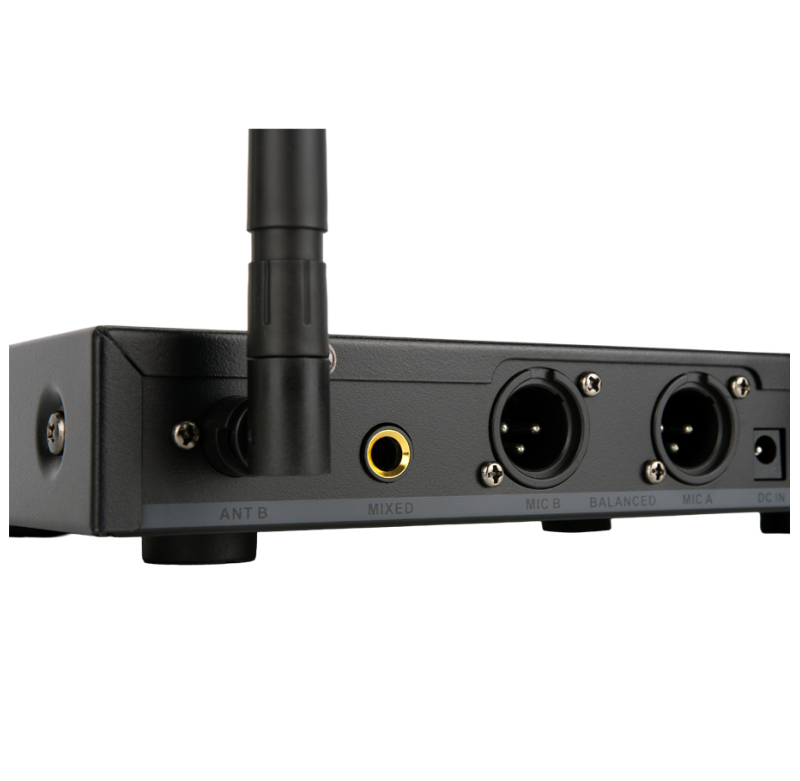

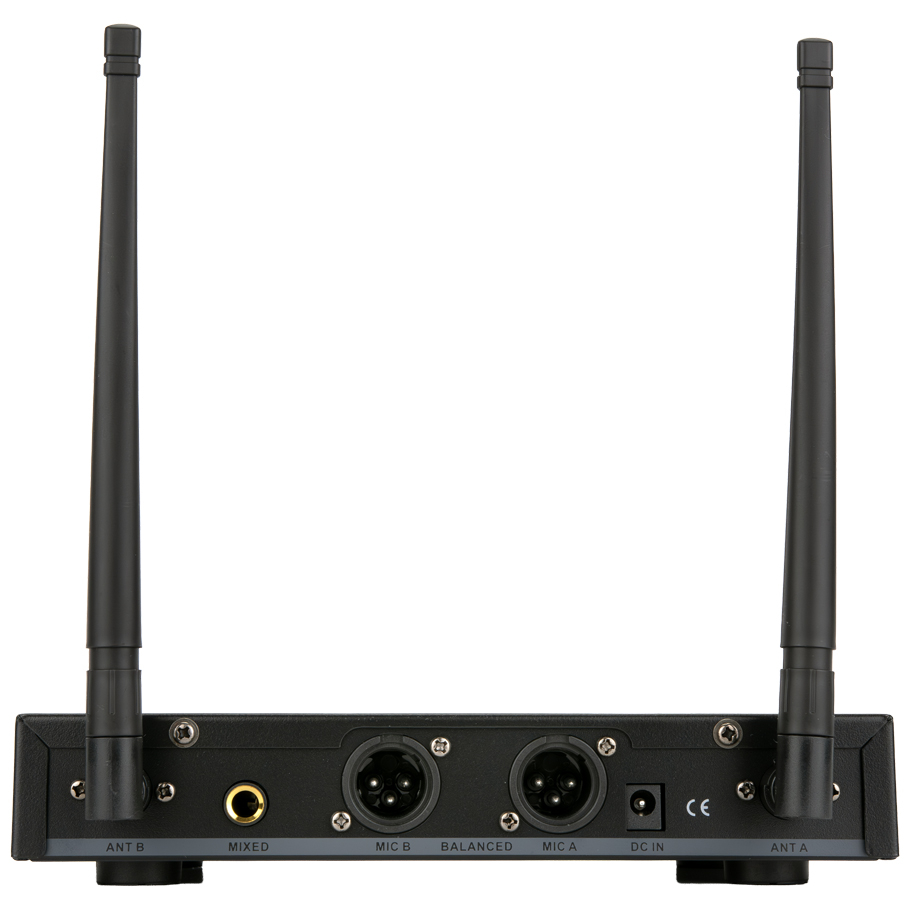

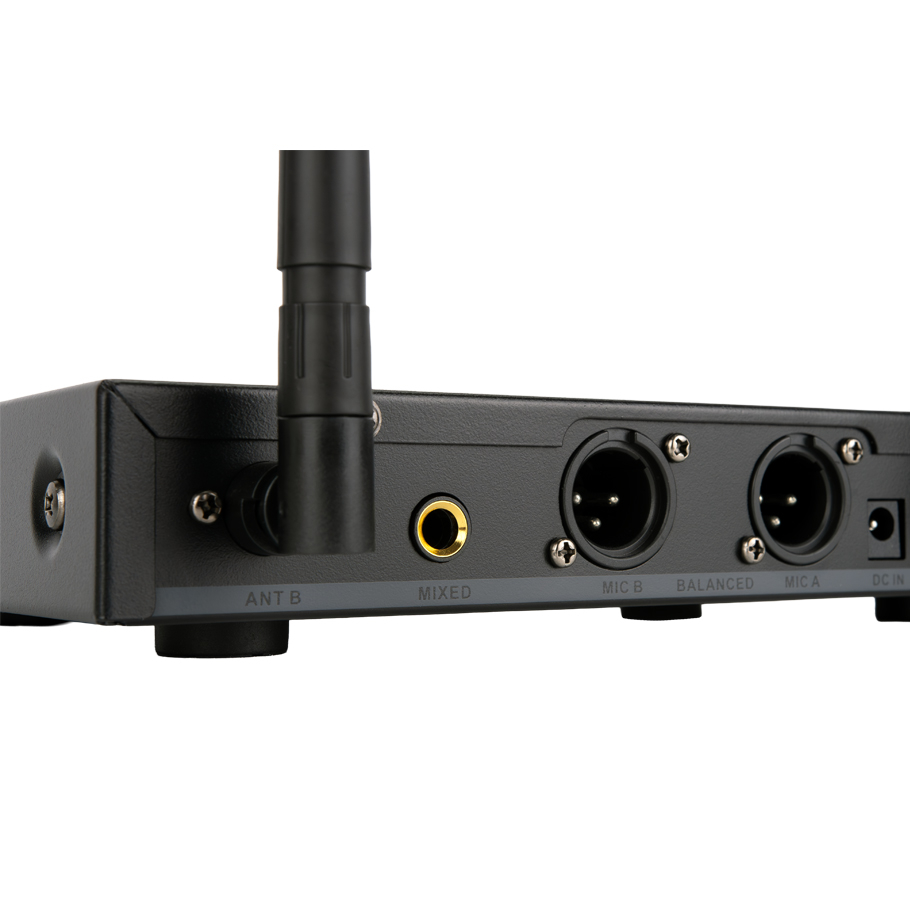

Display/Outputs 2 balanced XLR, 1 unbalanced jack
Antenna Connectors 2 x BNC on front panel
Power Supply DC 12V - 700 mA
Dimensions (W x D x H) 350 x 175 x 46 mm (non-rackable)
Weight 2.75 Kg
Power Consumption < 5 W
Batteries USB-C Rechargeable

Product Details

  • Brand
  • Reference
    MKS-202R
  • EAN13
    3701567914263

Data sheet

  • Méthode de réception
    2 canaux
  • Système
    Synthétisé PLL
  • Stabilité en fréquence
    ± 10 ppm
  • Image interfère rate
    50 dB
  • Rapport Signal / Bruit
    90 dB
  • Entrées / Sensibilité
    - 90 dBuV
  • Impédance de sortie
    600 Ω
  • Niveau de sortie audio
    - 400 mV, symétrique/asymétrique
  • Prises d’antenne
    2 x BNC en face avant
  • Alimentation
    DC 12V - 700 mA
  • Affichage
    2 XLR symétrique, 1 jack asymétrique
  • Distorsion harmonique totale
    0,5 %
  • Bande passante
    50 - 15 000 Hz
  • Accus
    Rechargeables USB-C
  • Dimensions (L x P x h)
    350 x 175 x 46 mm (non rackable)
  • Poids
    2,75 kgs
