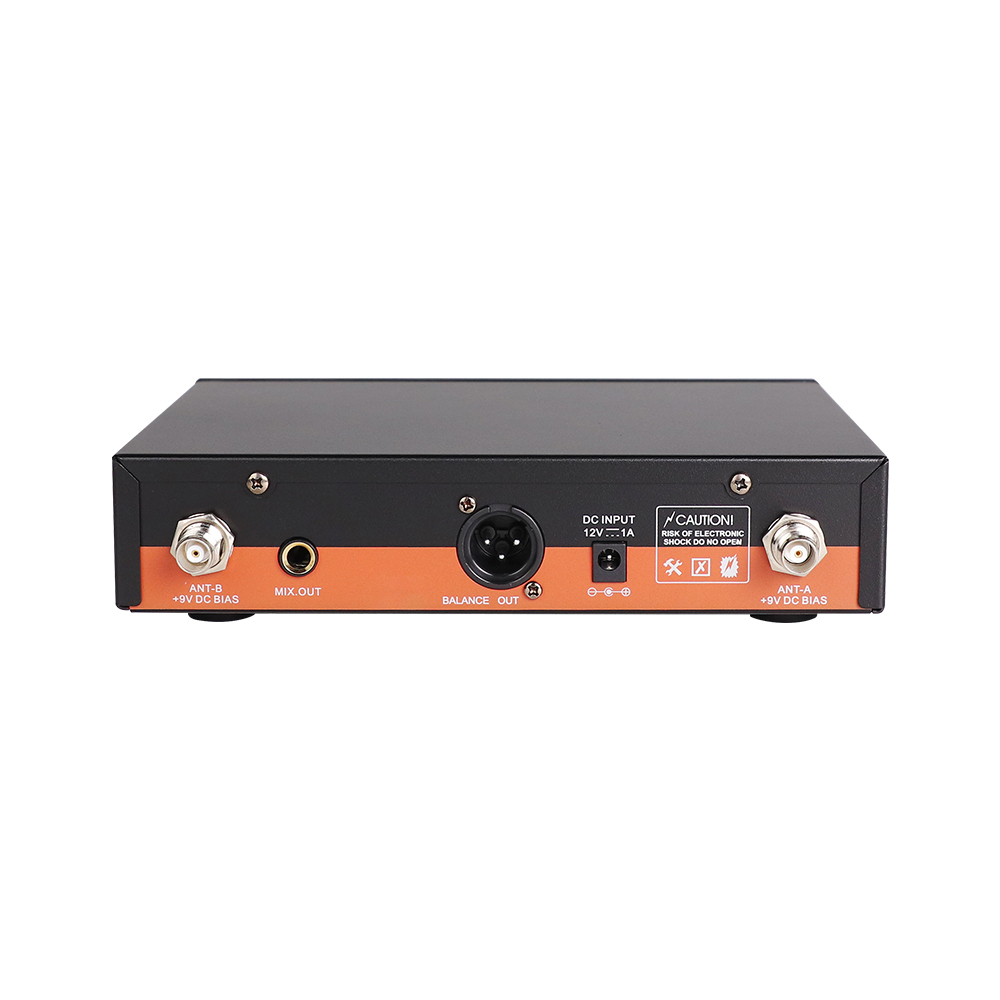

UHF set with transmitter box and bodypack microphone
Reference : BE-5018/PT-10
SKU : 02007
EAN13 : 3701567909306
TRUE DIVERSITY UHF wireless microphone with receiver box and bodypack microphone
660 à 690 Mhz - 20 Frequencies
30 mW
Description
- UHF receiver 20 Preset frequencies selectable synthesised PLL
- True Diversity Automatic Reception System
- Anti-interference system for simultaneous operation of several units
- Reception distance from 10 to 150 metres
- Function display on LCD screen
- Infrared "sync" function to transmit the frequency to the transmitters.
- Housing ½ rack
- Ideal for professional vocal or audio applications
| SPECIFICATIONS | BE-5018/PT10 | |
| Reception method |
True diversity |
|
|
System |
Synthesized PLL |
|
|
Frequency stability |
± 0,005 |
|
|
Image interfere rate |
> 80 dB | |
|
Signal-to-noise ratio |
> 105 dB à 1 KHz | |
|
Sensitivity |
- 107 dBm | |
|
Harmonic distortion |
< 0,5 % | |
|
Frequency Response |
15 – 20000 Hz | |
|
Output impedance |
600 Ω | |
|
Audio output level |
-12 dB | |
|
Display |
LCD | |
|
Audio output socket |
XLR balanced | |
|
Antenna sockets |
2 x BNC | |
|
Power supply |
DC 12-18 V 500 mA -Adapter 230 V | |
|
Dimensions (W x D x H) |
210 x 120 x 38 mm (1/2 rack 19“) | |
|
Weight |
1 Kg | |
|
Transmitter box with lapel microphone |
PT-10/CM-506 | |
|
Batteries |
2 x AA / 1,5 V (delivered) |
|
Product Details
-
Brand
-
ReferenceBE-5018/PT-10
-
SKU02007
-
EAN133701567909306
