UHF set with transmitter box and bodypack microphone
Reference : BE-5018/PT-10
SKU : 02007
EAN13 : 3701567909306
Professionals:
Login
Individuals:
Contact us
TRUE DIVERSITY UHF Microphone and Receiver Set

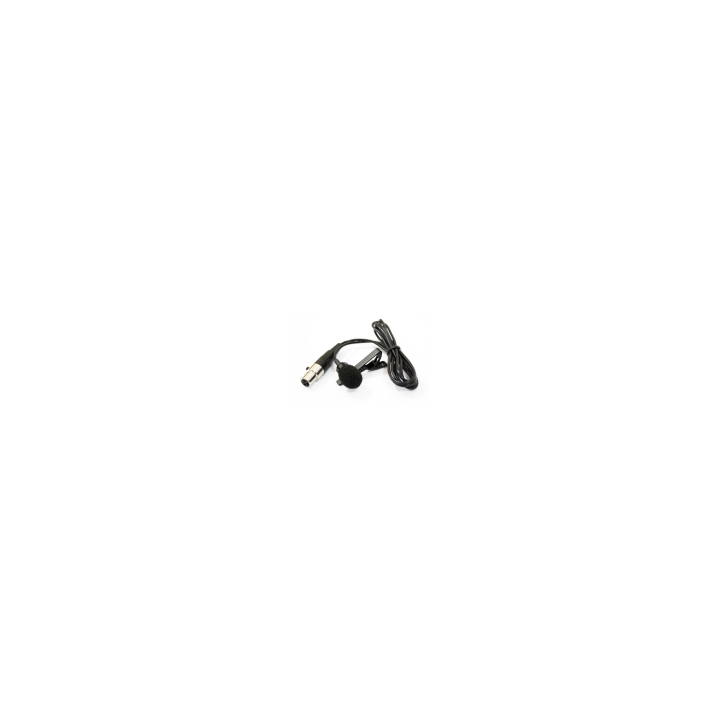

Receiver unit and lavalier microphone
660 to 690 MHz – 20 selectable frequencies
30 mW
Description
- UHF receiver 20 Preset frequencies selectable synthesised PLL
- True Diversity Automatic Reception System
- Anti-interference system for simultaneous operation of several units
- Reception distance from 10 to 150 metres
- Function display on LCD screen
- Infrared "sync" function to transmit the frequency to the transmitters.
- Housing ½ rack
- Ideal for professional vocal or audio applications
Product Details
-
Brand
-
ReferenceBE-5018/PT-10
-
SKU02007
-
EAN133701567909306
Data sheet
-
SystemSynthétisé PLL
-
Output impedance600 Ω
-
Reception methodTrue diversity
-
Frequency stability± 0,005 %
-
Image rejection ratio+ 80 dB
-
Signal-to-noise ratio+ 105 dB à 1 KHz
-
Audio output level- 12 dB
-
Prises d’antenne2 prises filetage TNC
-
AlimentationDC 12-18 V 500 mA
-
AffichageLCD
-
Distorsion harmonique totale0,5 %
-
Bande passante30 - 20 000 Hz
-
Prises sortie audioXLR symétrique
-
Sensibilité- 107 dBm
-
Batteries or rechargeable batteries2 x AA / 1,5 V (livrées)
-
Dimensions (W × D × H)210 x 120 x 38 mm
-
Weight1 kg
-
Boîtier émetteur + micro cravatePT-10/CM-506
