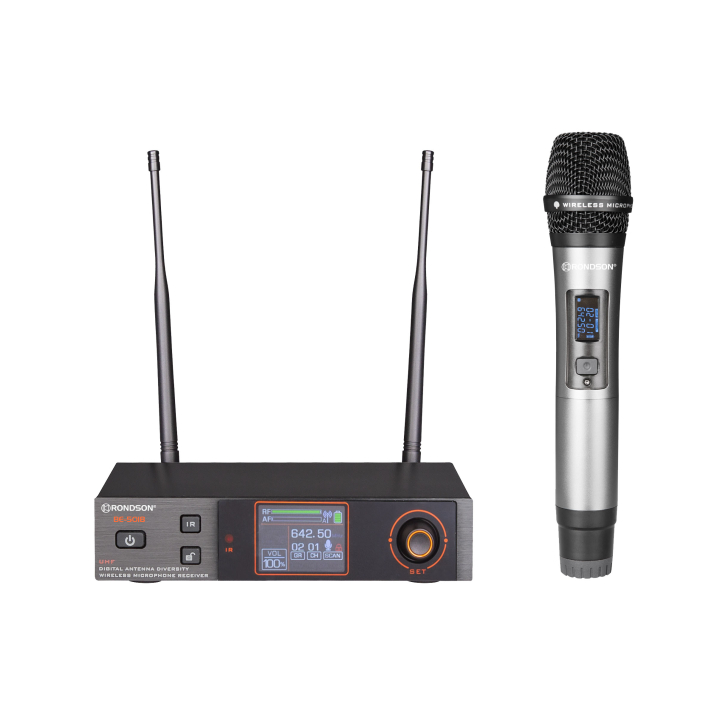

UHF True Diversity Handheld Microphone Set - BE-5018/H-83

Reference : BE-5018/H-83
SKU : 02006
EAN13 : 3701567909313

TRUE DIVERSITY UHF Microphone and Receiver Set

Receiver unit and handheld microphone

660 to 690 MHz – 20 selectable frequencies

10–30 mW

Fréquences modulables
Type de Micro
Share

Description

  • UHF receiver 20 Preset frequencies selectable synthesised PLL (Available in 80 Frequencies on request)
  • True diversity automatic reception system
  • Anti-interference system for simultaneous operation of several units
  • Reception distance from 10 to 150 metres
  • Function display on LCD screen
  • Infrared "sync" function to transmit the frequency to the transmitters.
  • Housing ½ rack
  • Ideal for professional vocal or audio applications

Product Details

  • Brand
  • Reference
    BE-5018/H-83
  • SKU
    02006
  • EAN13
    3701567909313

Data sheet

  • System
    Synthétisé PLL
  • Output impedance
    600 Ω
  • Reception method
    True diversity
  • Frequency stability
    ± 0,005 %
  • Image rejection ratio
    + 80 dB
  • Signal-to-noise ratio
    + 105 dB à 1 KHz
  • Audio output level
    - 12 dB
  • Prises d’antenne
    2 x BNC
  • Alimentation
    DC 12-18 V 500 mA
  • Affichage
    LCD
  • Distorsion harmonique totale
    0,5 %
  • Bande passante
    30 - 20 000 Hz
  • Prises sortie audio
    XLR symétrique
  • Sensibilité
    - 107 dBm
  • Batteries or rechargeable batteries
    2 x AA / 1,5 V (livrées)
  • Dimensions (W × D × H)
    210 x 120 x 38 mm
  • Weight
    1 kg
  • Boîtier émetteur + micro cravate
    PT-10/CM-506
