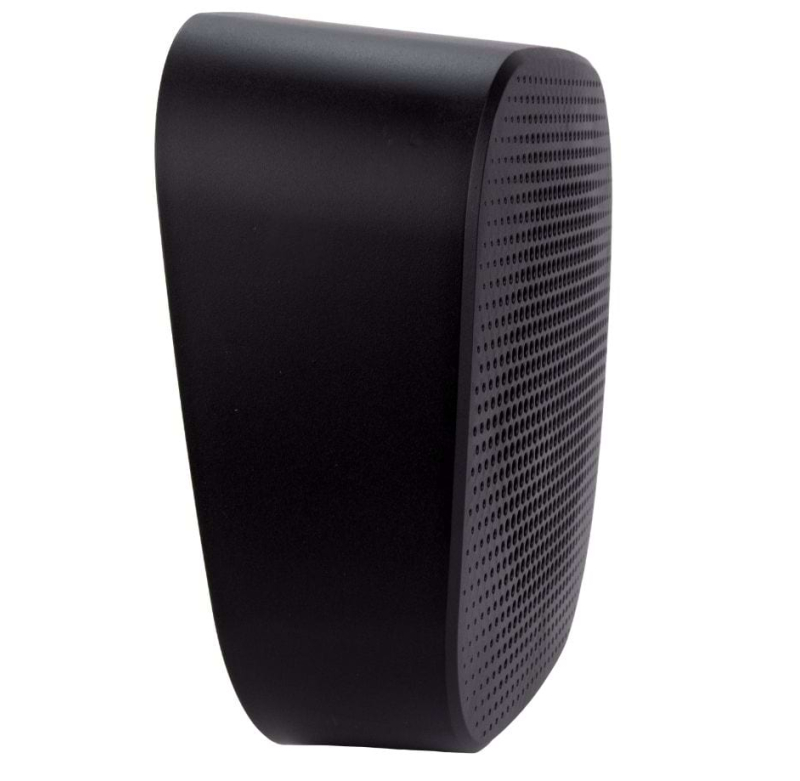

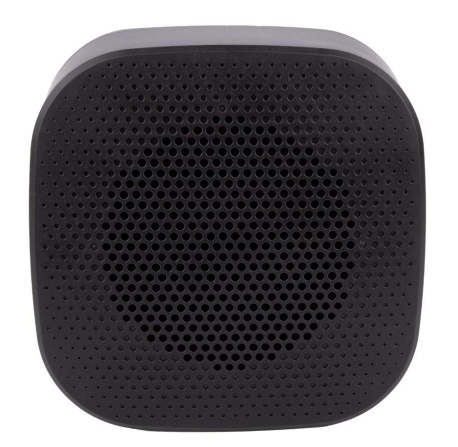

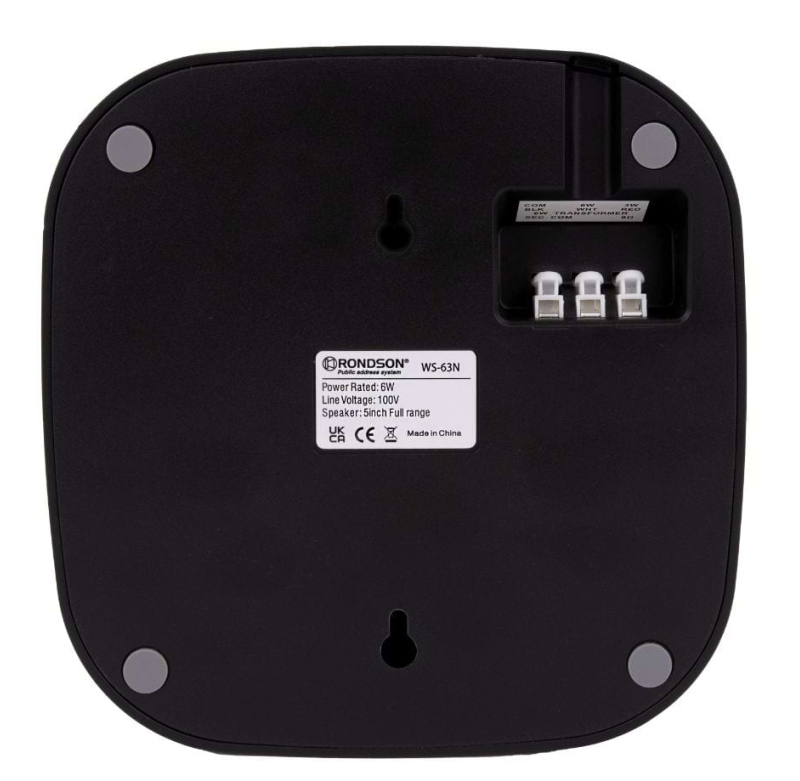

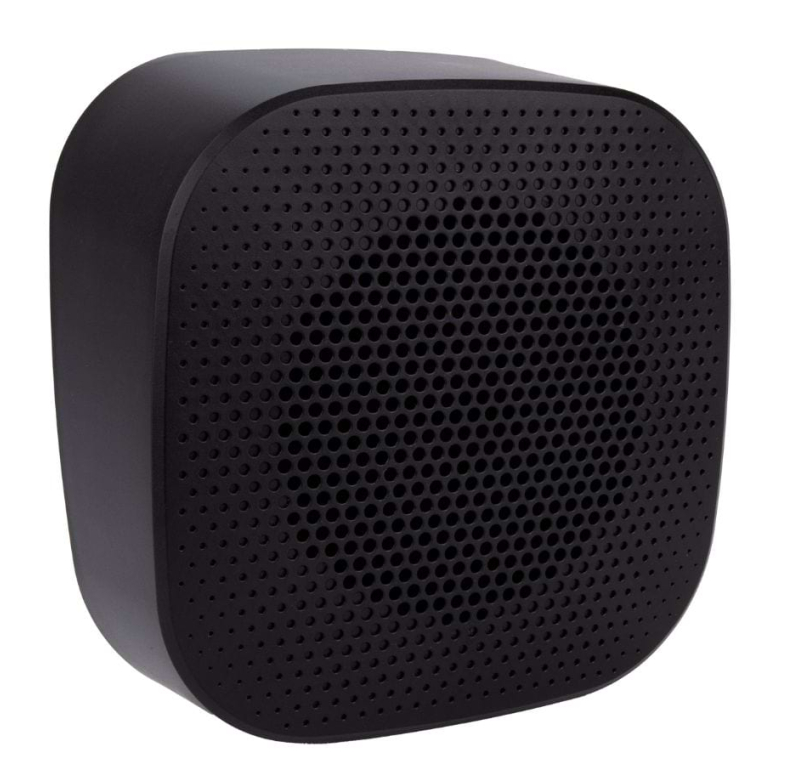

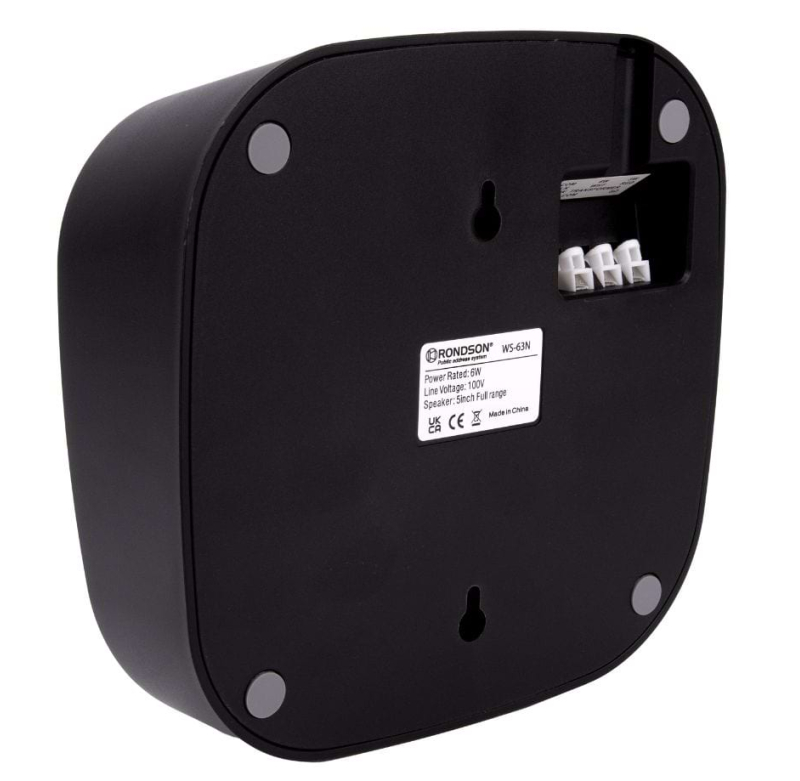

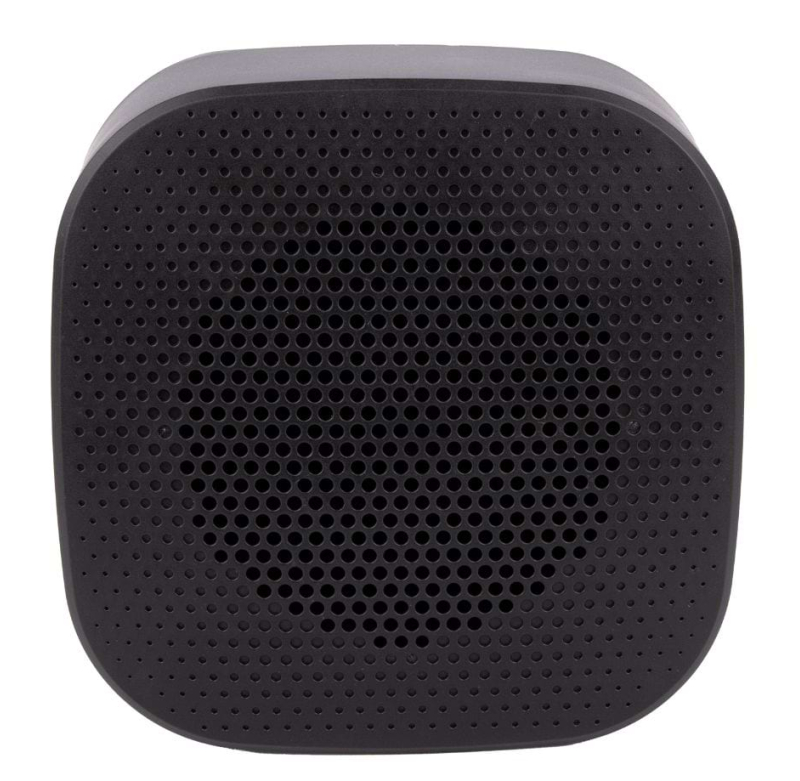

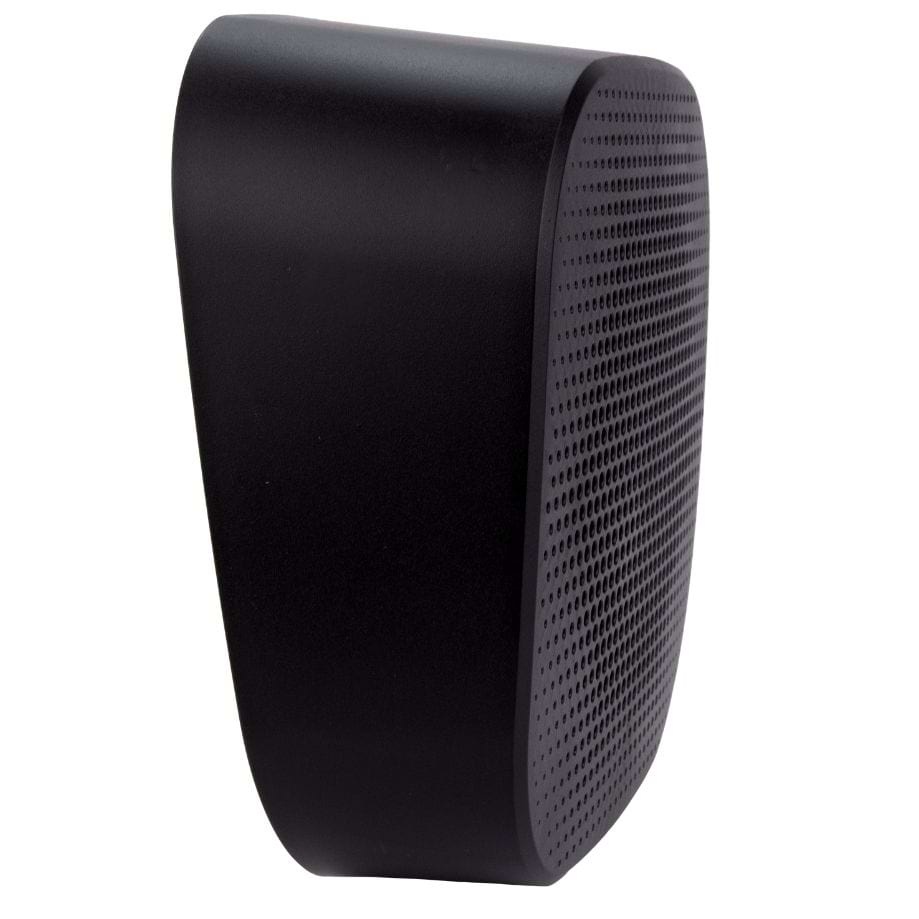

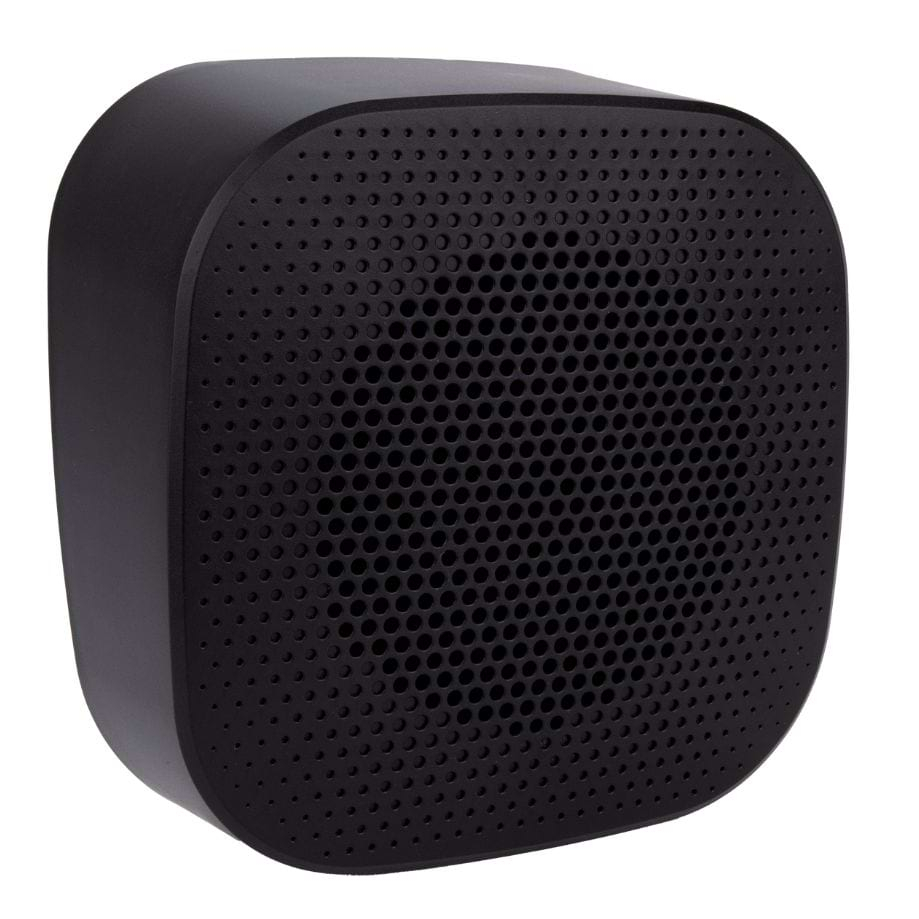

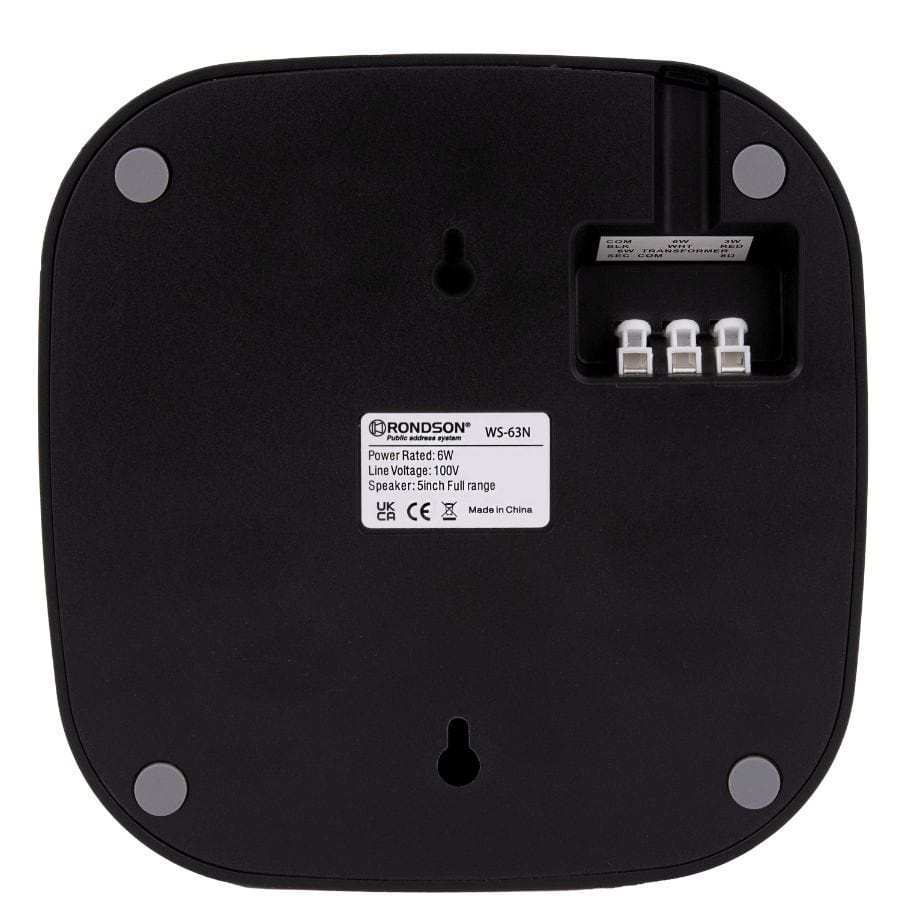

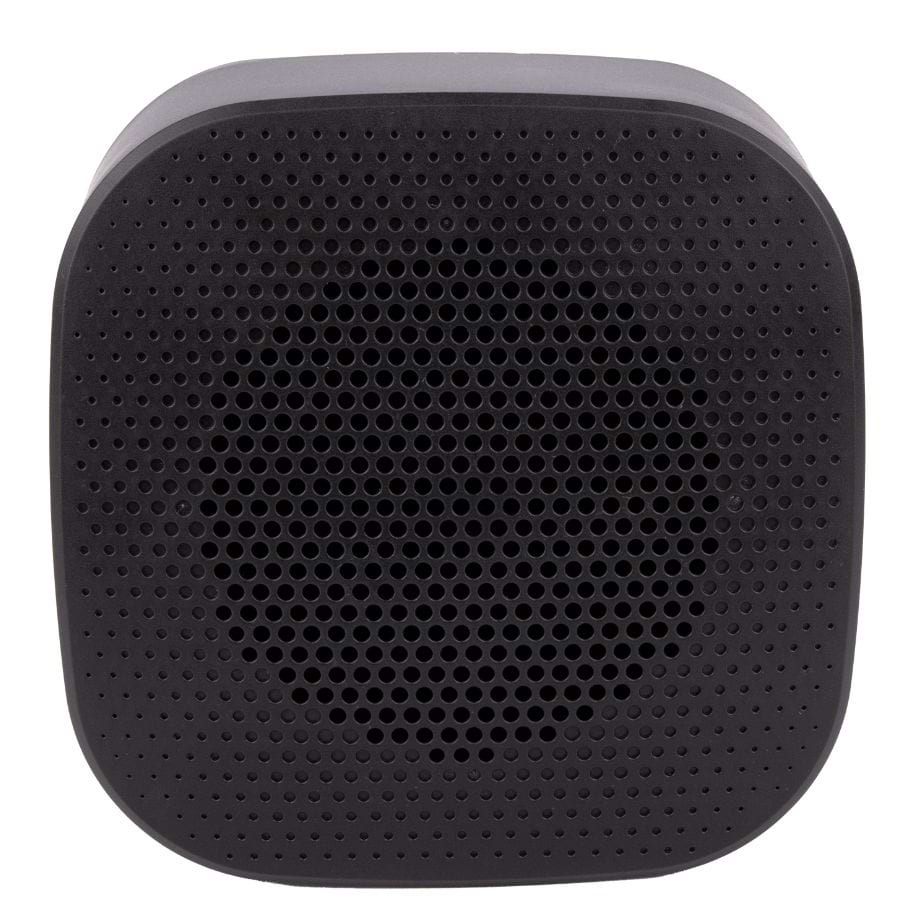

6W black wall speaker in 100V
Reference : WS-63N
SKU : 02814
EAN13 : 3701567912696
Description
Data Sheet in PDF
Subwoofer with good speech and music reproduction
• Its elegantly curved shape makes it suitable for all styles of modern architecture.
Applications: Schools, multi-purpose halls, gymnasiums
| SPECIFICATIONS | WS-63N |
| Type | Wall-mounted speaker |
| Material | ABS |
| Colours | Black |
| Loudspeaker | 5" |
| Acoustic Pressure | 92 dB/ 1 W / 1 m |
| Bandwidth | 120 - 18 000 Hz |
| Line power | 6 - 3W - 100V |
| Impedance 100 V | 1.7 / 3.3 KΩ |

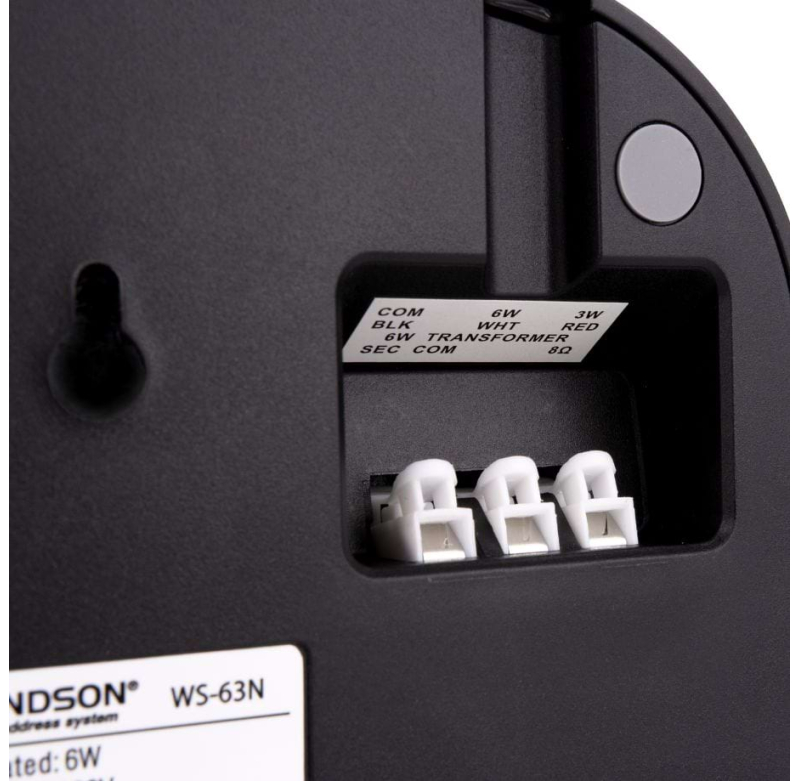

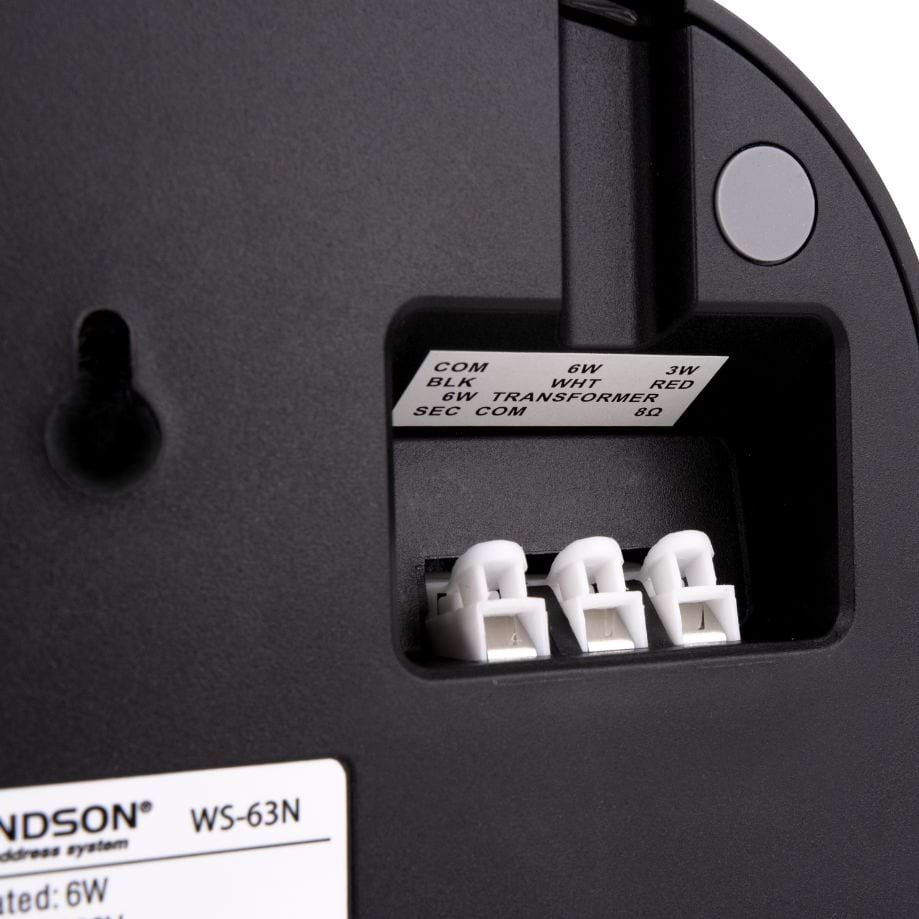

| Connection | On WIRE |
| Dimensions (W x D x H) | 172 x 172 x 80 mm |
| Weight | 0,5 kg |
Product Details
-
Brand
-
ReferenceWS-63N
-
SKU02814
-
EAN133701567912696
Data sheet
-
TypeWall-mounted loudspeaker
-
SubjectABS
-
ColoursBlack
-
100 V line impedances1.7 / 3.3 KΩ
-
Loudspeakers5"
-
Sound pressure level92 dB/ 1 W / 1 m
-
Bande passante120 - 18 000 Hz
-
Puissance ligne 100 V6 - 3W - 100V
-
ConnectionsSur fil
-
Dimensions (W × D × H)172 x 172 x 80 mm
-
Weight0.5 kgs
