Fireman's box for general safety calls

Reference : FIR 400
SKU : 01168
EAN13 : 8809267795474

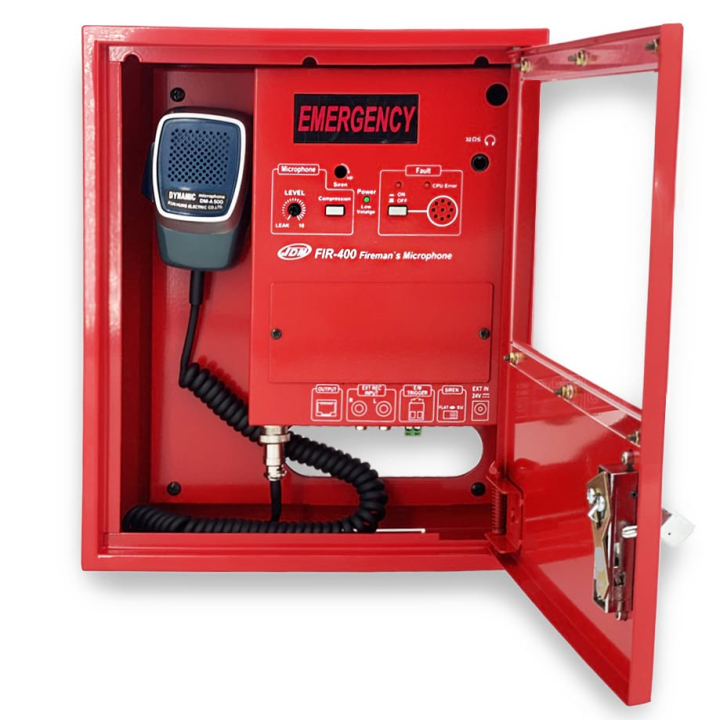

Fire brigade box with safety call microphone

Share

Description

Characteristics :

  • Reserved box for category 3 and 4 establishments
  • Easy to use message recorder and reader
  • High quality, faithful audio voice reproduction
  • Recording time 60 seconds
  • Non-volatile memory
  • Emergency priority entry, siren and automatic message reading (indicator light)
  • Micro PTT input for manual evacuation message
  • Automatic evacuation message (siren and recorded evacuation message broadcast)
  • Siren selection interval (continuous or DIN 33404)
  • Output overload protection circuit (compression)
  • Fault detection :
  • Defective microphone (unplugged, short circuit or faulty)
  • Faulty circuit
  • Buzzer fault signal (inter ON/OFF)
  • RJ45 socket for easy system connection
  • Sensor circuit for reducing power consumption in stand-by mode
  • Low voltage detector circuit
  • DC battery socket
SPECIFICATIONS FIR 400 (CODE 01168)
Power consumption

24 V DC
Audio Output

0 dB / 600 Ω symmetrical

Distorsion

 < 0,5 %
Signal-to-noise ratio

> 60 dB

Frequency Response

MICRO: 300 Hz - 5400 Hz (fs = 12 KHz)

LINE: 100 Hz - 5400 Hz (fs = 12 KHz)

Dimensions (W x D x H)

 250 x 70 x 300 mm

Weight

 3,2 Kg

Product Details

  • Brand
  • Reference
    FIR 400
  • SKU
    01168
  • EAN13
    8809267795474
