Wireless Conference System WCS - receiver unit

Name: Wireless Conference System WCS - receiver unit
Brand: RONDSON
SKU: WCS-UC

Reference : WCS-UC

SKU : 02505

EAN13 : 3701567900952

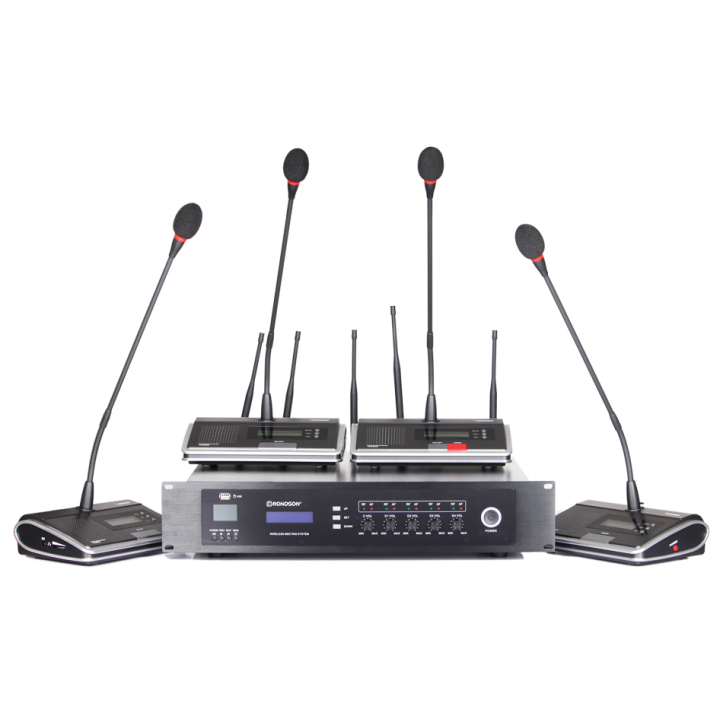

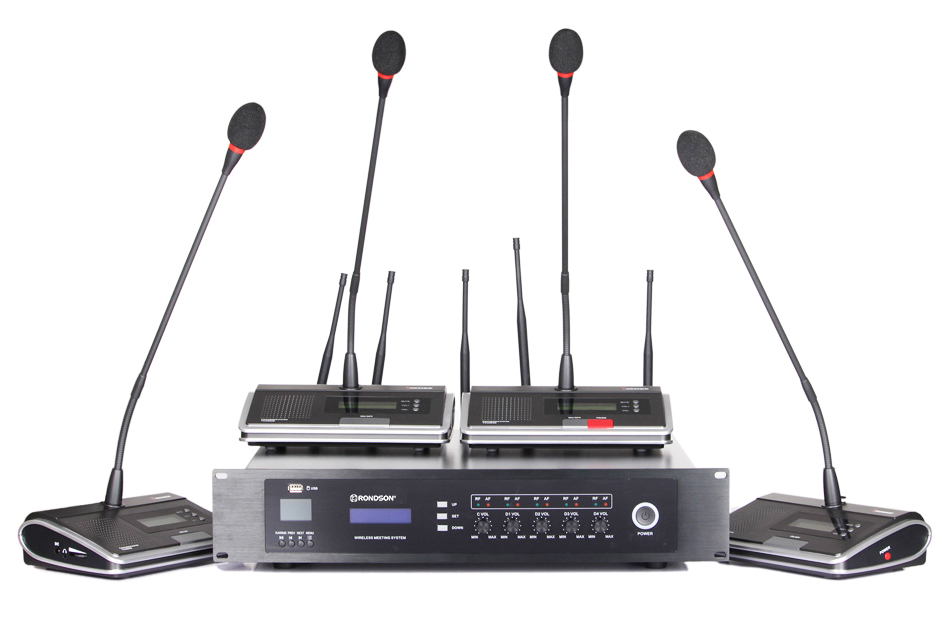

This UHF Wireless Conference System with high flexibility and reliability, which is an ideal choice for mobile conference systems. It is one simple operation, compact structures, cost-effective range basic discussion conference system. It can be perfectly integrated into any meeting rooms without additional wiring. It’s the best solutions for small-scale conferences system.

Types d'applications

SOLUTION DE CONFÉRENCE

Systeme de conference WCS

Download (12.87MB)

Description

DATA SHEET IN PDF

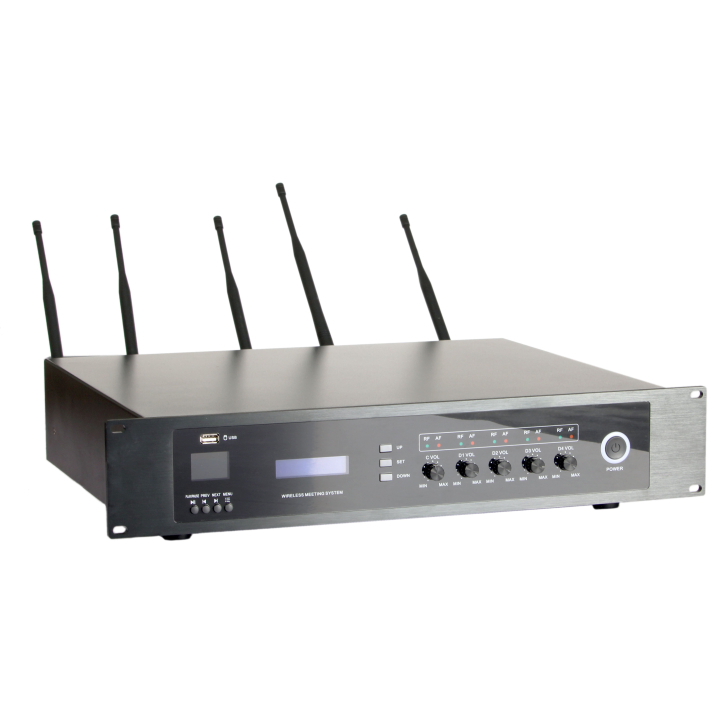

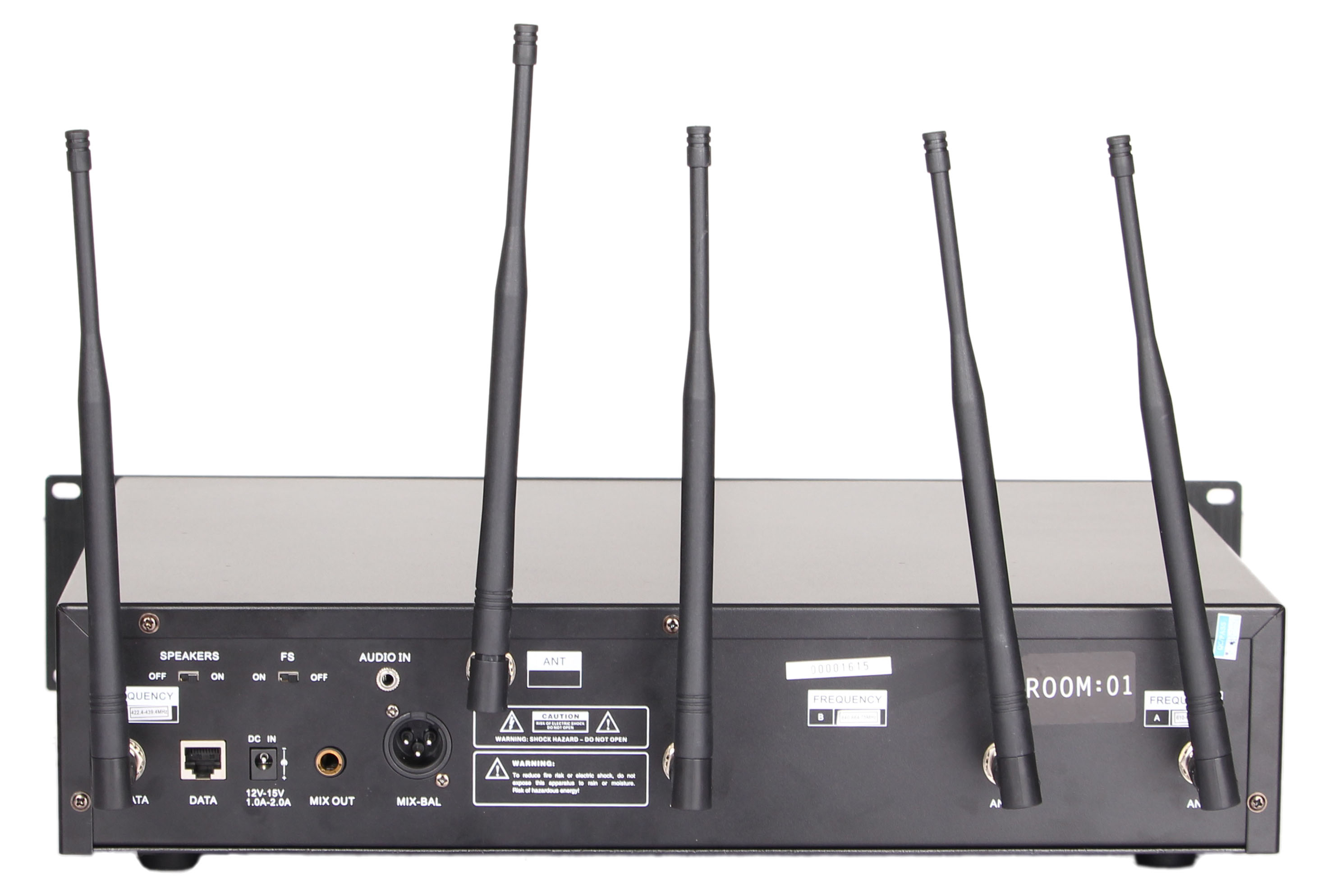

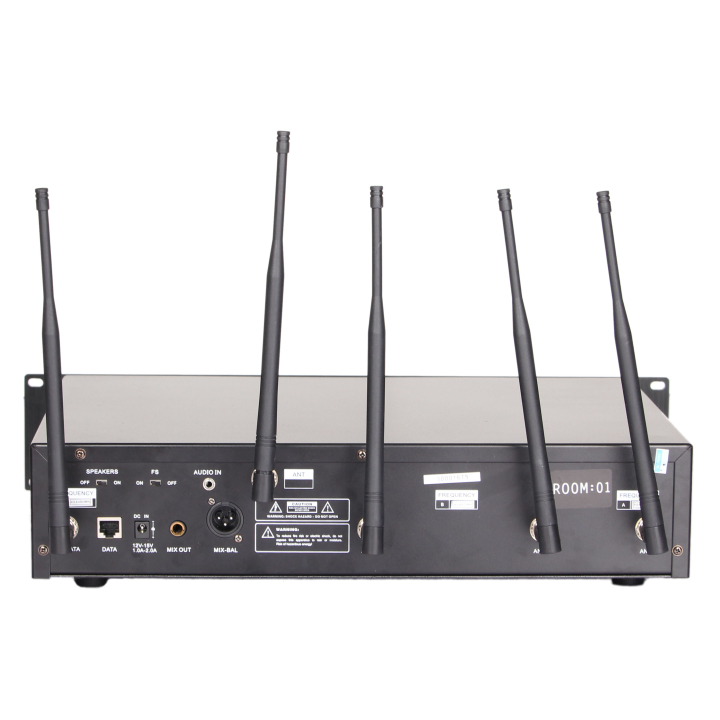

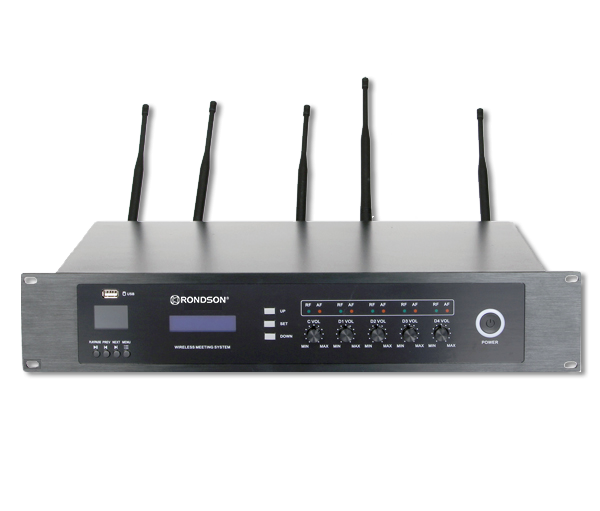

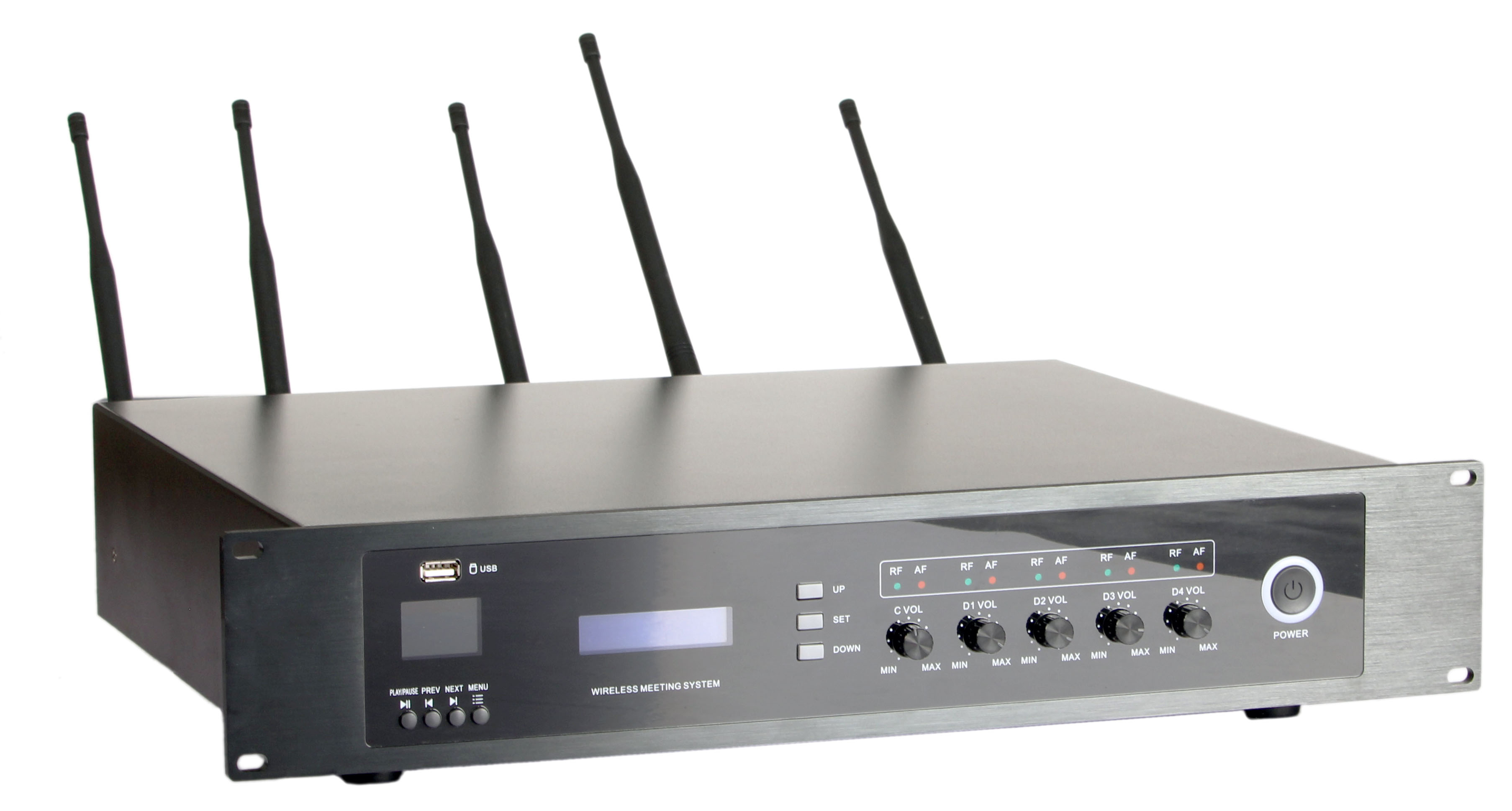

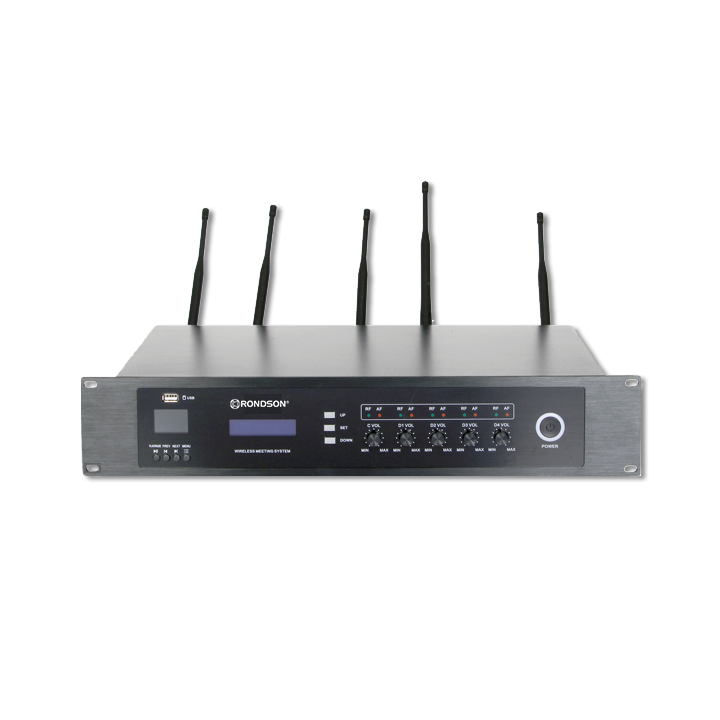

The WCS-UC is the receiver for the WCS conference system, allowing quick, simple and complete configuration.
The CPU has several modes available: Limit (1/2/3/4), FIFO (1/2/3/4), chairperson only.
This system can be composed of up to 256 units, 5 chairperson microphone consoles can be used together.
Audio recording and playback function is available.
Volume and frequency setting, USB port.
19" rack mountable for rack mounting.

Features

Frequency 422.4 - 438.4 MHz (DATA) - 610 - 950 MHz (CHANNELS)
CCC, CE, ROHS, FCC standards
Power: When the President is off, delegates automatically switch off.
4 channels can operate simultaneously (1 president and 3 delegates). The number of delegates is not limited (FIFO).
Conference mode: first in, first out and request to speak
Dual transmission channel for base station/desk communication, recording output socket
Battery detection function: An LED lights up when the battery is low.
Digital Frequency Shift Technology, strong ability to prevent feedback effects, stable and clear pitch
Transmit/receive distance of more than 60 m depending on the rooms

SPECIFICATIONS	WCS-UC
Type	Central unit
Frequency	422,4 - 438,4 MHz
Power supply	DC-12 V / 1 A
Audio offset	≤ 15 MS
Signal-to-noise ratio	≥ 85 dB
Dynamic range	≥ 110 dB
Distorsion	≤ 0,8 %
Outputs	Asymmetrical : Jack Ø 6,3 mm : 0 dB Symmetrical : XLR : 3 dB
Dimensions ( W x D x H)	485 x 355 x 88 mm - 19" rackable
Weight	7,2 Kg
