4-channel wireless conference system

Name: 4-channel wireless conference system
Brand: RONDSON
SKU: BE-10CONF

Reference : BE-10CONF

SKU : 02517

EAN13 : 3701567909443

Ensemble récepteur double avec 2 micros à main

4 channel wireless conference system

There are 4 fixed frequency ranges available :

1°) 501 MHz / 511,5 MHz / 524 MHz / 538,5 MHz

2°) 655 MHz / 669,1 MHz / 663 MHz / 676.6 MHz

3°) 658.1 MHz / 670.4 MHz / 664.1 MHz / 687.1 MHz

4°) 506,1 MHz / 517,5 MHz / 531 MHz / 546,5 MHz

Fréquences Mhz

501 MHz / 511,5 MHz / 524 MHz / 538,5 MHz

655 MHz / 669,1 MHz / 663 MHz / 676.6 MHz

658.1 MHz / 670.4 MHz / 664.1 MHz / 687.1 MHz

506,1 MHz / 517,5 MHz / 531 MHz / 546,5 MHz

Canaux

BE-10CONF

Download (1.11MB)

BE-10CONF

Download (5.55MB)

BE-10CONF

Download (1.17MB)

Description

DATA SHEET IN PDF

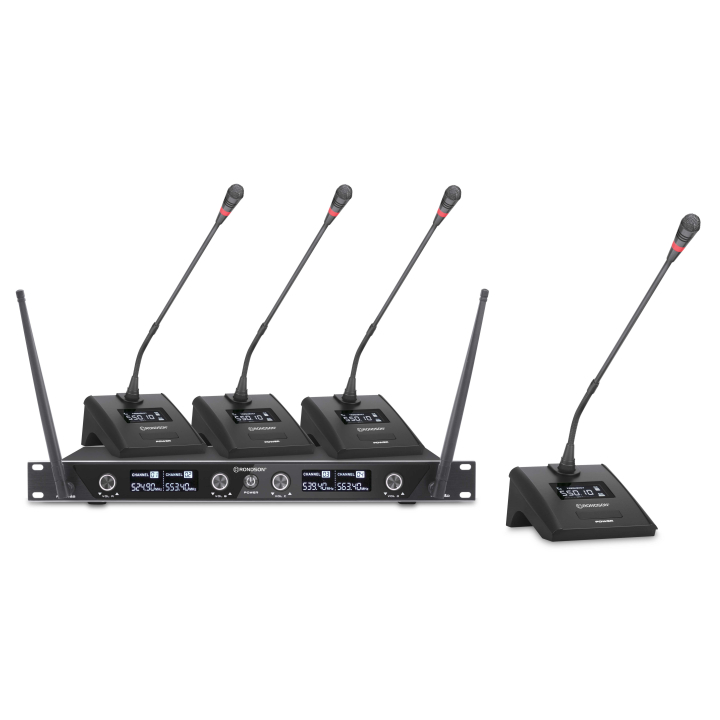

The BE-10CONF conference system is perfectly adapted to small installations to offer a communication solution for boards of directors, town councils, general assemblies...meetings ideally of 8 people, scalable up to 16 if necessary.

The receiver box connected to a PM 8P preamplifier gives the possibility to set priorities for the microphone lecterns and thus to obtain a president and delegates lectern as in a classical conference system.

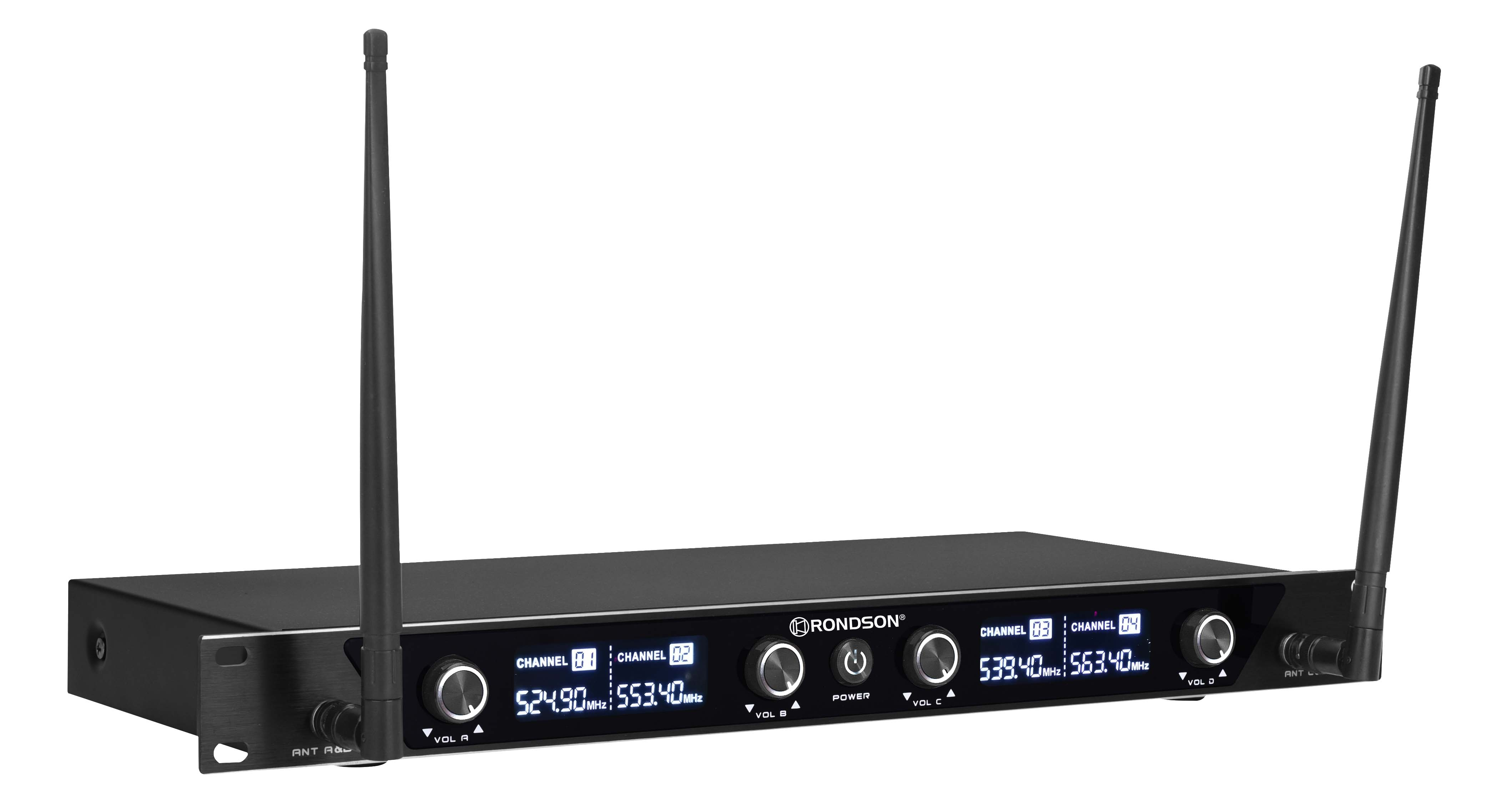

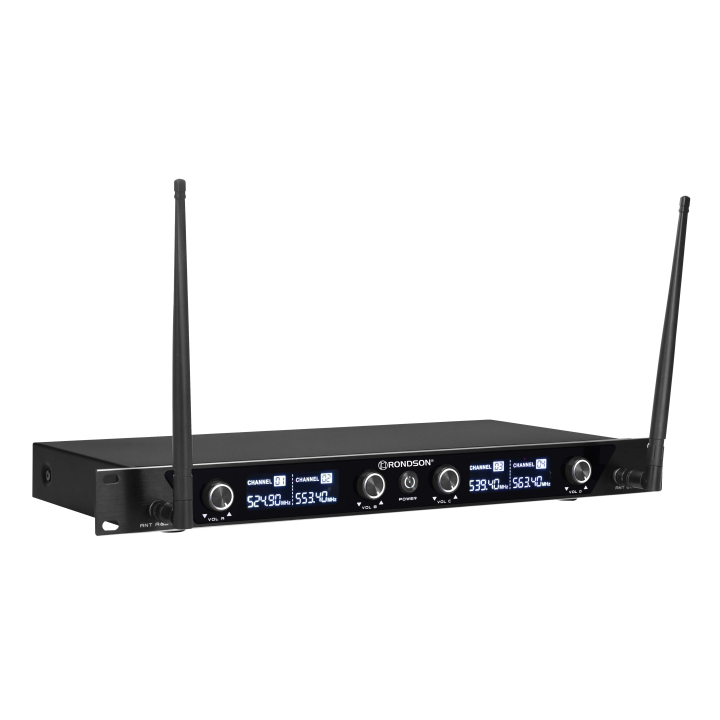

4-channel UHF receiver equipped with selectable PLL synthesised receiver modules
Automatic reception system
Anti-interference system for simultaneous operation of several units
Reception distance of 50 metres
Transmitter power: 10 mW
Function display on LCD screen
Infrared "sync" function to transmit the frequency to the transmitters.
Ideal for professional vocal or audio applications, speeches, animations, etc.
1 jack cord (mix output) and 2 XLR cords
Integrated brackets

SPECIFICATIONS	BE-10CONF
Reception method	4 CHANNELS
System	Synthesized PLL
Frequency stability	± 10 ppm
Image interferes rate	> 50 dB
Signal-to-noise ratio	> 90 dB
Sensitivity	- 80 dBuV
Harmonic distortion	< 0,5 %
Frequency Response	50 – 15 000 Hz
Output impedance	600 Ω
Audio output level	400 mV, balanced / unbalanced
Display	LCD
Audio output jack	2 XLR symmetrical, 1 jack unbalanced
Antenna sockets	2 x BNC in front panel
Power supply	DC 12V - 1000 mA
Dimensions (W x D x H)	480 x 180 x 46 mm (rackable)
Weight	3,5 Kg
Consumption	< 10 W
Hand microphone	BE-1040MIC
Batteries	2 x AA / 1,5 V (delivered)
