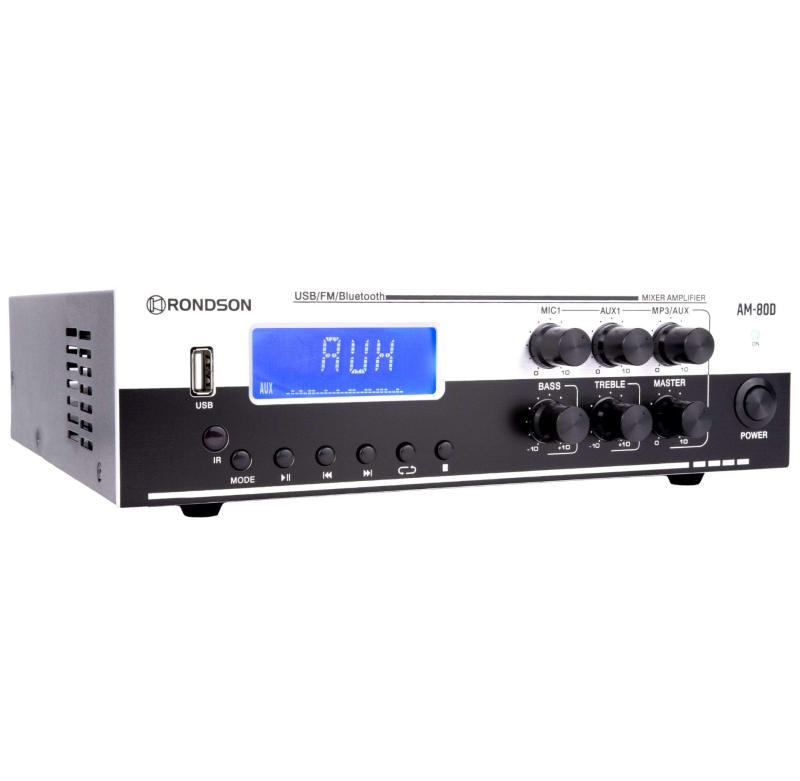

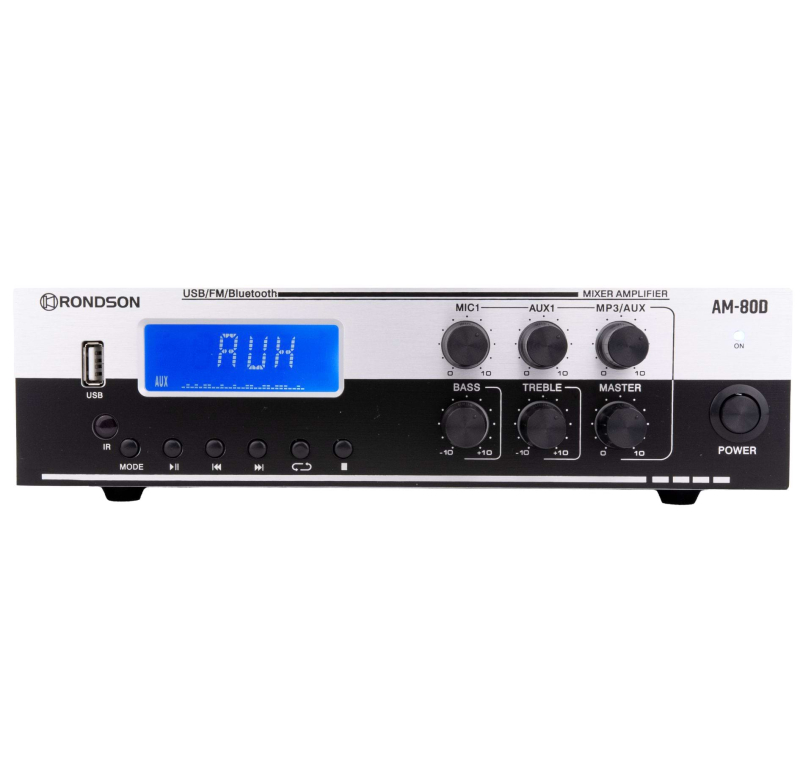

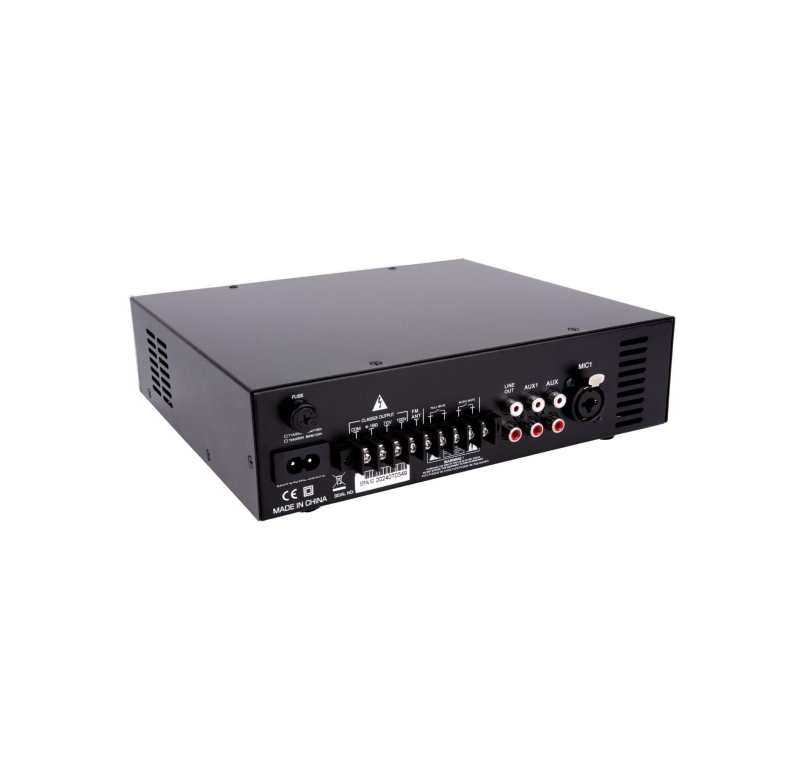

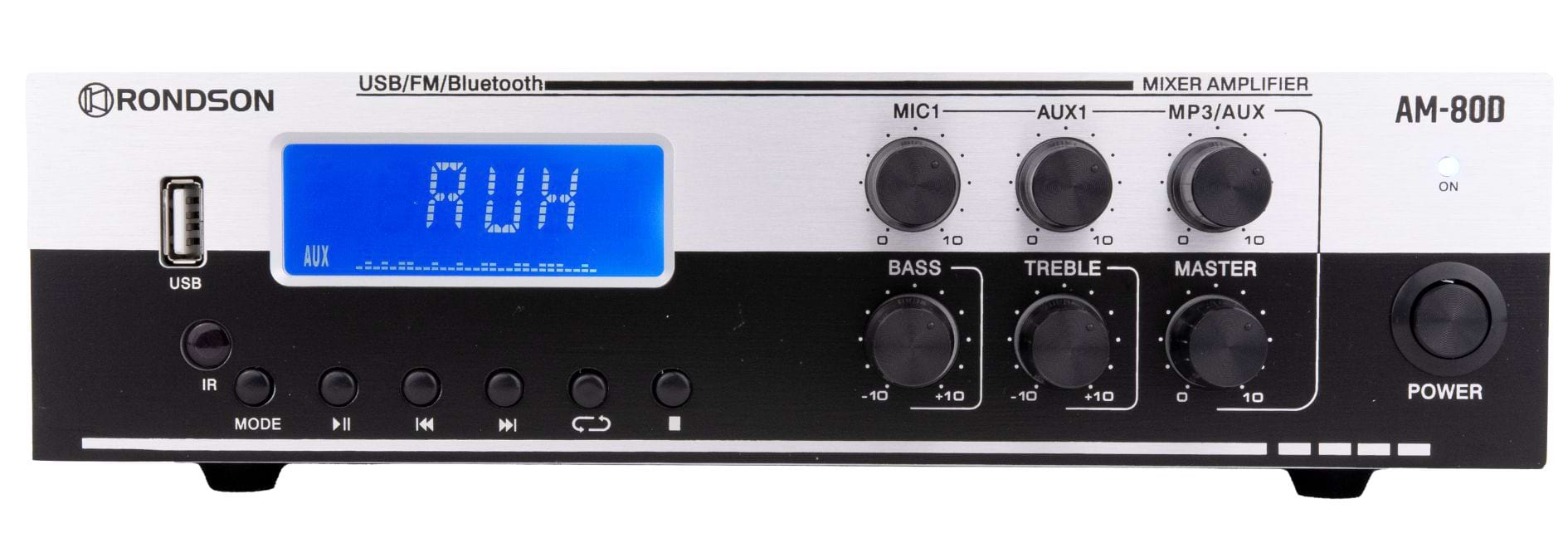

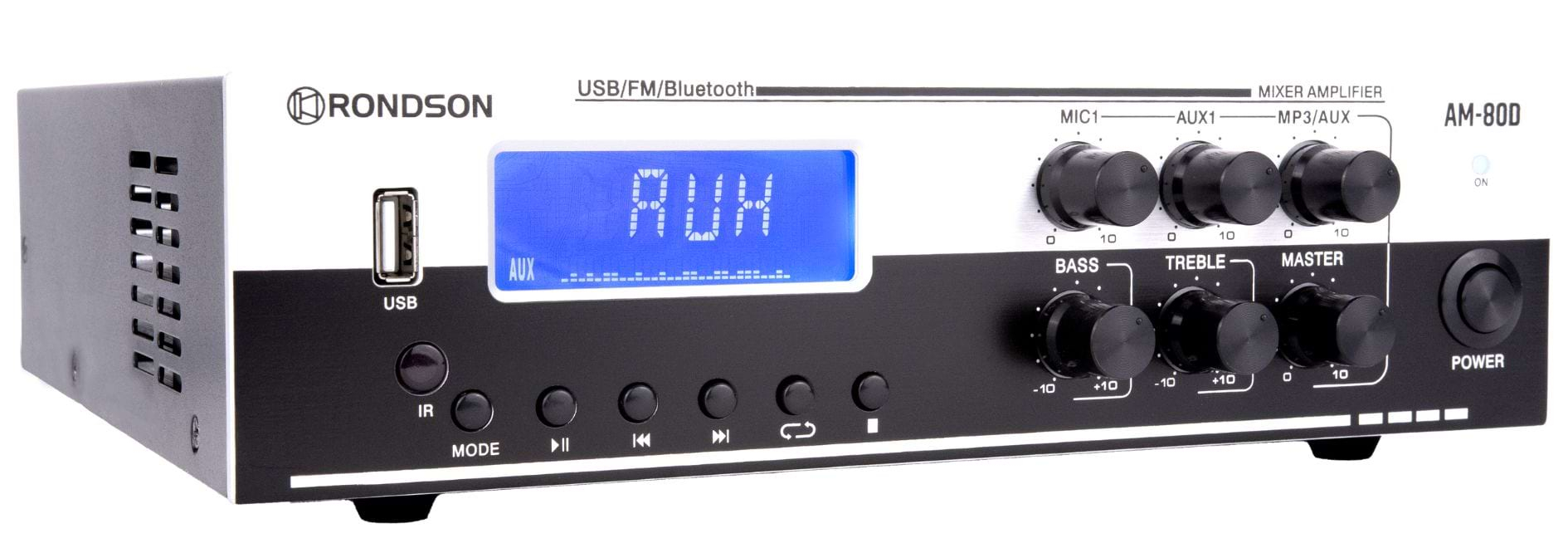

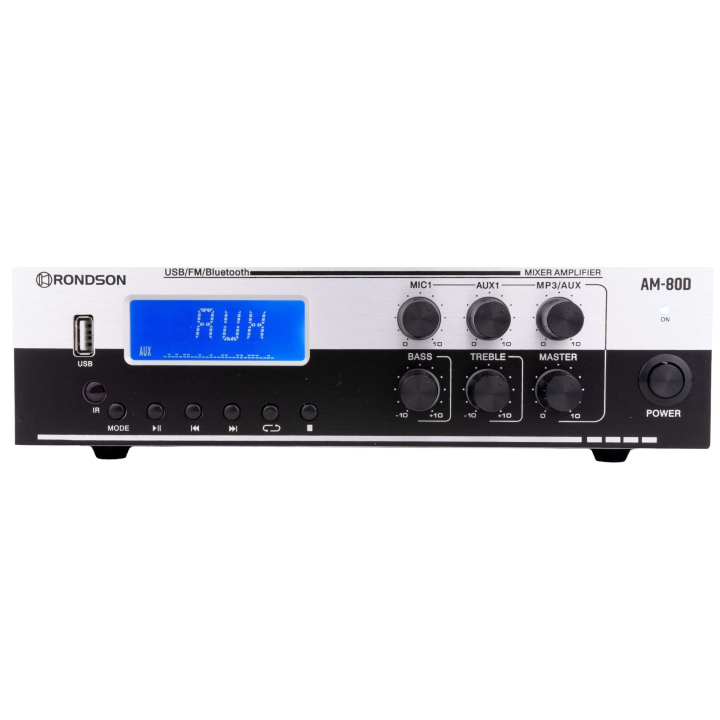

80W Multimedia Mixer Amplifier (Bluetooth/USB)
Reference : AM-80D
SKU : 02788
EAN13 : 3701567912597
Description
Description
80 W mixer amplifier.

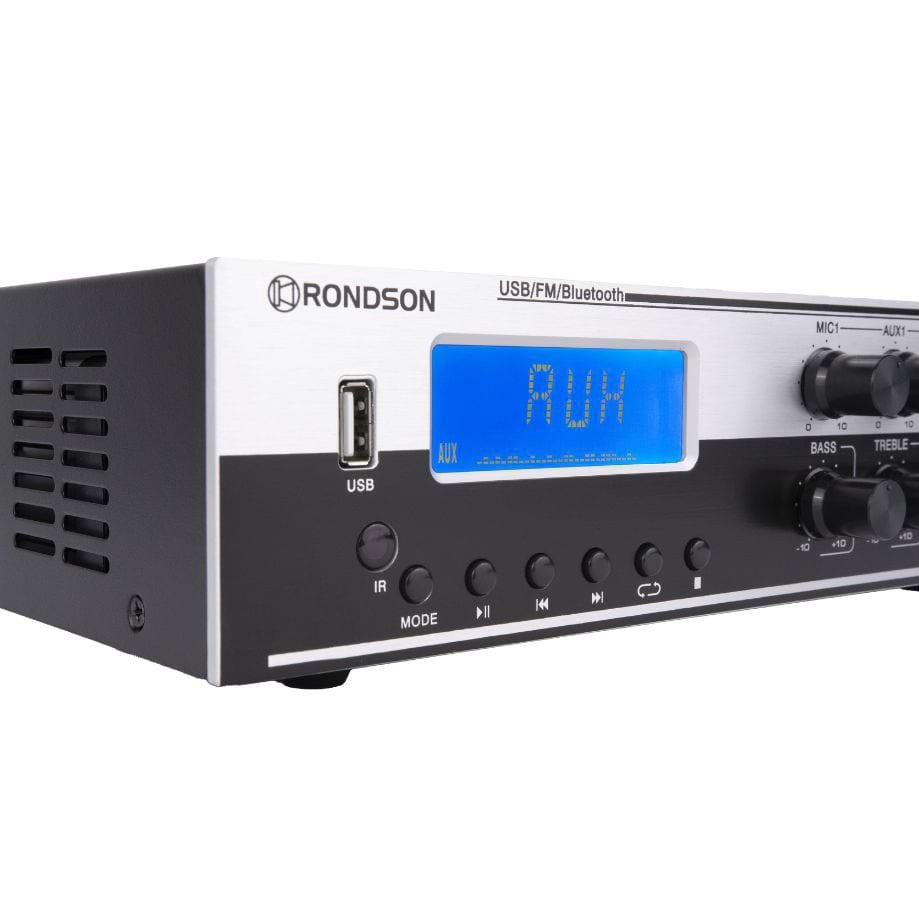

Multimedia player: FM Tuner / USB / Bluetooth.

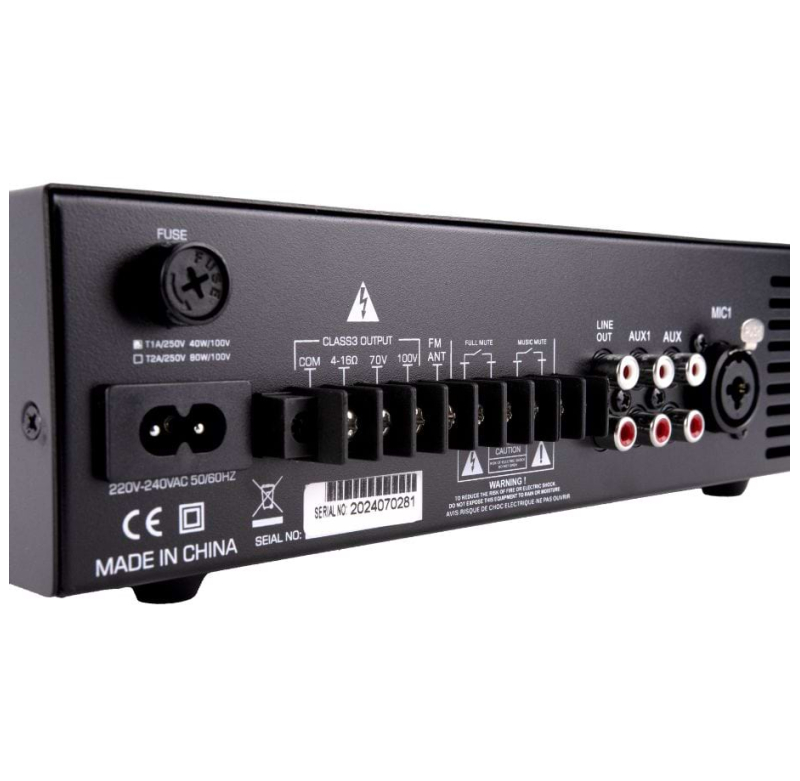

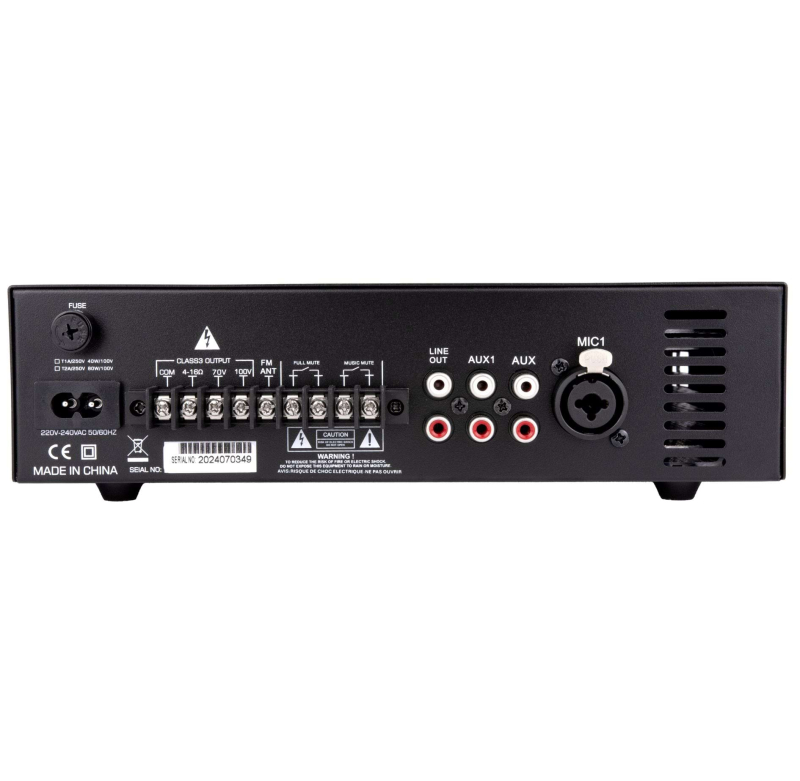

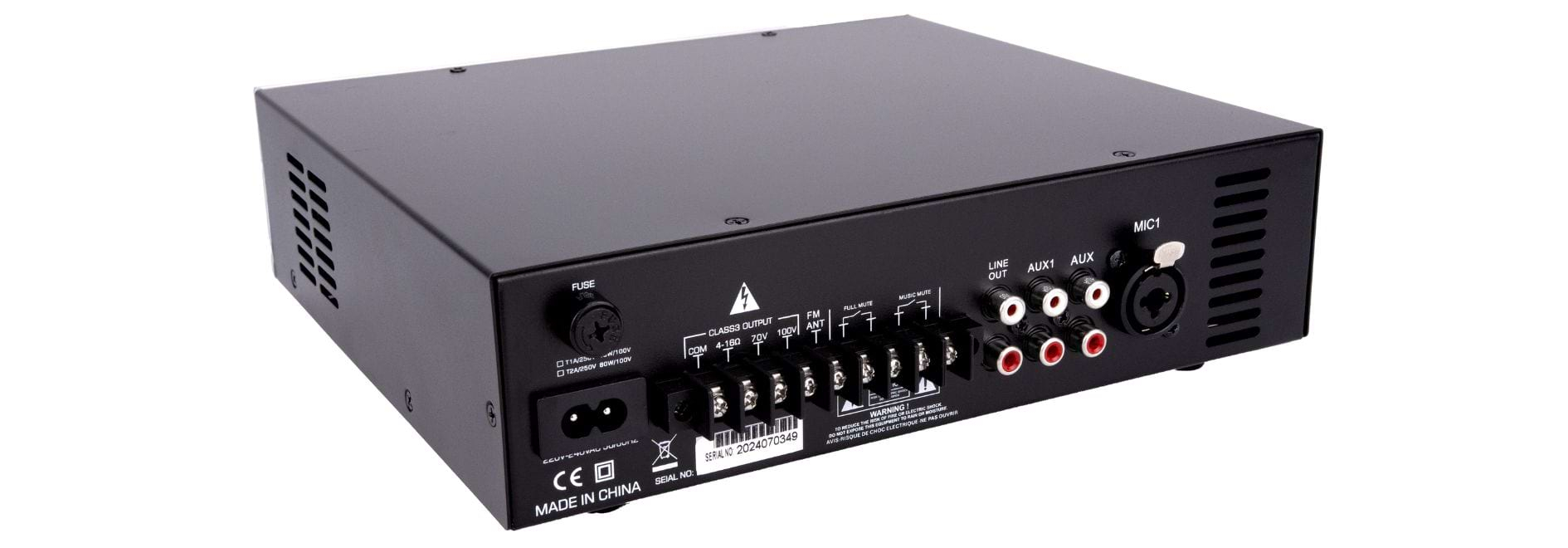

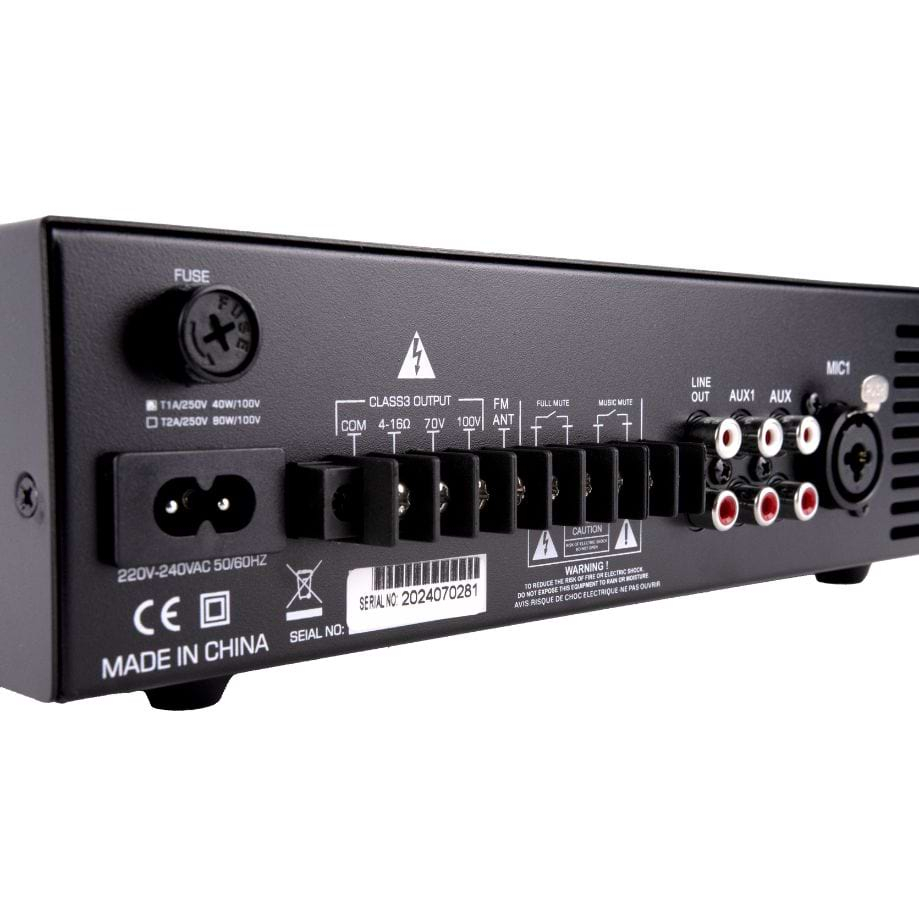

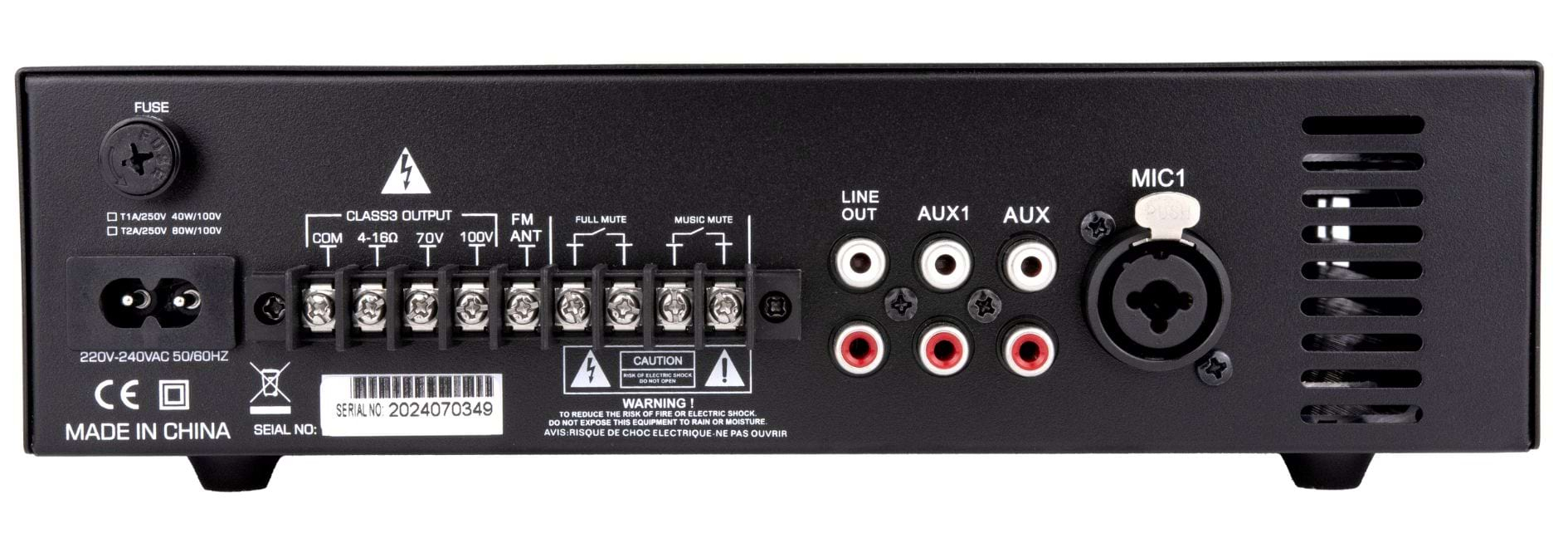

Offers 100V and 4-16 Ω low impedance speaker outputs.
Operates on 240V – 50 Hz mains.
Product Data Sheet (PDF):
Features
Equipped with:

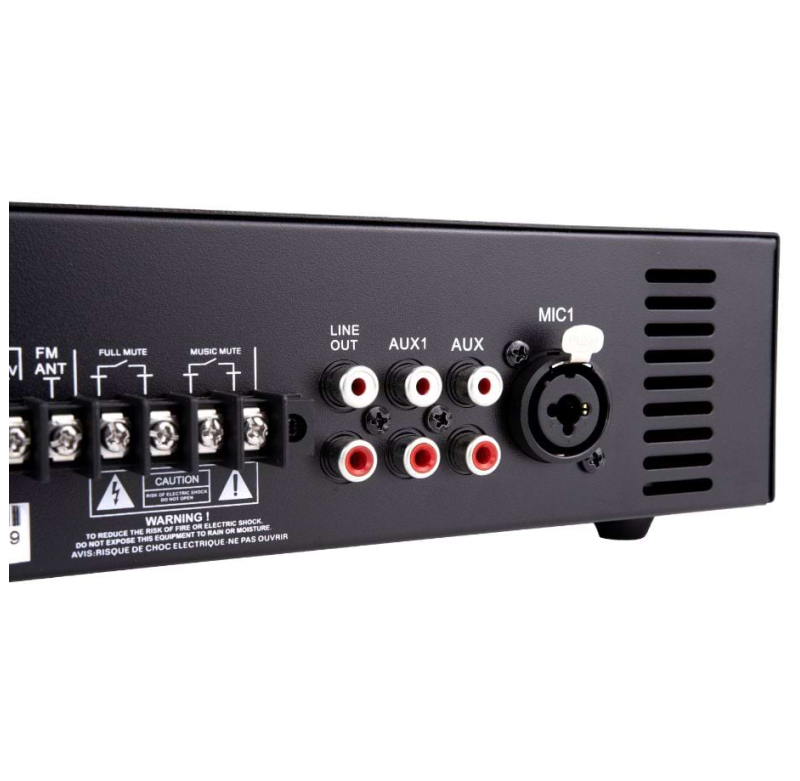

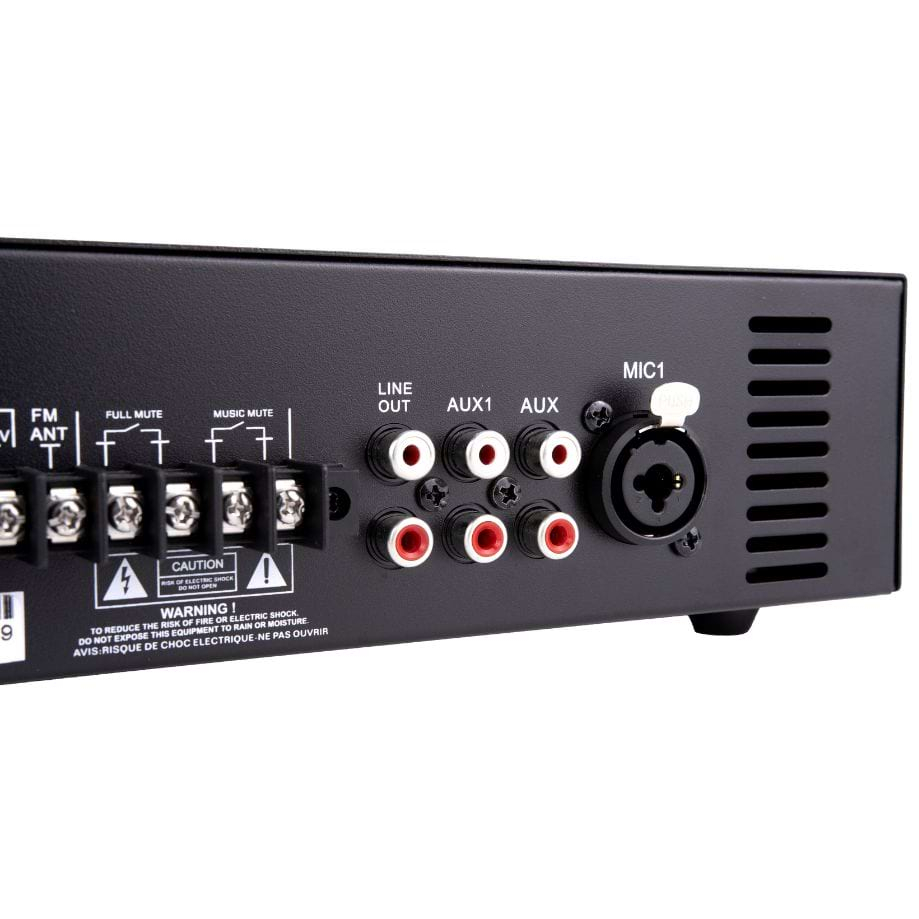

- 1 combo XLR / 6.35 mm JACK input
- 2 RCA AUX inputs
- 1 RCA LINE OUT
- FM Tuner module and MP3 / USB / SD player
- Bluetooth receiver module for streaming from your mobile, tablet, or laptop
- Thermal, overload, and short-circuit protection

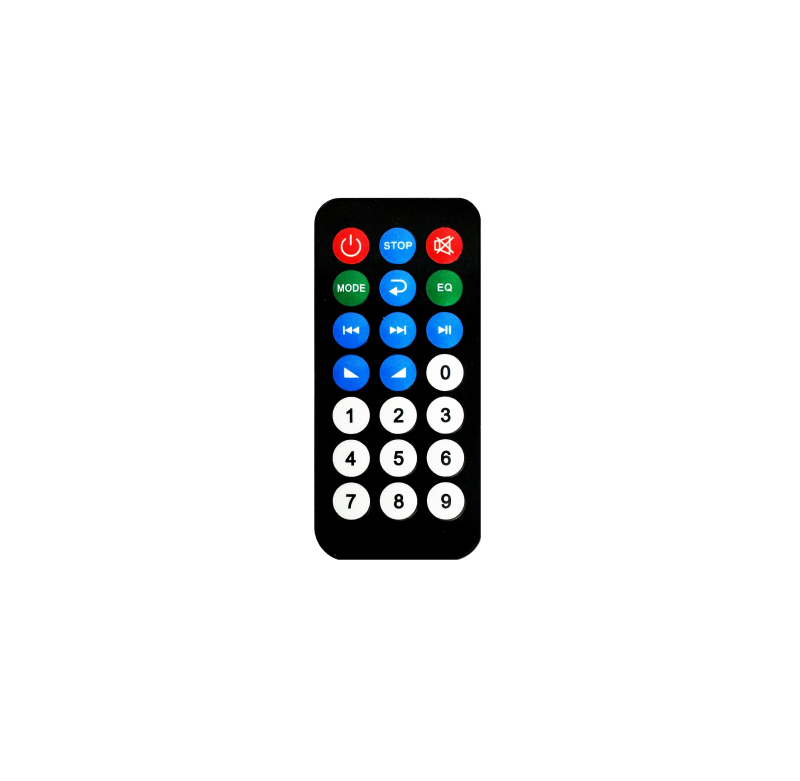

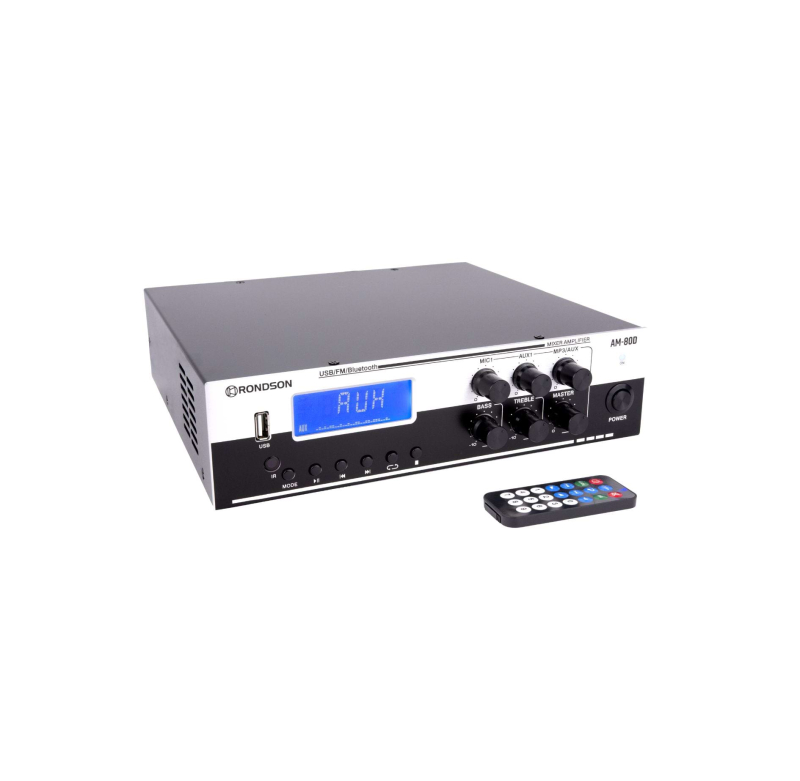

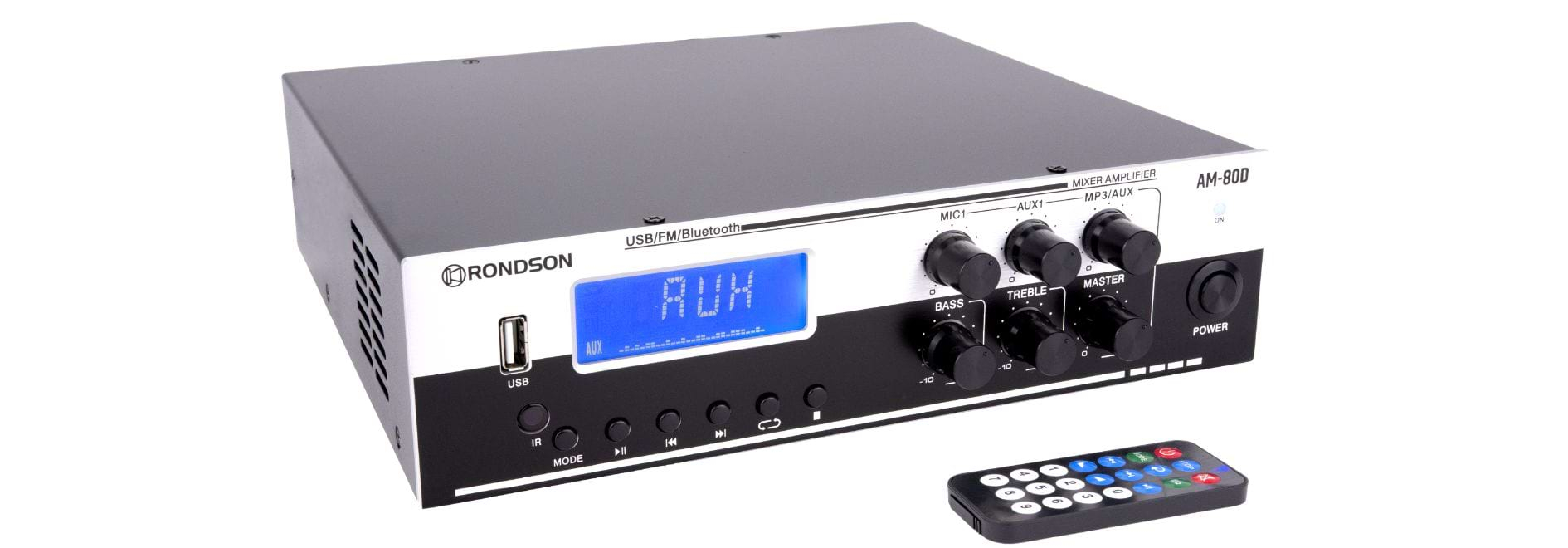

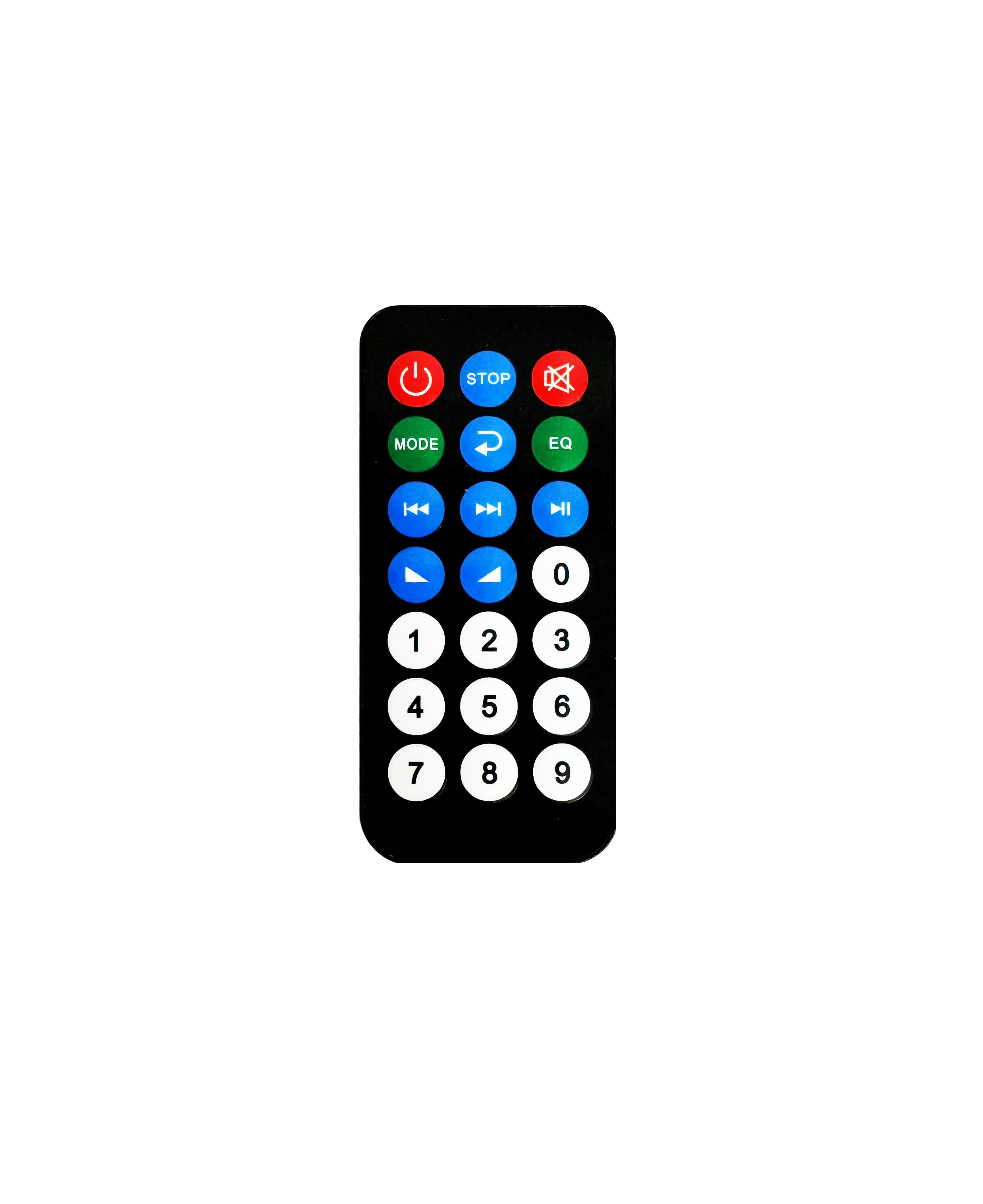

- Remote control
| Specifications | AM-80D |
|---|---|
| Type | Preamplifier amplifier |
| Power supply | AC 240V — 50 Hz |
| Output power | 80 W RMS |
| Speaker outputs | 4-16 Ω / 100 V |
| Output / Sensitivity | 0 dBV / 600 Ω |
| Inputs / Sensitivity | MIC 1: 4 mV AUX 1: 400 mV AUX 2: 550 mV |
| Tone controls | Bass: ± 10 dB at 100 Hz Treble: ± 10 dB at 10 kHz |
| Frequency response | 80 Hz – 20,000 Hz (± 3 dB) |
| Signal-to-noise ratio | ≥ 75 dB |
| Total harmonic distortion | < 0.5 % |
| Displays | Power indicator, output level VU meters |
| Dimensions (W x D x H) | 220 x 230 x 66 mm (2U) |
| Weight | 5 kg |
Product Details
-
Brand
-
ReferenceAM-80D
-
SKU02788
-
EAN133701567912597
