2-zone mixing amplifiers of 120W in 100V

Name: 2-zone mixing amplifiers of 120W in 100V
Brand: SEGON PROFESSIONAL AUDIO
SKU: AME-120-2Z

Reference : AME-120-2Z

SKU : 02740

EAN13 : 3701567911958

Out-of-Stock

5-zone amplifiers preamplifiers with MP3 CD, TUNER and USB audio source

120W 2-zone mixer amplifier

Multimedia player (Tuner / USB / SD / Bluetooth)

Remote control

100V line

24V DC

Power output

120 W

BLUETOOTH

Impédance

100V

Zones

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

AME-120-2Z

Download (843.69KB)

Description

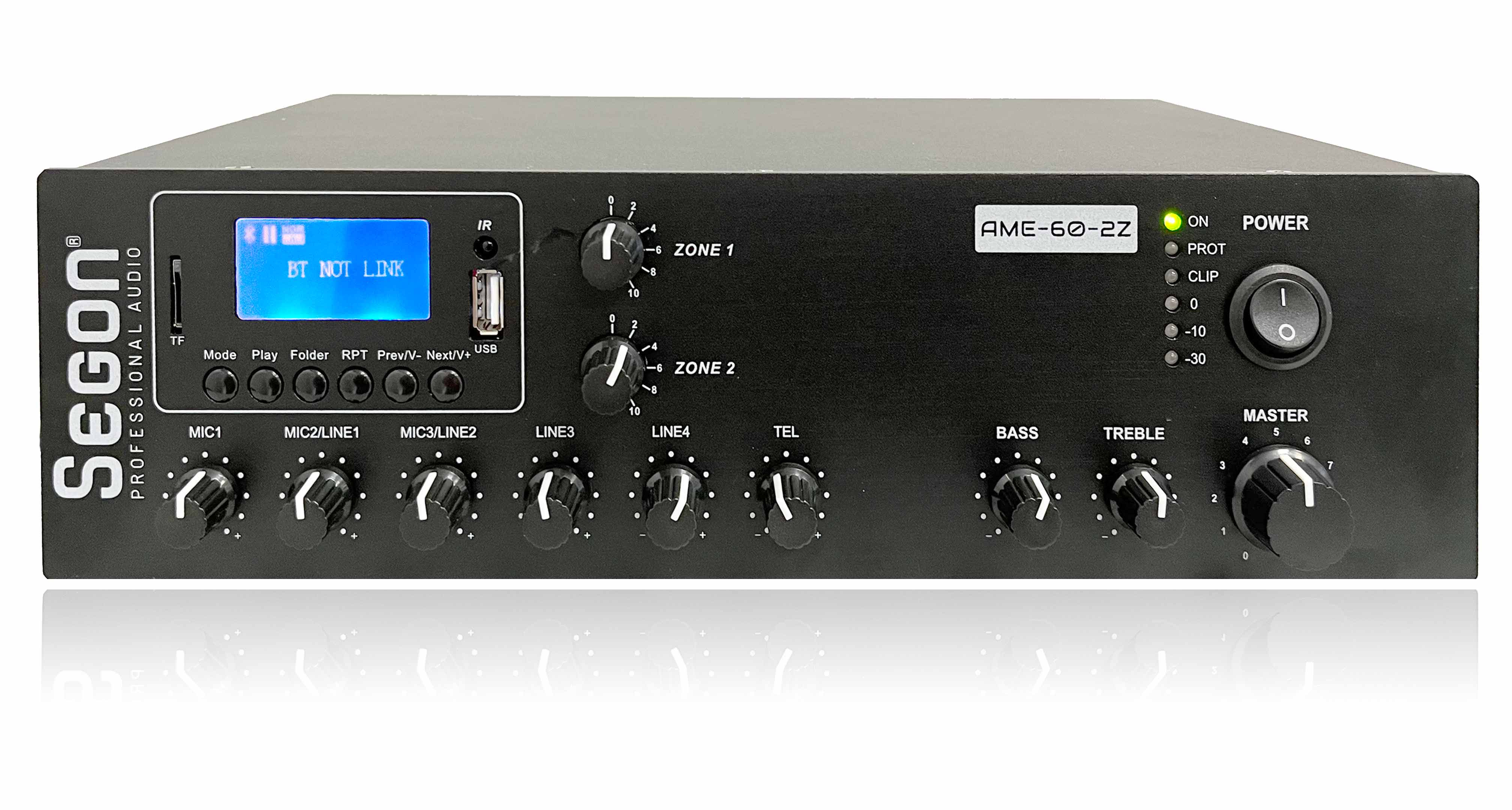

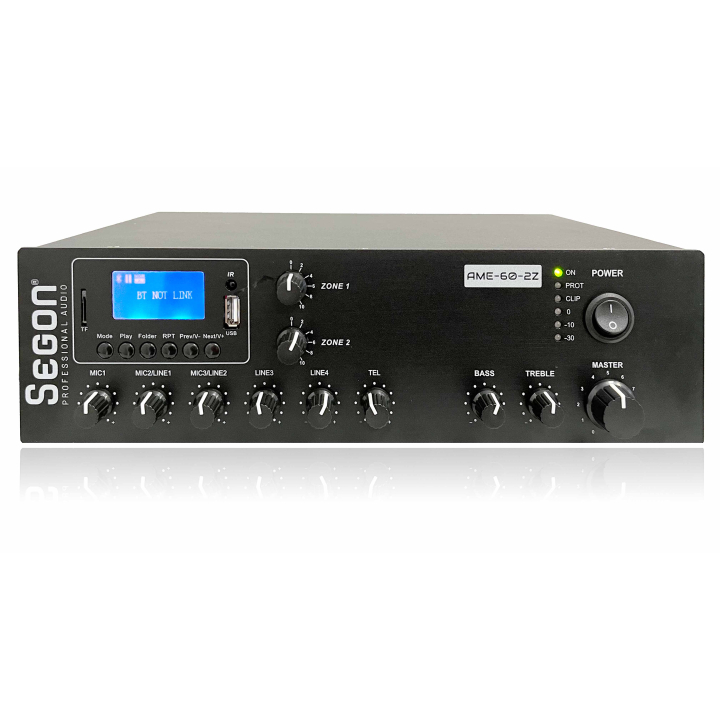

These mixer-amplifiers are available in 2 power ratings: 60W and 120W.
2 adjustable zones
Standard operation in 100V (per zone) and in 4-8-16 Ω and
70/100V (direct only).
They operate on 110/230V - 50/60 Hz or DC24V mains.

Features :

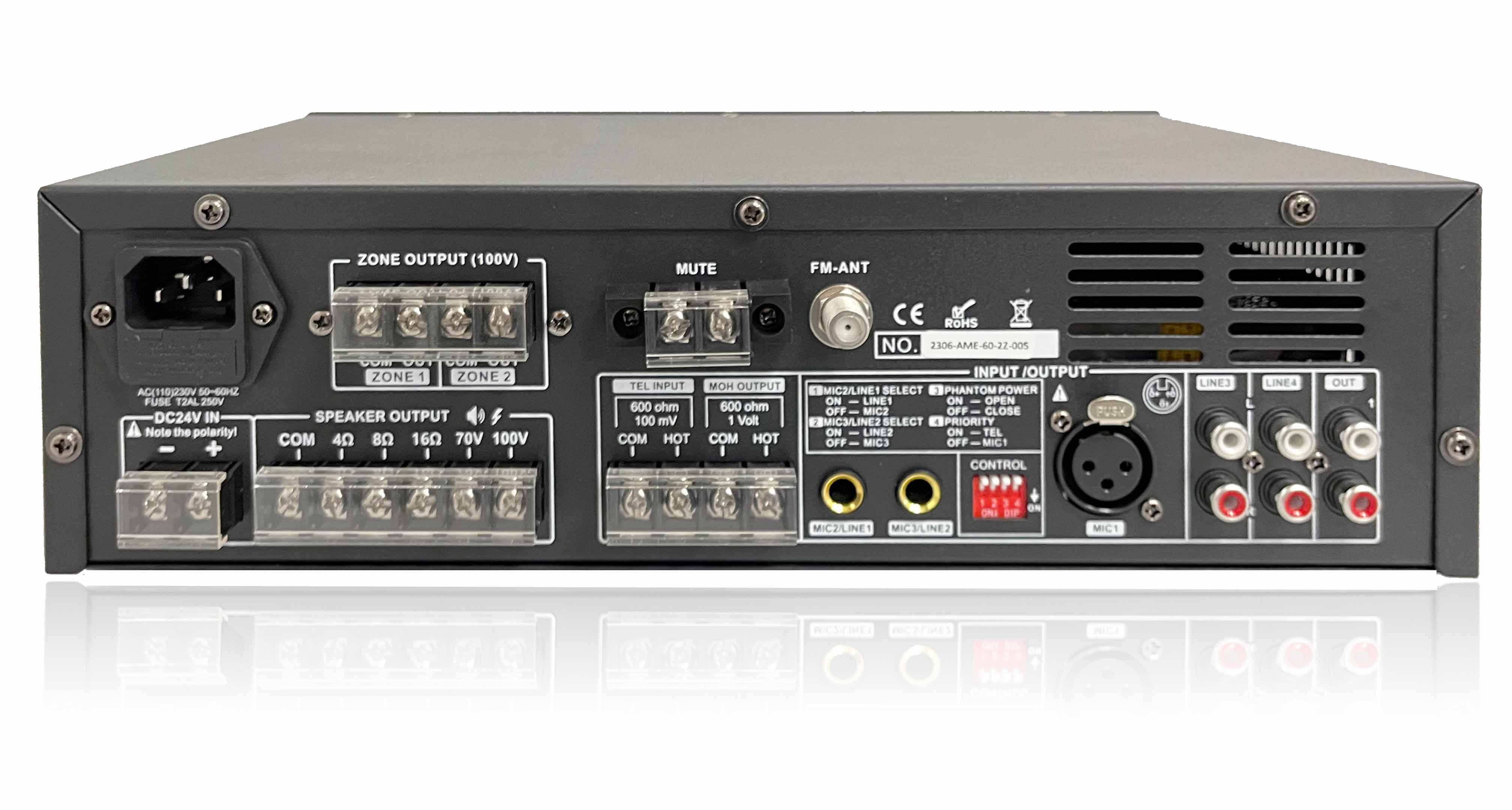

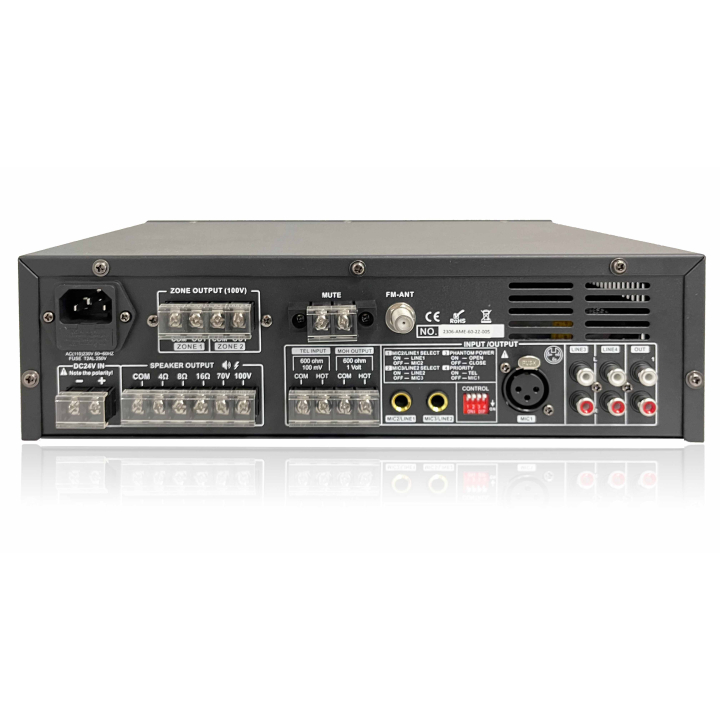

They are equipped with :
- AM/FM tuner and USB/SD/Bluetooth player
- 2 balanced MIC/LINE JACK 6.35 inputs
- 1 Tel input with ultra priority volume on all sources (AUX/ MIC)

- 1 priority MIC XLR input
- 2 LINE RCA inputs
- 1 LINE RCA output
- 1 individual volume control per input, 1 master volume control
- Thermal, overload and short-circuit protection
- Siren triggered by front panel on/off button
- Bluetooth pairing: ‘BT6678’ mdp: 1234

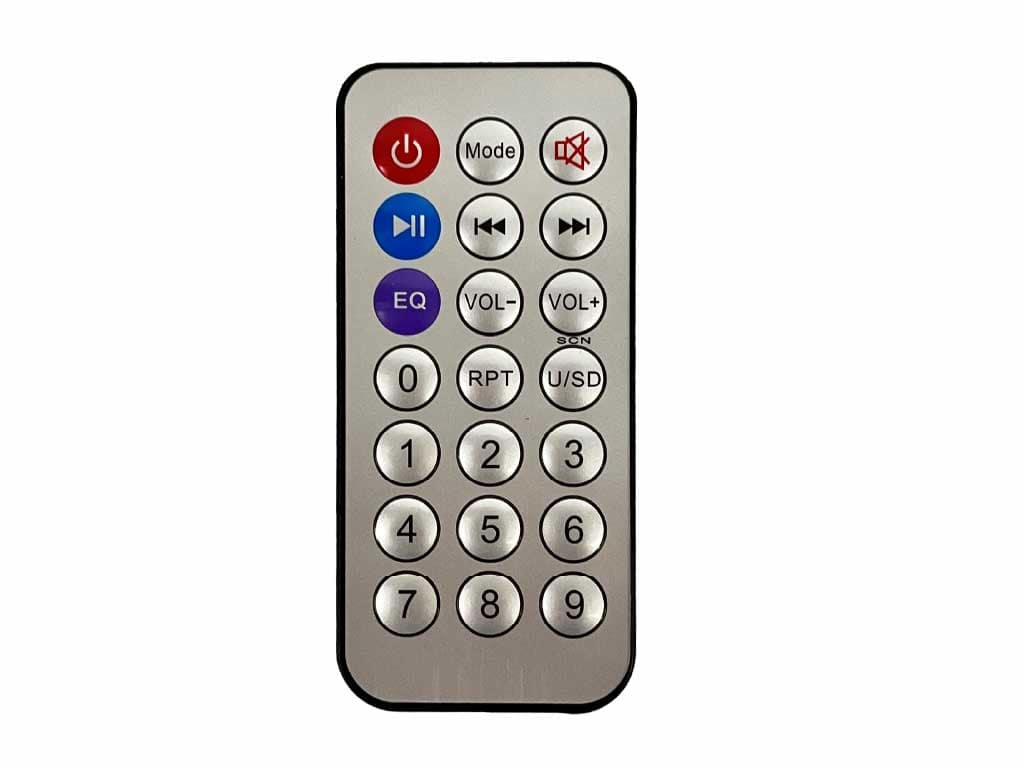

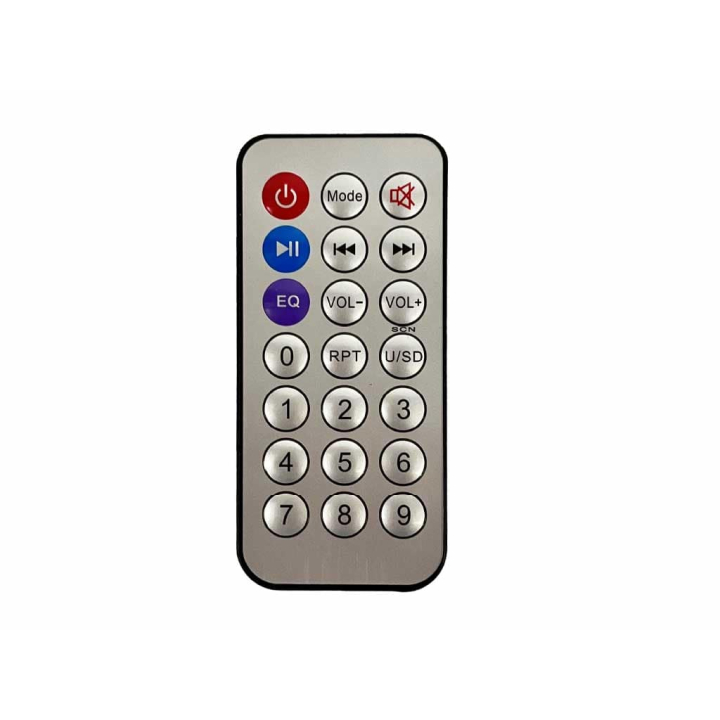

- Remote control

Product Details

Brand
Reference

AME-120-2Z
SKU

02740
EAN13

3701567911958

Data sheet

Type

Ampli-mélangeur avec tuner/MP3/USB/SD/BLUETOOTH
Output power

120W
Speaker outputs

4 - 8 -16 Ω / 70V – 100V
Power consumption

200W
Signal-to-noise ratio

MIC : + 72 dB - LINE : + 85 dB
Alimentation

AC 110V/230 V – 50/60 Hz - DC 24V
Alimentation fantôme

+ 24 V commutable
Distorsion harmonique totale

0,5 %
Bande passante

60 Hz – 15 000 Hz (± 3 dB)
Protection et refroidissement

Ventilateur, Protection thermique, surcharge et court-circuit
Réglages tonalité

Graves : ± 10 dB à 100 Hz Aigus : ± 10 dB à 10 000 Hz
Dimensions (W × D × H)

320 x 210 x 90 mm
Weight

4.60 kg
