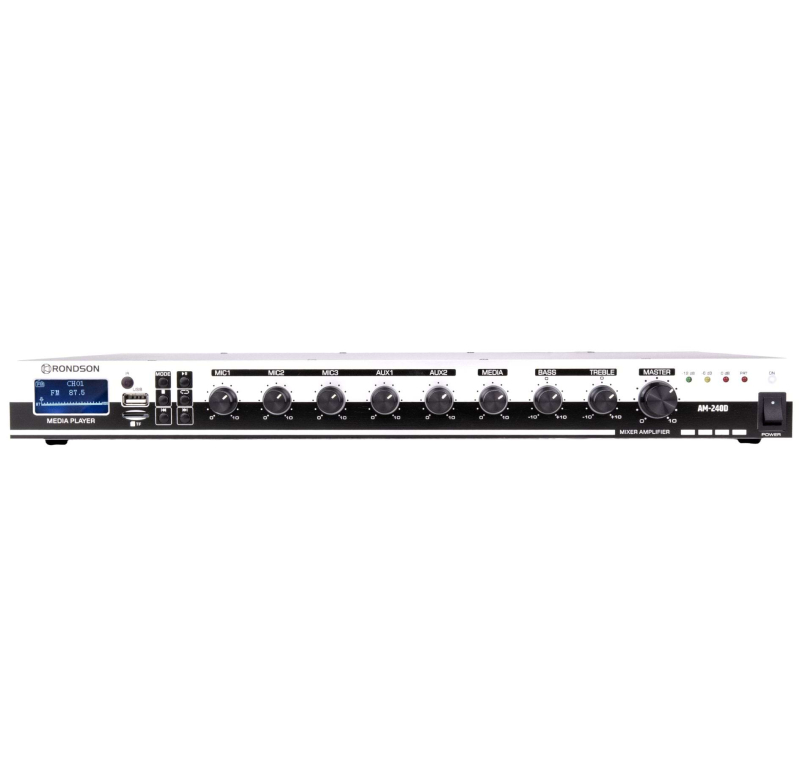

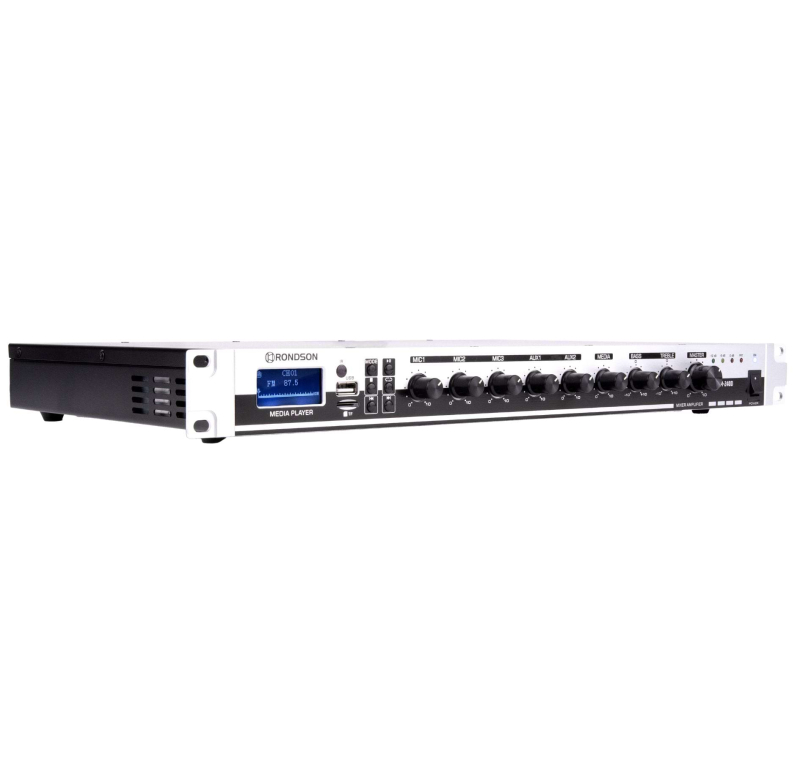

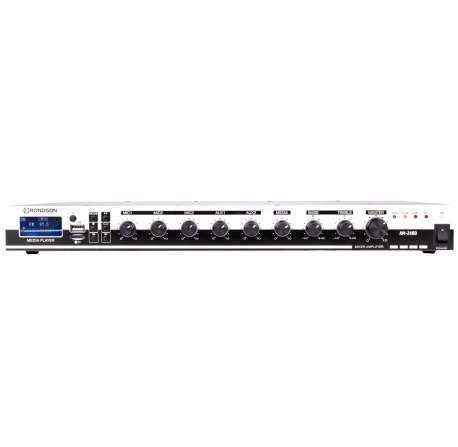

240W multimedia mixer amplifier in 100V - 19" 1U
3701567912573
02790
240W mixer amplifier
Online 100V
Media Player
19" 1U
In Stock
Delivered within 48/72h
For professionals
To log inFor individuals
Contact usDescription

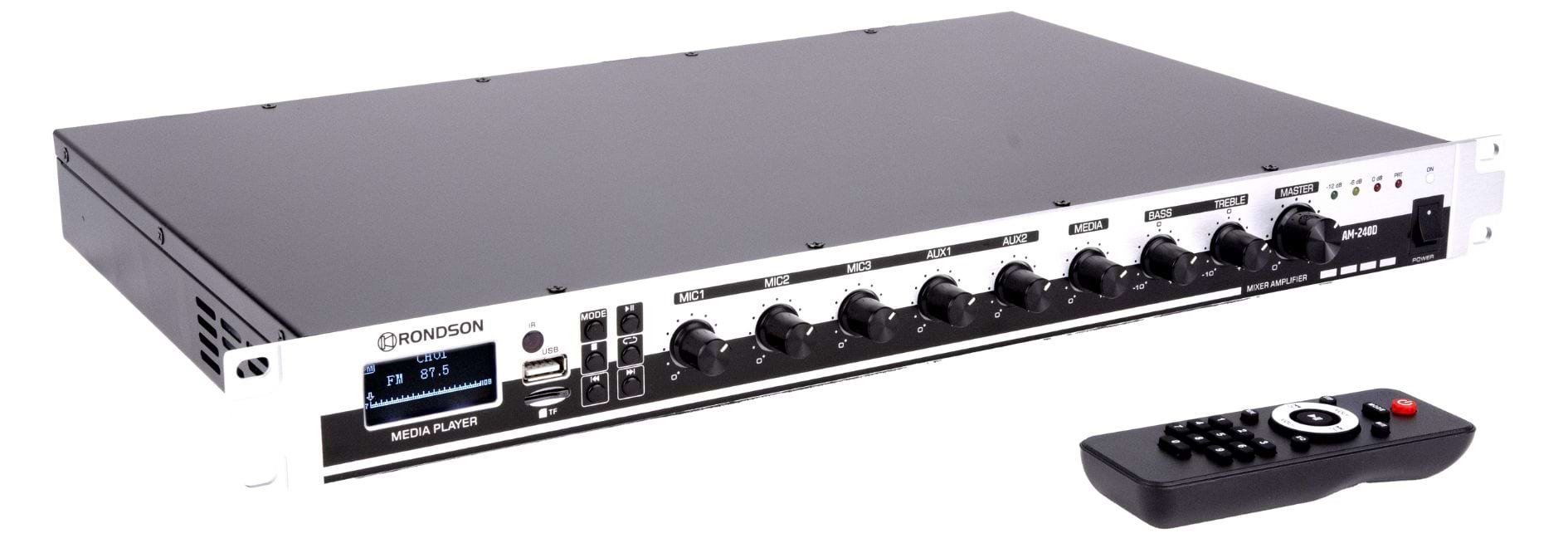

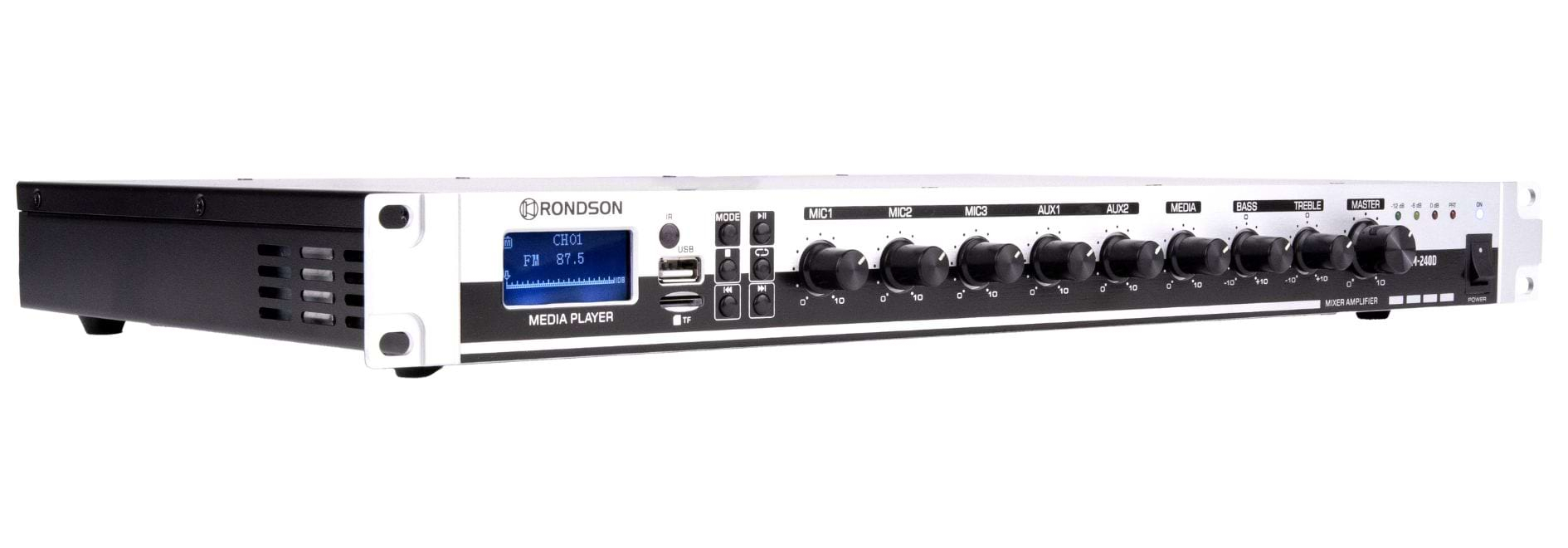

240 W mixer amplifier.

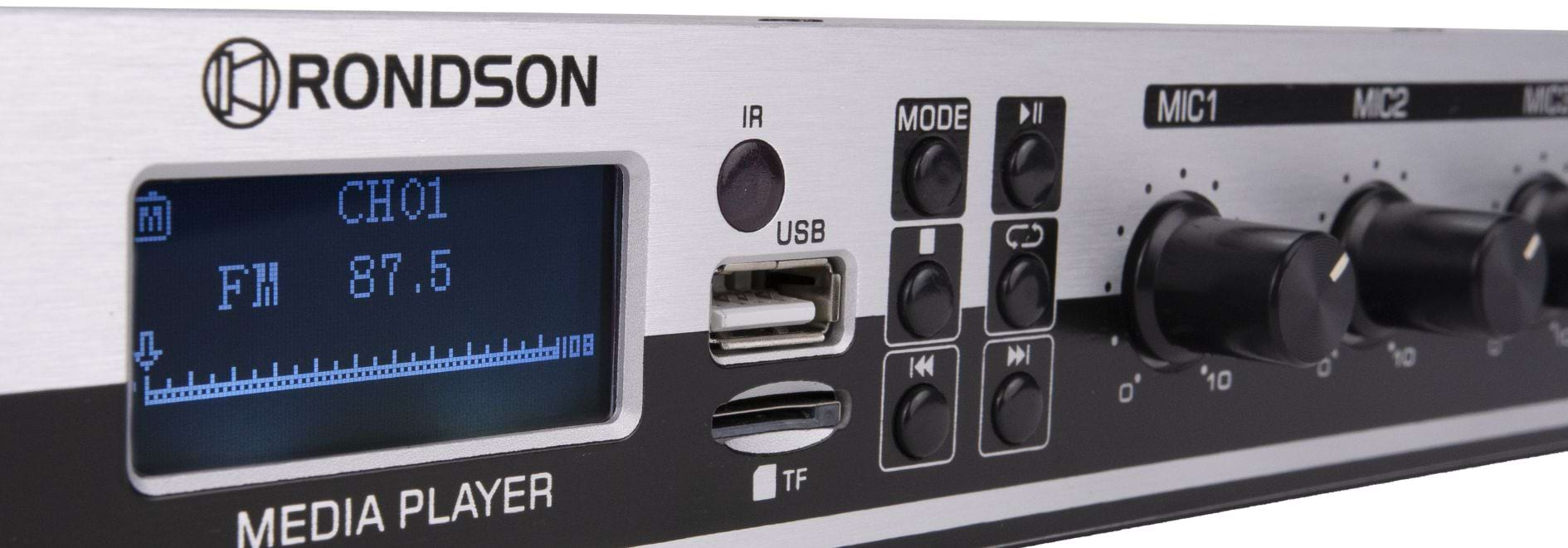

Multimedia player: FM Tuner / USB / SD / Bluetooth.

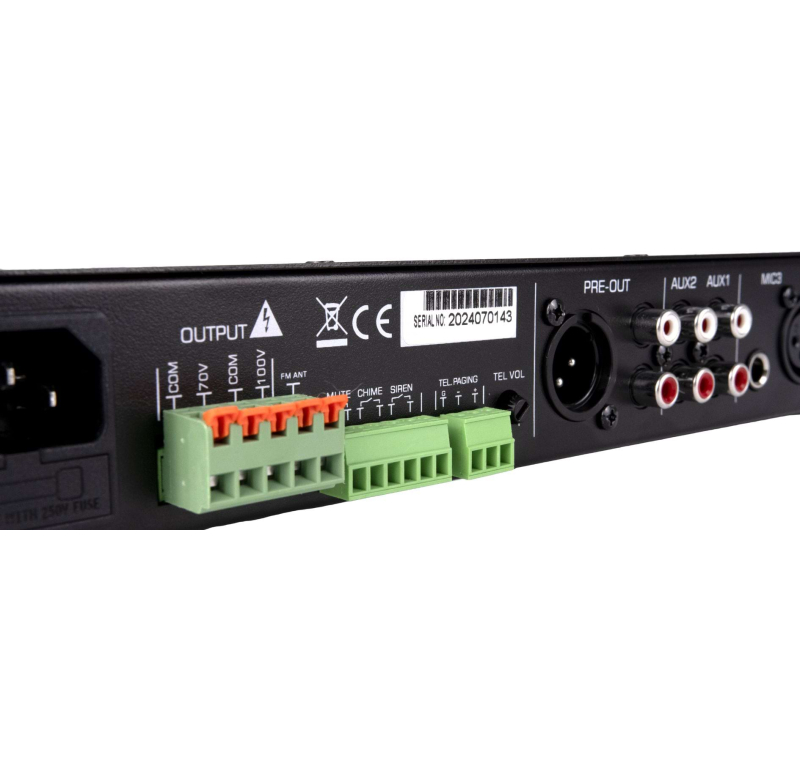

Offers 100V speaker outputs. Operates on 110V - 220V – 50/60 Hz mains or 24V DC.
Product Data Sheet (PDF):
Features

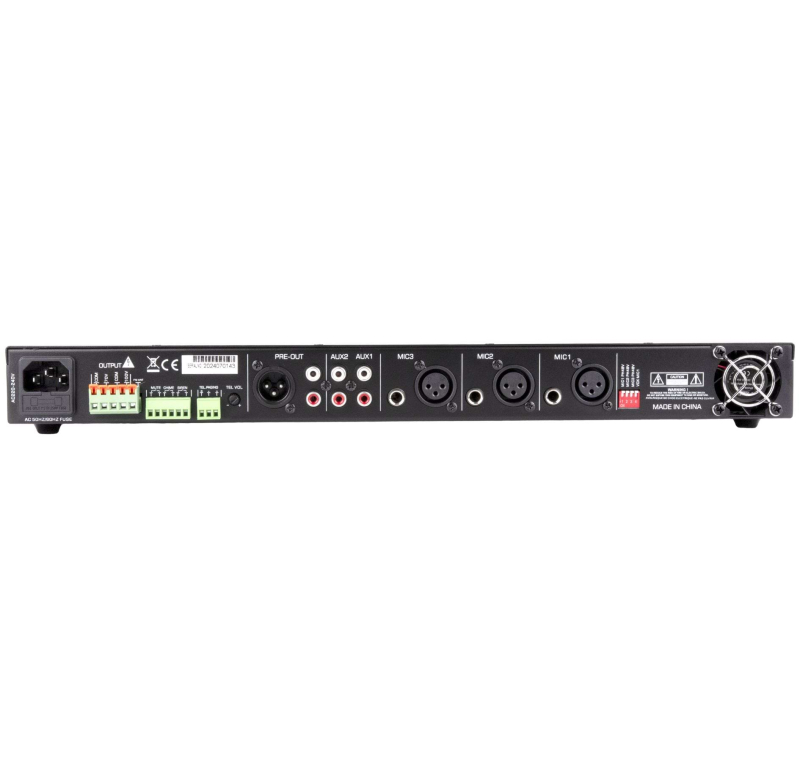

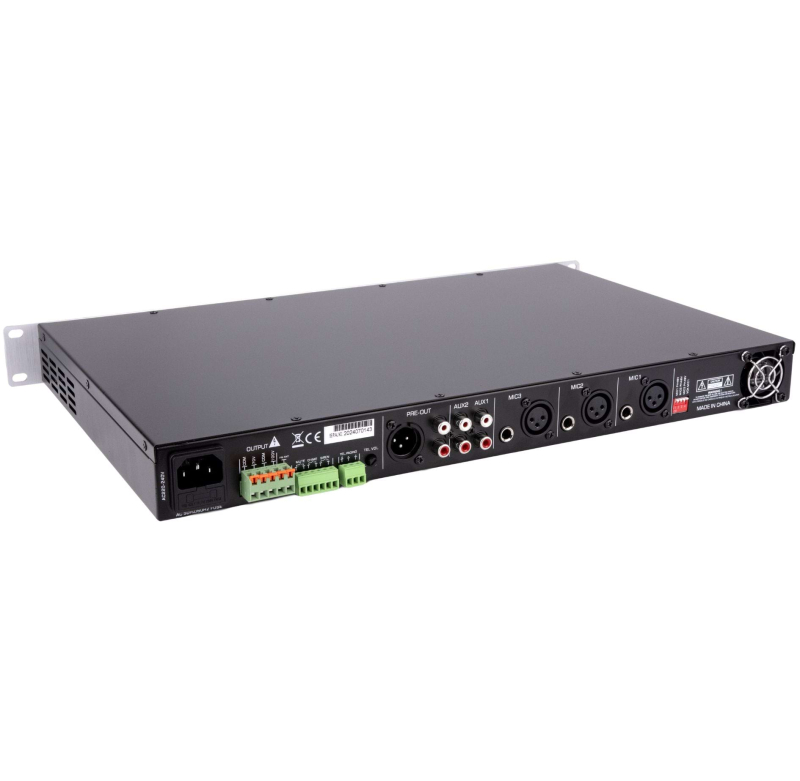

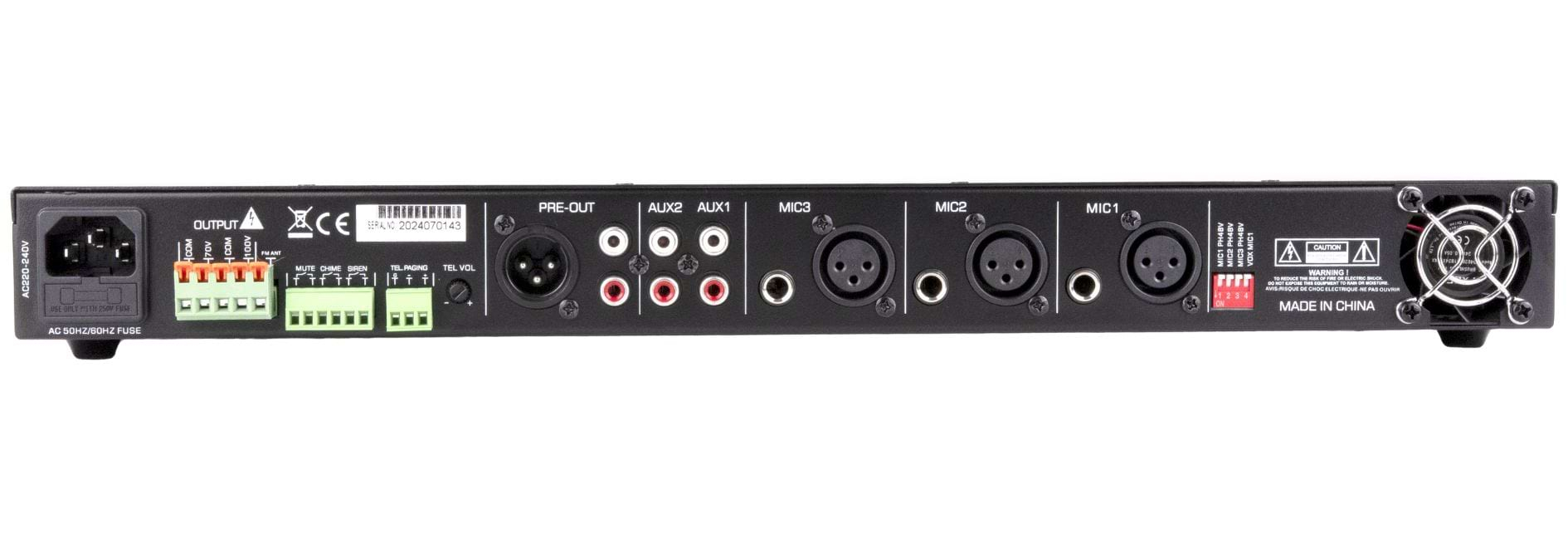

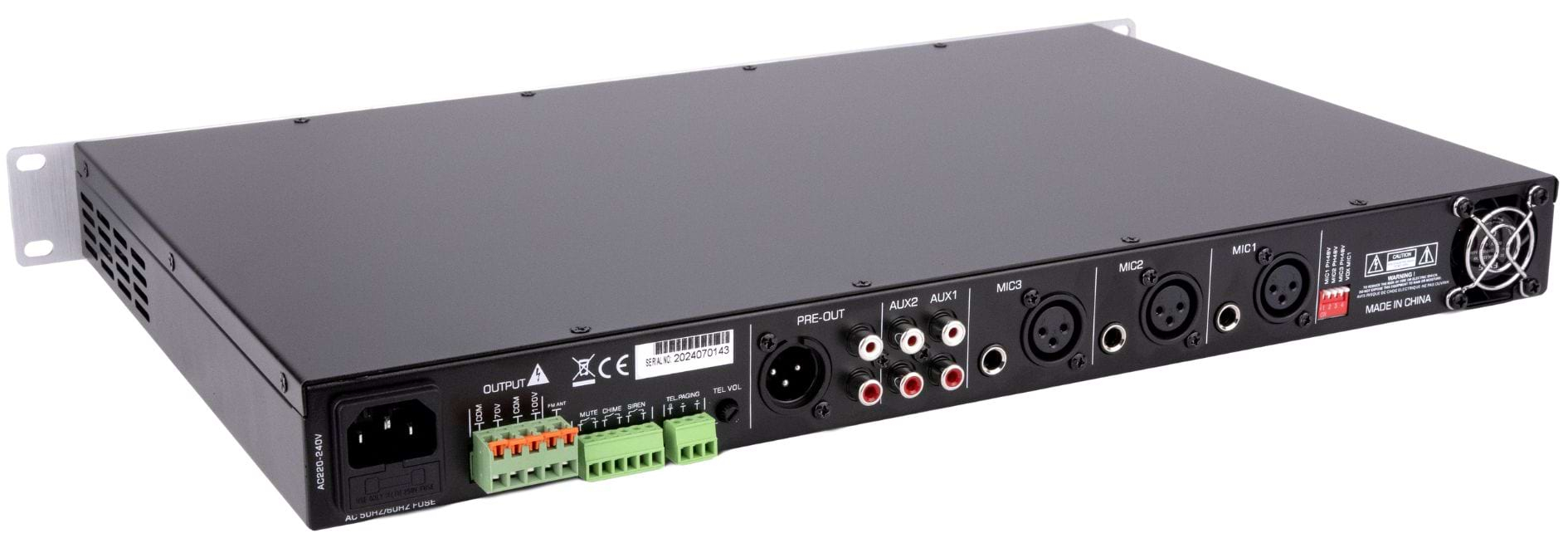

Equipped with:

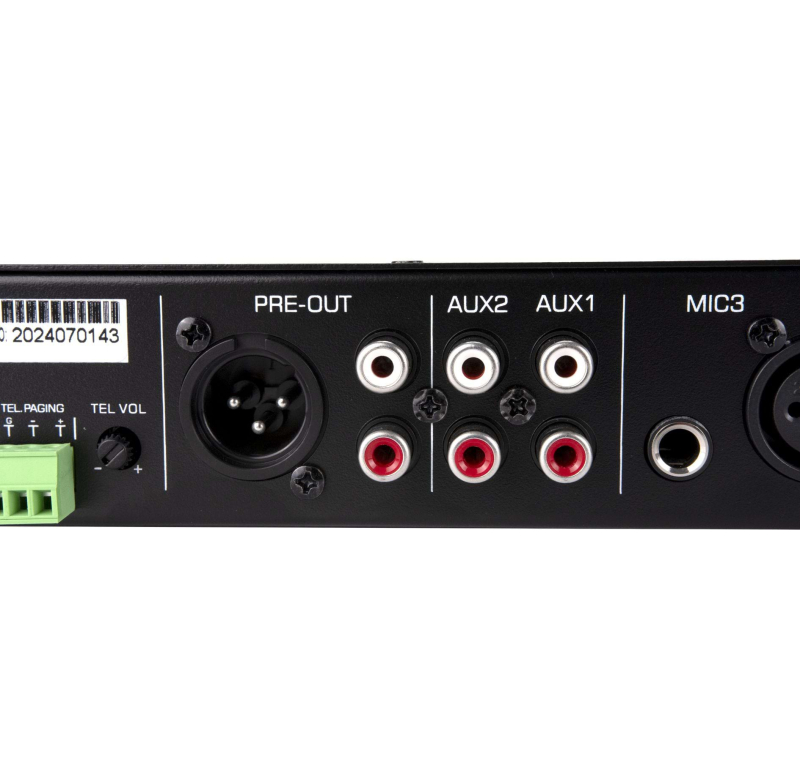

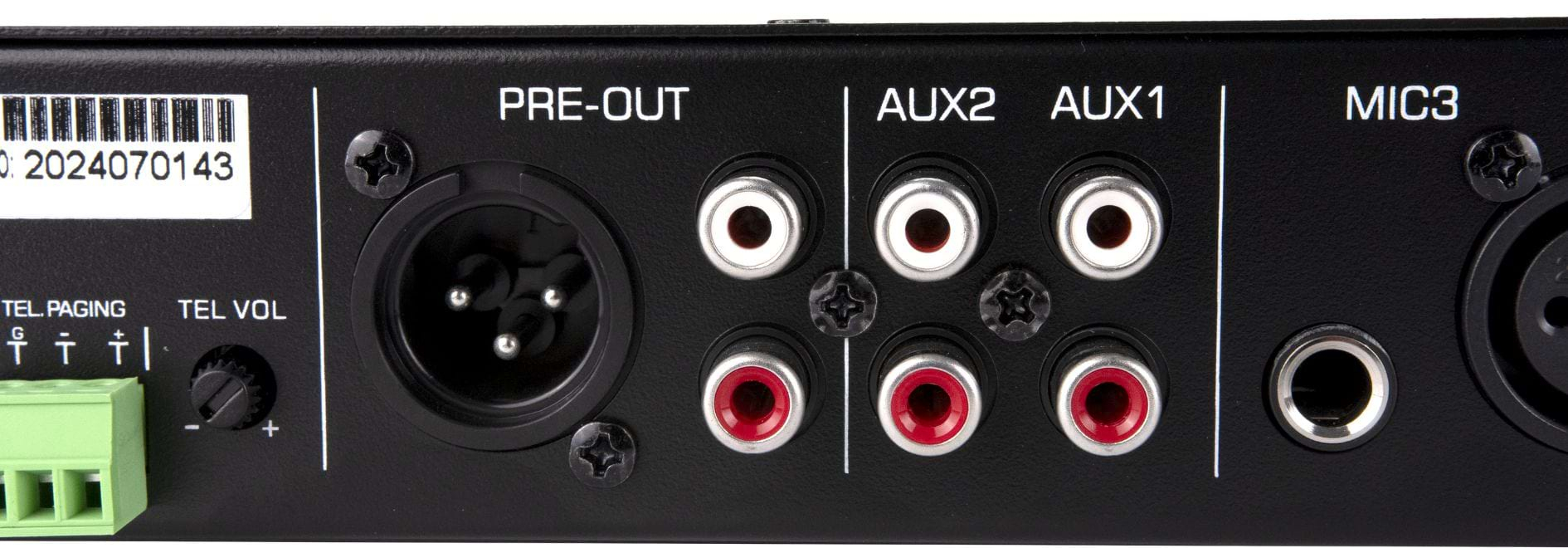

- 3 combo XLR inputs with 6.35 mm JACK (MIC priority dipswitch)
- 2 RCA AUX inputs
- 1 RCA PRE OUT and 1 XLR PRE OUT

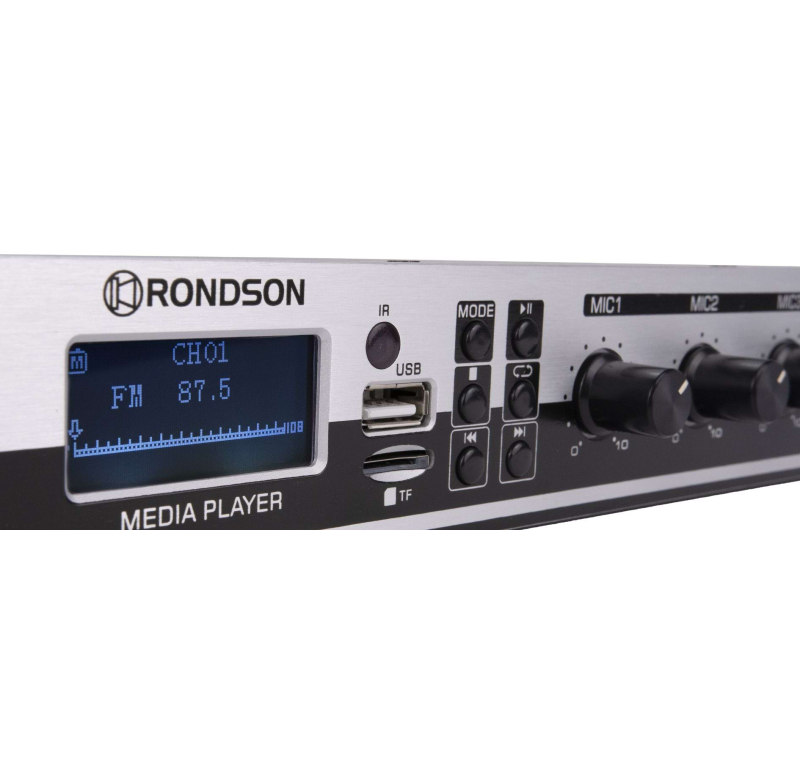

- FM Tuner module and MP3 / USB / SD player
- Bluetooth receiver module for streaming from your mobile, tablet, or laptop
- Thermal, overload, and short-circuit protection
- Mute function, chime, siren (Euroblock)
- Tel paging (Euroblock)

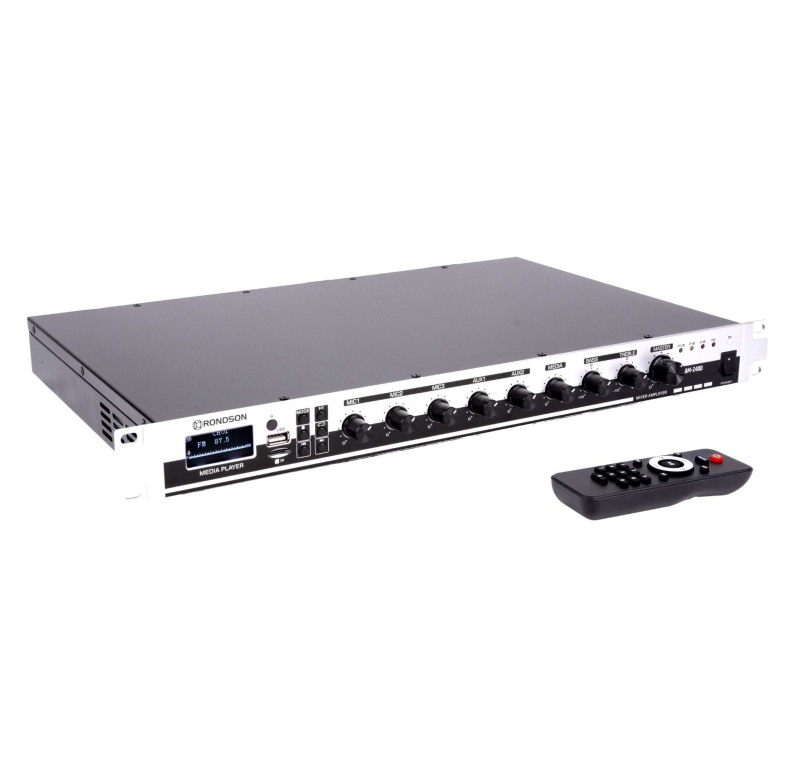

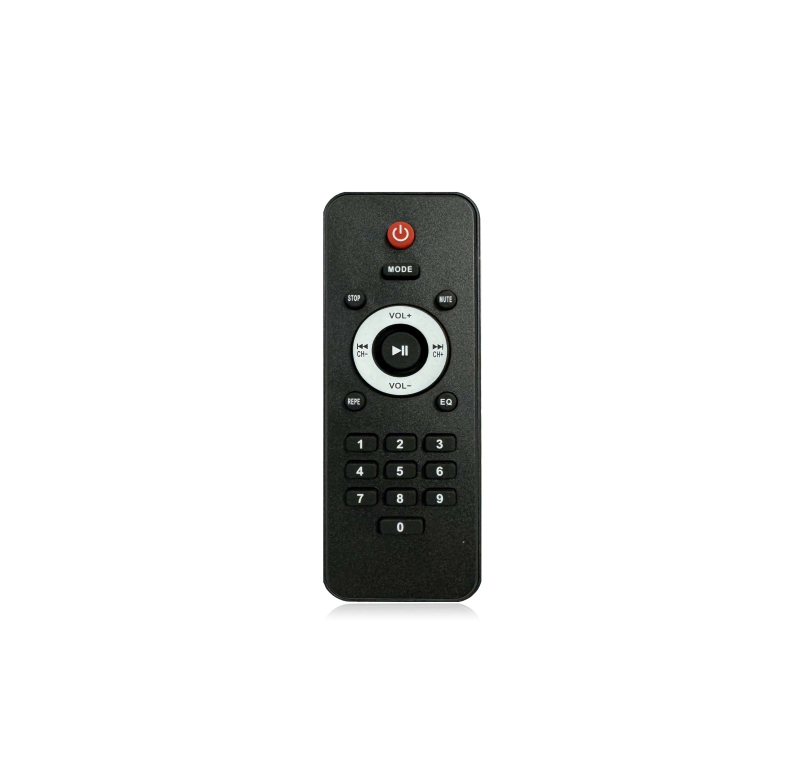

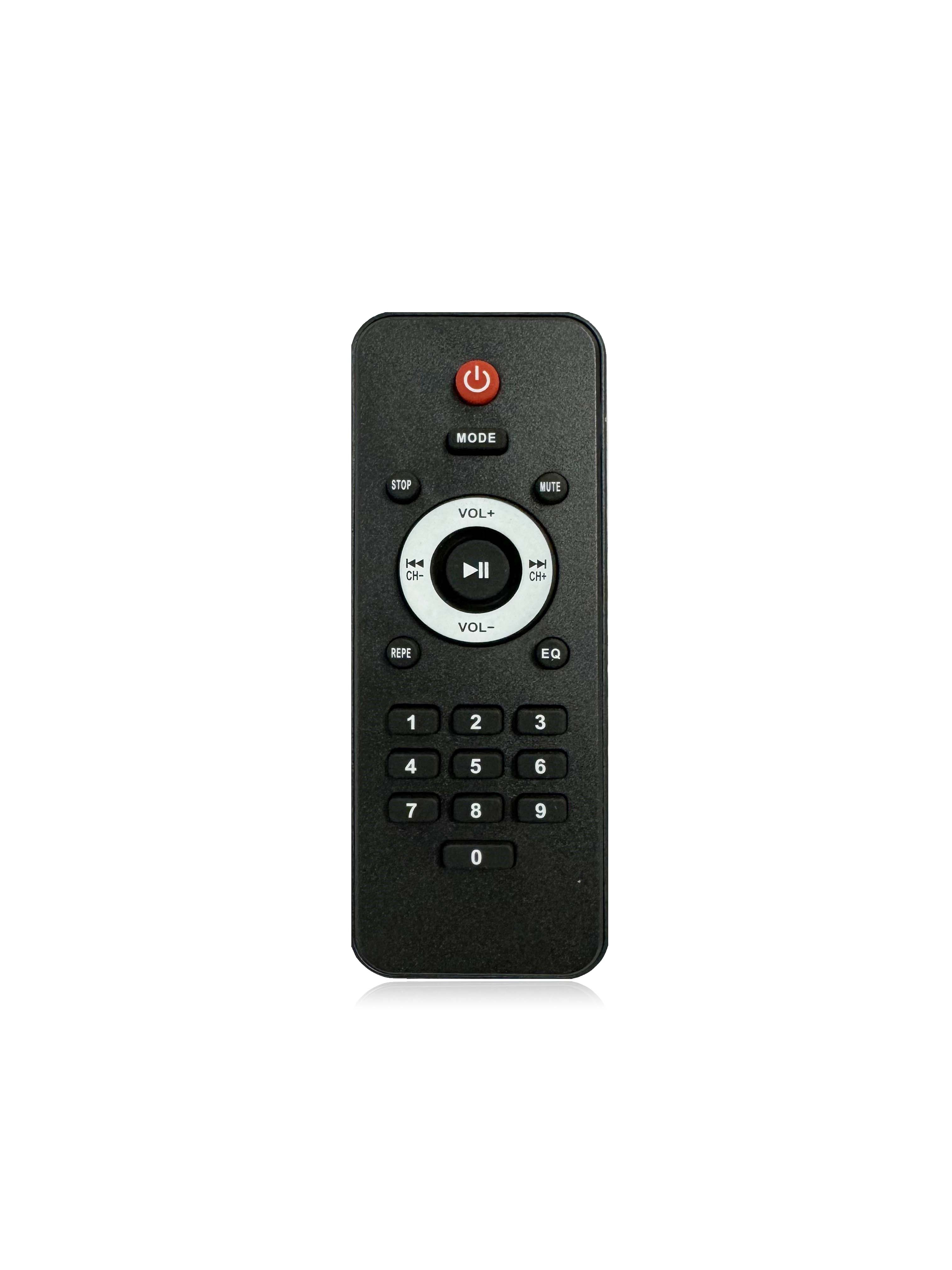

- Remote control
| Specifications | AM-240D |
|---|---|
| Type | Preamplifier amplifier |
| Power supply | AC 110V / 220V — 50 - 60 Hz / DC 24V |
| Output power | 240 W RMS |
| Speaker outputs | 70V / 100V |
| Output / Sensitivity | 0 dBV / 600 Ω |
| Inputs / Sensitivity | MIC 1-3: 1.6 mV AUX 1-2: 550 mV / 10 kΩ |
| Tone controls | Bass: ± 10 dB at 100 Hz Treble: ± 10 dB at 10 kHz |
| Frequency response | 80 Hz – 20,000 Hz (± 3 dB) |
| Signal-to-noise ratio | ≥ 75 dB |
| Total harmonic distortion | < 0.5 % |
| Displays | Power indicator, output level VU meters |
| Dimensions (W x D x H) | 485 x 350 x 44 mm (1U) |
| Weight | 11 kg |
