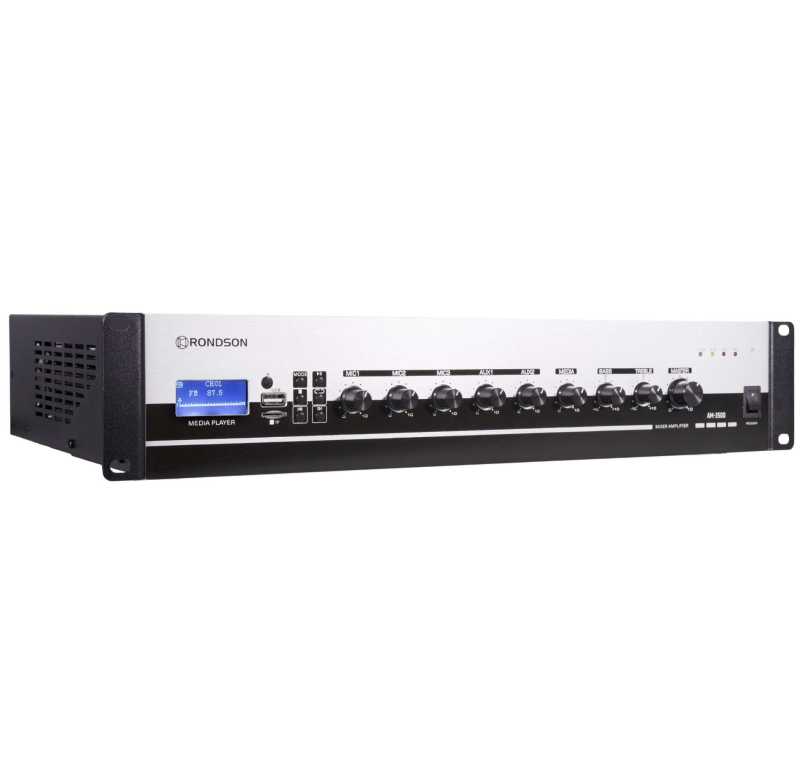

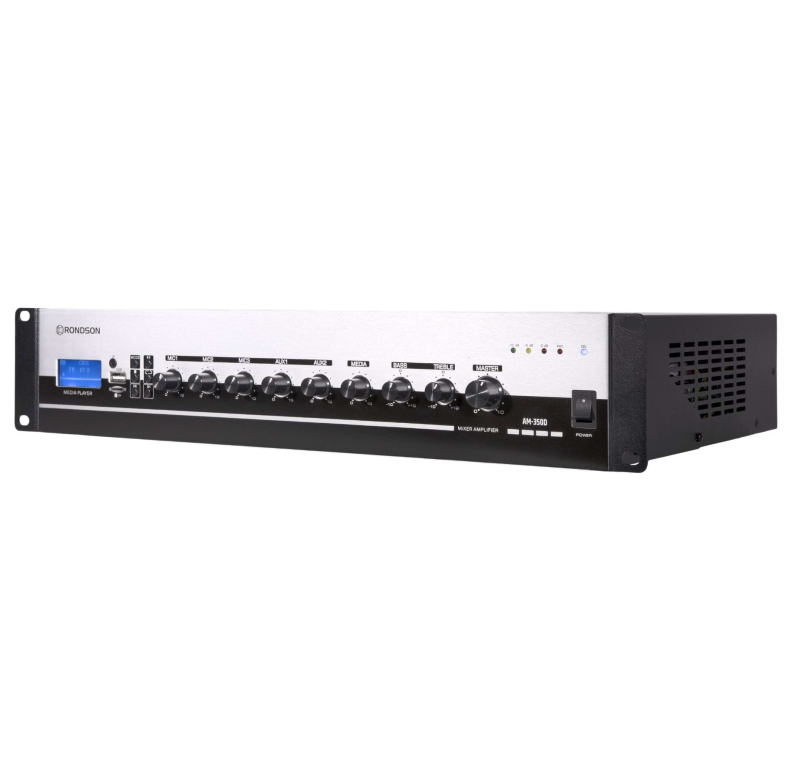

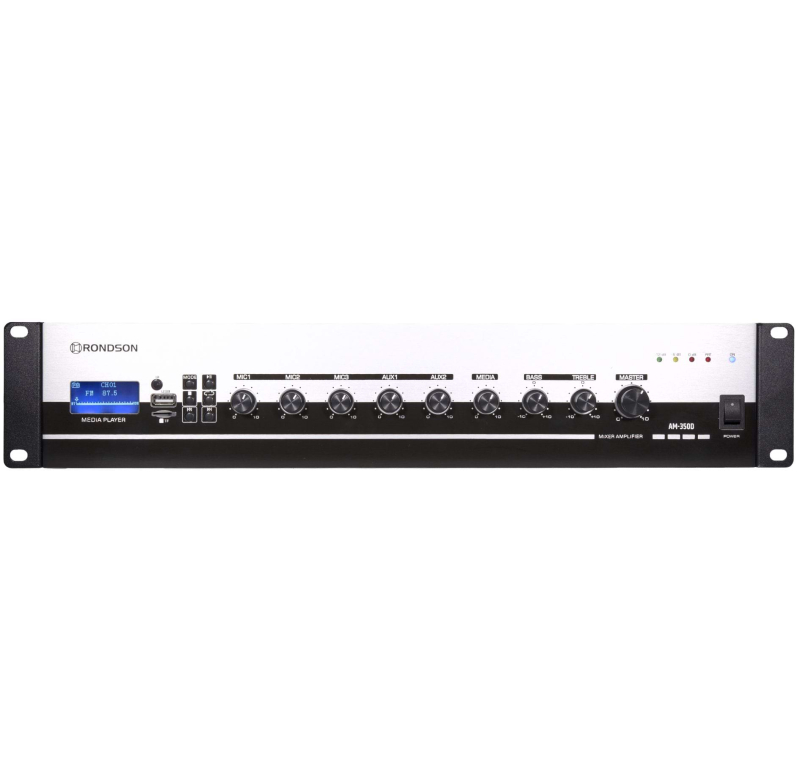

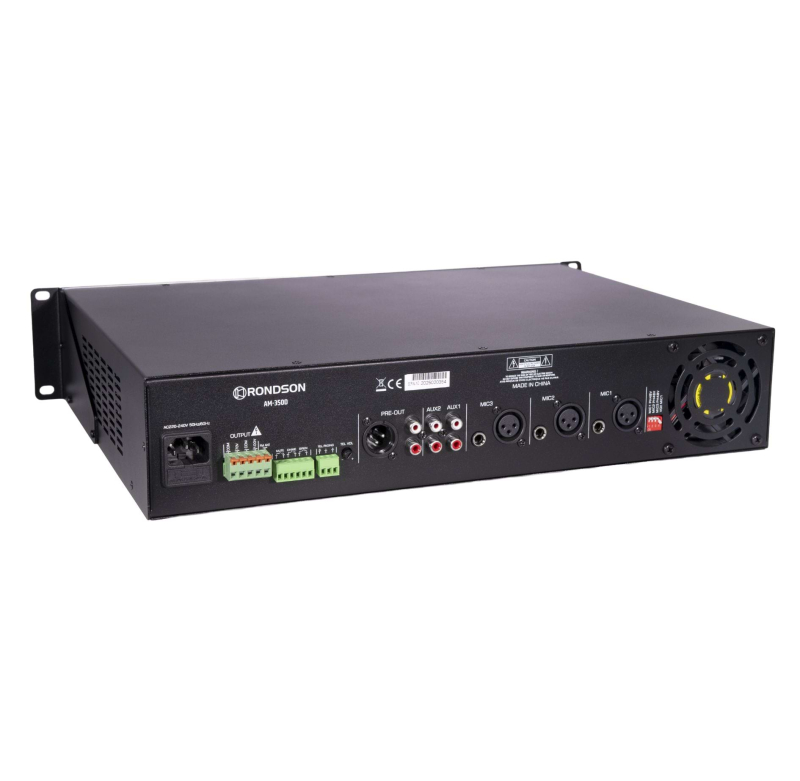

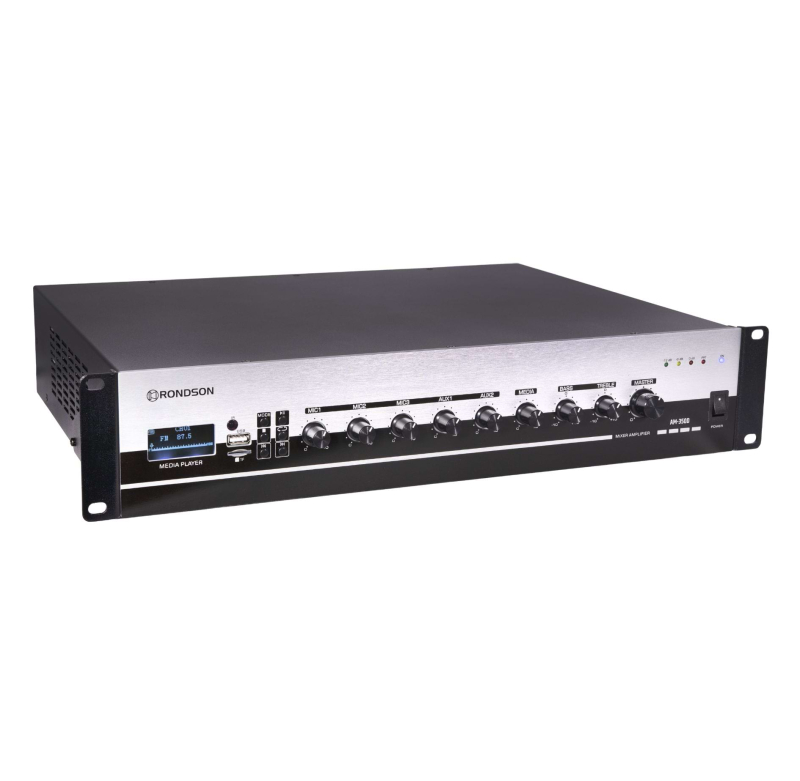

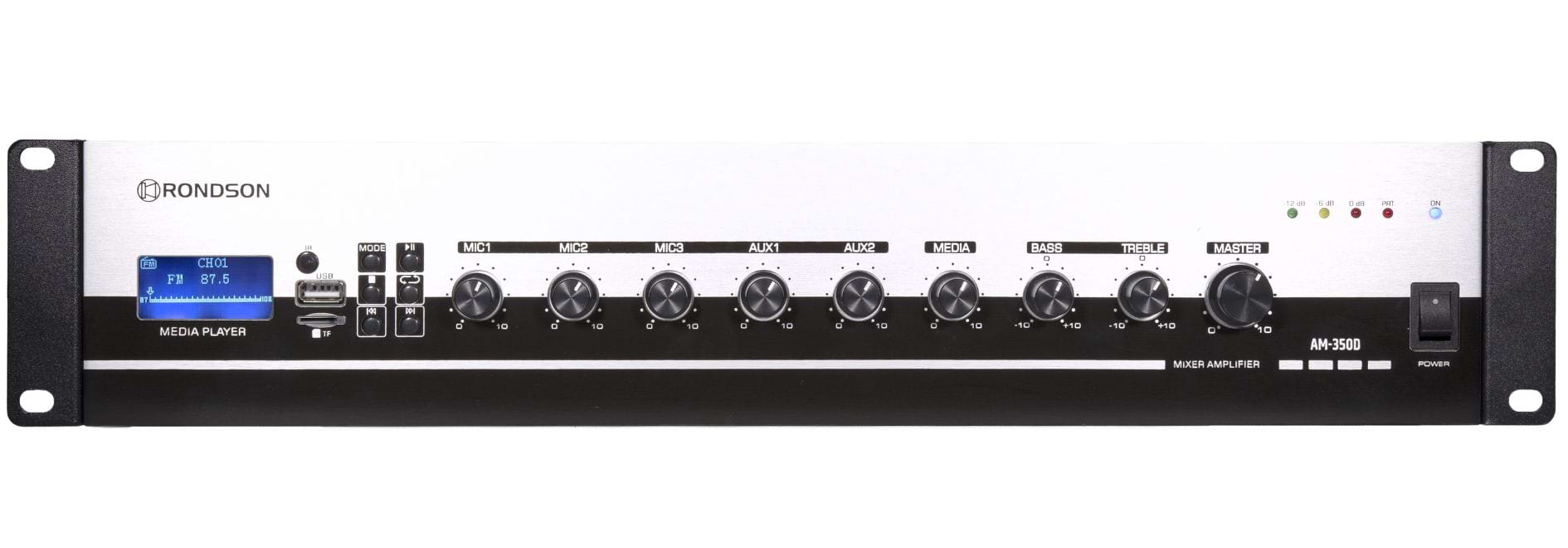

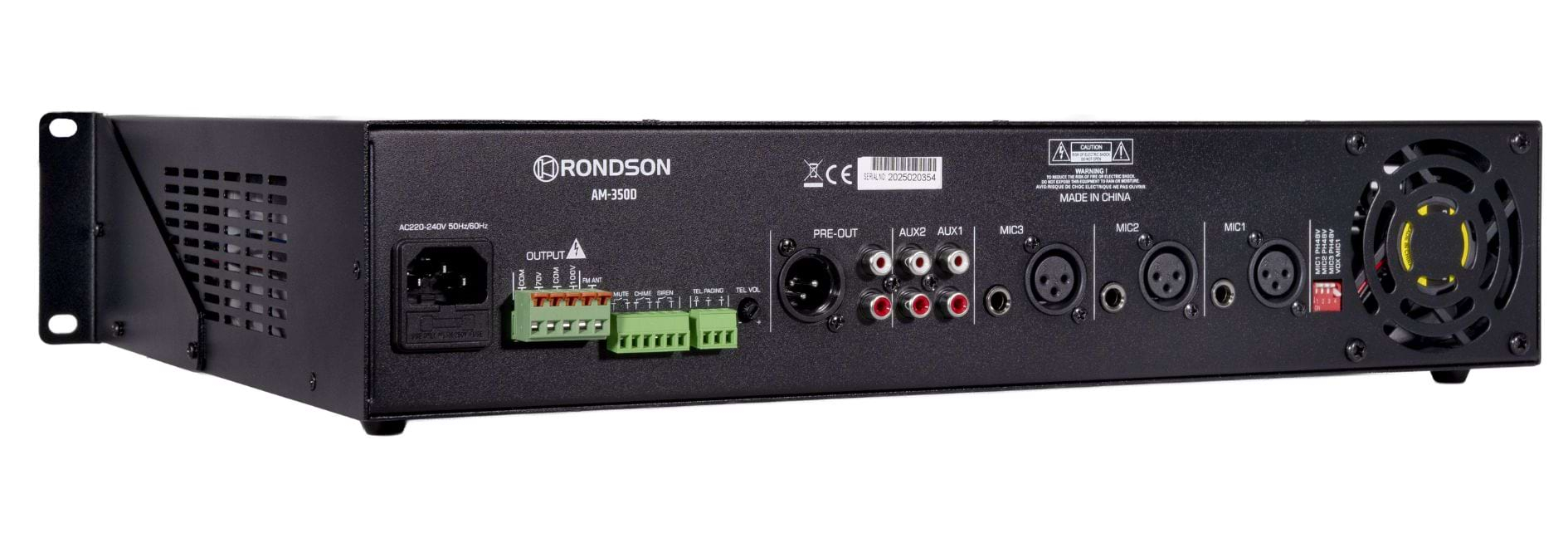

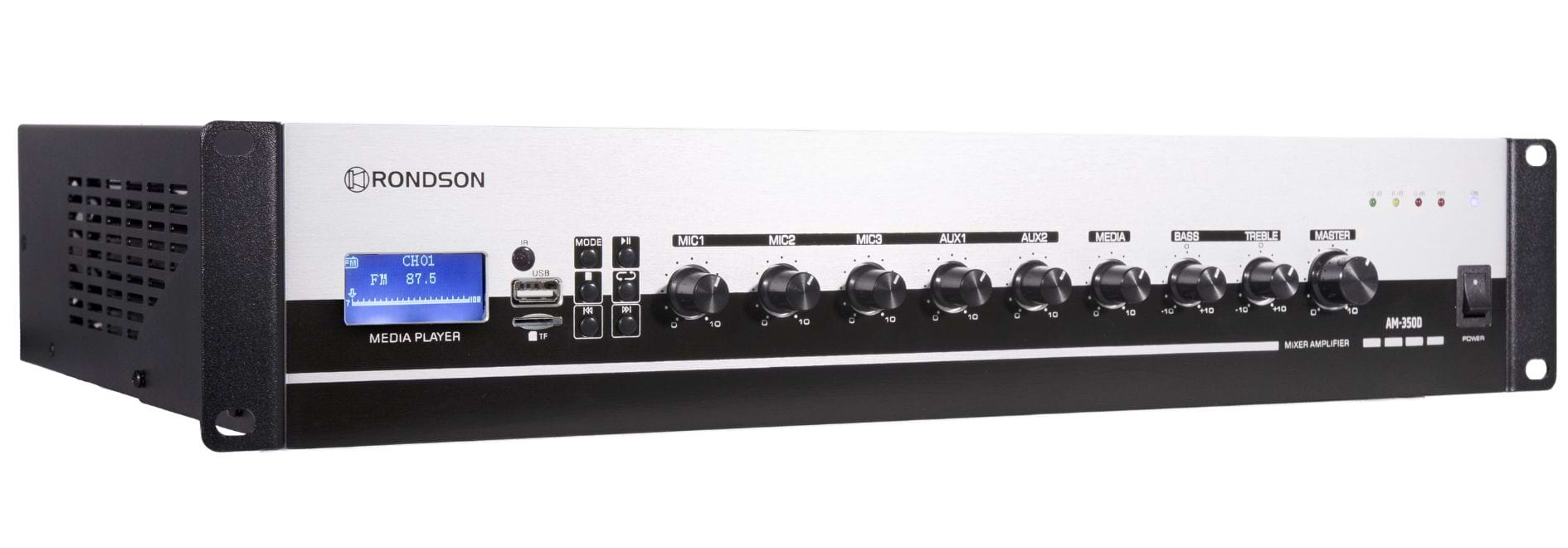

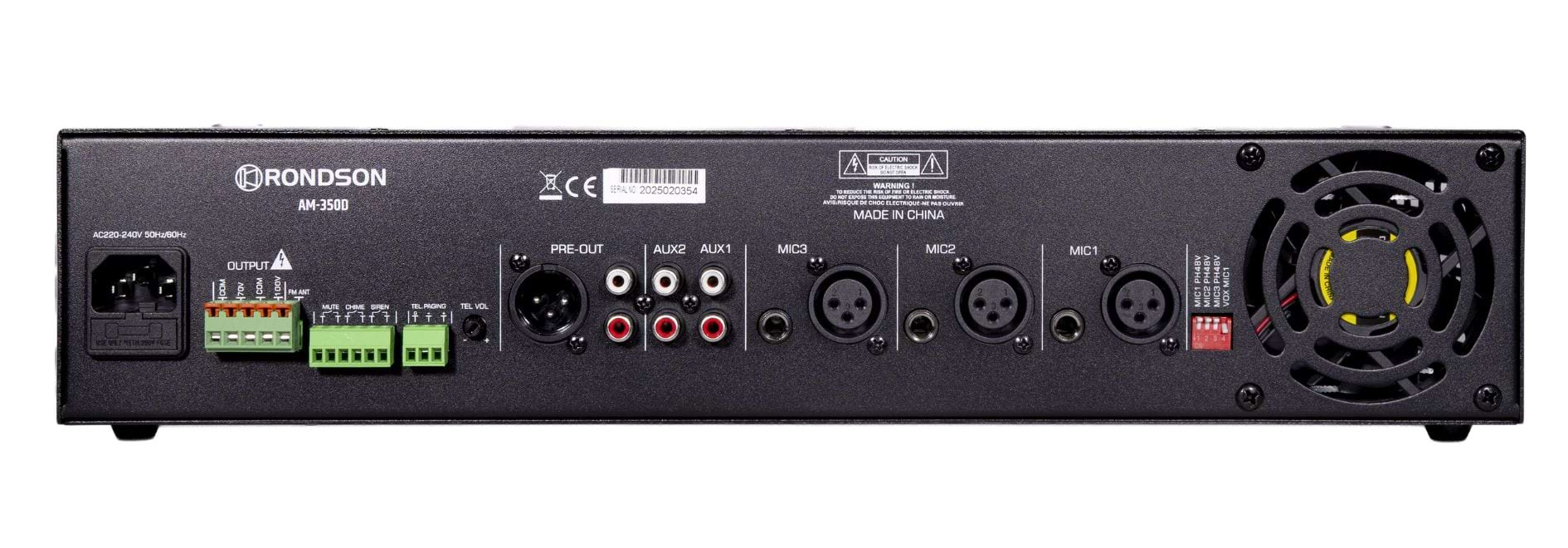

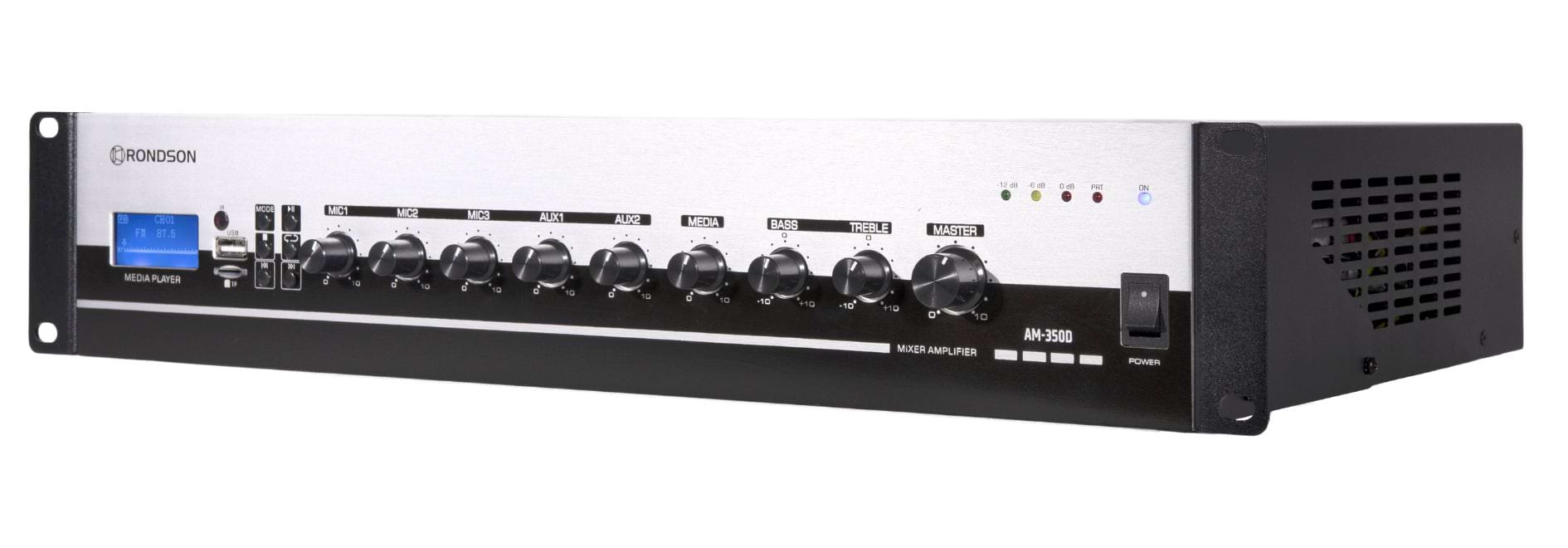

350W multimedia mixer amplifier in 100V - 19" 2U
3701567913426
02853

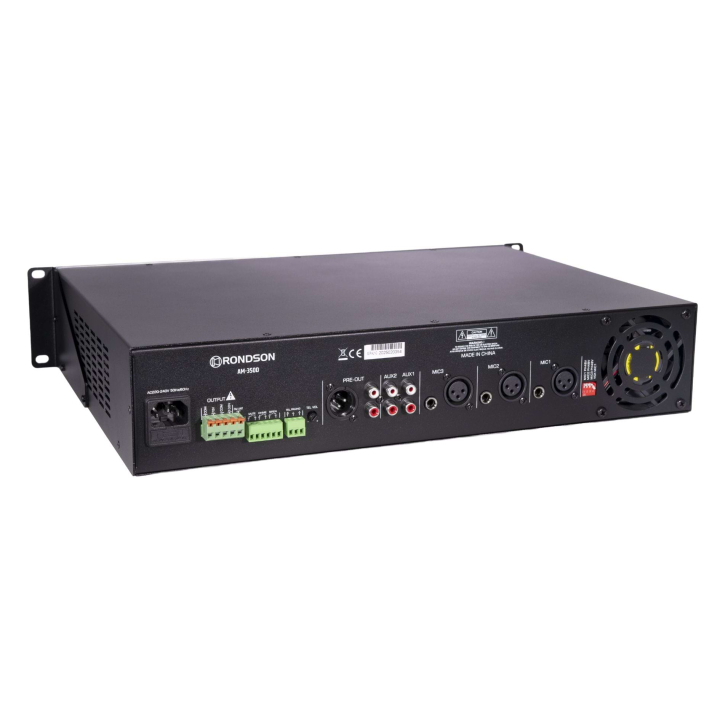

350W Multimedia Mixing Amplifier in 100V - 19’ 2U
In Stock
Delivered within 48/72h
For professionals
To log inFor individuals
Contact usProduct Sheet in PDF
Description :
350W mixer amplifiers
Multimedia player: FM tuner / USB / SD / Bluetooth
Provides 100V speaker outputs.
Operates on 110V - 220V - 50 Hz or DC 24 V mains.
Features :
It is equipped with :

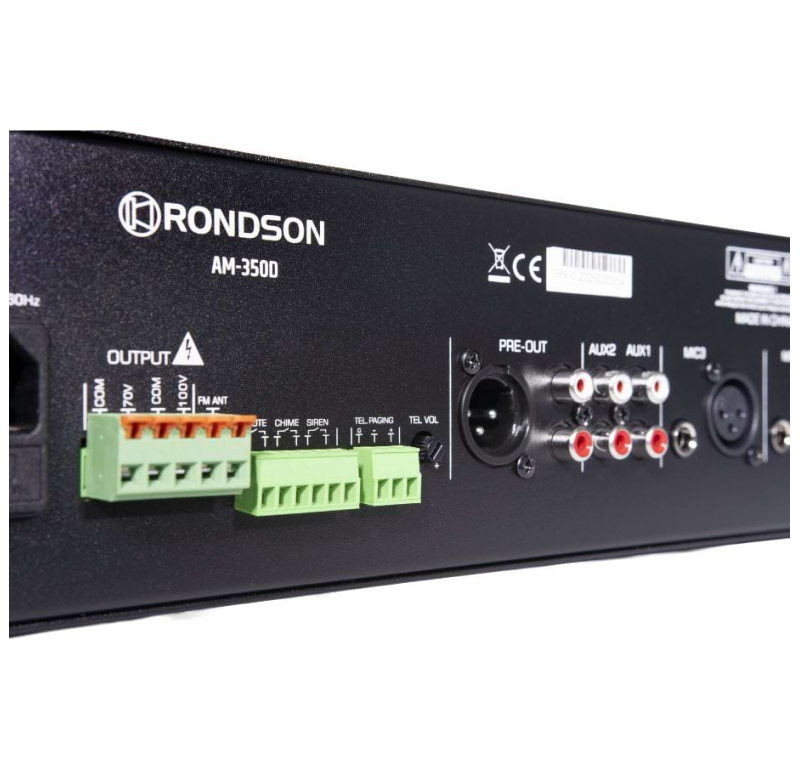

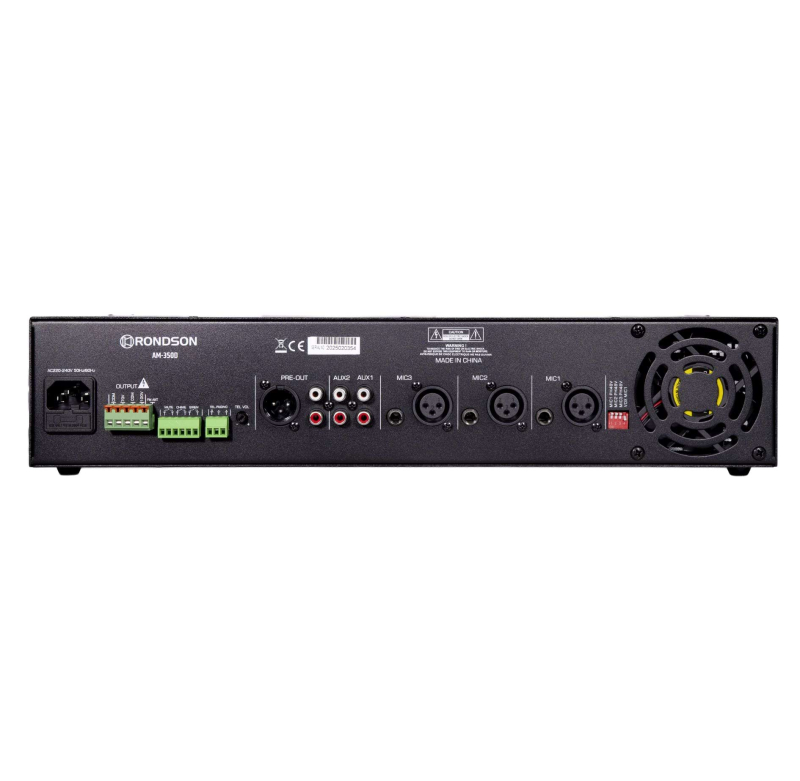

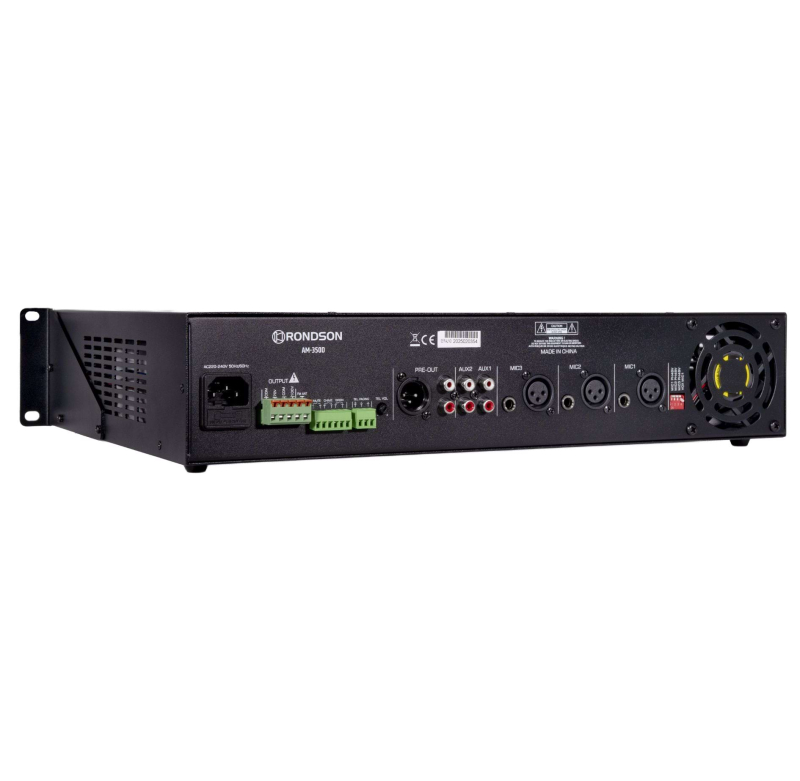

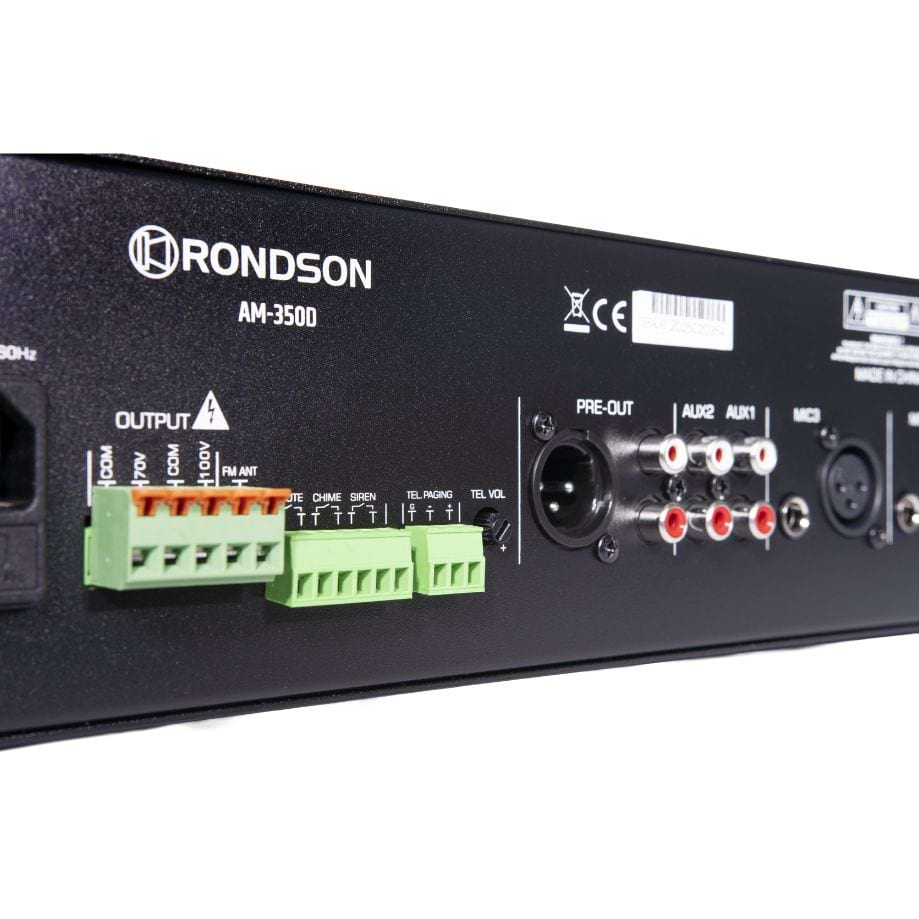

• 3 XLR combo inputs with 6.35 mm JACK (MIC priority dipswitch)
• 2 RCA AUX inputs
• 1 PRE OUT RCA output and 1 PRE OUT XLR output

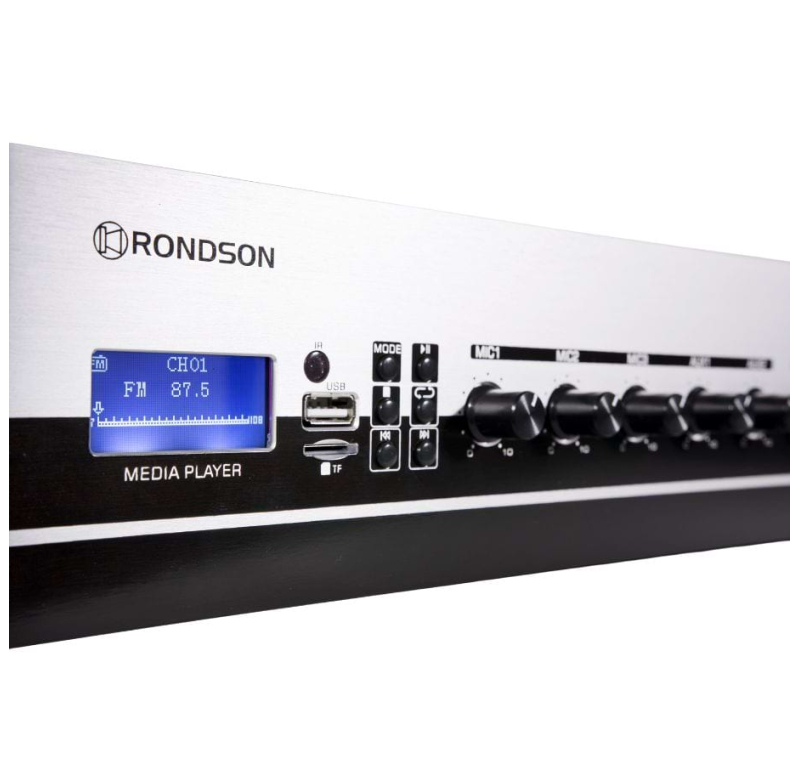

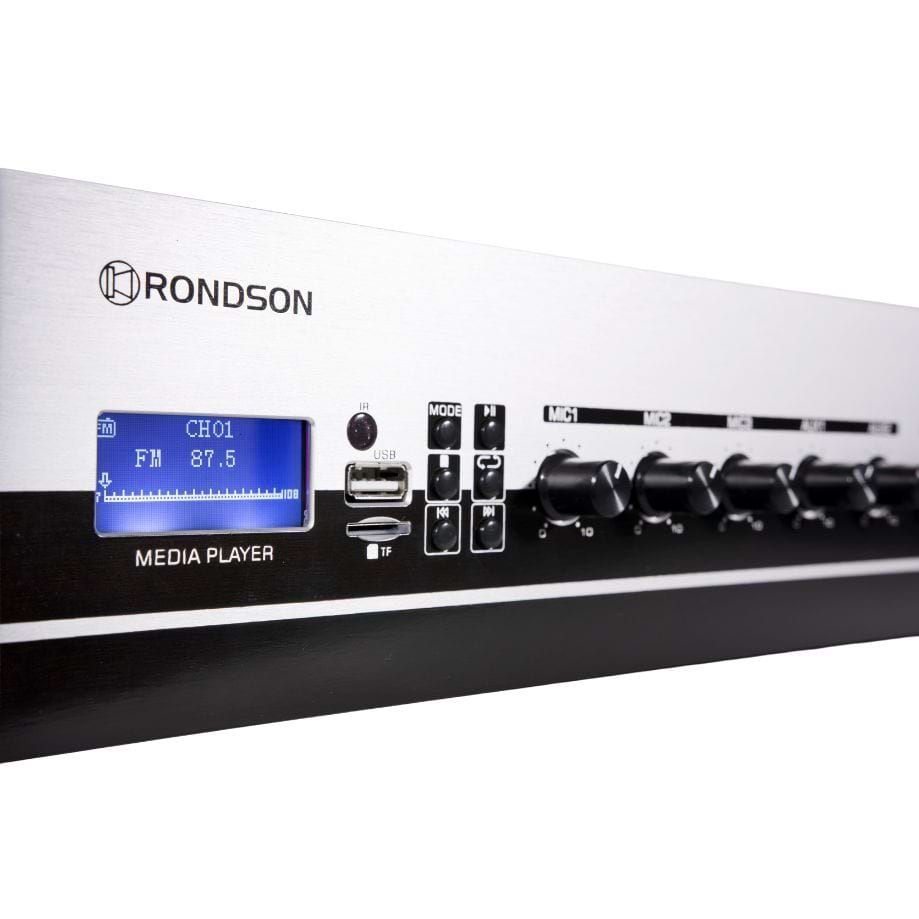

• FM tuner module and MP3 / USB and SD player
• Bluetooth receiver module for broadcasting from your mobile phone, tablet or laptop
• Thermal, overload and short-circuit protection
• Mute function, chime, siren (Euroblock)
• Tel paging (euroblock)

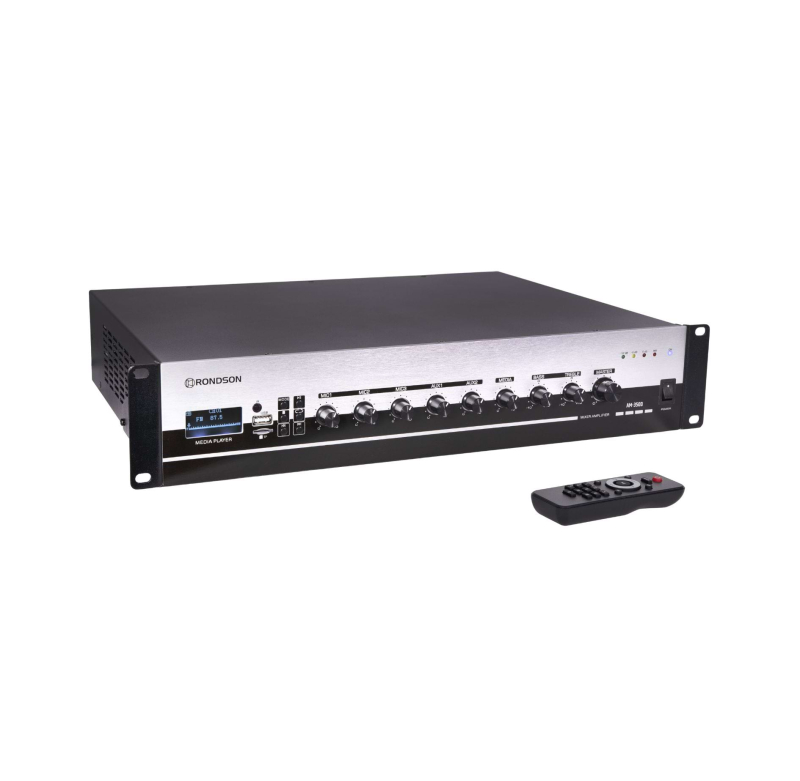

• Remote control
| SPECIFICATIONS | AM-350D |
| Type |
Multimedia Mixer amplifier |
|
Power supply |
AC 110V / 220V — 50 - 60Hz DC 24 V |
|
Output power |
350W RMS |
|
Speaker outputs |
70V / 100V |
|
Output / Sensitivity |
0 dBV / 600 Ω |
|
Inputs / Sensitivity |
MIC 1-3 : 1.6mV AUX 1-2 : 550 mV / 10 kOHM |
|
Tone Settings |
Bass : ± 10 dB à 100 Hz Treble : ± 10 dB à 10 kHz |
|
Frequency band |
80 Hz – 20 000 Hz (± 3 dB) |
|
Signal/Noise ratio |
≥ 75 dB |
|
Total harmonic distortion |
< 0,5 % |
|
Displays |
Power indicator Output level meters |
|
Dimensions (W x D x H) |
485 x 320 x 88 mm - 2U |
|
Weight |
13.5 kg |
