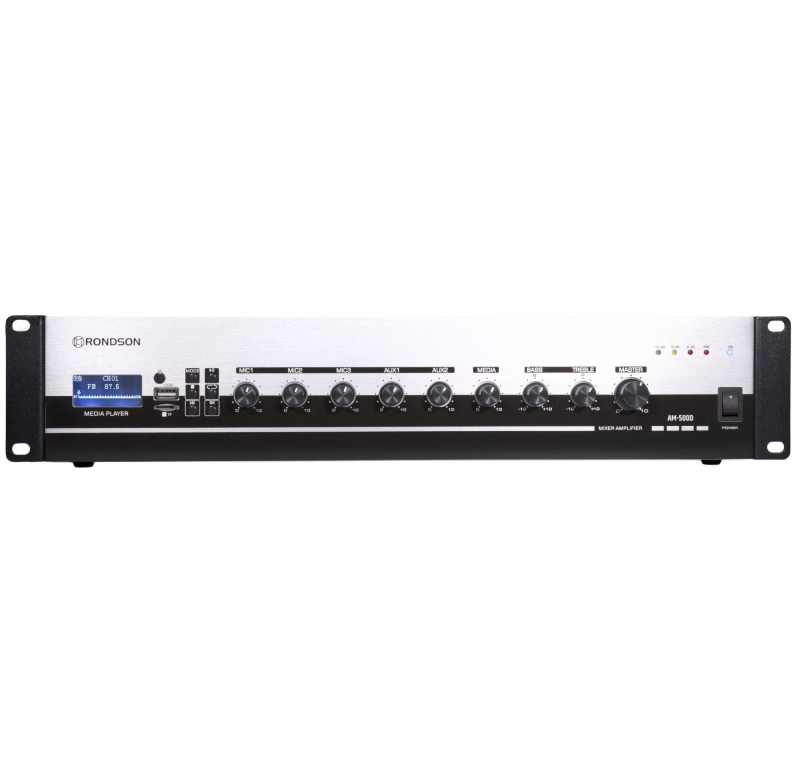

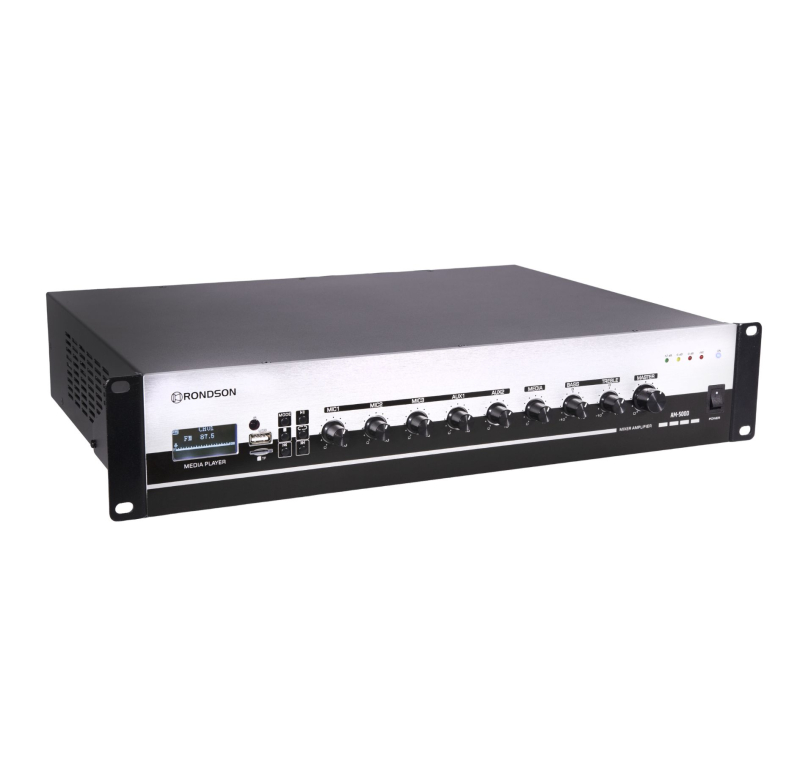

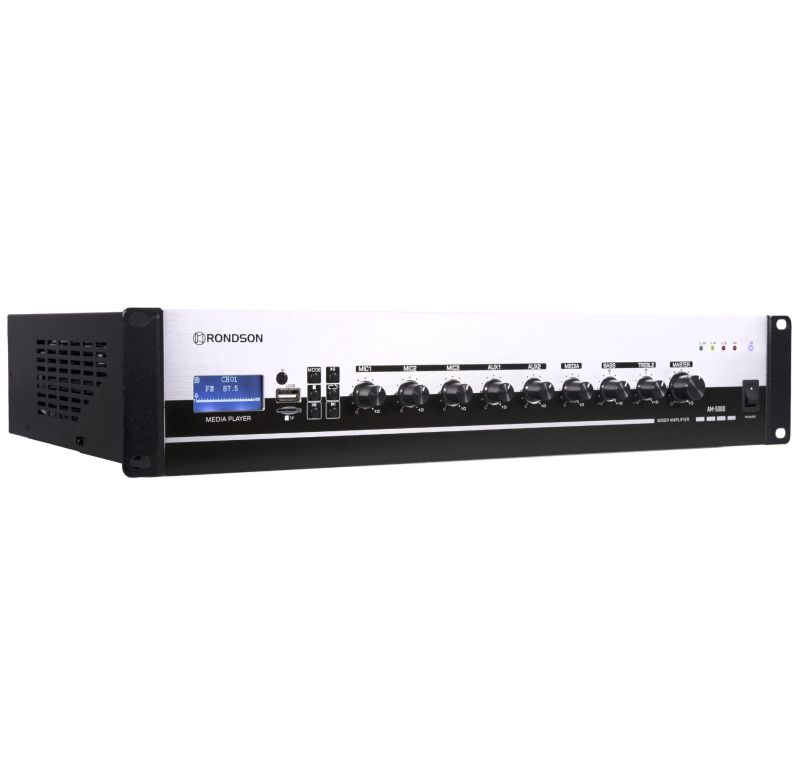

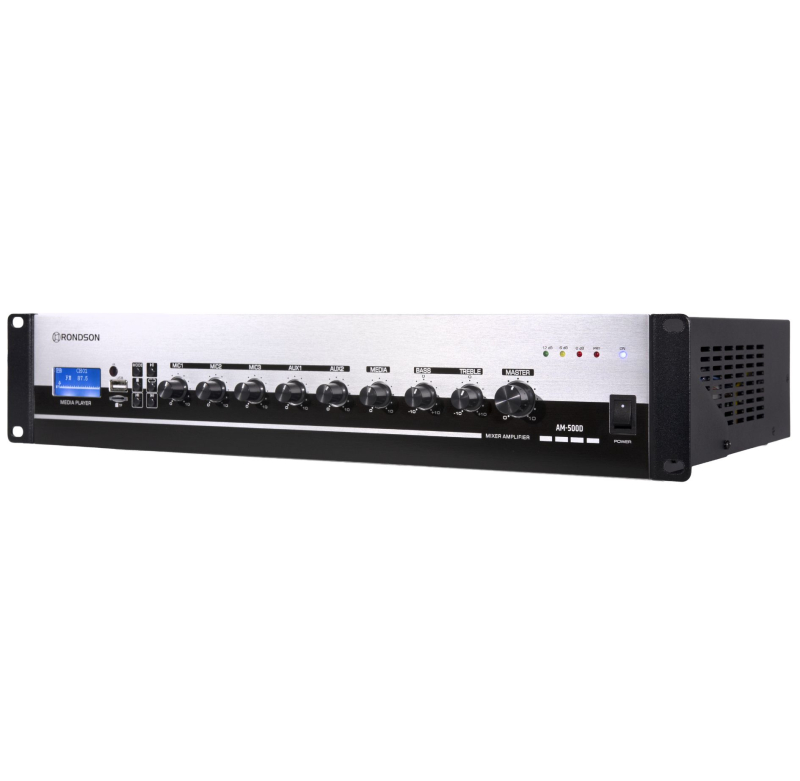

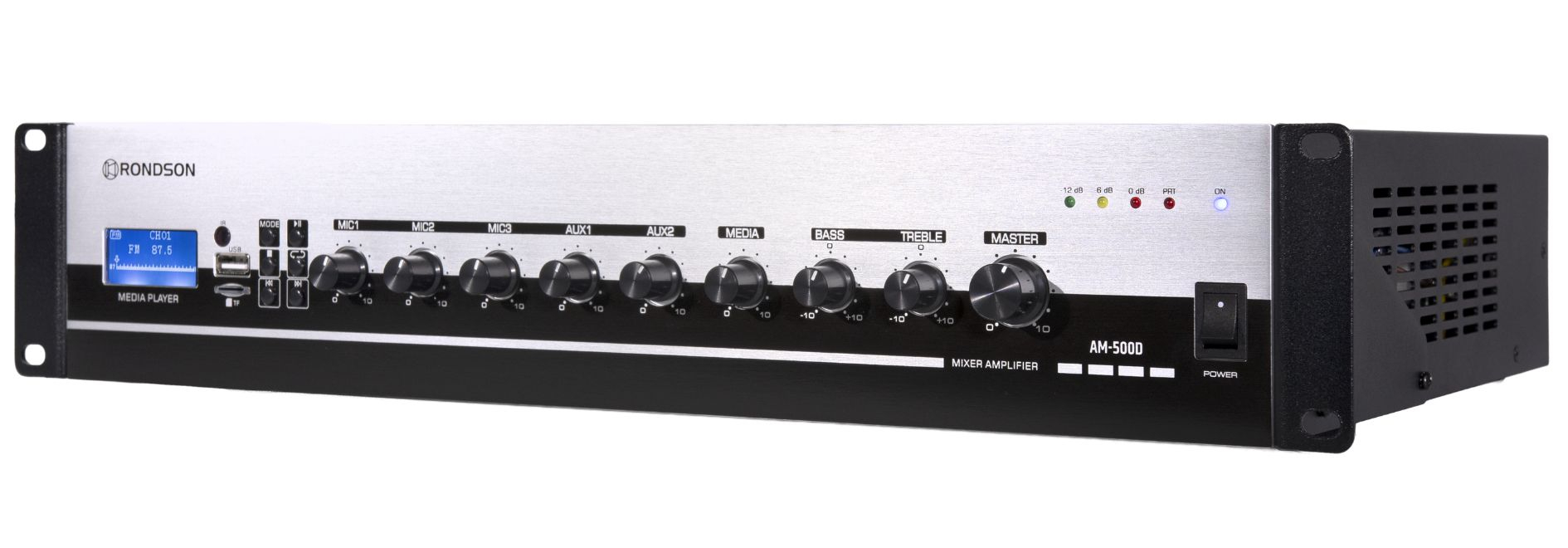

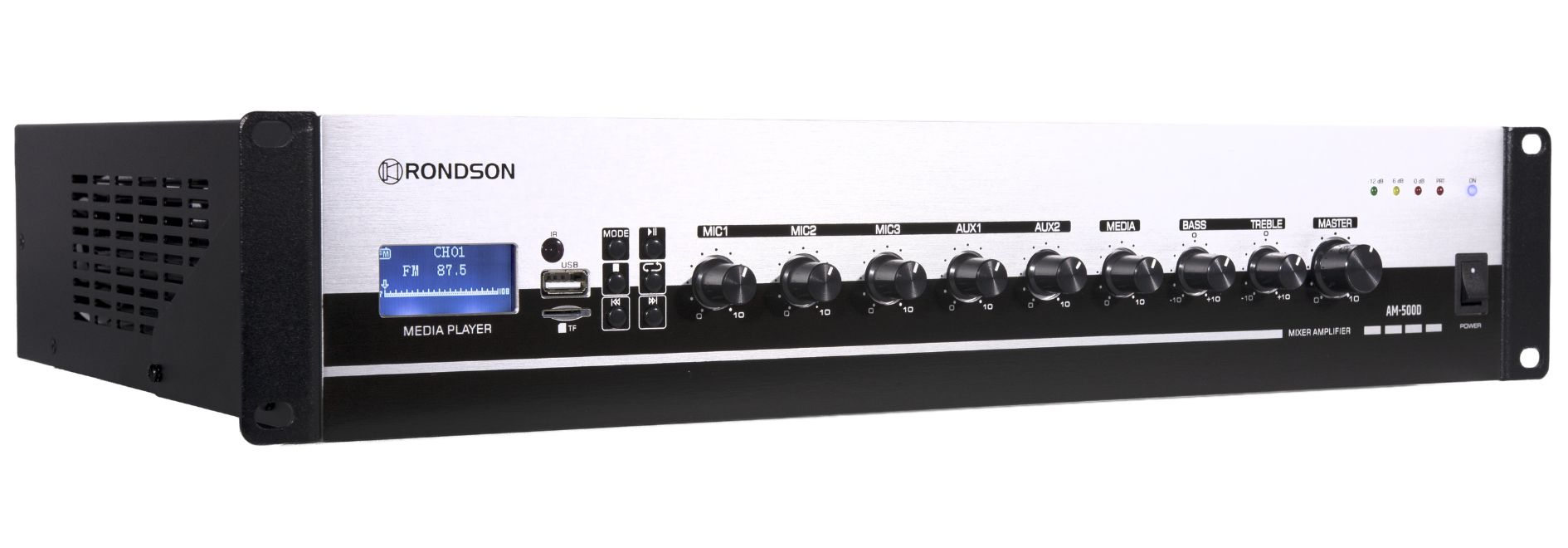

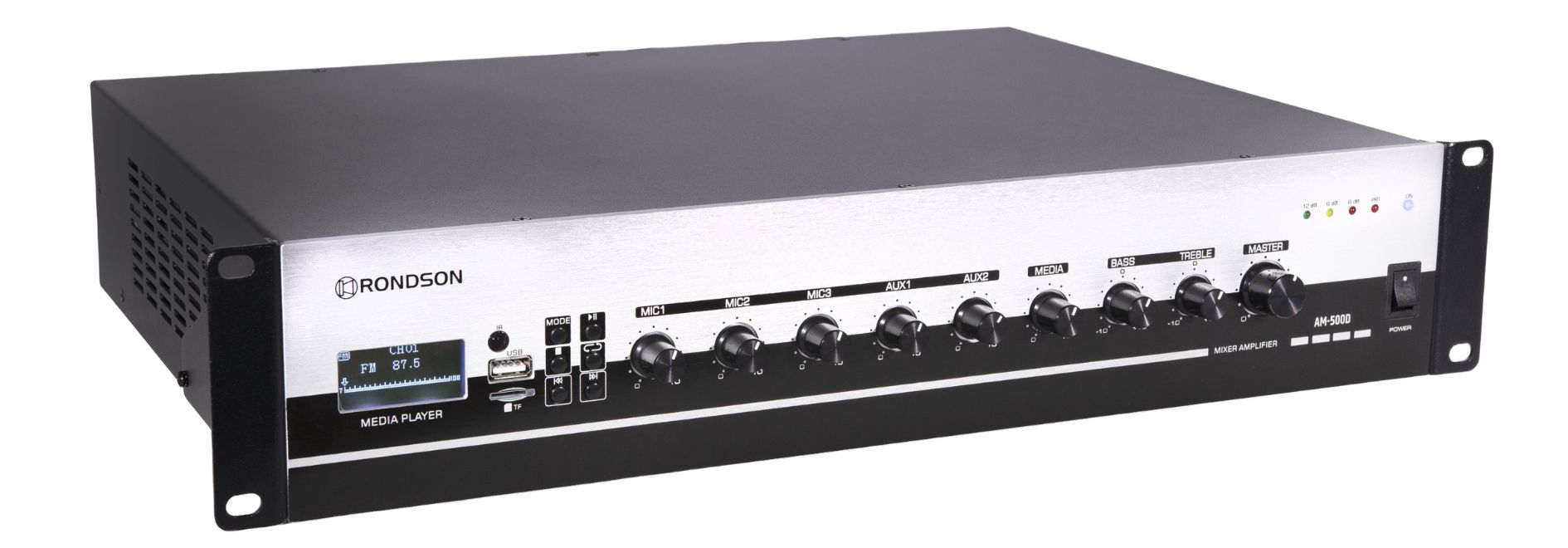

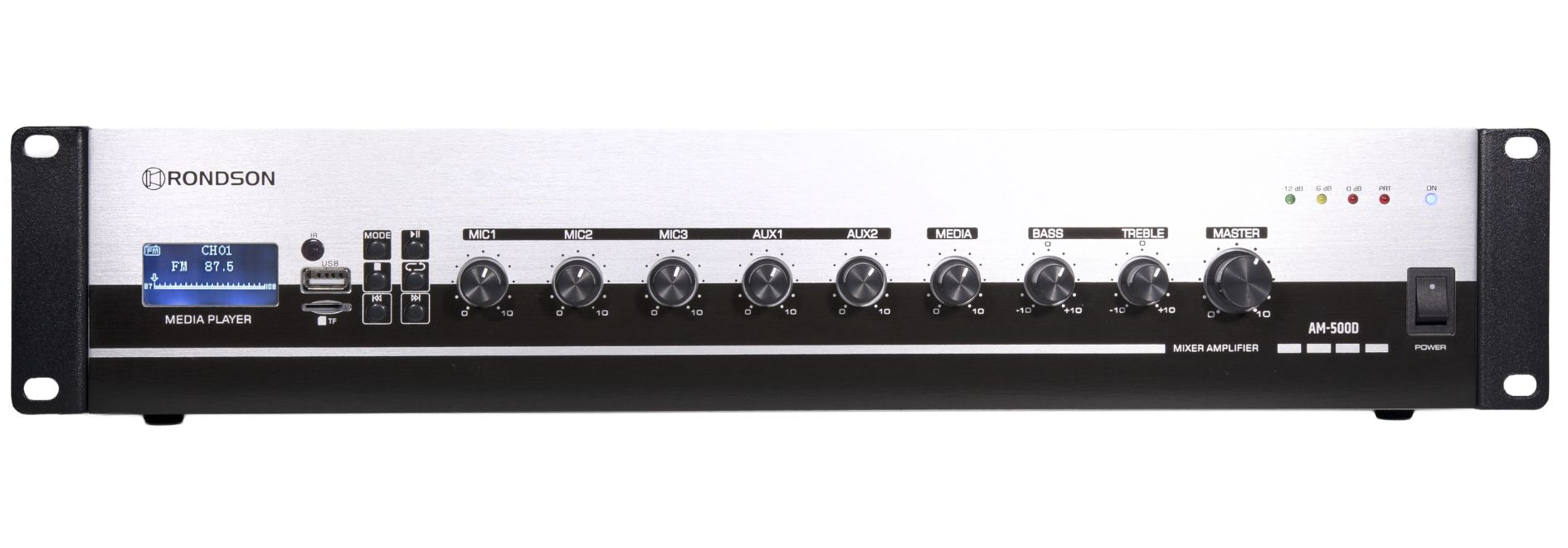

500W multimedia mixer amplifier in 100V - 19" 2U

Reference : AM-500D
SKU : 02854
EAN13 : 3701567913433
  • 500W mixer amplifier
  • 100V line
  • Multimedia player
  • 19" rack-mountable (2U)
Power output
TUNER
BLUETOOTH
SD
Impédance
Coupure sono
Zones
Share

Description

Description

500 W mixer amplifier.

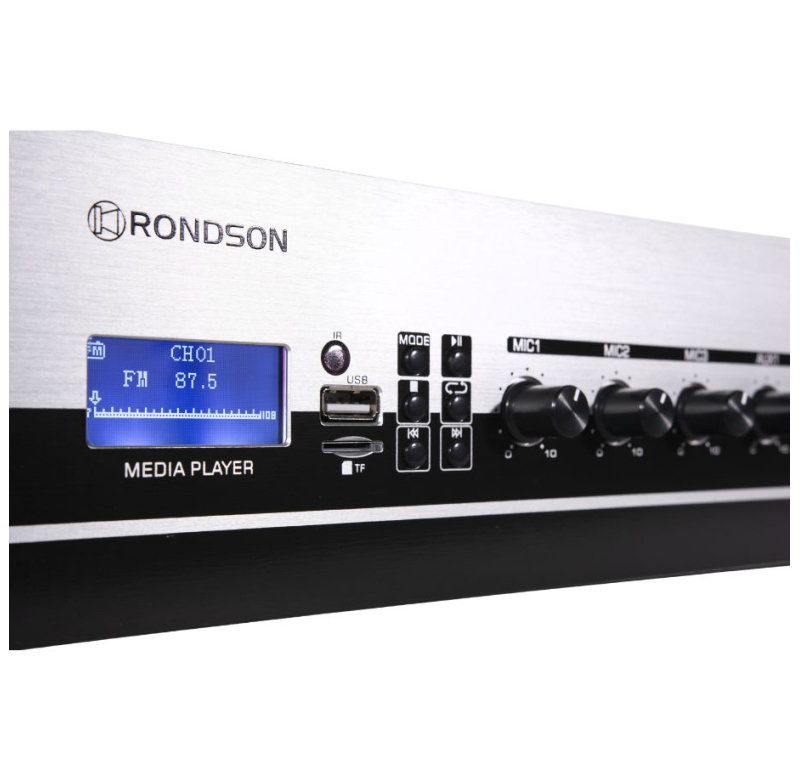

Multimedia player: FM Tuner / USB / SD / Bluetooth.

Offers 100V speaker outputs. Operates on 110V - 220V – 50 Hz mains or 24V DC.

Product Data Sheet (PDF):
Download AM-500D product sheet in PDF

Features

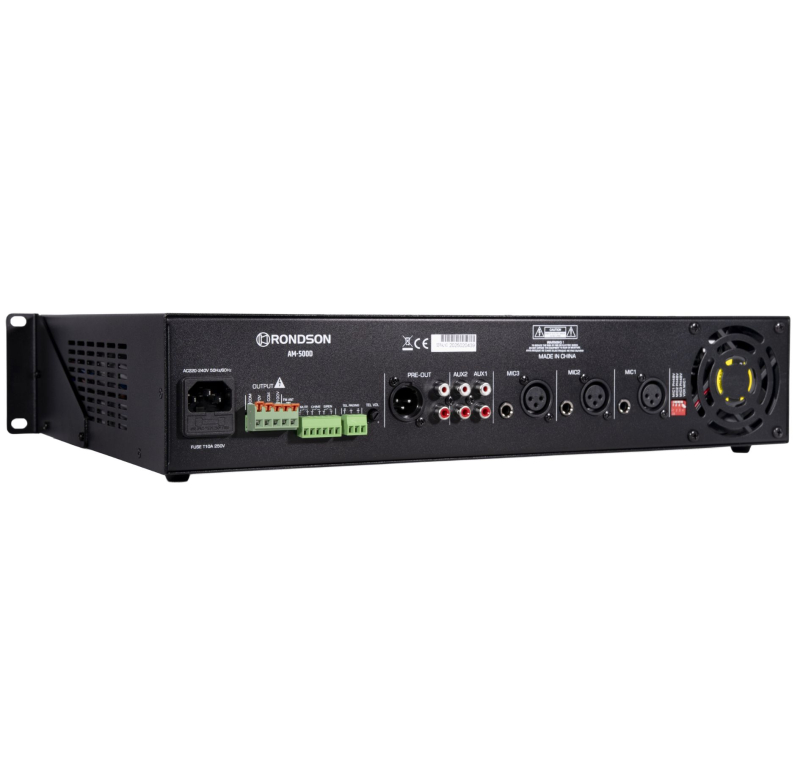

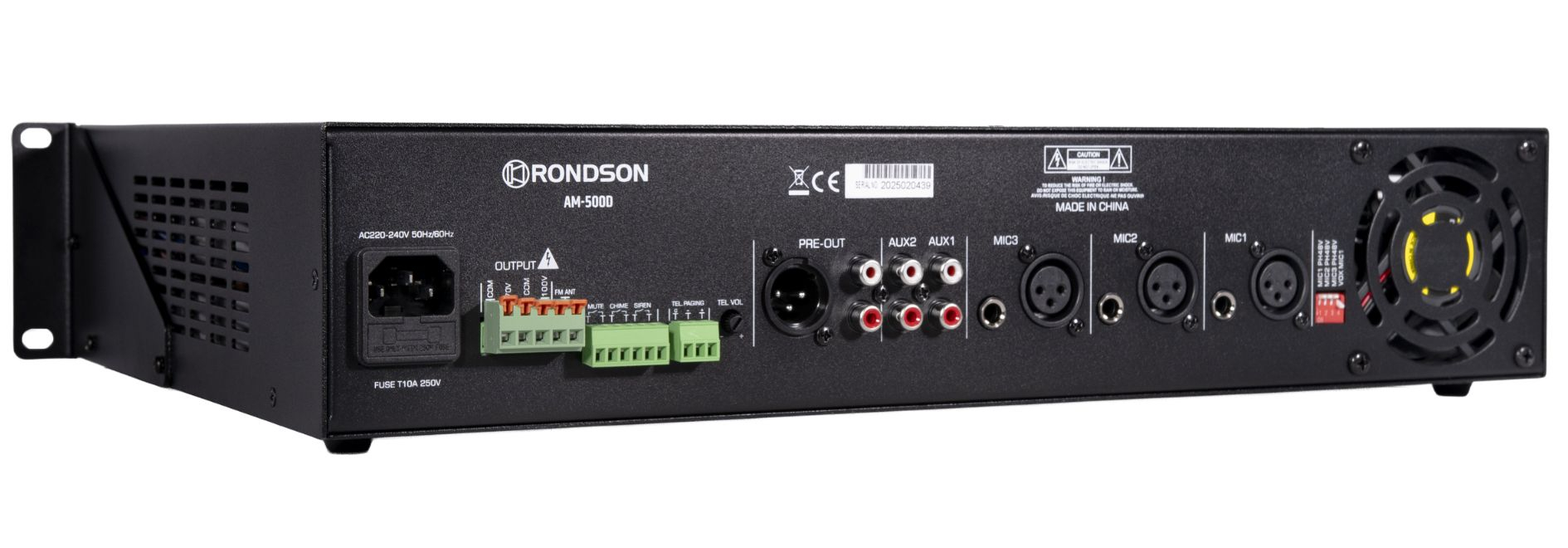

Equipped with:

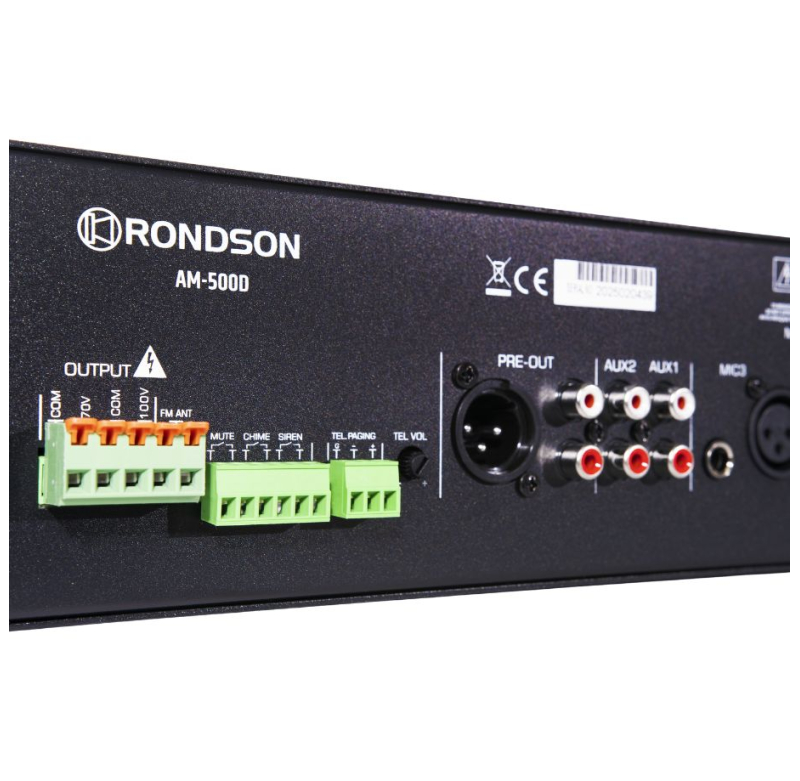

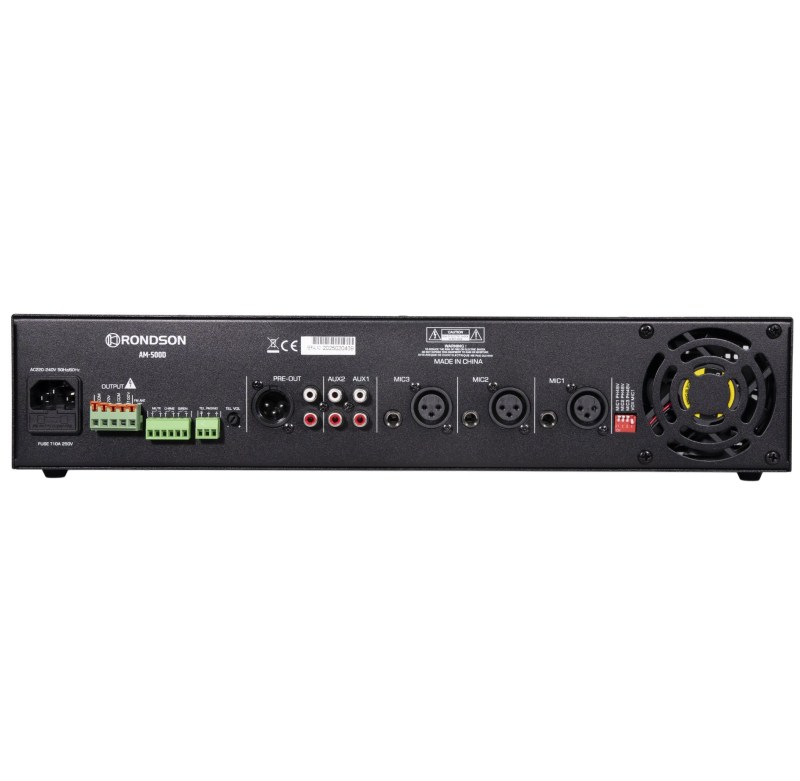

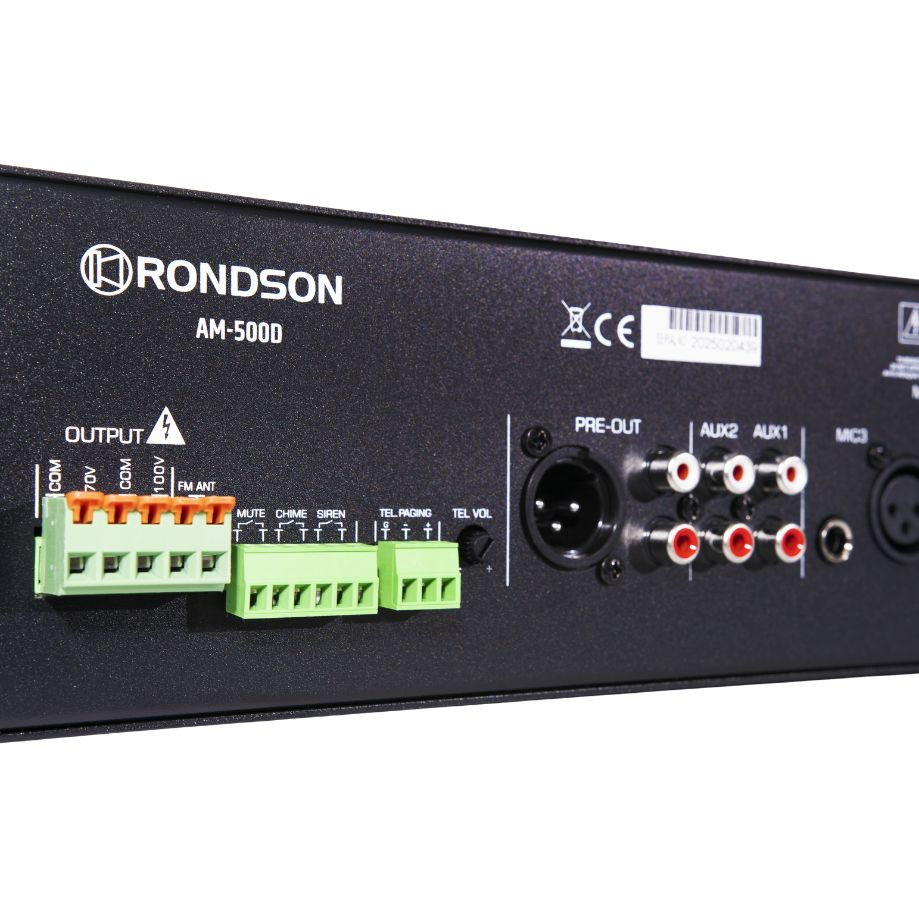

  • 3 combo XLR inputs with 6.35 mm JACK (MIC priority dipswitch)
  • 2 RCA AUX inputs
  • 1 RCA PRE OUT and 1 XLR PRE OUT
  • FM Tuner module and MP3 / USB / SD player
  • Bluetooth receiver module for streaming from your mobile, tablet, or laptop
  • Thermal, overload, and short-circuit protection
  • Mute function, chime, siren (Euroblock)
  • Tel paging (Euroblock)

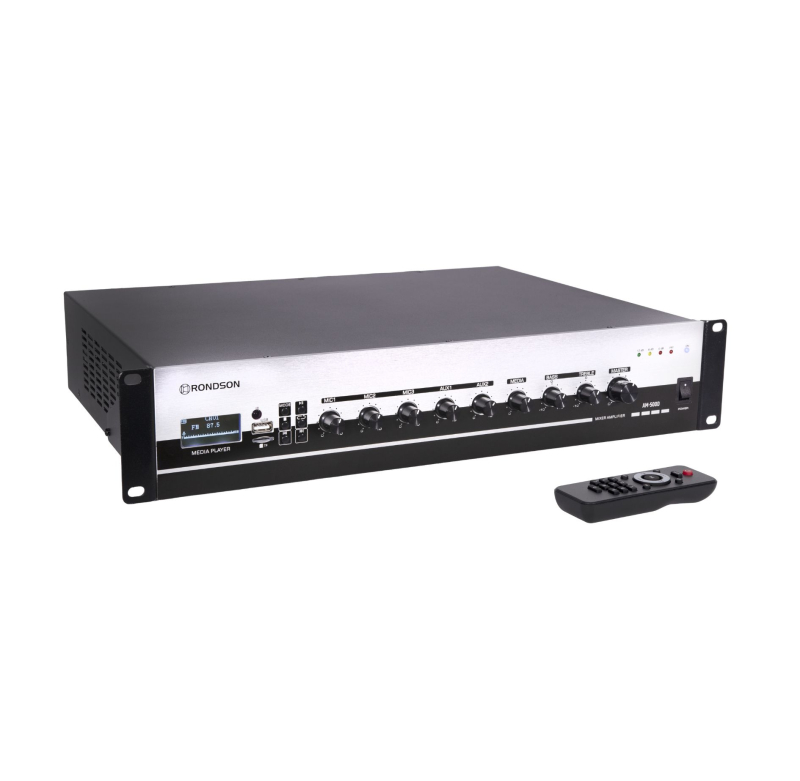

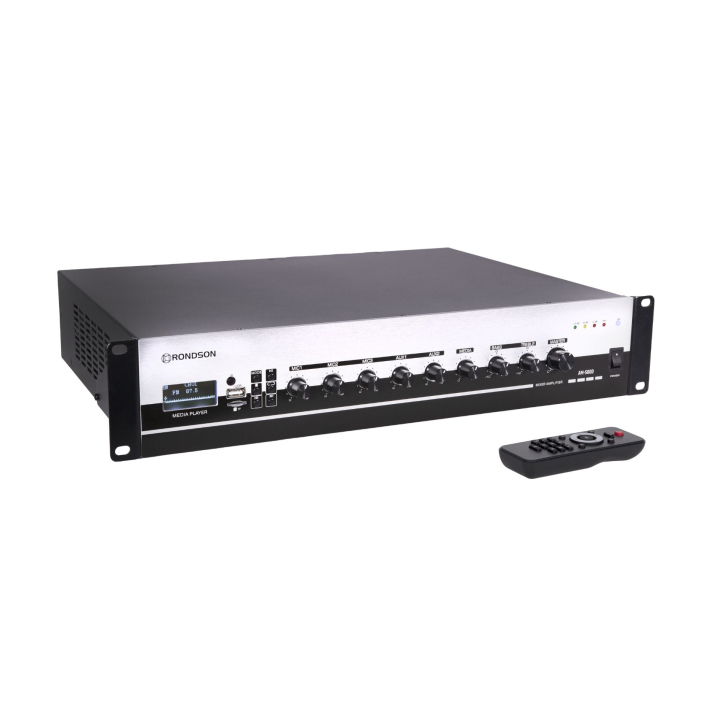

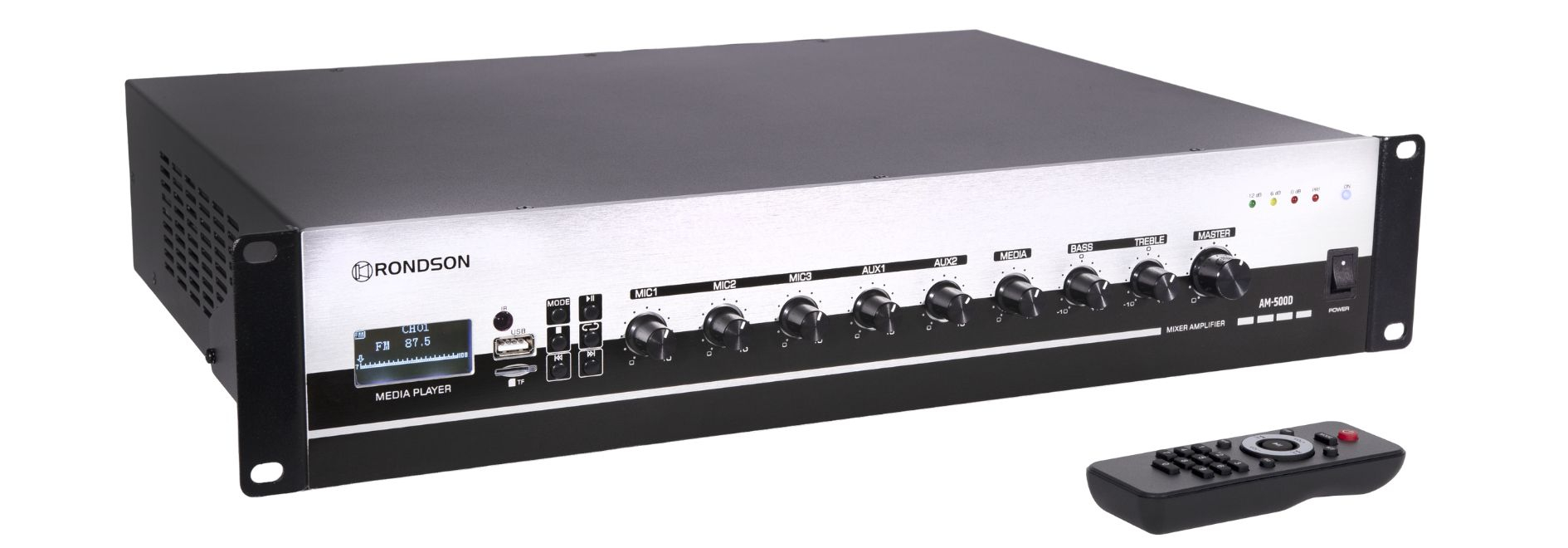

  • Remote control
Technical Specifications — AM-500D
Specifications AM-500D
Type Preamplifier amplifier
Power supply AC 110V / 220V — 50 - 60 Hz / DC 24V
Output power 500 W RMS
Speaker outputs 70V / 100V
Output / Sensitivity 0 dBV / 600 Ω
Inputs / Sensitivity MIC 1-3: 1.6 mV
AUX 1-2: 550 mV / 10 kΩ
Tone controls Bass: ± 10 dB at 100 Hz
Treble: ± 10 dB at 10 kHz
Frequency response 80 Hz – 20,000 Hz (± 3 dB)
Signal-to-noise ratio ≥ 80 dB
Total harmonic distortion < 0.5 %
Displays Power indicator, output level VU meters
Dimensions (W x D x H) 485 x 320 x 88 mm (2U)
Weight 13.5 kg
