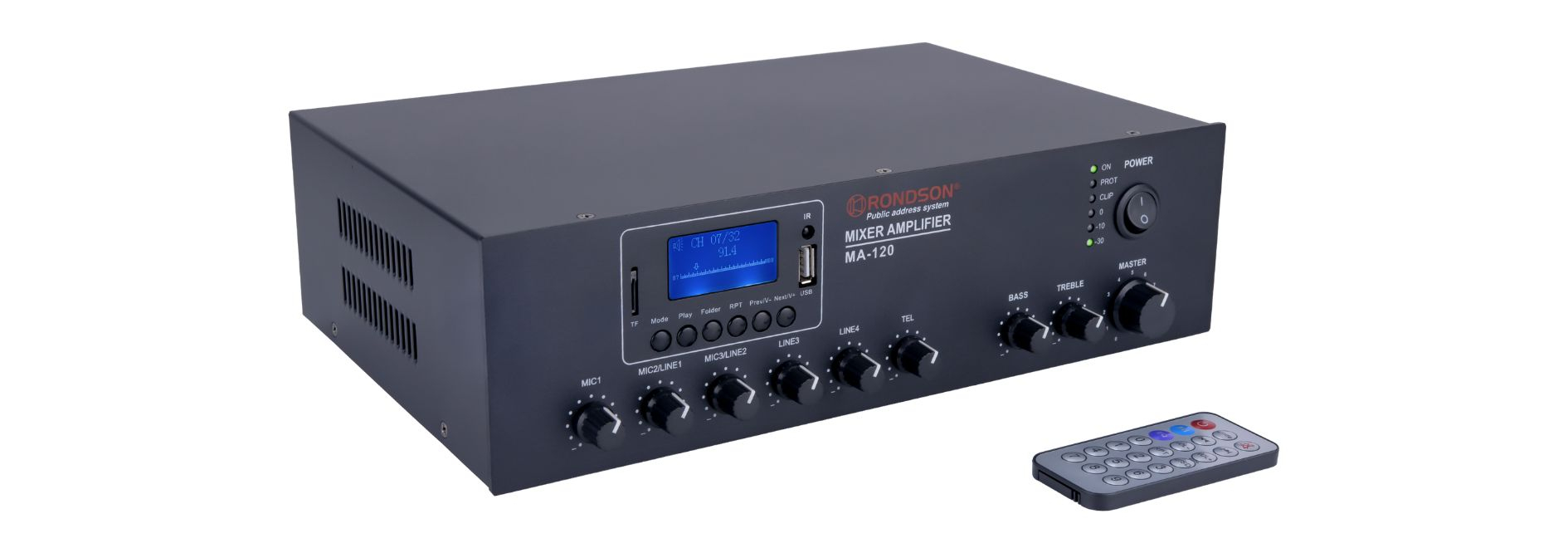

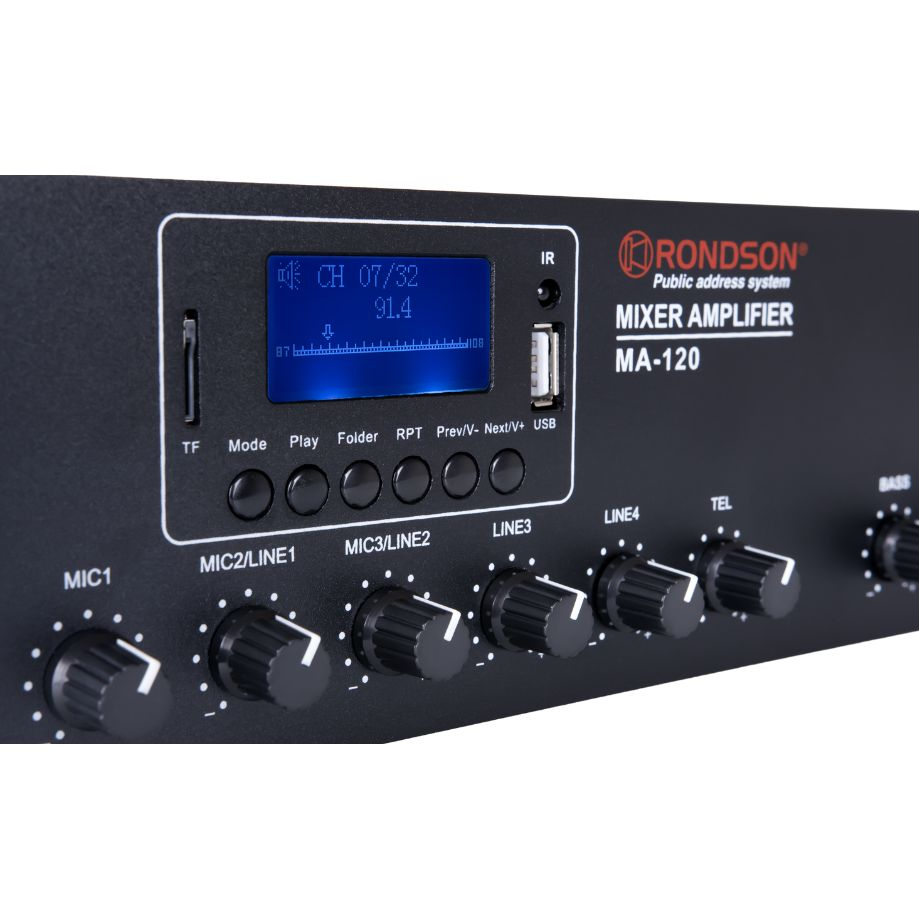

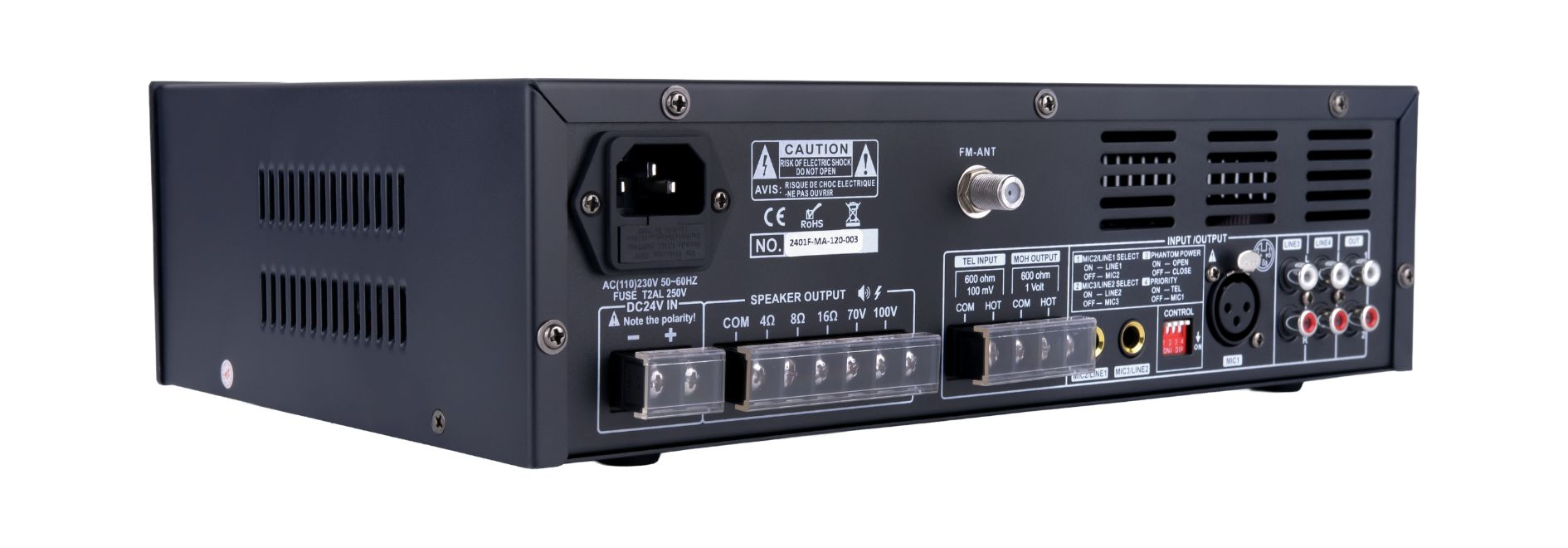

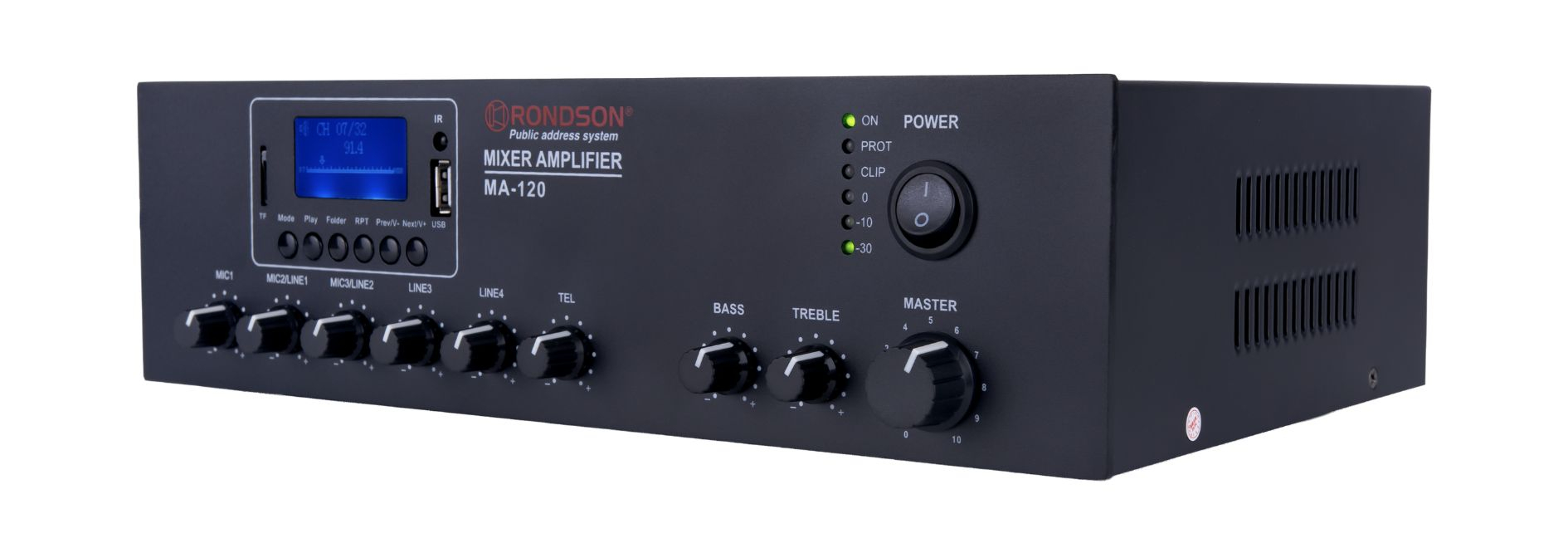

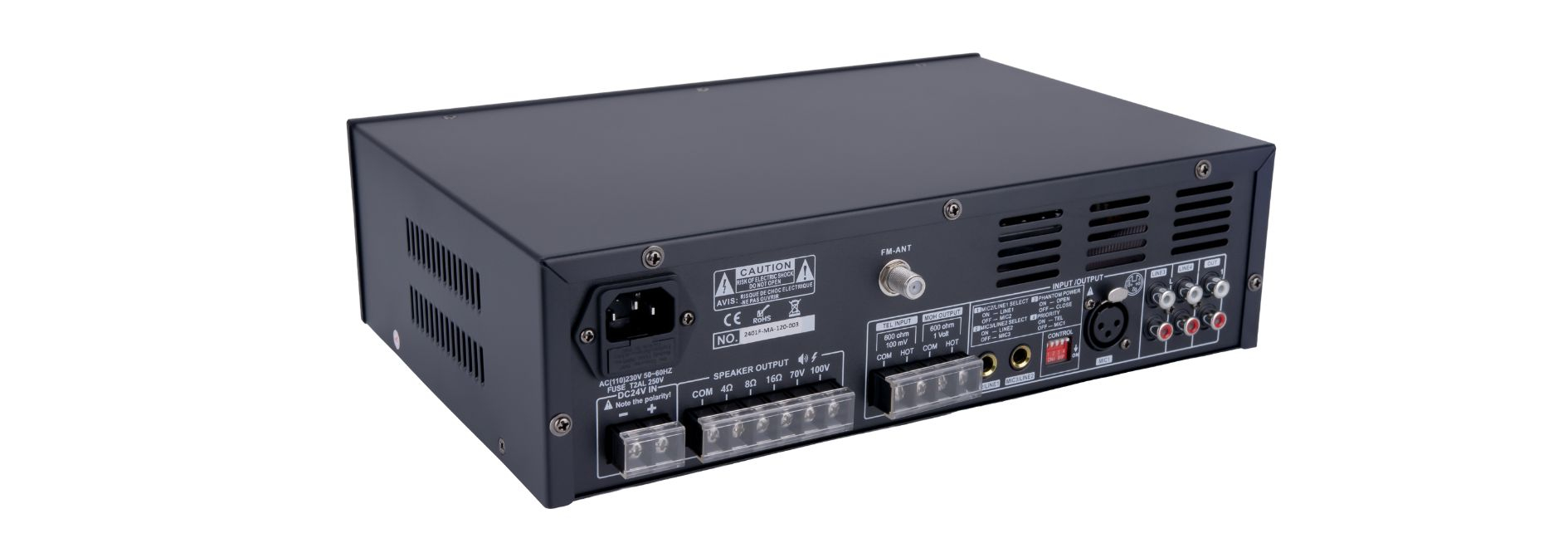

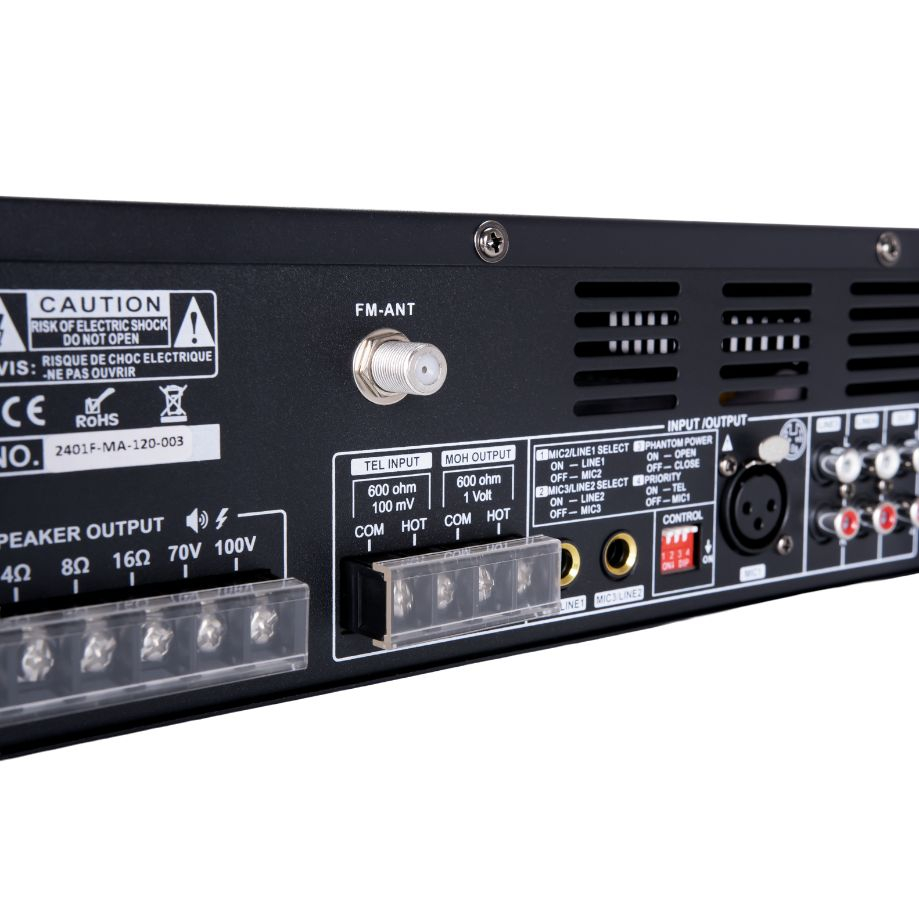

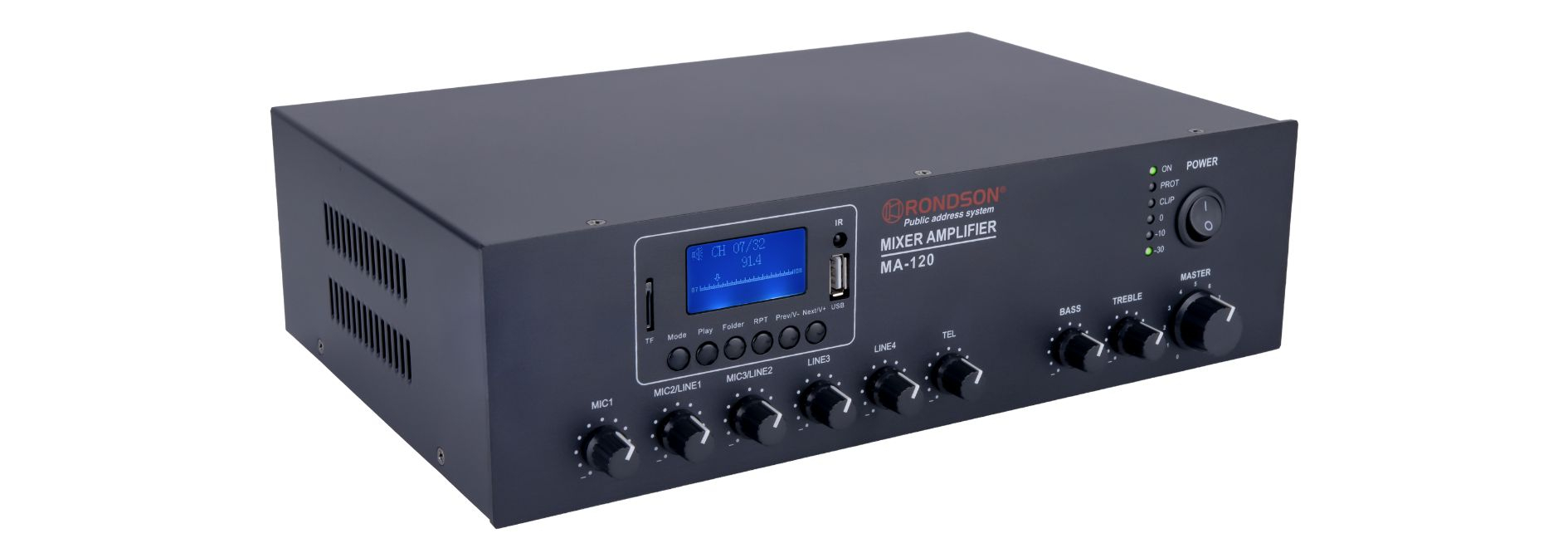

120W Mixer Amplifier with FM Tuner and MP3/USB/SD Player and Bluetooth

Reference : MA-120
SKU : 02278
EAN13 : 3701567904653

120W mixing amplifier

100V line

FM tuner and MP3/USB/SD player and Bluetooth

Power output
Share

Description

DATA SHEET IN PDF

Description :

This mixer-amplifier is available in 120 W.
Standard operation 4 - 8 - 16 Ω (Low Impedance) 70V / 100V.
It operates on 220/115V - 50/60 Hz or DC 24V.

Features:

It is equipped with:

  • FM tuner and MP3/USB/SD player and Bluetooth
  • 1 MIC input - XLR balanced with 24V phantom power
  • 2 switchable MIC/LINE inputs with unbalanced jack
  • 2 LINE inputs - RCA
  • 1 telephone input
  • 1 LINE OUT - RCA
  • 1 individual volume control per input, 1 master volume control
  • Thermal, overload and short-circuit protection
  • Supplied with remote control
SPECIFICATIONS MA-120
Type Mixer amplifier with tuner/MP3/USB/SD/BLUETOOTH
Power supply AC 220V – 50/60 Hz
Power output 120 W RMS
Speaker outputs 4 - 8 -16 Ω / 70V – 100V
Frequency Response 60 Hz – 15 000 Hz (± 3 dB)
Total harmonic distortion < 0,5 %
Signal to noise ratio MIC : > 65 dB
AUX/LINE : > 70 dB
Tone Settings Bass: +10dB at 100 Hz
Treble: + 10 dB at 10,000 Hz
Cooling

Fan
Consumption

200 W
Phantom power supply + 24 V switchable
Protection Thermal, overload and short-circuit protection
Other LINE Out

Dimensions (W x D x H)

 300 x 275 x 88

Weight

 7,8kg

Product Details

  • Brand
  • Reference
    MA-120
  • SKU
    02278
  • EAN13
    3701567904653
