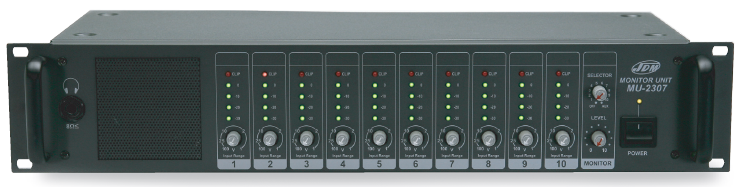

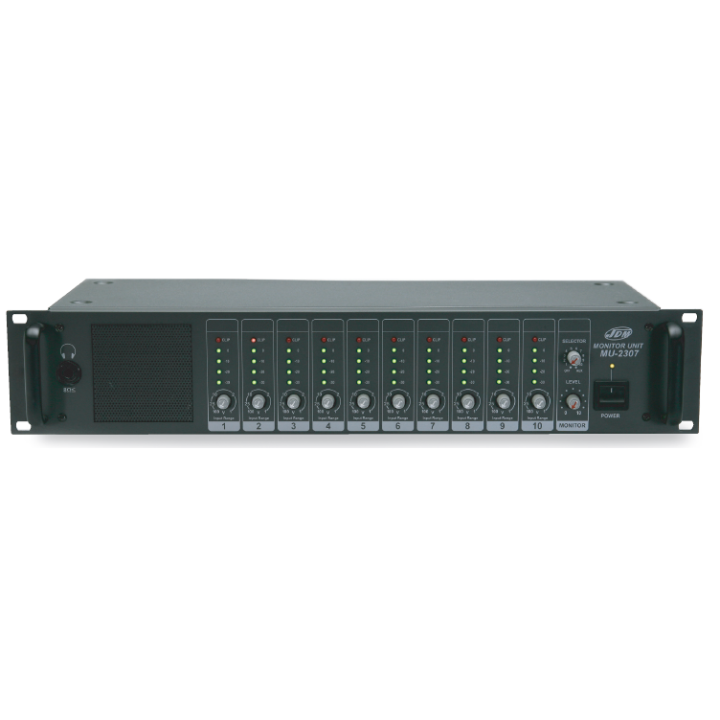

10-zone HP - 24V - 19’ 2U control unit

Name: 10-zone HP - 24V - 19’ 2U control unit
Brand: JD-MEDIA
SKU: MU 2307

Reference : MU 2307

SKU : 01062

EAN13 : 8809267793227

10-zone control panel Speakers

DC 24V power supply

19’ rackable in 2U

Zones

Notice d'utilisation

Fiche Produit

Description

- Controls up to 10 power amplifiers

- Level adjustment via the input level of each monitoring channel

- Permissible input signal 1 V ~ 100 V corresponding to monitor input settings

- Vumeter per monitor input

- 2 input channels via internal loudspeaker or headphones

- No compatibility problems between MU-2307 and unbalanced devices thanks to internal balanced circuitry

- AUX input for monitoring PRE AMP output

- Monitoring of 10 channels with individual meters

- Variable input voltages from 1 V to 100 V

- Additional AUX input for monitoring pre-amp output

- Monitor input level control

- Isolated +/- input and circuit ground

CHARACTERISTICS	MU-2307
Input sensitivity / Impedance	1V-100V / 10 k balanced
Monitor listening power	Speaker: 2 W max Headphones: 01 W max
Frequency band	100 Hz - 20 000 Hz - 3 dB
Harmonic distortion	0.4% dB à 1 KHz
Dimensions (W x D x H)	195 x 215 x 40 mm
Weight	1,3 Kg
Power supply	+15V DC ~ 17V DC
