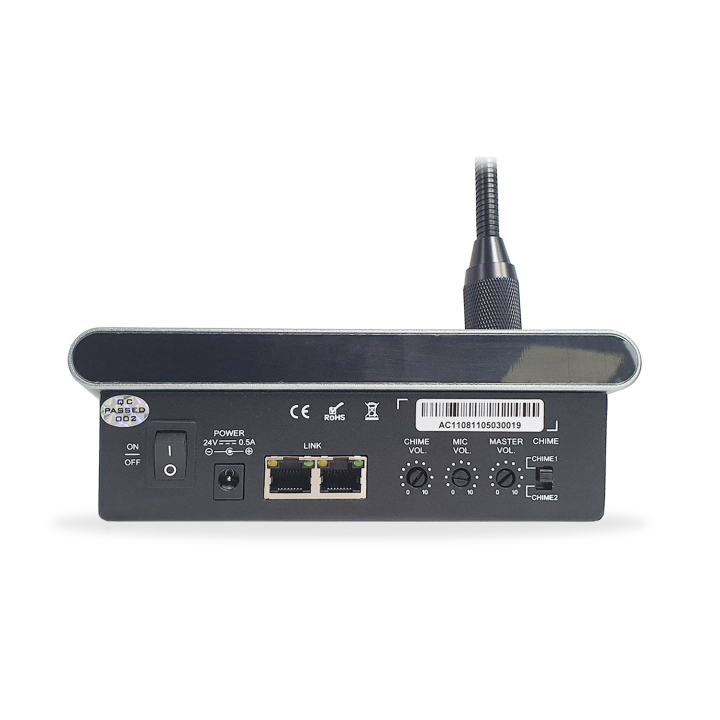

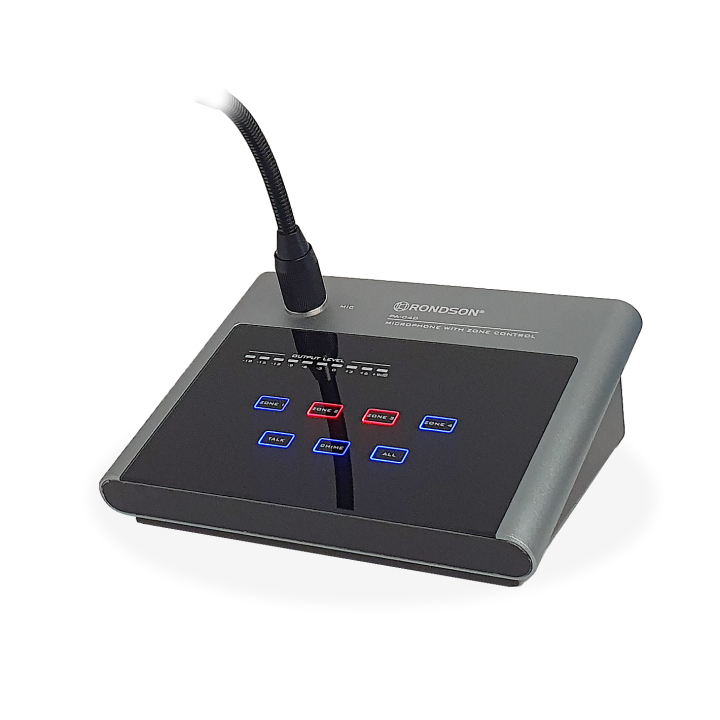

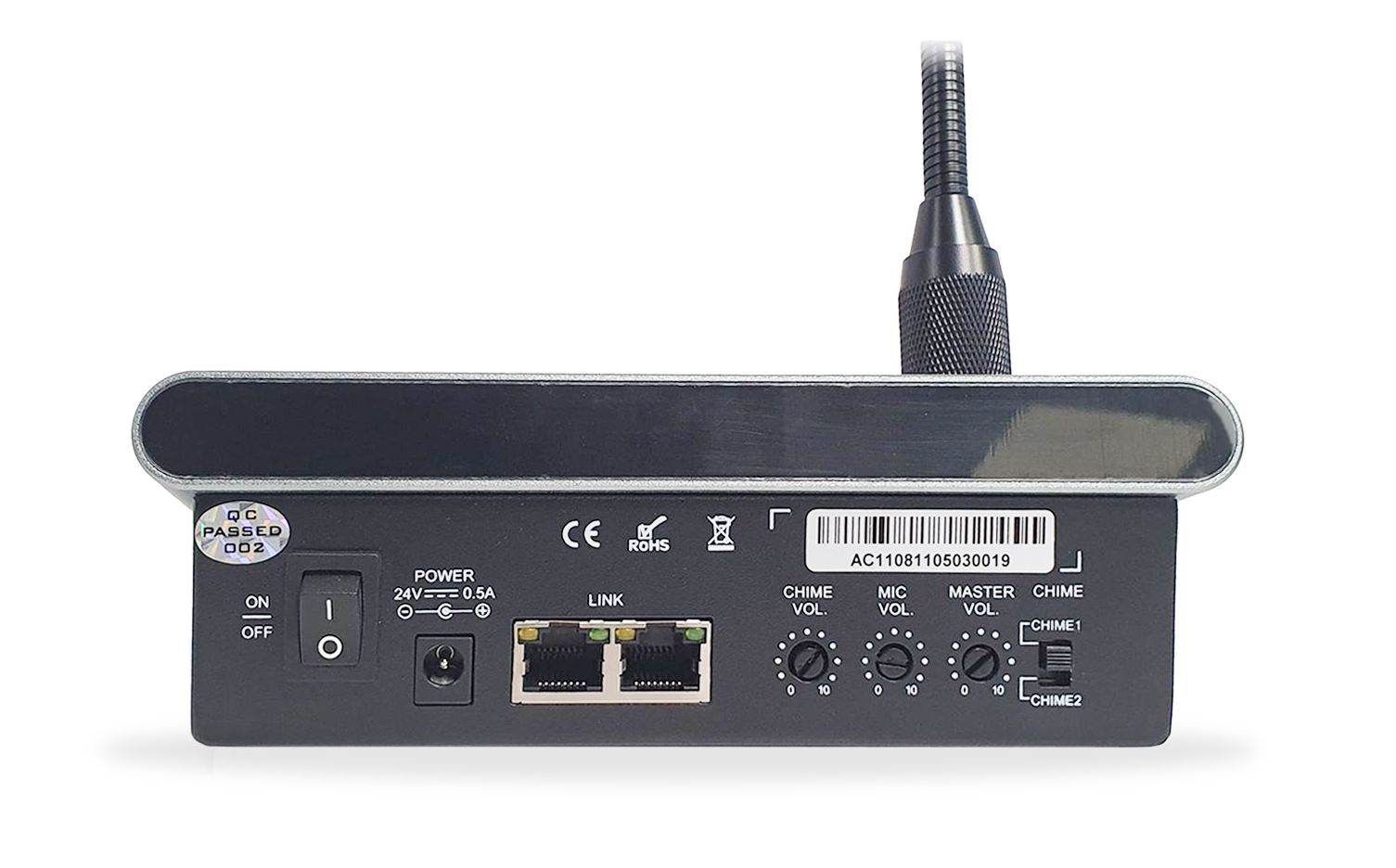

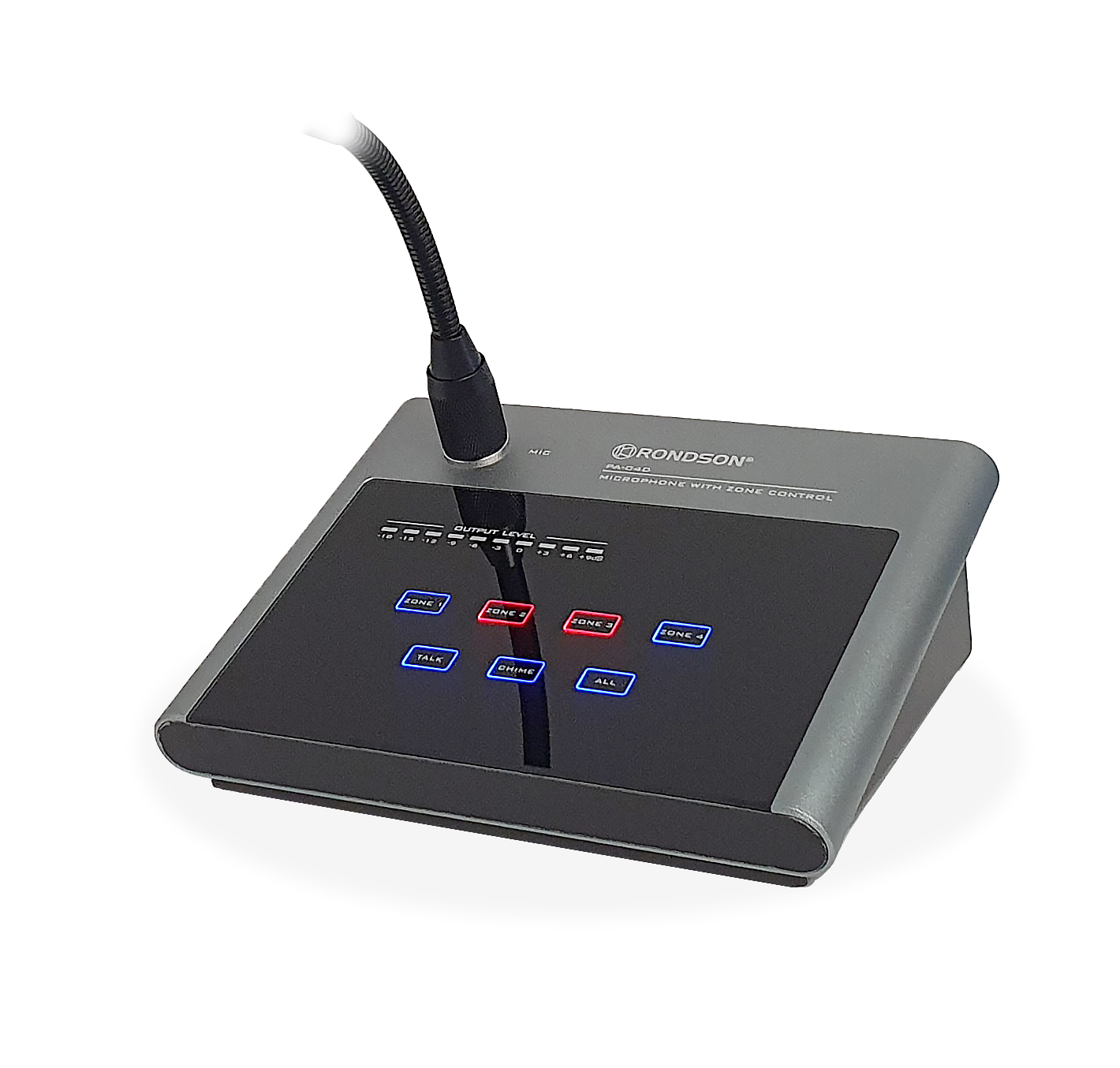

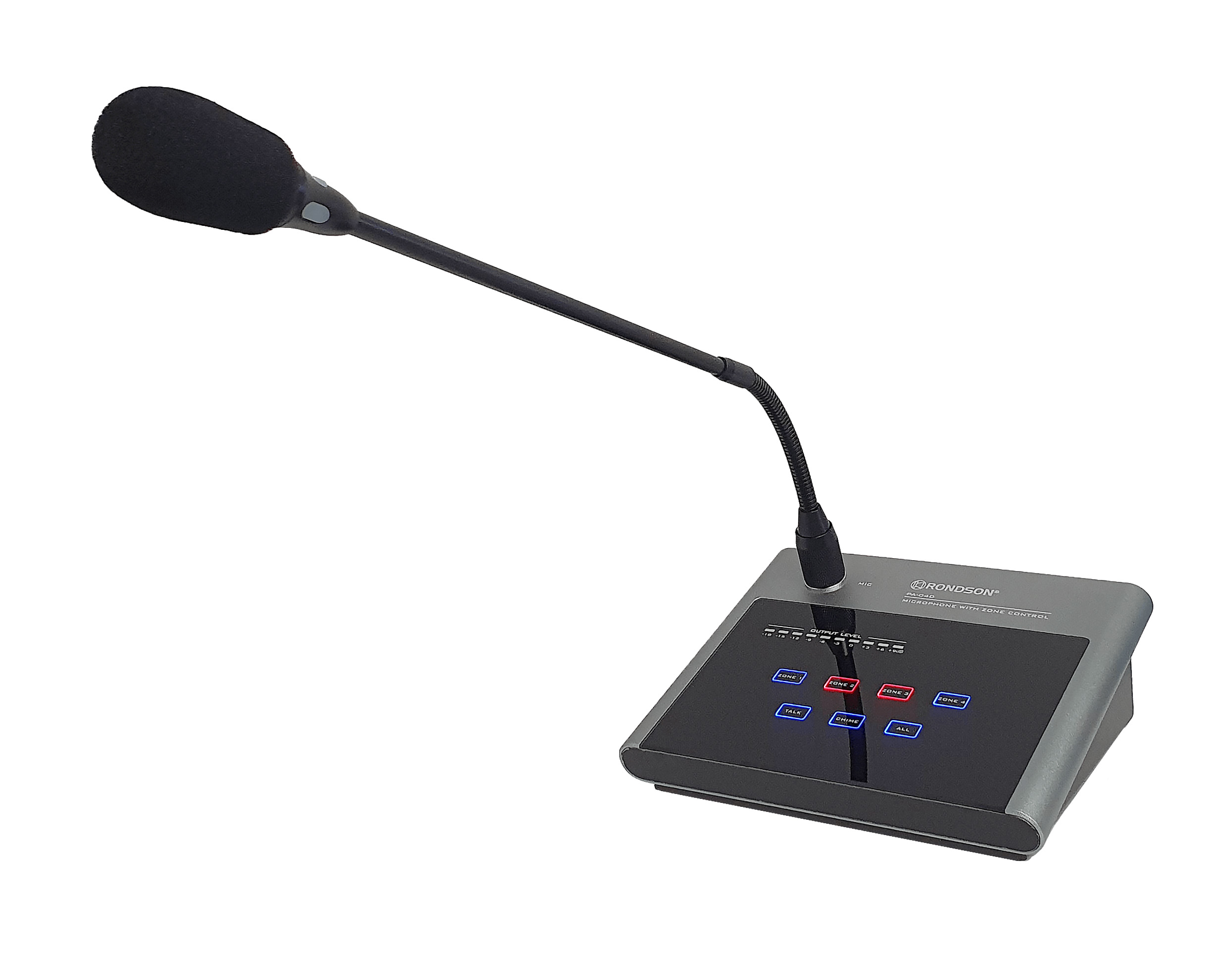

Microphone paging desk for AM-4240D mixer amplifier

Name: Microphone paging desk for AM-4240D mixer amplifier
Brand: RONDSON
SKU: PA-04D

Reference : PA-04D

SKU : 02624

EAN13 : 3701567904004

Microphone paging desk for preamplifier MX-804

Paging microphone for AM-4240D amplifier

4 zones

RJ45

AM-4240D - PA-04D - PM-04D

Download (10.38MB)

Description

Product sheet in PDF

Features:

The PA-04D is equipped with:

• Remote call panel 4 zones
• Individual call 1 zone, multiple zones and general call
• Maximum capacity on one amplifier: 6 microphones
• The call panel and the amplifier are connected by cable
CAT 5
• The call panel is powered by the amplifier up to
1 km distance (DC 24 V)
• Designed with 2 and 4 tone carillon selection (pre announcement)
• Mic and chime volume adjustment
• Display: 10 level indicators

FEATURES	PA-04D
Type	Condenser microphone
Mode of communication	RS-485
Capacity	4 Zones
Bandwidth	80–18,000 Hz (+1/-3 dB)
Distortion	≤ 1 %
Consumption	< 0.1%
Distance communication	1 km
Food	DC 24V
Dimensions (W x D x H)	170 x 142 x 54 mm
weight	1 kg (without swan neck)
