6-zone call panel microphone compatible with preamplifier T-6000

Product sheet in PDF

Description :

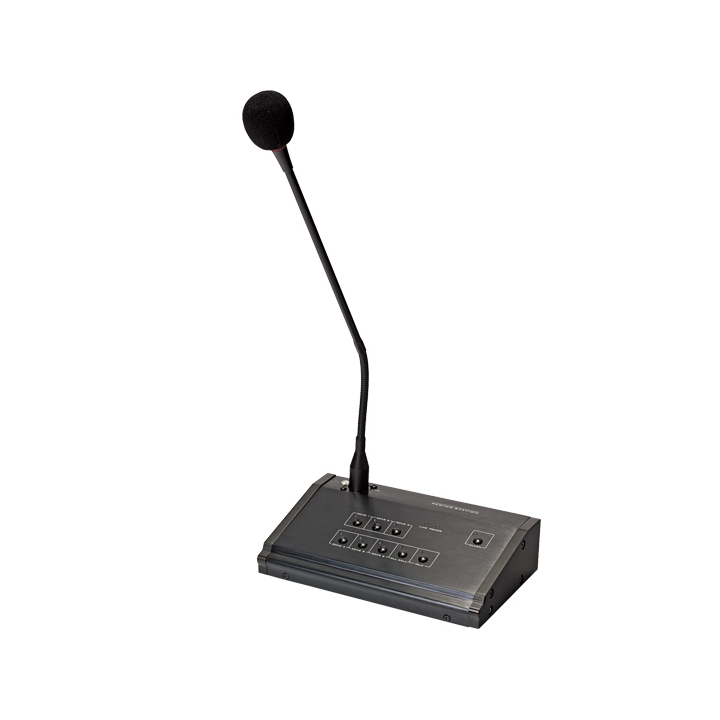

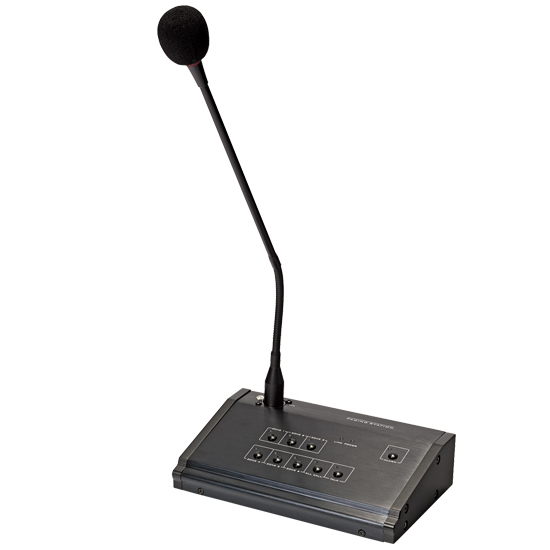

The T-6000A is a call microphone console to be connected to the T-6000 for remote control and remote announcements.

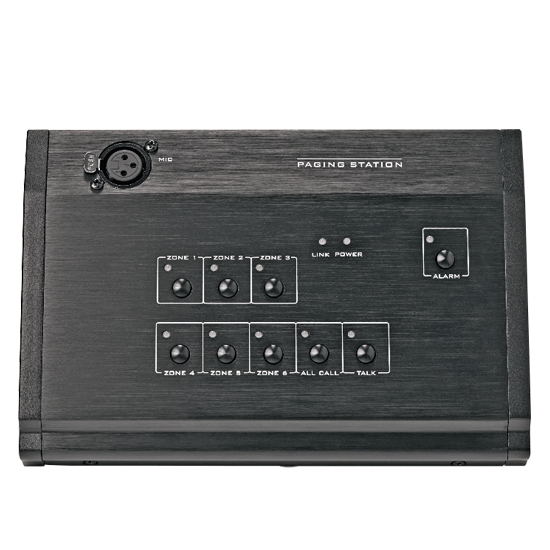

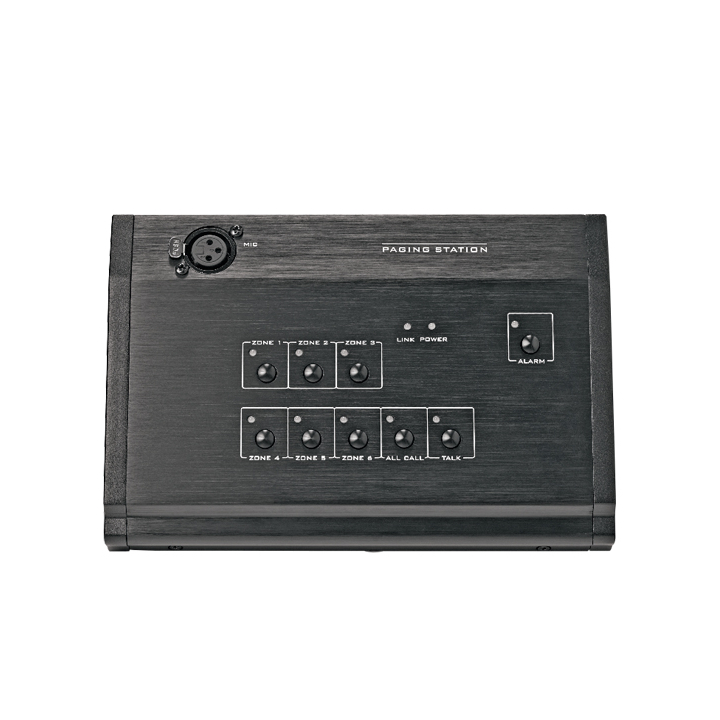

The 6 zone buttons provide a simple user control interface for broadcasting calls over zones
The Alarm button allows the pre-recorded message No. 3 to be automatically broadcast over the other inputs.
It can operate up to 50 meters powered by the T-6000, additional 24V DC power is required when the distance is more
important.

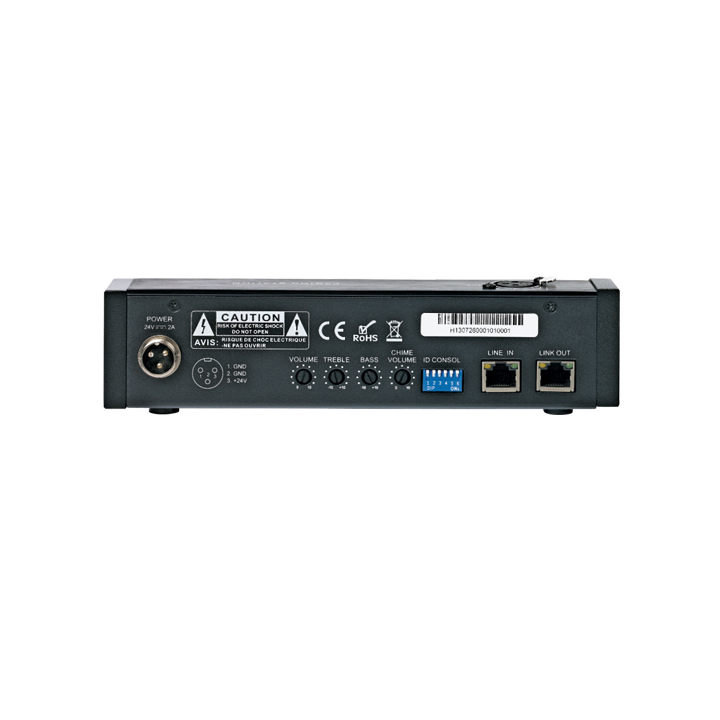

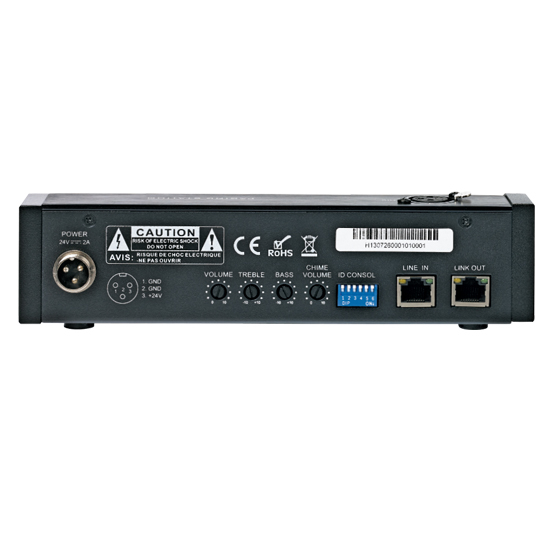

The RJ45 communication jacks are used to connect to the T-6000 and the next call panel (T-6000A).
The Dip switch allows setting up to 6 simultaneous call consoles.

Characteristics :

• Area of selection
LED display visible when one presses the switch of a zone or several zones
• Announcement
After selecting the ad destination area, leave the button
press and hold until the LED turns on, the internal chime is played, the user can then play their announcement.
If the selected area is already taken by another connected call panel, the LED Talk starts to flash which means that the line
is busy.
• Triggering of prerecorded message N°3
After selecting the zones, press the alarm button to activate the prerecorded voice message.
• Priority
The announcement from the microphone stand takes precedence over microphone 1, chime and pre-recorded message
• Pre-recorded messages
3 different voice messages can be recorded and stored in the matrix, the maximum broadcast time per message is 3 minutes.
• Possibility of connecting up to 6 call desks operating at the same time
