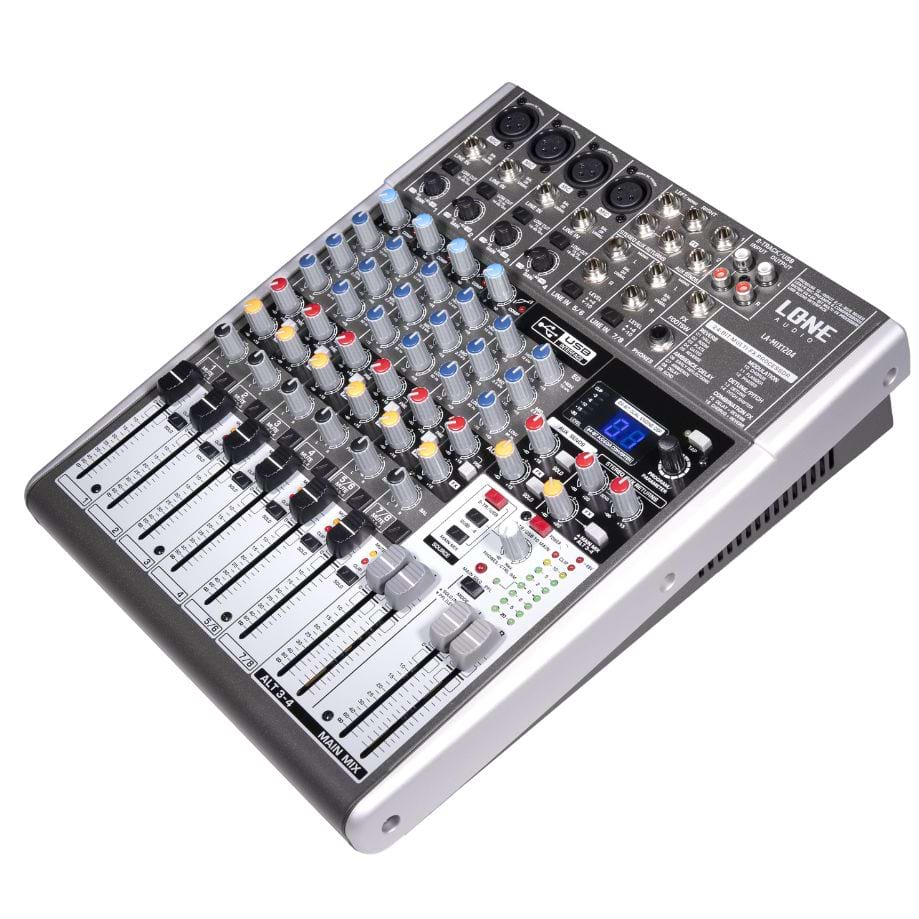

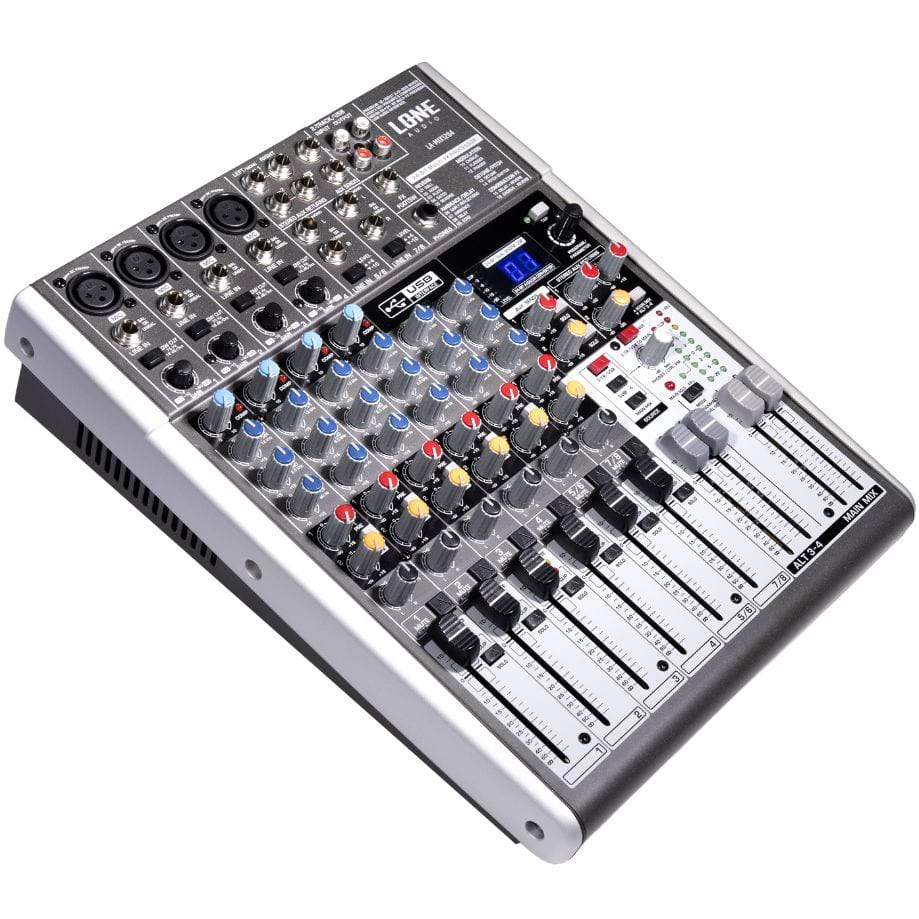

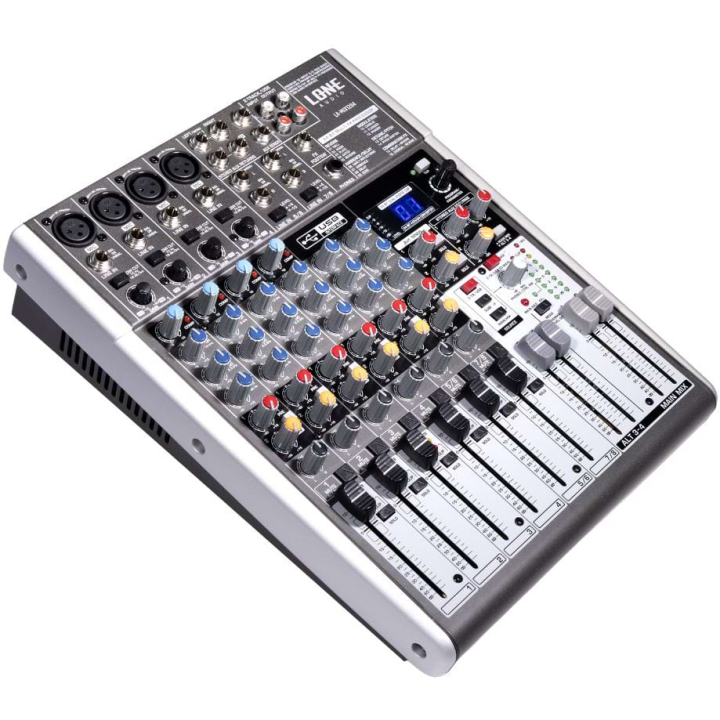

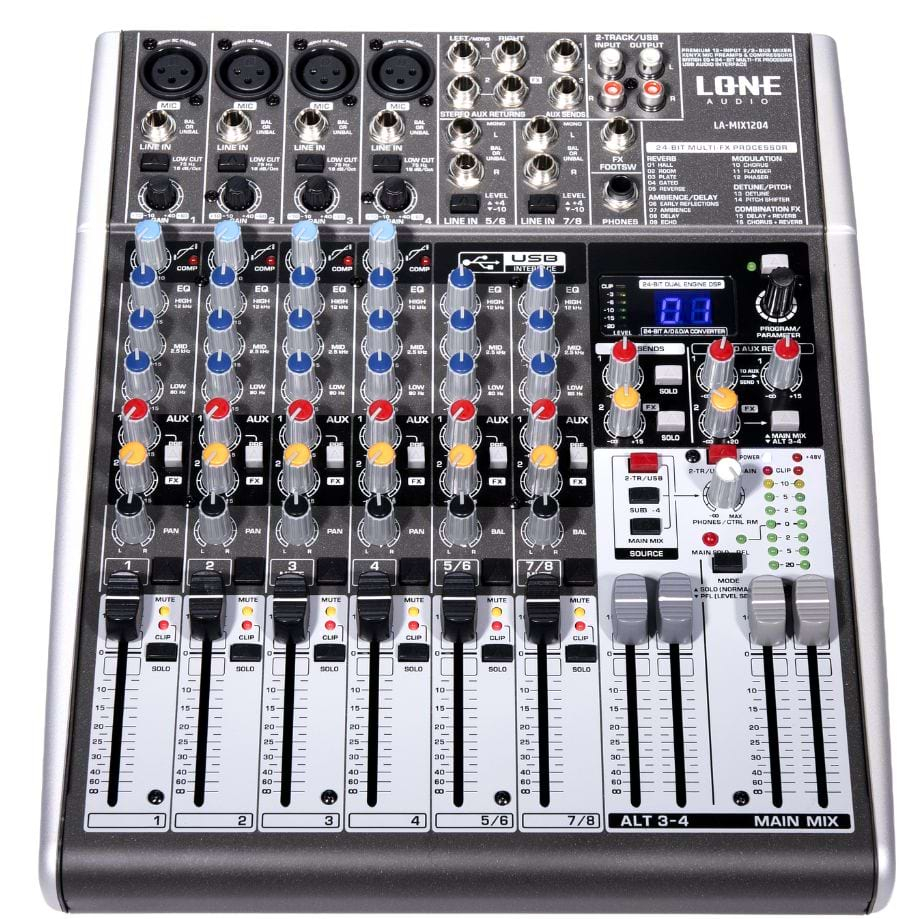

12 channel multimedia mixer

Reference : LA-MIX1204
SKU : 02836
EAN13 : 3701567913303

Multimedia mixing desk

12 channels

Rack-mountable with brackets supplied

Share

Product details

Download (5.82MB)

Description

This audio mixer has 12 channels
It operates on a Phantom 48V power supply.

SPECIFICATIONS :

It is equipped with :

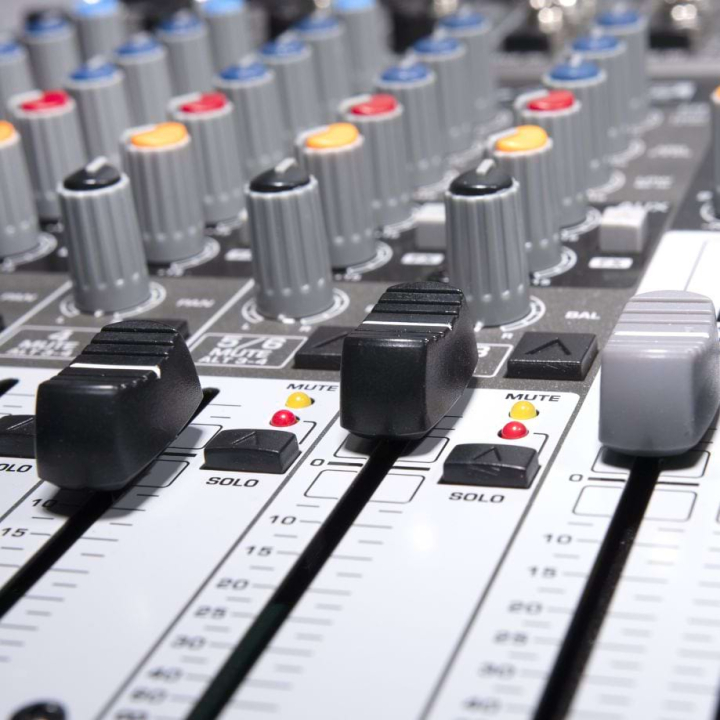

  • 60 mm faders

  • 4 mic inputs with Phantom power supply
  • 75 Hz low-cut filter
  • Compressors on each mic channel

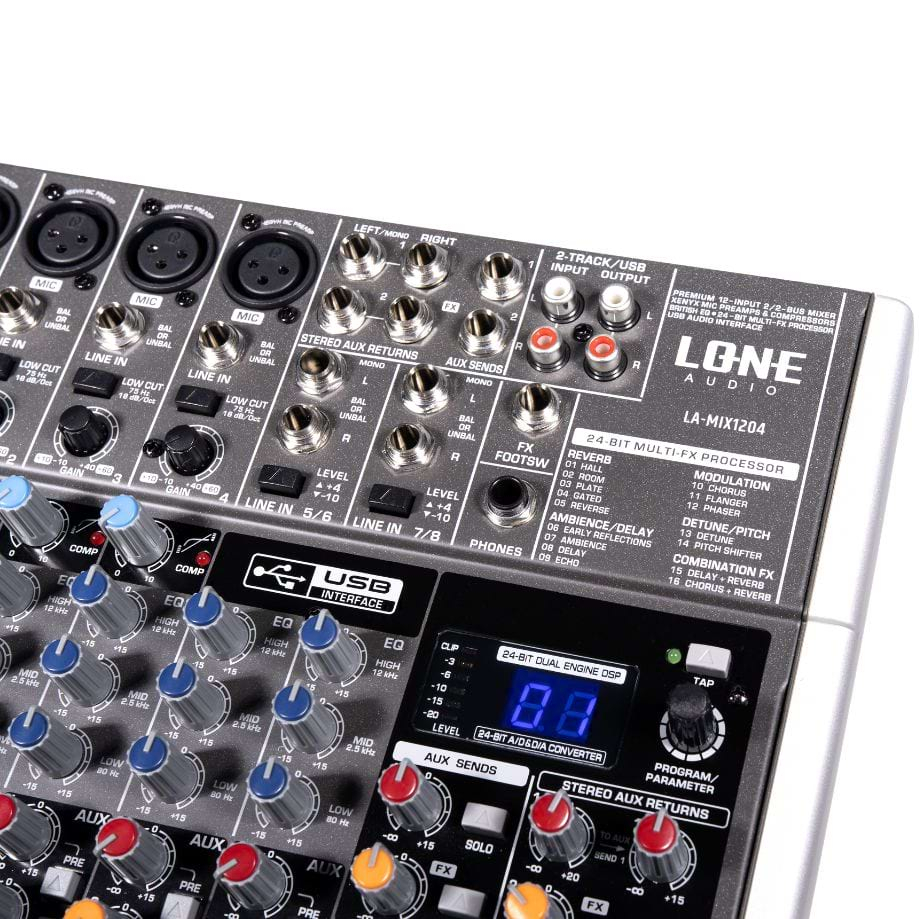

  • 24-bit effects processor with 16 built-in presets
  • 2 stereo line inputs
  • 3-band equalisation
  • 2 auxiliary outputs (pre/post)
  • Integrated USB audio interface
  • 2-track recording input/output

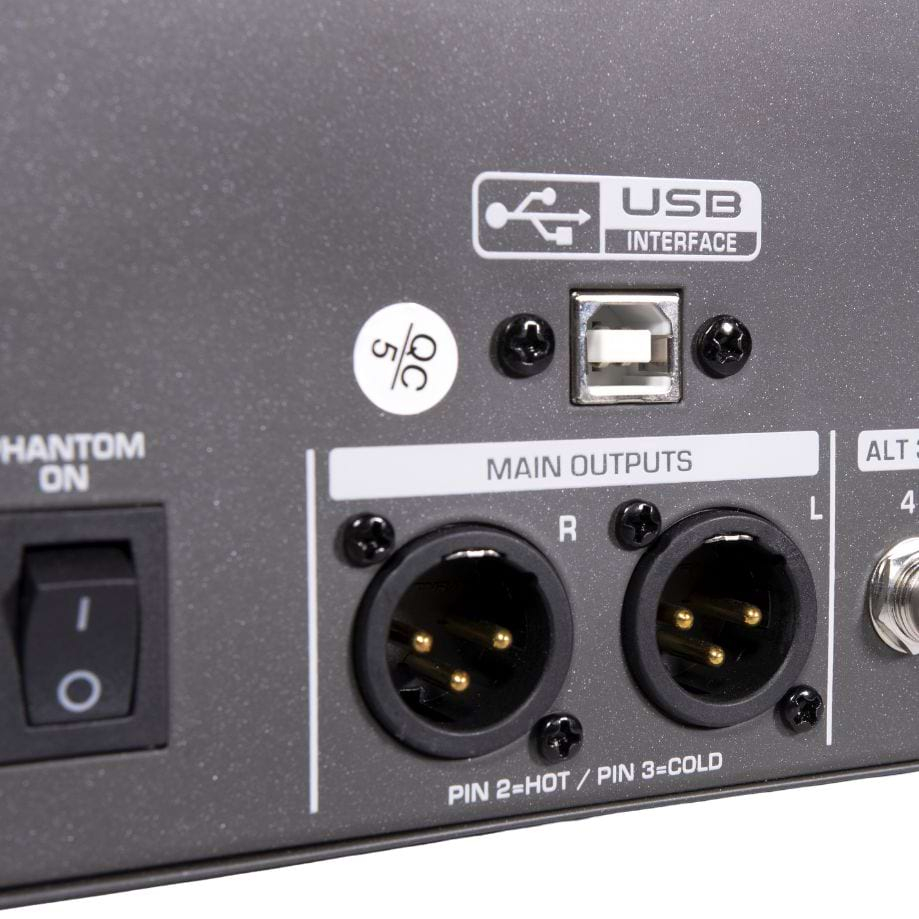

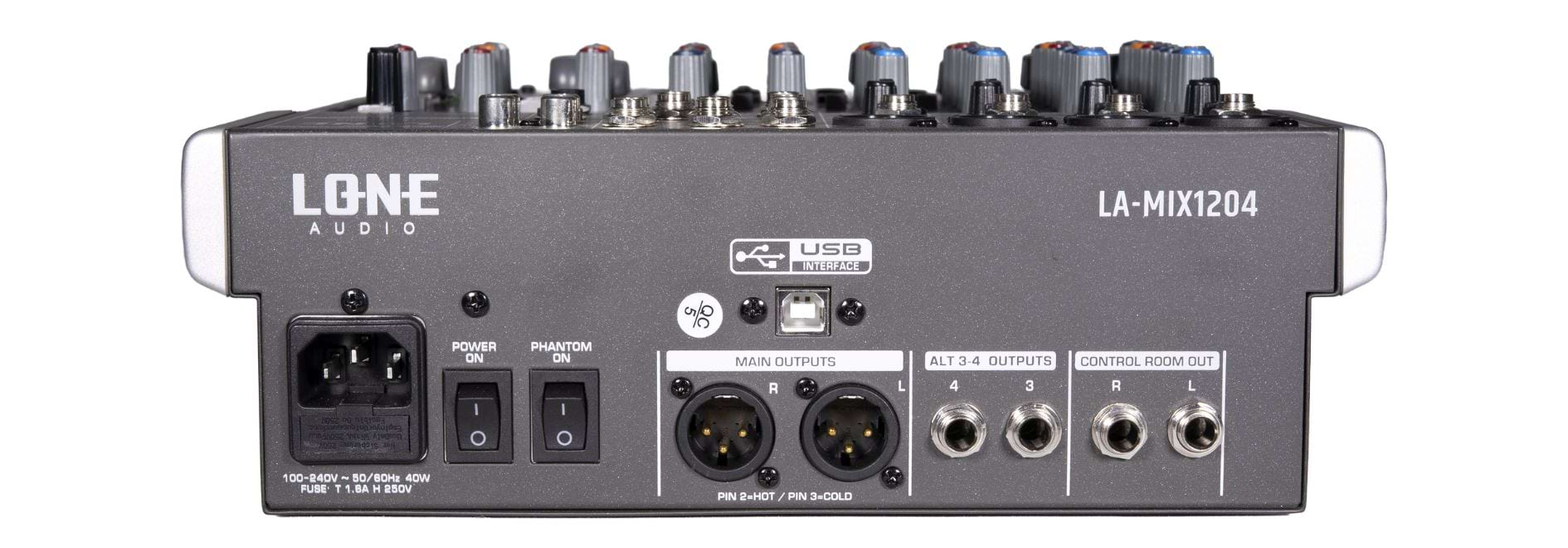

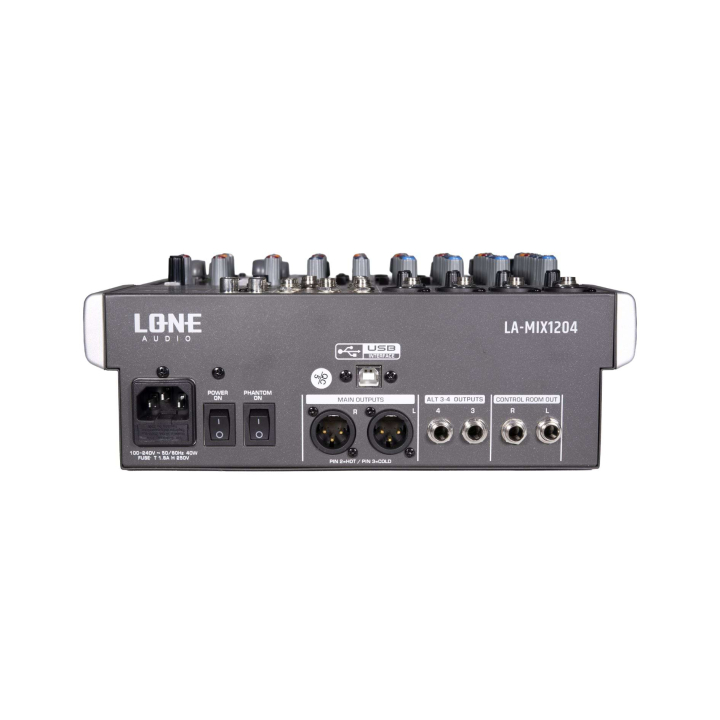

  • XLR main outputs
  • Alternate outputs 3-4 and 6.3 mm TRS cab control
  • Internal power supply with mains cable supplied
  • 19" rack-mount kit and USB cable included
  • Dimensions: 97 x 270 x 328 mm
  • Weight: 3.8 kg

Product Details

  • Brand
  • Reference
    LA-MIX1204
  • SKU
    02836
  • EAN13
    3701567913303

Data sheet

  • Type
    Table de mixage
  • Alimentation fantôme
    48V
  • Entrées microphones
    4
  • Entrées stéréo
    2
  • Compresseur
    Oui
  • Nombre de sorties ligne
    2
  • Sortie Master
    XLR
  • Fréquence d'échantillonnage max. kHz
    48 kHz
  • Définition max en bit
    16 bit
  • Canaux utilisables simultanément
    6
  • Lecture Bluetooth et USB
    Non
  • Dimensions (W × D × H)
    97 x 270 x 328 mm
  • Weight
    2,8 kg
