Selective microphone panel 24 zones compatible with the Matrix

Reference : MATRIX-M
SKU : 02297
EAN13 : 3701567911217

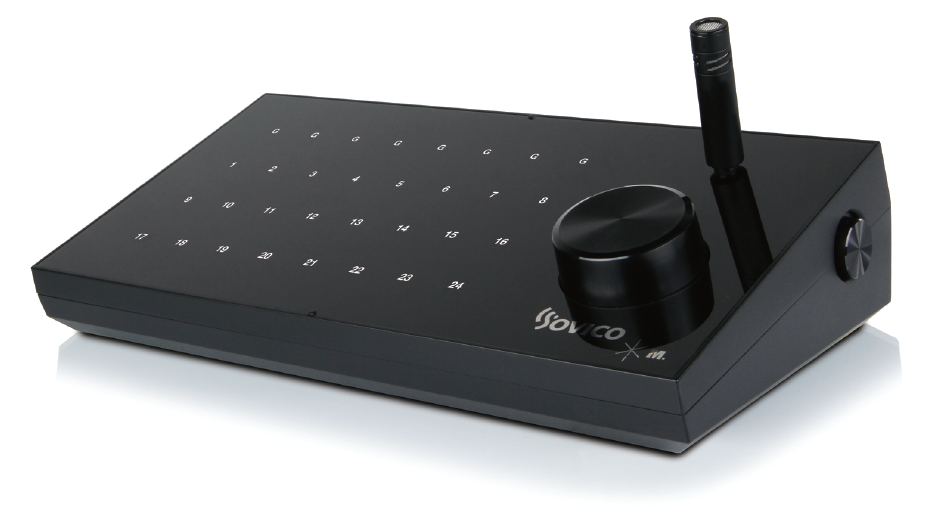

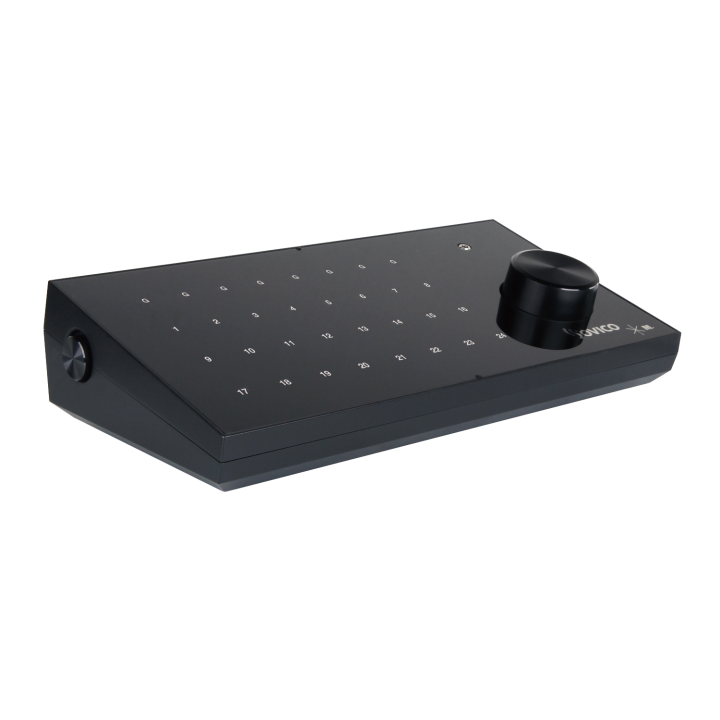

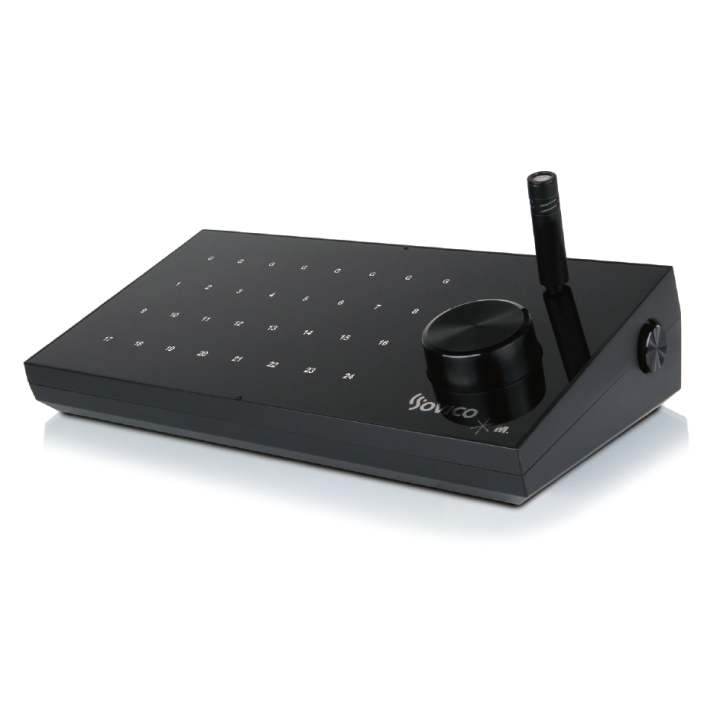

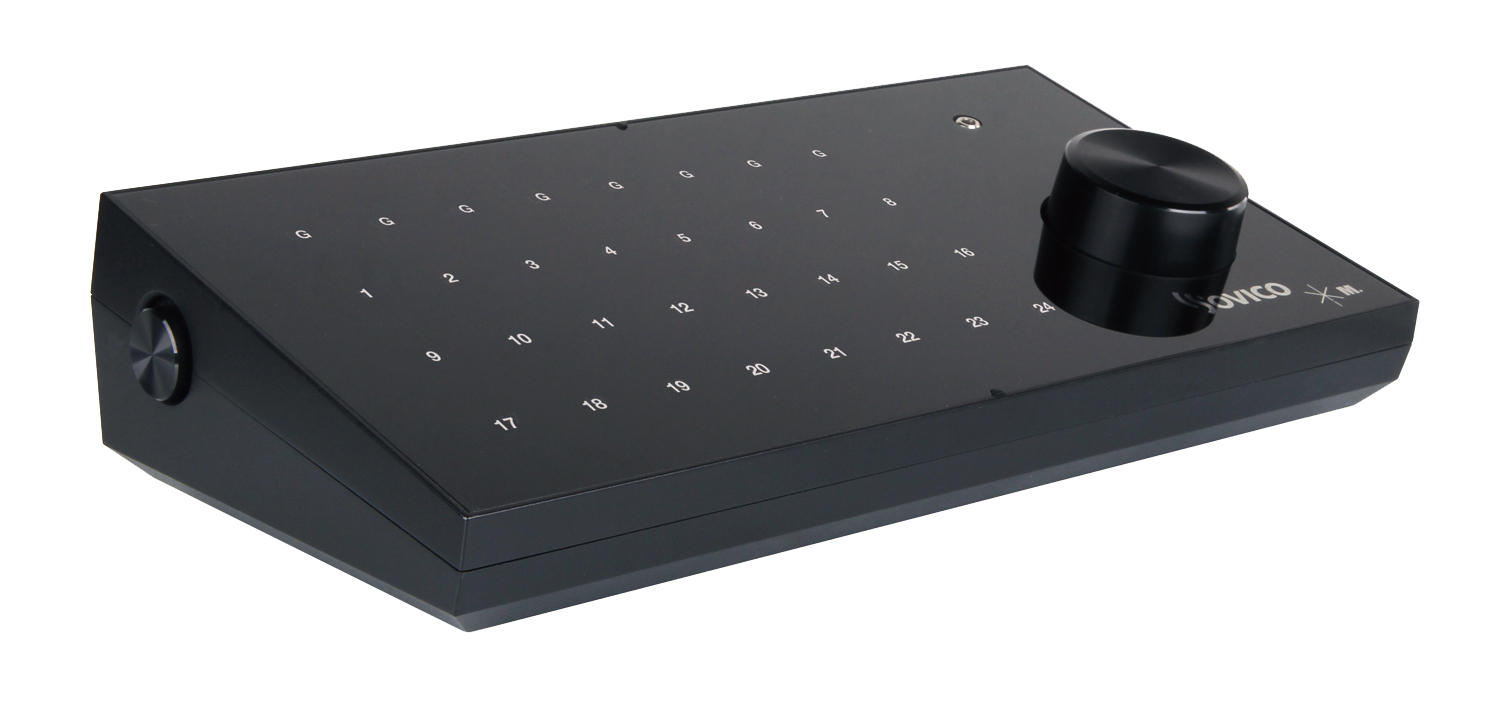

24-zone selective microphone stand compatible with the Matrix system

Types d'applications
Share

Description

Product sheet in PDF

Characteristics :

  • Scientific design for pagination and advertisement
  • Built-in condenser microphone
  • Simple and quick touch screen microphone station
  • One button for volume control and selection of the
  • outputs
  • Loop-through to connect to 8 microphone stations
  • No additional power supply, powered from
  • of the Matrix C (POE) box
  • All, 8 groups, 24 outputs, separate control

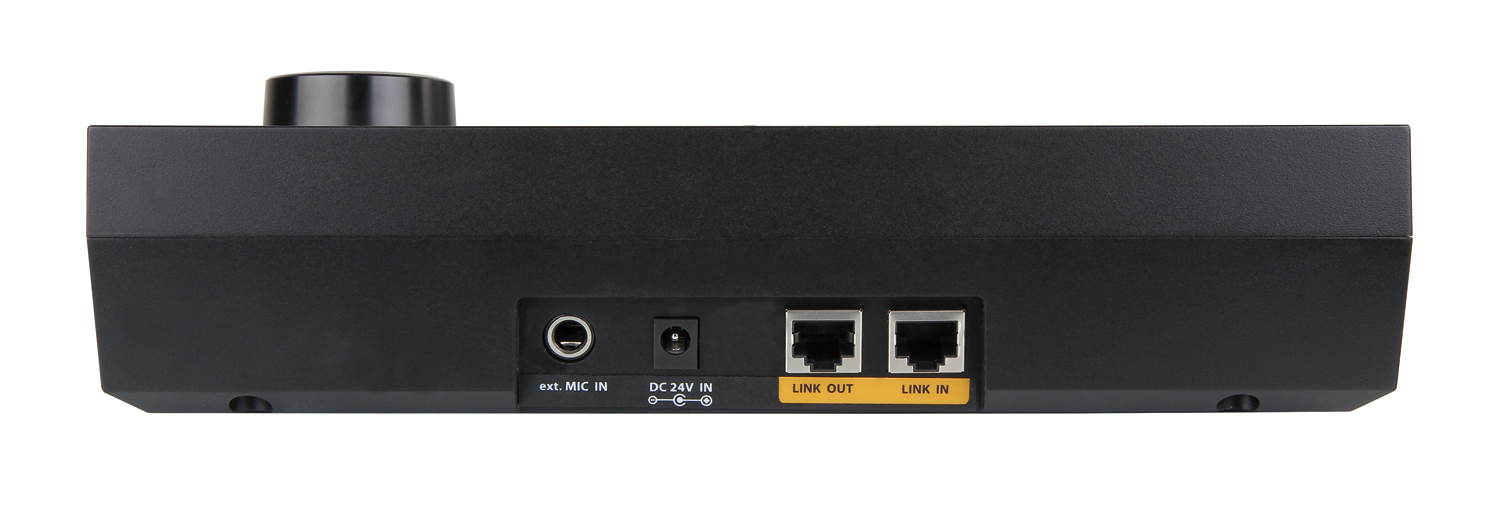

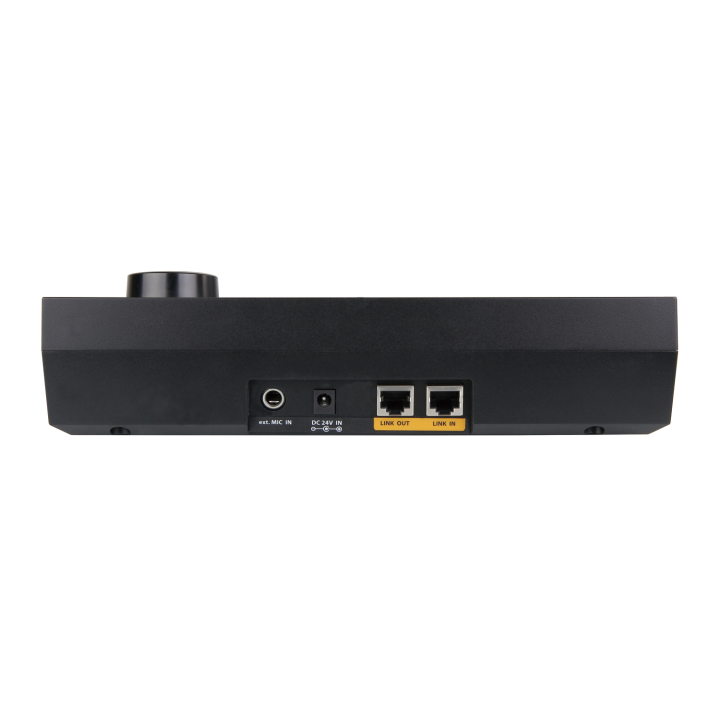

  • Additional microphone input and DC24V port

OUTPUTS

  • Audio output: 1.2V +/-200mV balanced
  • Bandwidth : Mini Mic 80Hz - 15kHz
  • Total harmonic distortion + noise : Mini Mic <0.1%, External Mic <0.2%.
  • Signal to noise ratio : Mini Mic >70dB, External Mic >60dB
  • Sensitivity / impedance input: Mini Mic -40dB/600 ohms balanced
  • External Mic -40dB/600 ohms asymmetrical


CONTROL

  • Serial host control port: 2 x RS485


GENERAL

  • Power supply: +24VDC
  • Dimensions: 264 x 60 x 135 mm
  • Weight: 870 gr
SPECIFICATIONS MATRIX-M
Type           24-zone micro selective desk
Audio output

1.2 V + / -200 mV symmetric
Frequency Response Mini Mic 80 Hz - 15 kHz
Total Harmonic Distortion + Noise Mini Mic < 0.1 %, Mic External < 0.2 %
Sensitivity / lmpedance input Mini Mic -40 dB / 600 ohms symmetric Mic External -40 dB / 600 ohms asymmetric
Serial host control port 2 x RS485
Power supply 24 VDC
Dimensions (W x D x H)

264 x 60 x 135 mm
Weight 0,87 kg

Product Details

  • Brand
  • Reference
    MATRIX-M
  • SKU
    02297
  • EAN13
    3701567911217
