Wall plate compatible with the MX-804 preamplifier

Name: Wall plate compatible with the MX-804 preamplifier
Brand: RONDSON
SKU: MX-WCP

Reference : MX-WCP

SKU : 02281

EAN13 : 3701567904387

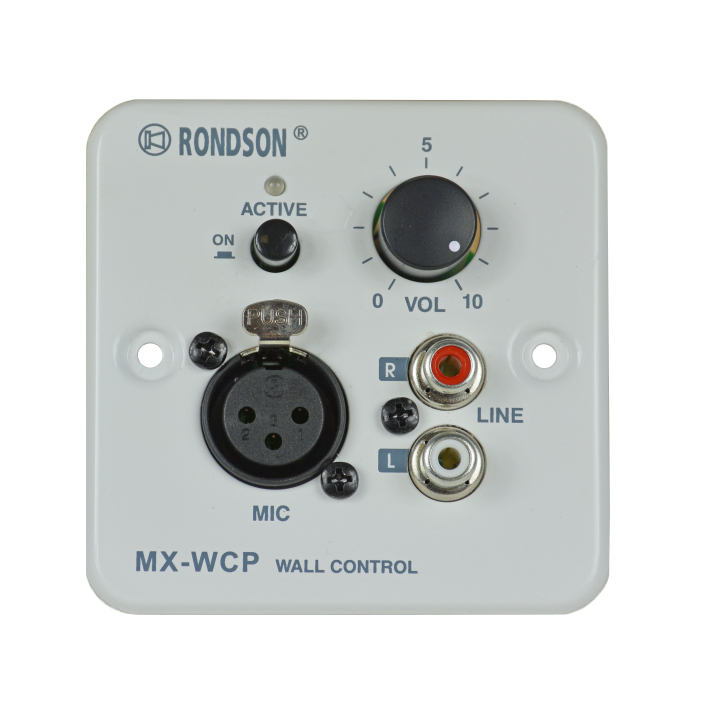

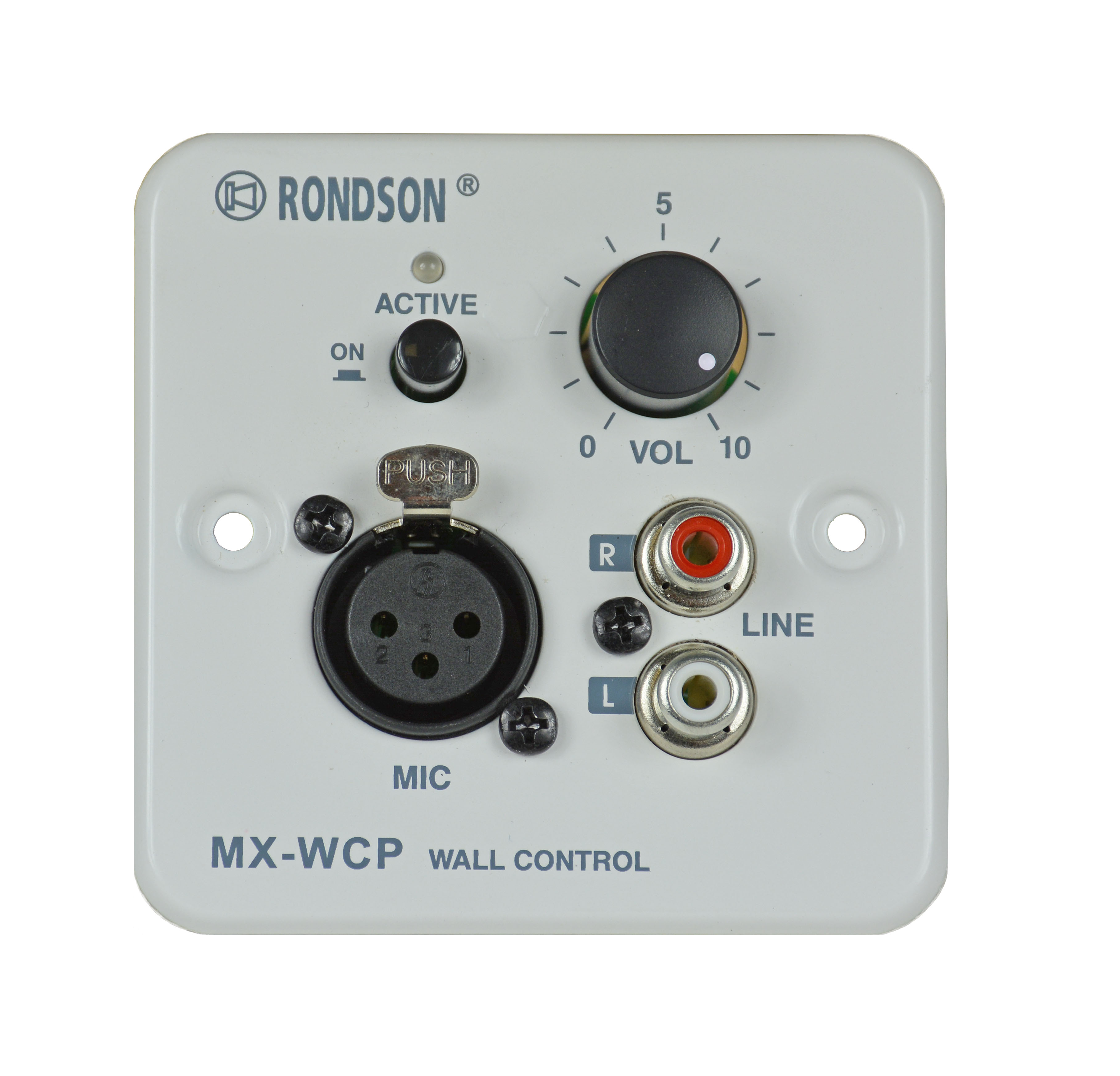

Wall mounting plate for the MX-804 preamplifier

Zones

Description

Description :

Wall-mounted board for the MX-804 preamplifier.
Settings
Activation switch (ACTIVE)

Line remote control on dual RCA input and microphone on XLR input

Volume control

Connections
2 RCA inputs (LINE)

1 XLR input (MIC)

1 RJ45 output to connect to the MX-804 preamplifier (rear panel)

Indicators
LED display when the board is activated

SPECIFICATIONS	MX-WCP
Type	Wall-mounted turntable
Output level	1 dB / 600 Ω Symmetric
Inputs/ Sensitivities	MIC : -50 dB / 20 KΩ Symmetric LINE : 0 dB / 30 KΩ Symmetric
Frequency Response	20 Hz – 20 000 Hz
Total harmonic distortion	< 0,1
Signal to noise ratio	˃ 90 dB
Power supply	DC + 15V
Dimensions (W x D x H)	80 x 50 x 80 mm
Weight	0.5 Kg
