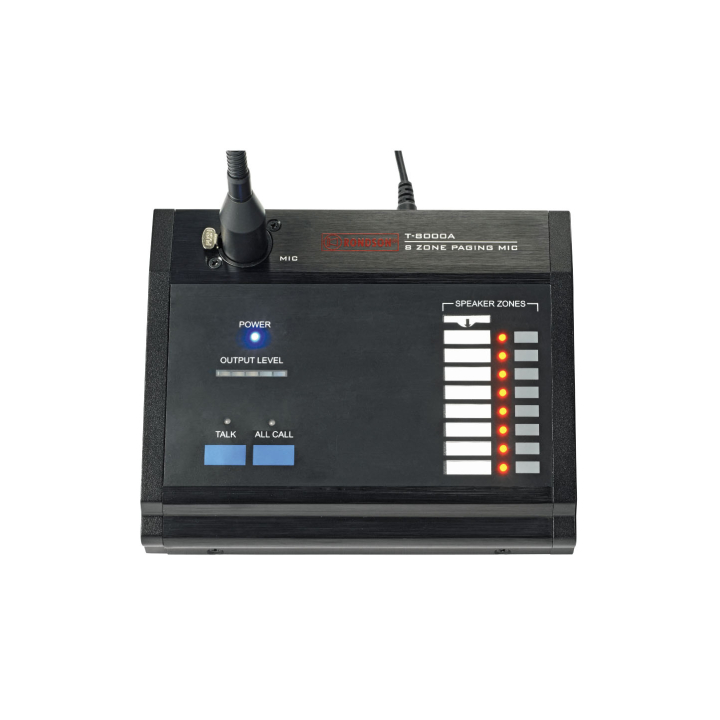

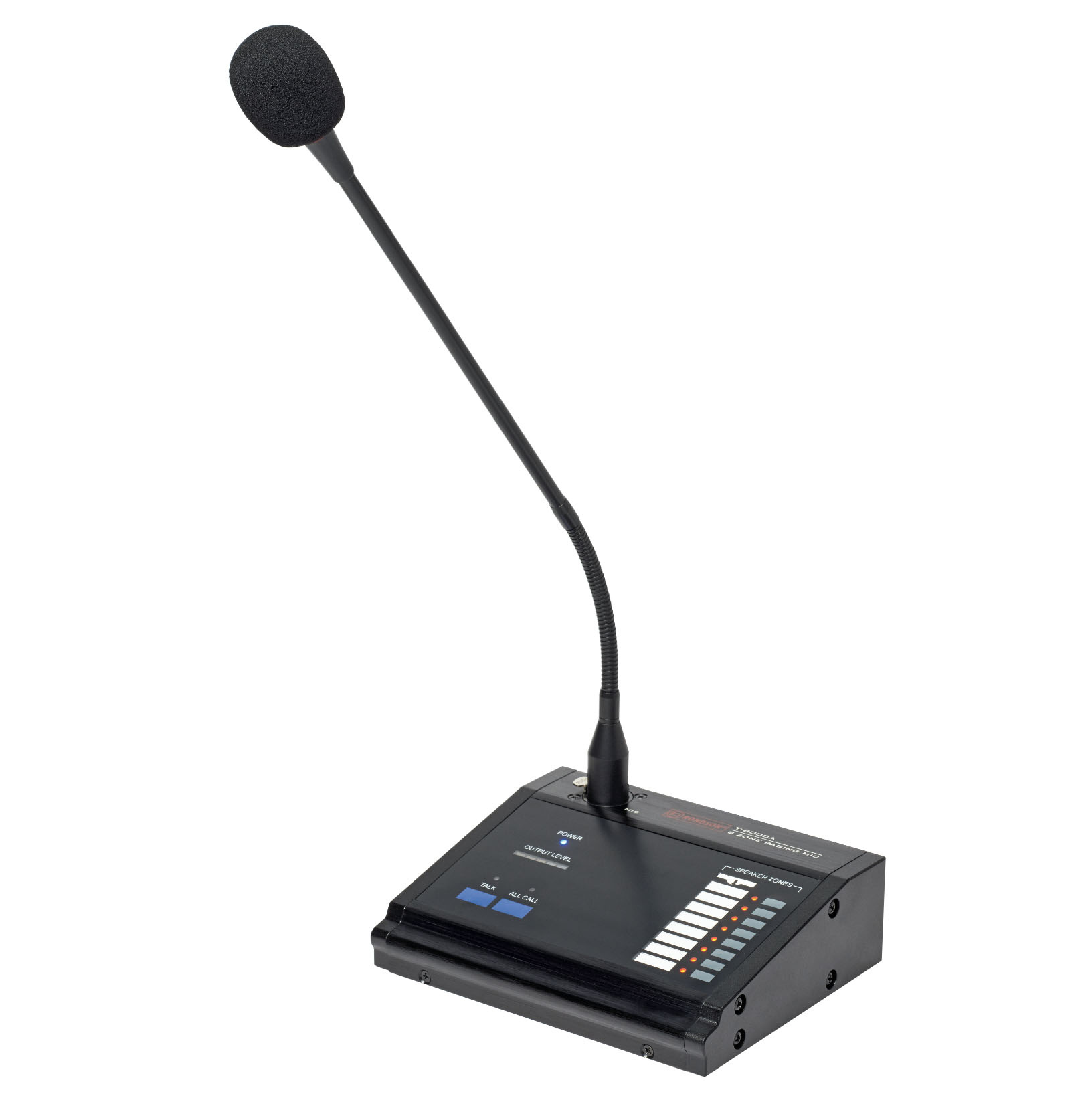

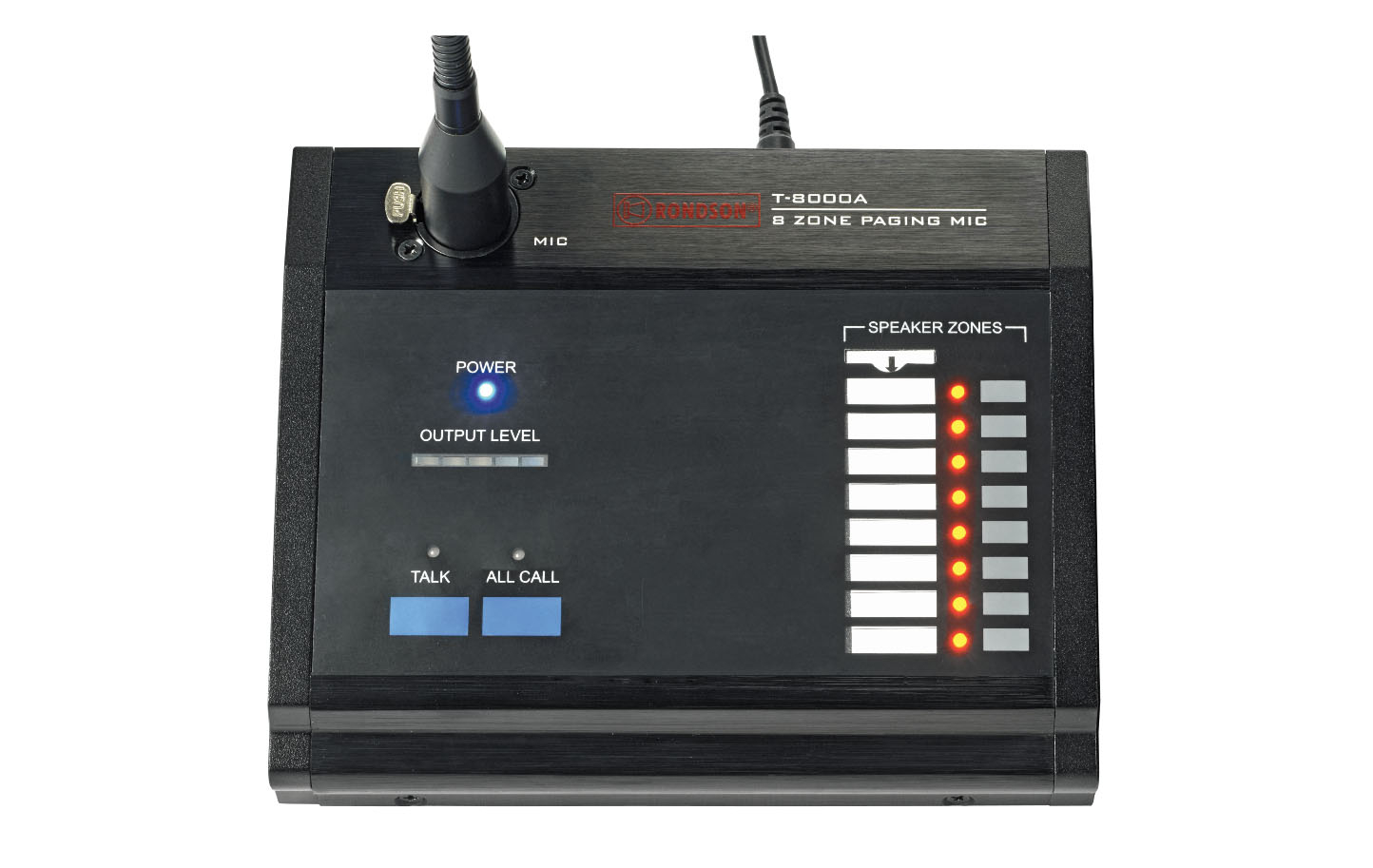

8-zone call microphone panel compatible with the T-8000 matrix

Name: 8-zone call microphone panel compatible with the T-8000 matrix
Brand: RONDSON
SKU: T-8000A

Reference : T-8000A

SKU : 00942

EAN13 : 3701567901638

Out-of-Stock

8-zone call microphone station compatible with the T-8000 matrix

Types d'applications

CENTRE AQUATIQUE

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

T-8000A

Download (4.52MB)

Description

Product sheet in PDF

Characteristics :

• The T-8000A is a call microphone console connected to the T-8000 matrix by a universal standard CAT 5 cable for zone calls and communication with remote control panels from different remote locations in the matrix
• Each control matrix is equipped with 8 x RJ-45 sockets for remote control from the call panel

• CAT 5 cabling is used for cost, ease of setup but also because it integrates RJ 485 communication, audio transmission and 24 V power at the same time

• Beyond 50 m from the matrix, a 24V DC power supply is necessary
• Selection button and display of the state of the 8 zones
• Quick access is provided for speaking and calling zones
• Selection carillon 2 or 4 tones and ON/OFF
• Volume potentiometer for carillon and microphone adjustment
• Display of all parameters: individual zone, all zones, in operation, call, power, output level

SPECIFICATIONS	T-8000A
Micro	Capacitor
Frequency Response	50 Hz – 18 000 Hz (± 2 dB)
Signal to Noise Ratio	> 75 dB
Harmonic distortion	< 0,1 % à 1 kHz
Signal output	0,775 V / 600 Ω
Displays	Single zone, all zones, in operation, Call, power supply, output level
Protection	Fuse DC +24 V / 2 A
Power supply	24 V DC
Power consumption	1,5 W
Dimensions (W x D x H)	180 x 145 x 58 mm
Weight	2,5 kg
