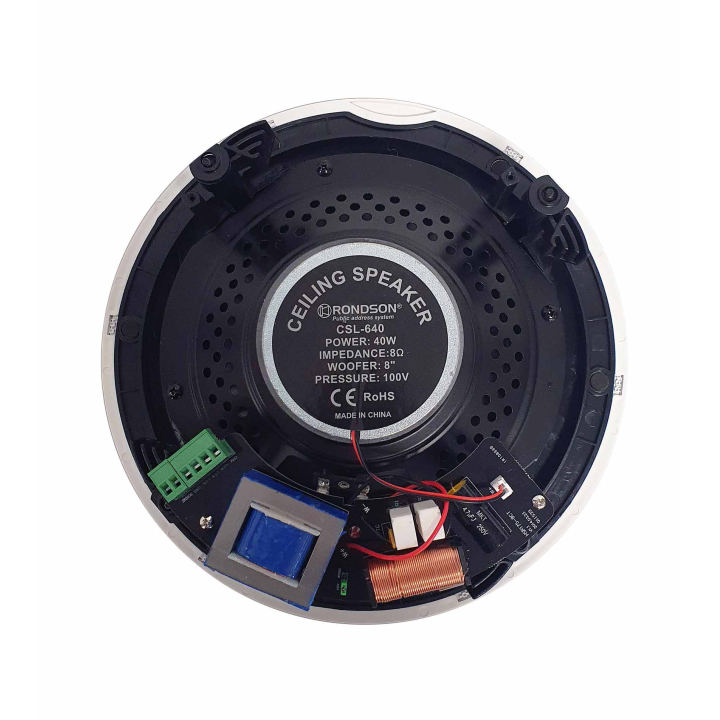

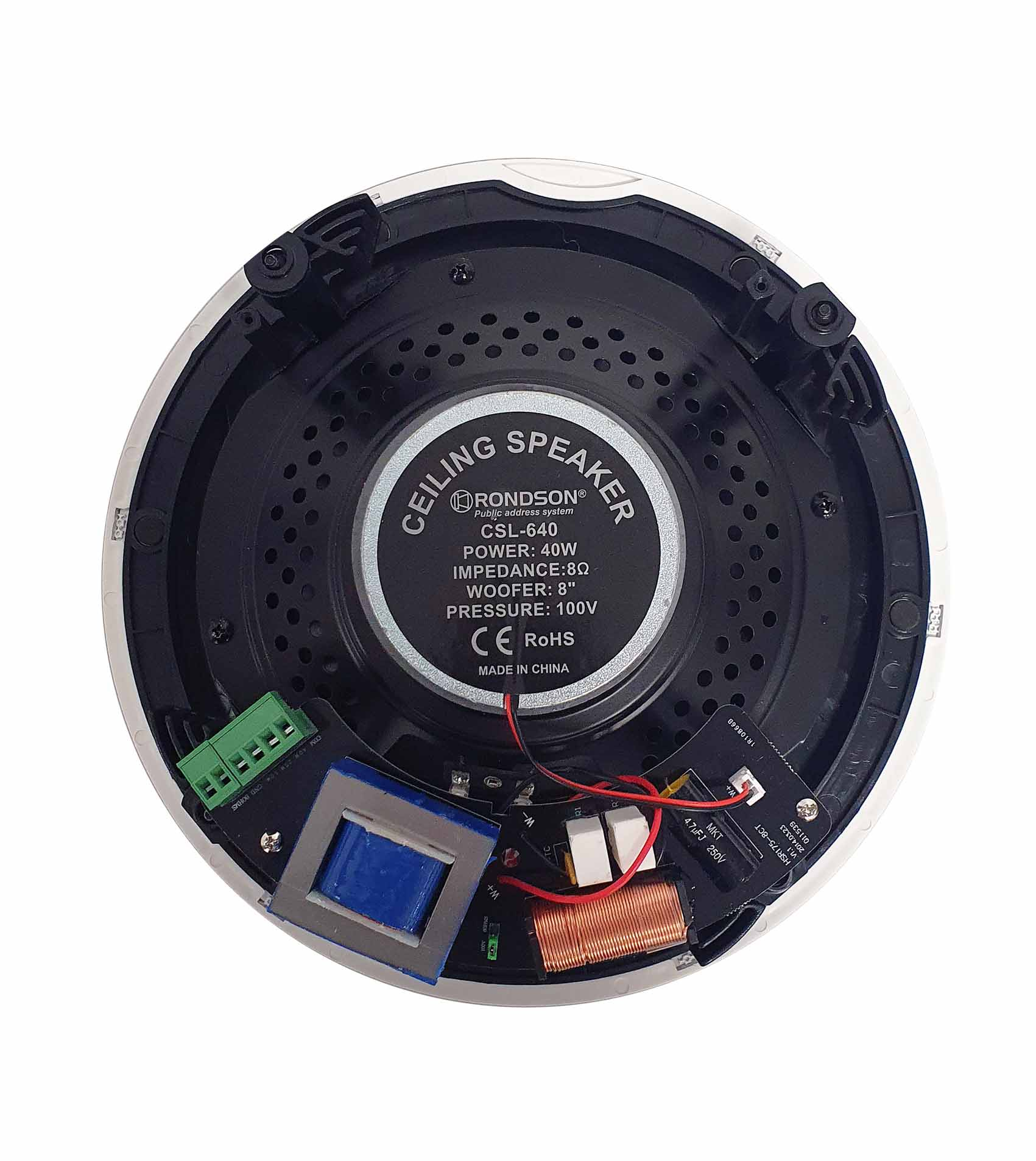

Ceiling speaker 40W at 100V
Reference : CSL-640
SKU : 02679
EAN13 : 3701567911088
Description
DATA SHEET IN PDF
- 40W 2-way in-wall ceiling speaker for integration in all public places.

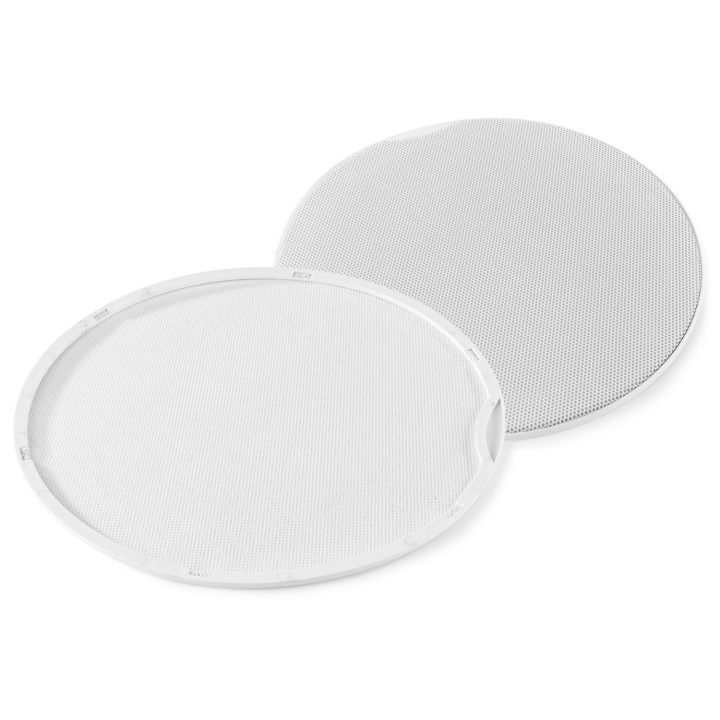

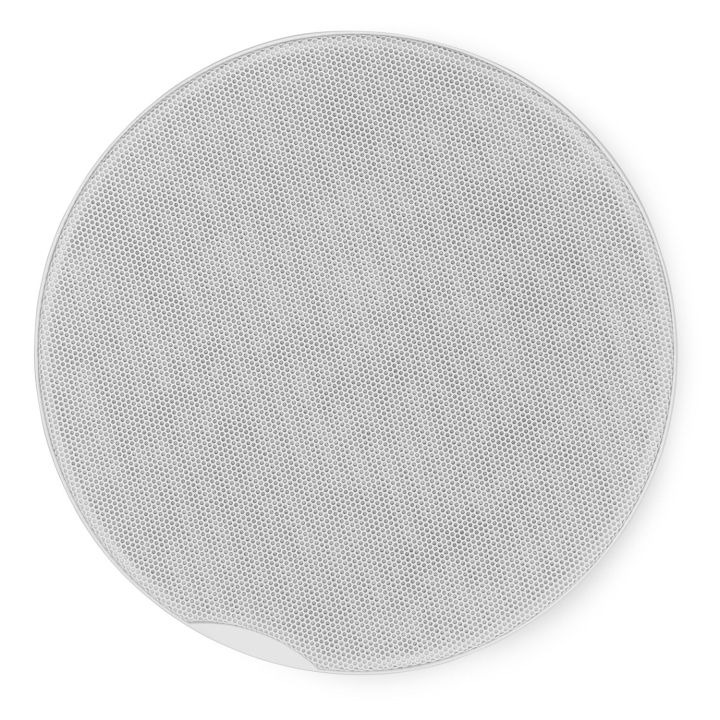

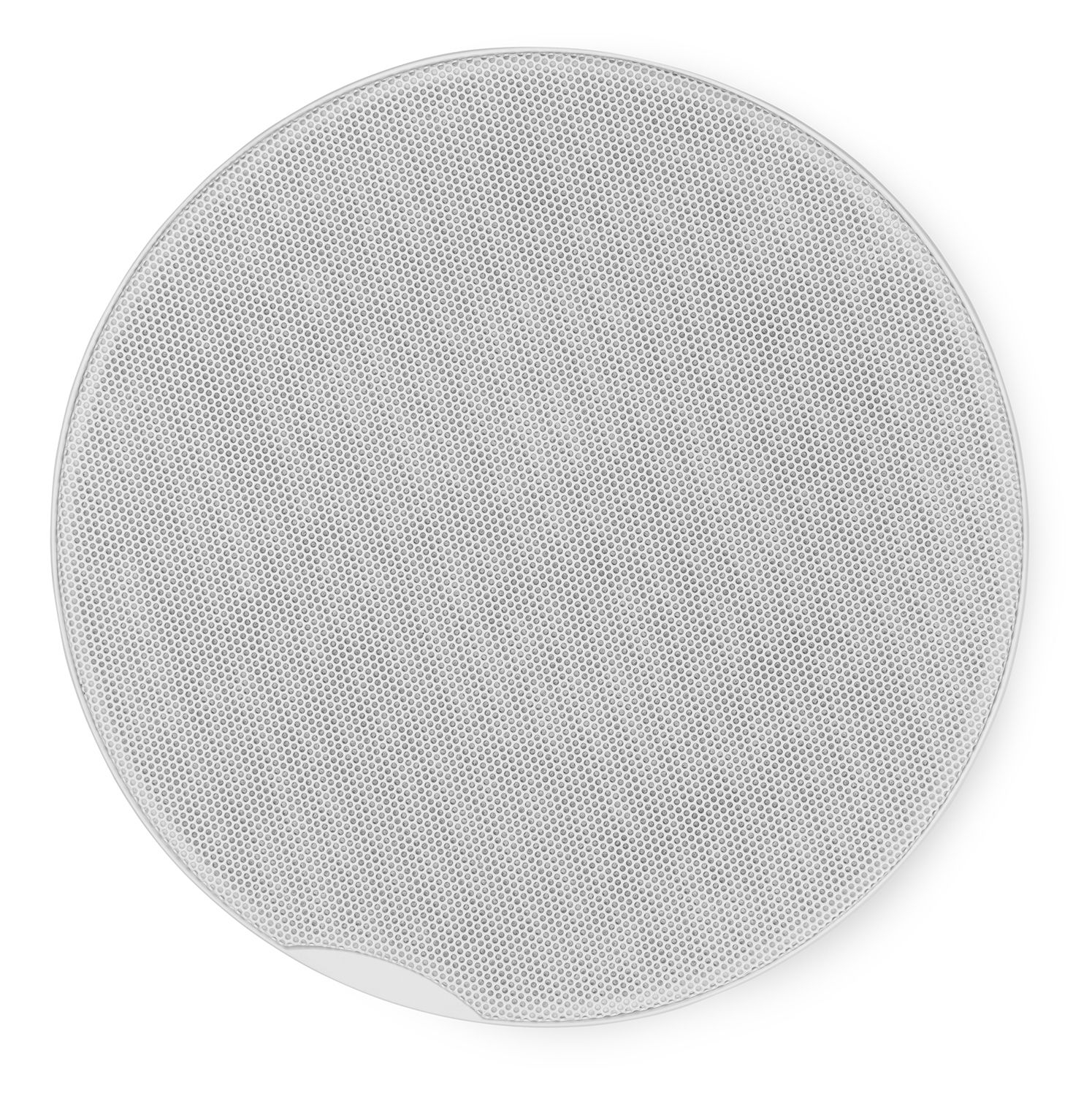

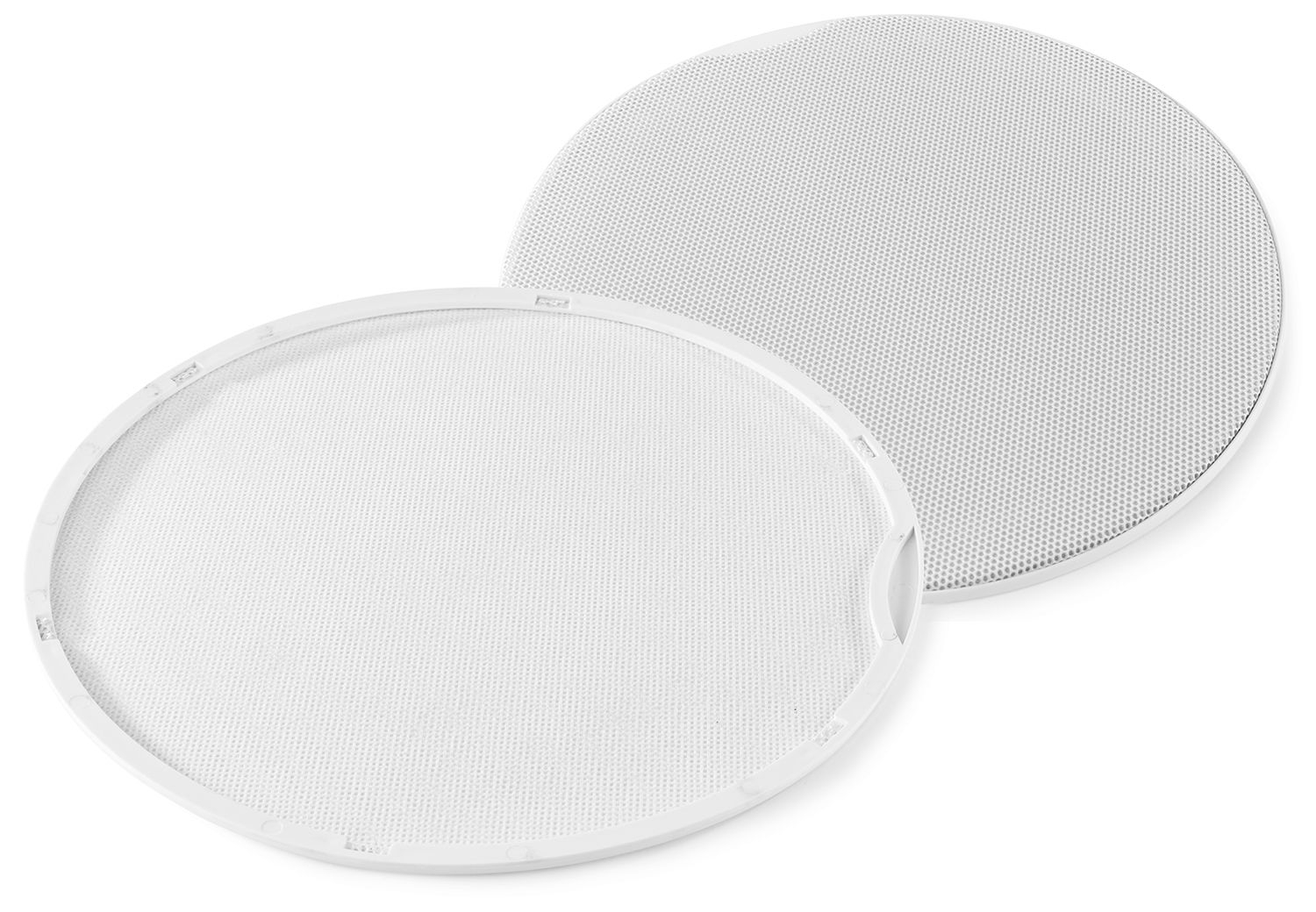

- Quick and easy installation, flat and magnetic metal grille, ABS surround.
- Ideally used for economical and high quality installations.
| SPECIFICATIONS | CSL-640 |
| Type | 2-way ceiling speaker |
| Material | Flat and magnetic metal grill |
| Speaker | 12 cm |
| Sensitivity | 90 dB / 1W /1m |
| Frequency Response | 50 - 20 000 Hz |
| Directivity | 180° |
| Covered area | At 4 or 5 m high : 65 to 100m² |
| 100V Power line | 40 W - 20 W - 10 W |
| 100 V Impedance |
8 Ω |
| Power supply | AC 230 V - 50/60 Hz |
| Connecting | On wire |
| Dimensions mm (∅x h) | ∅ 272 x 118 |
| Weight |
1.10Kg |
| Hole for mounting |
∅ 240 mm |
Product Details
-
Brand
-
ReferenceCSL-640
-
SKU02679
-
EAN133701567911088
