How to install a sound system in a mall?

To guarantee the broadcasting of publicity announcements, background music and evacuation messages relating to emergency measures for evacuating everyone present in the event of an incident in your shopping centres, we recommend the use of our compact SSS enclosure, PAW4504-V, certified to EN 54-16. To evacuate everyone present in the event of an incident.

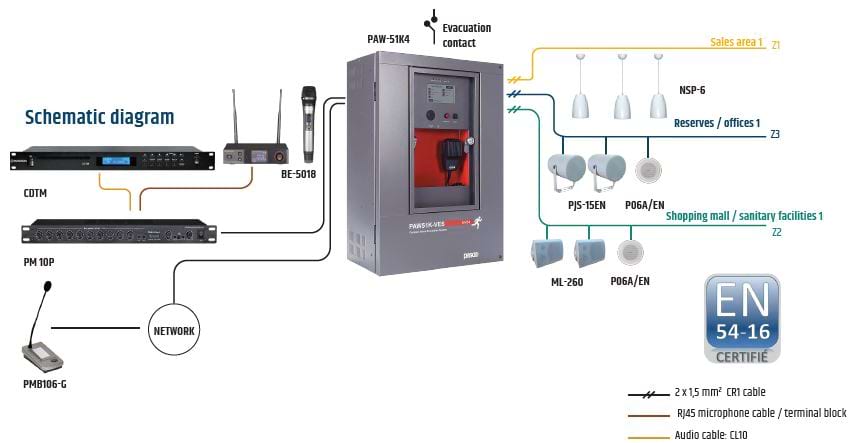

Schematic diagram of a sound system in a shopping center:

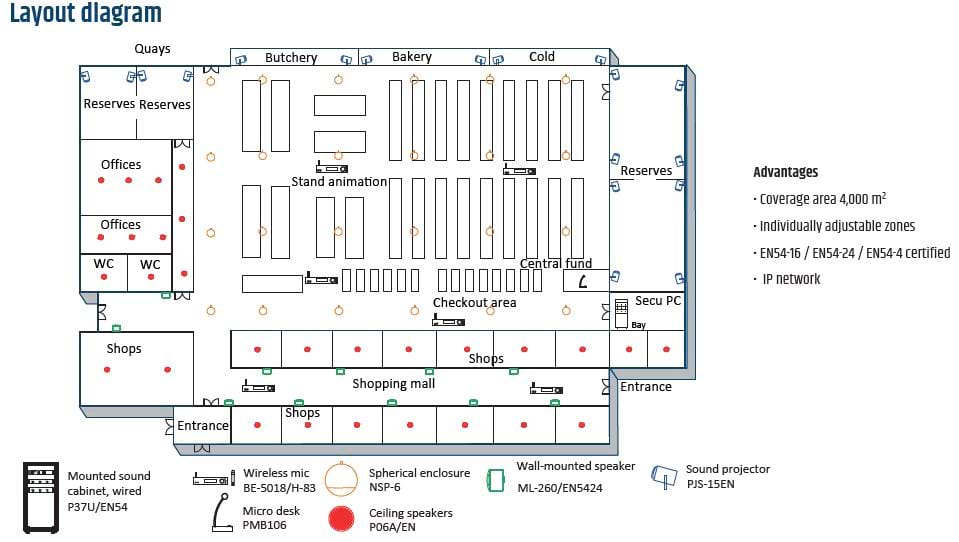

Layout of the different loudspeakers in a shopping center:

Advantages:

Coverage area up to 4,000 m2

Individually adjustable zones with remote control

EN54-16 certified amplification system and EN54-24 certified speakers

Compatible call station

Our references present in this installation:

SSS compact case: PAW4504-V

Wireless microphone: BE-5018/H-83

Microphone desk : PMB106-G

Spherical speaker: NSP-6

6W ceiling speakers: PO6/EN

30W in-wall speaker: ML-260/EN5424

15W sound projector: PJS-15EN

Mounted sound cabinet, wired: P37U/EN54

Download this sheet Sound solutions in pdf format : SHOPPING CENTER

In order to carry out your own installation, do not hesitate to consult our own Commercial Study Office on contact@rondson.com
