Spherical enclosure EN 54-24

Name: Spherical enclosure EN 54-24
Brand: RONDSON
SKU: KM-180T / EN5424

Reference : KM-180T / EN5424

SKU : 02472

EAN13 : 3701567904950

RATE: consult us on contact@rondson.com

Description

(Availability: within 10 days)

10W spherical enclosure

EN 54-24 certification
High quality voice and music reproduction
Type A - Indoor use
3m connection cable
Safety sling

Description

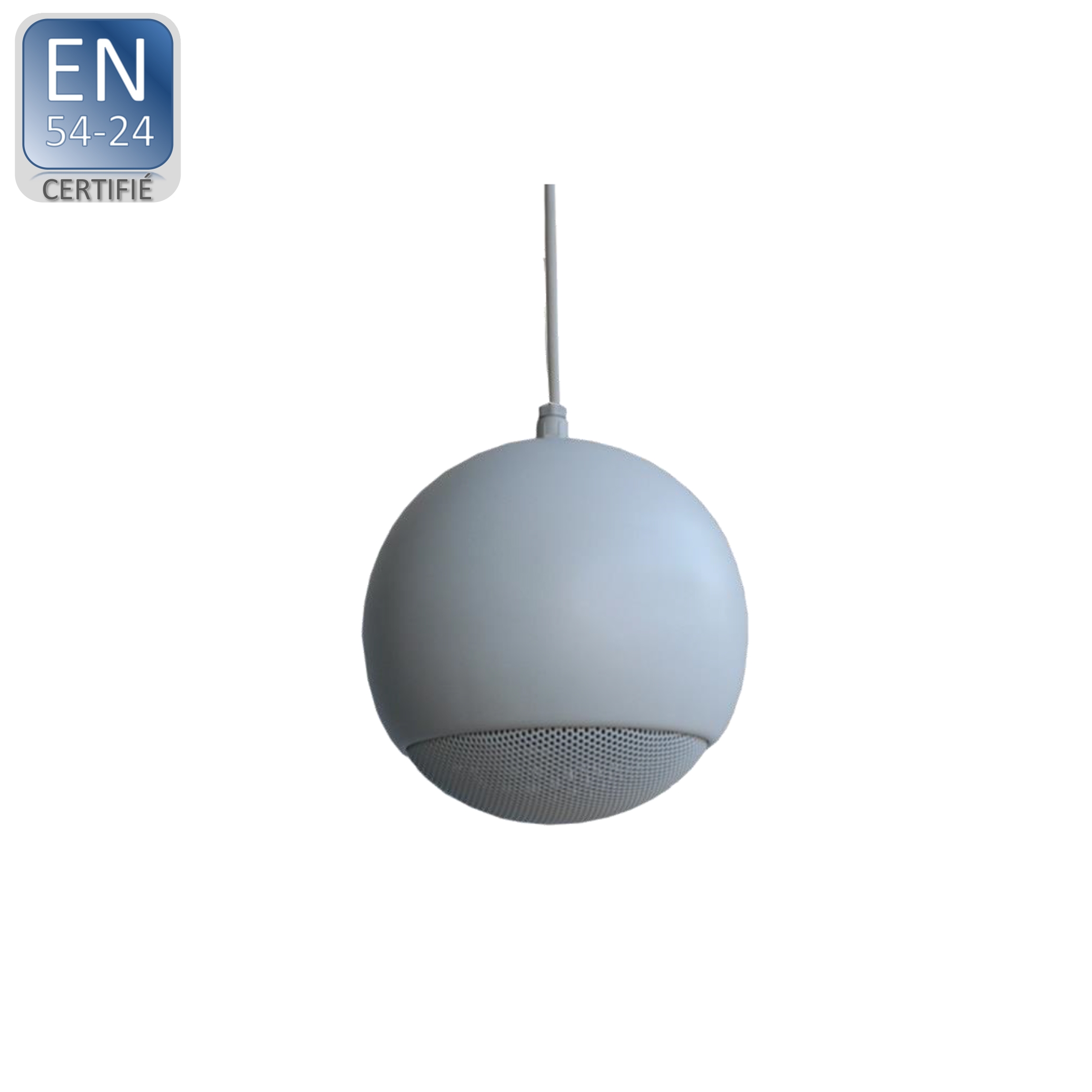

White spherical loudspeaker designed for the sound reinforcement of commercial areas, halls, supermarkets, etc., especially buildings with high ceilings.

Public address and escape speaker

For use in public address and evacuation systems specifically intended for areas where voice communication systems are regulated.

The loudspeaker is certified to EN 54-24.

Acoustic quality

The high quality loudspeaker provides a very natural sound with excellent acoustic reproduction.

Mounting

Discreet, simple and quick installation, these speakers are designed to be suspended from the ceiling with a 3 m connecting cable.

Slot for safety sling (steel)

Ceramic terminal block with thermo-fuse available as an option.

This ensures that the speaker circuit to which it is connected is not damaged in the event of fire or damage, thus maintaining the integrity of the system.

SPECIFICATIONS	KM-220-ll-30W / EN5424
Line power 100 V	10 W nominal - (2.5/5/10W)
Frequency Response	70 - 20000 Hz
Sensitivity 1W/1M	100 dB (1.7 KHz)
Sensitivity 30W/1M	112 dB (1.5 KHz)
Opening angle H	188°/325°/106°/66°
Opening angle V	188°/325°/106°/66°
Dimensions	220 mm
Application	Type A - Indoor use
Speaker	15 cm - 2-way coaxial
Connection	On 4-wire cable
Material	Metal
Weight	2.4 Kg
