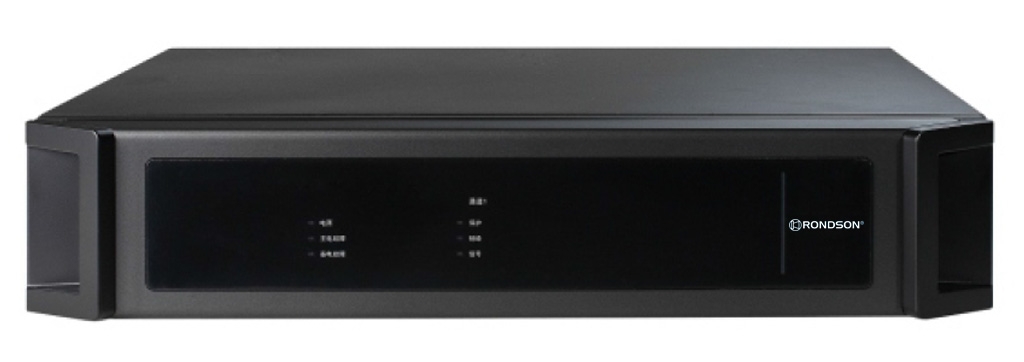

EVA-2000 System - 500W Class D Amplifier

Name: EVA-2000 System - 500W Class D Amplifier
Brand: RONDSON
SKU: EVA-1500/EN

Reference : EVA-1500/EN

SKU : 02458

EAN13 : 3701567906732

500 W Class-D digital amplifier

RATE: consult us on contact@rondson.com

EVA-1500 EN

Download (6.43MB)

Description

1-channel 500 W Class-D power amplifier
For use with EVA-2000/EN
Automatic protection
Fault detection
Forced ventilation
CE certified
24V DC power supply via AES

Description :

The EVA-1500/EN is a Class-D amplifier, very stable and highly efficient. The audio transmission is fully digitised, which protects against interference and makes it easy to use. It is equipped with a 24V DC power supply via AES which meets the requirements of the international standard for public address systems.

SPECIFICATIONS	EVA-1500/EN
Type	1 channel amplifier 500 W AC 220V / 24V DC
Power	1 x 500 W
Mains supply	100-240 V- 50/60 Hz
Emergency DC power supply	DC 21,5V – 28,5 V
Consumption	< 700 W
Protection Mains power supply	T10 AL 250V
Speaker output	100 V / 70 V
Frequency Response	70 Hz – 18000 Hz (+1dB ̴ - 3 dB)
Input sensitivity	1,414 V RMS
Impedance	20 KΩ
Signal to noise ratio	> 100 dB
Non-linear distortion	< 0,05 % (at 1/3 power, 1 KHz)
Indicator lights	. On/Off indicator . Mains power failure indicator . DC power supply fault indicator . Signal light . . Peak indicator . Protection indicator
Number of channels	1
Operating conditions	Humidity: < 95% (non-condensing) Temperature: -0° C ̴ + 40° C (0° ̴ 104° F)
Storage temperature	-40° C ̴ + 55° C (14° ̴ 131° F)
Cooling	Fan
Dimensions W x D x H	483 x 416 x 88 mm
Weight	10,8 Kg
