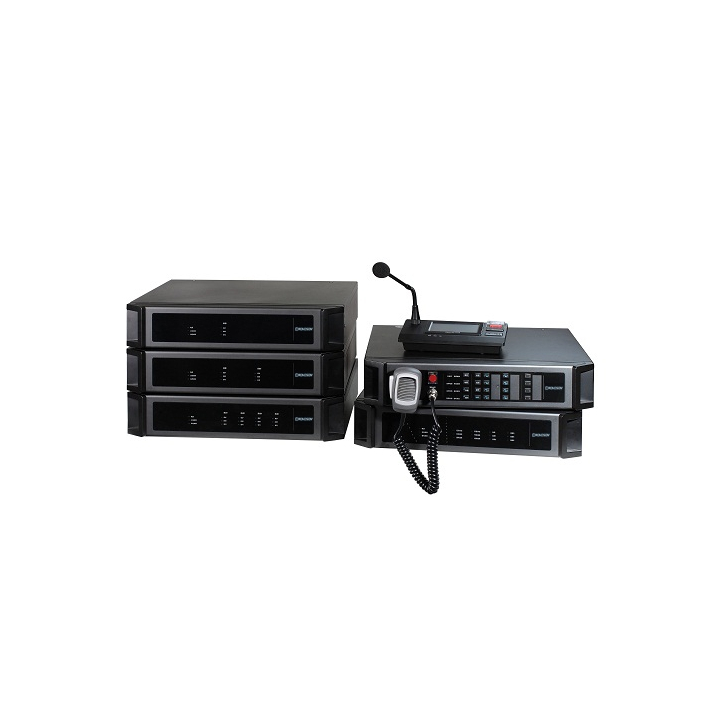

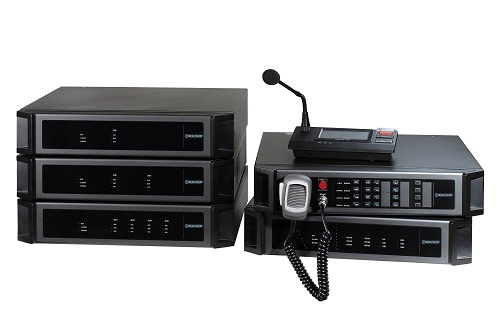

EVA-2000 System - 250W 2 Channel Digital Amplifier

Reference : EVA-2250/EN
SKU : 02459
EAN13 : 3701567906718

2-channel 250W Class-D digital amplifier

RATE: consult us on contact@rondson.com

Share

Description

  • 2-channel 250 W Class-D amplifier
  • Use with EVA-2000/EN control unit
  • Automatic protection
  • Fault detection
  • Forced ventilation
  • CE certified
  • 24V DC power supply via AES

Description :

The EVA-2250/EN is a Class-D amplifier with high stability and efficiency. The audio transmission is fully digitised, which protects against interference and makes it easy to use. It is equipped with a 24V DC power supply via AES which meets the requirements of the international standard for public address systems.

SPECIFICATIONS EVA-2250/EN
Type 2 channel amplifier 250 W AC 220V / 24V DC
Power 2 x 250 W
Mains supply 100-240 V- 50/60 Hz
Emergency DC power supply DC 21,5V – 28,5 V
Consumption < 700 W
Protection Mains power supply T10 AL 250V
Speaker output 100 V / 70 V
Frequency Response 70 Hz – 18000 Hz (+1dB ̴ - 3 dB)
Input sensitivity 1,414 V RMS
Impedance 20 KΩ
Signal to noise ratio > 100 dB
Non-linear distortion  < 0.05% (at 1/3 power, 1 KHz)
Indicator lights

. On/Off indicator

. Mains power failure indicator

. DC power supply fault indicator

. Signal light .

. Peak indicator

. Protection indicator
Number of channels 2
Operating conditions Humidity: < 95% (non-condensing) Temperature: -0° C ̴ + 40° C (0° ̴ 104° F)
Storage temperature -40° C ̴ + 55° C (14° ̴ 131° F)
Cooling Fan
Dimensions W x D x H 483 x 416 x 88 mm
Weight 11,7 Kg

Product Details

  • Brand
  • Reference
    EVA-2250/EN
  • SKU
    02459
  • EAN13
    3701567906718
