Electronic siren and chime box

Name: Electronic siren and chime box
Brand: JD-MEDIA
SKU: CS-1110

Reference : CS-1110

SKU : 01069

EAN13 : 8809267793067

Out-of-Stock

Electronic chime and siren in a 1U 19’ rack-mountable case. Choice of 2, 3 or 4-tone gong and siren with continuous tone, rising and falling alarm signal or European standard alarm signal.

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Notice CS-1110

Download (0)

Description

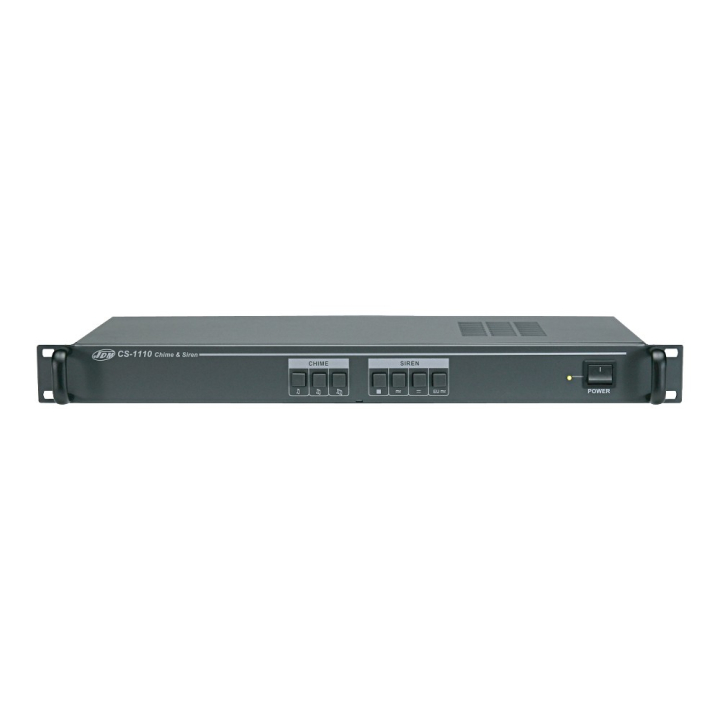

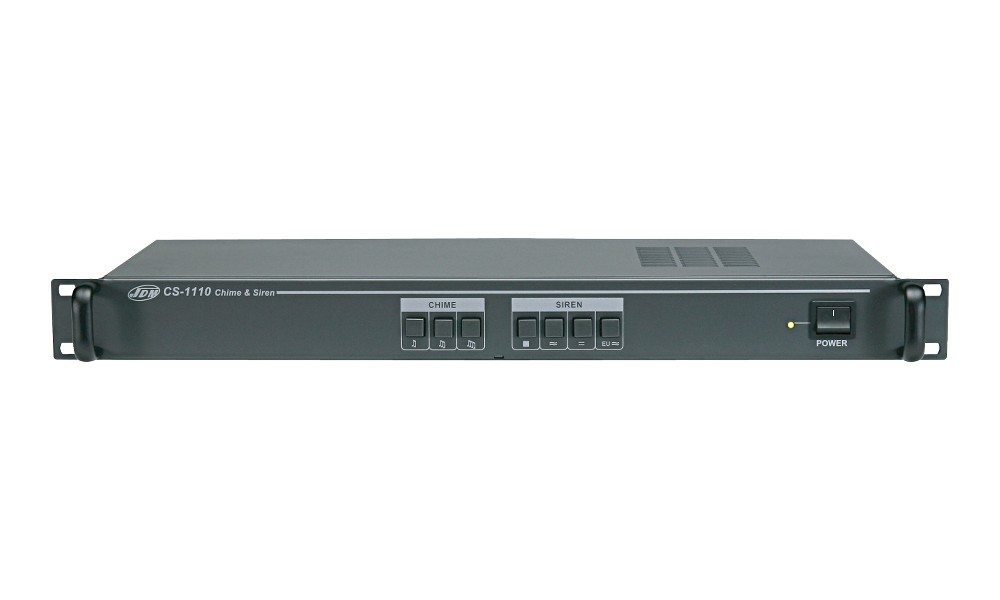

All chimes and sirens are activated by control buttons on the front. A stop button for the siren is also available.

The chime and siren are triggered using the buttons on the front or a remotely controllable potential-free make/relay contact.

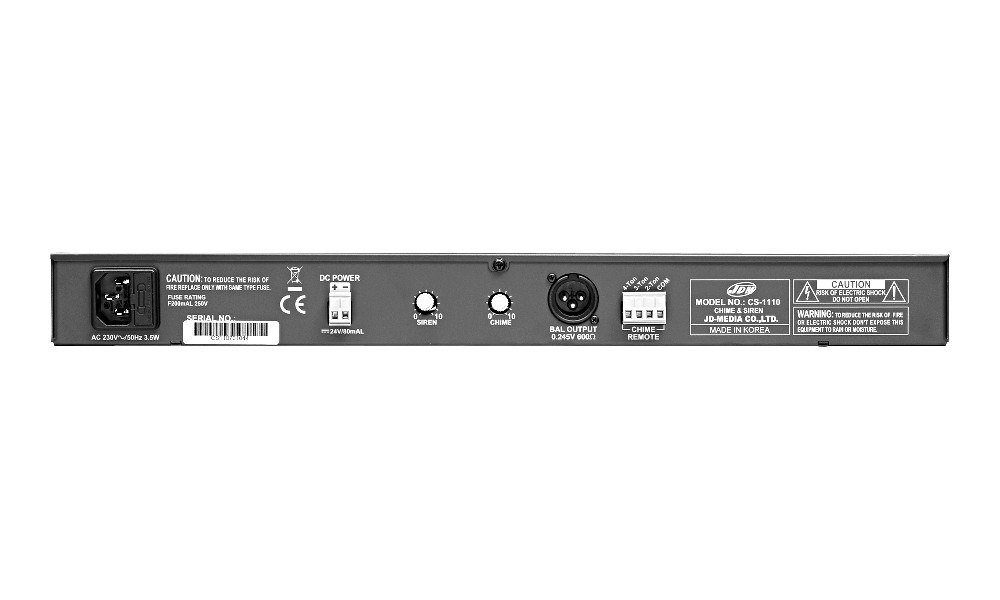

The connection for remote activation of the chimes is at the rear.

The siren and chime volume is adjustable. There is an XLR/M socket for the output signal.

- 4-TONE CHIME

Delivers a pleasant 4-tone chime to attract attention before an announcement.

- SIREN FUNCTION

Continuous siren in case of emergency or fire

- CHIME REMOTE CONTROL

The chime can be activated by remote control on the input terminal block

- BATTERY BACK-UP

Technical specifications:

2-tone, 3-tone or 4-tone chime
Chime frequencies 440 Hz, 554 Hz, 655 Hz, 880 Hz
Ascending and descending chime lasting approx. 4 minutes
Continuous tone siren lasting approx. 2 minutes
European standard siren lasting approximately 12 seconds
Balanced output 0.245mV/-10 dB/600 Ohms via XLRM socket
Power supply 230V AC/50 Hz
Emergency power supply +24V DC
Dimensions 19"/1U W483mm x H44mm x D200mm
Weight 2.6 kg
