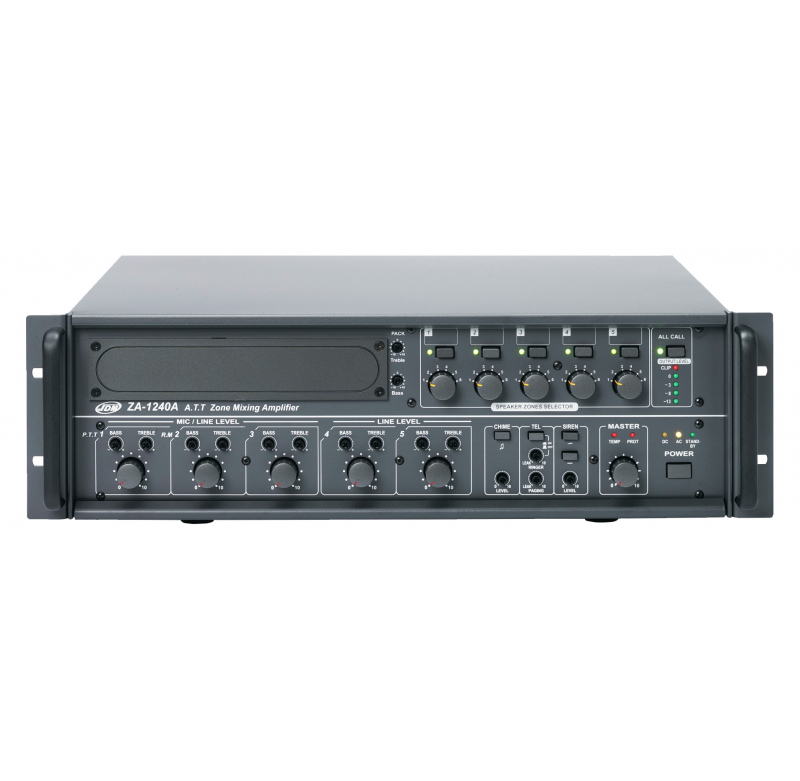

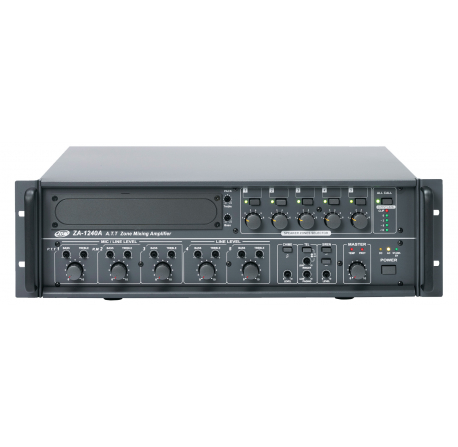

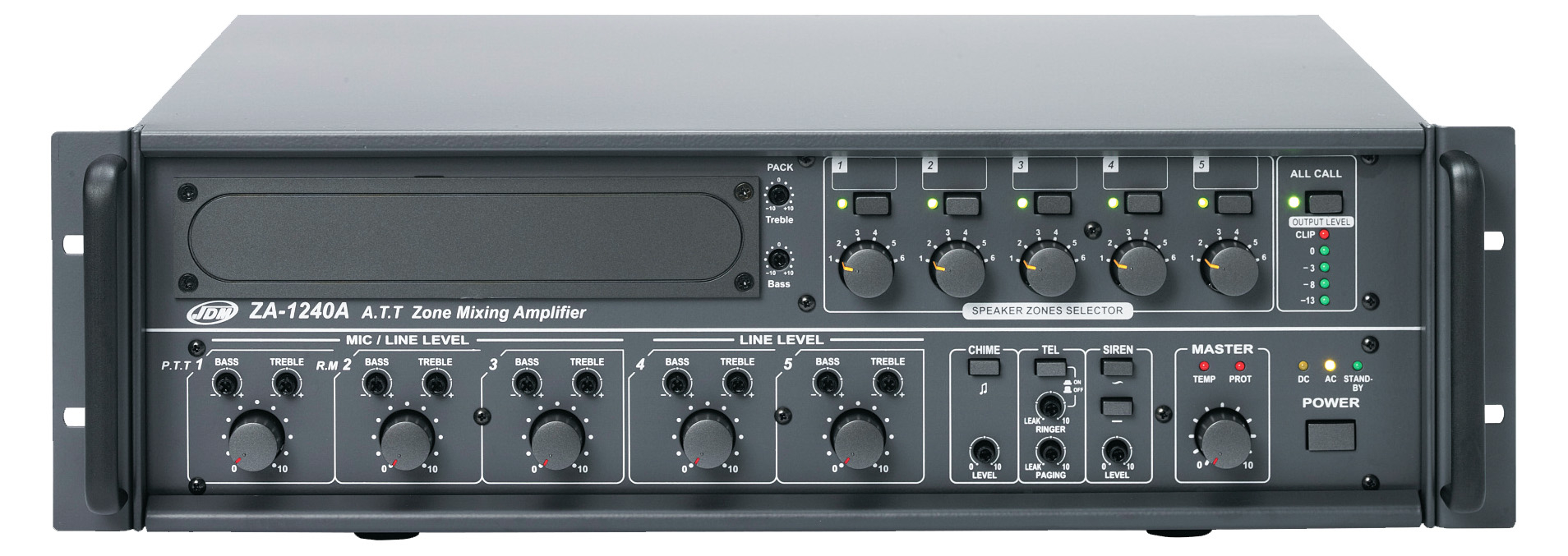

240W 5-zone preamplifier with DC 24V

Name: 240W 5-zone preamplifier with DC 24V
Brand: JD-MEDIA
SKU: ZA 1240 A

Reference : ZA 1240 A

SKU : 01004

EAN13 : 8809267791117

Out-of-Stock

240W preamplifier amplifier

5 zones

Online 100V

Power output

240 W

Coupure sono

DC 24V

Zones

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

ZA 1240 A

Download (1.18MB)

Description

Product sheet in PDF format

5 inputs - Integrated source - 4 Ω - 5 x 100 Volt lines - 220V-240V/24V

• PRE AMP IN/OUT socket for connecting a power amplifier

• Talkover on microphone inputs 1, 2, 3

• Phantom power selection switch for condenser microphones

• Combo inputs 1, 2, 3 (mic-line)

• 4.5 RCA (line) inputs

• Individual bass/treble adjustment per input

• Microphone/line input gain adjustment 1 to 3

• Telephone input and night ring

• RCA recording output

• Input for telephone/pager calls and night ringing

• Optional: RJ-45 input for PTT 100N and PTT 200 call microphone consoles

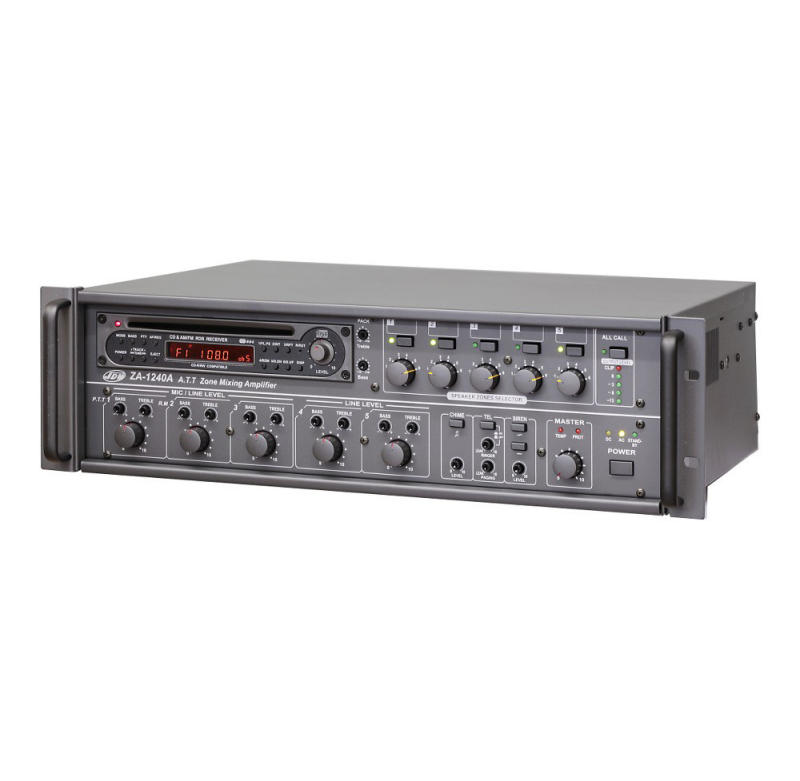

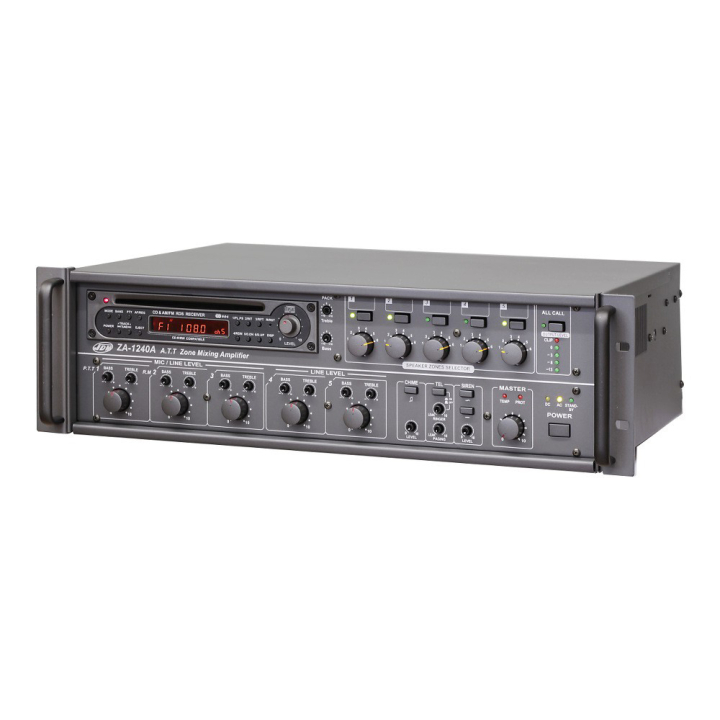

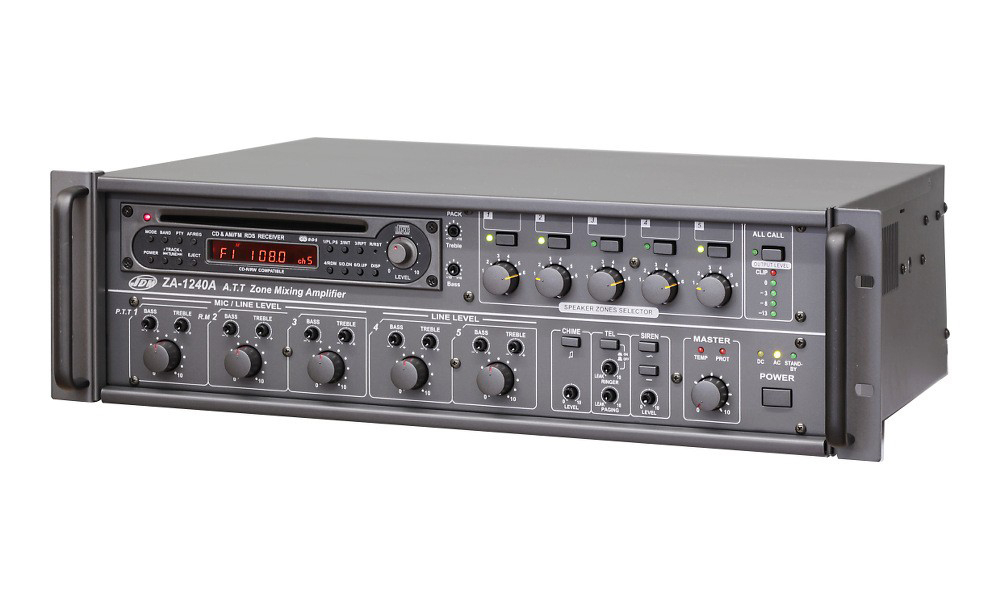

• EOptional : Slot for audio source module (DMT-100-2, CDP-100MU, CDR-100RDSU, TP-100 RDSU) offering CD/MP3/USB player, RDS tuner or digital message with clock

• Bass/treble adjustment for modules

• Microphone input 1

• Automatic variable speed fan

• Short-circuit protection circuit

• 5-position attenuator per zone

• Dry contact for sound system cut-off

FEATURES		FOR 1120A (CODE 01003)	FOR 1240A (CODE 01004)
Input sensitivity/Impedance	MIC/LINE 1~3	- 50 dBu (2.45 mV) 5 kΩ balanced - 10 dBu (245 mV) 5 kΩ balanced
	LINE 4~5	- 10 dBu (245 mV) 15 kΩ unbalanced
	TEL PAGING	- 10 dBu (245 mV) 5 kΩ balanced
	MODULE PACK UNIT	- 10 dBu (245 mV) 10 kΩ unbalanced
	REC OUT	0 dBu (775 mV) 3 kΩ unbalanced
	PRE OUT	0 dBu (775 mV) 100 Ω unbalanced
	AMP IN	0 dBu (775 mV) 10 kΩ unbalanced
RMS / MAX output power		120 W / 180 W	240 W / 360 W
Direct output		Low impedance: 4 Ω
ATT releases		8, 9 V, 12, 5 V, 25 V, 50 V, 70 V, 100 V
Bandwidth		55 Hz – 16,000 Hz – 3 dB
Signal-to-noise ratio		LINE: > 80 dB MICRO: > 70 dB
Harmonic distortion		0.5% at 1 kHz
Tone adjustment		Bass: ±10 dB at 100 Hz High frequencies: ±10 dB at 10 kHz
Power consumption		355 W	630 W
Power consumption 230 V	1/8 of the power	0,8 A	1,4 A
	one-third of the power	1,2 A	2 A
	Rated power	1,8 A	3,2 A
Food		AC 230 V / 50 Hz / DC 24 V
Dimensions (W x D x H)		483 x 352 x 133 mm (3U)
Poids		14 kg	15 kg
