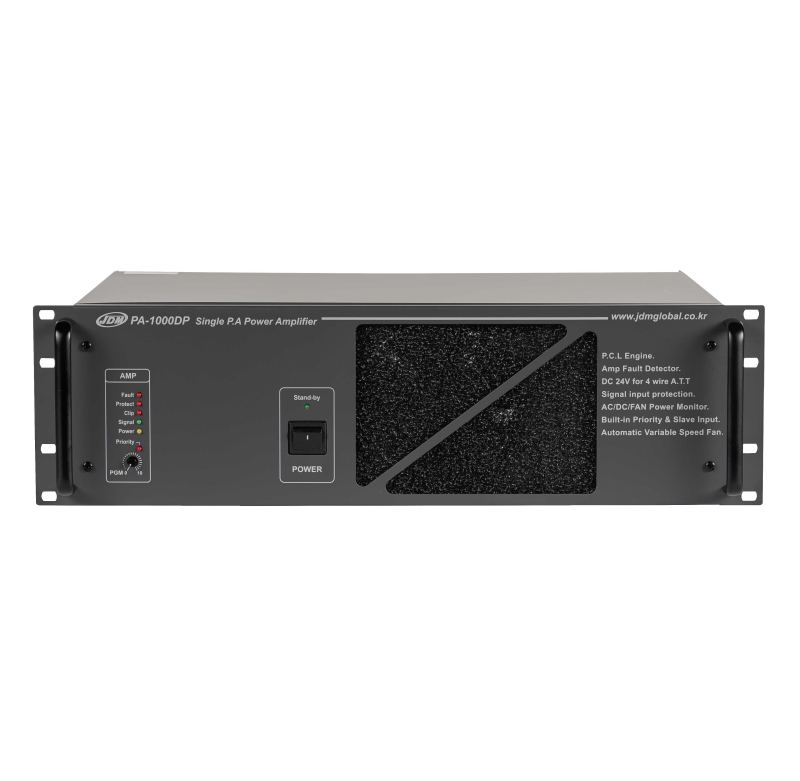

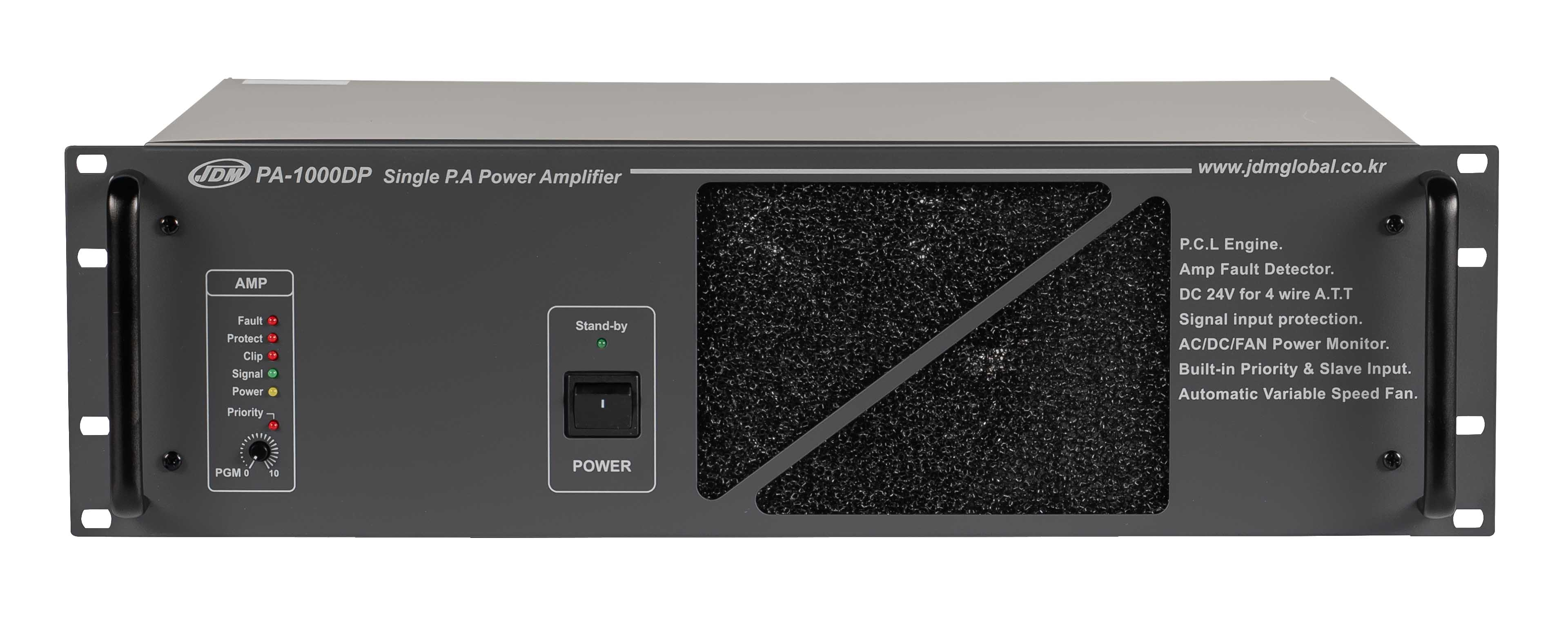

Power amplifiers 100V - 1 channel - DC 24V - Priority input
8809267792305
01096
Power amplifiers available in 3 powers :
Reference : PA 600 DP - Code : 01096
Reference : PA 720 DP - Code : 01097
Reference : PA 1000 DP - Code : 01098
In Stock
Delivered within 48/72h
For professionals
To log inFor individuals
Contact usCHARACTERISTICS
- Variable speed automatic fan (thermal sensor)
- 50V, 70V and 100V outputs for loudspeaker line
- Designed to run on AC mains or 24V DC battery
- Optional fault monitoring module (FD-200) for monitoring amplifiers and speaker lines (short-circuit and open circuit faults)
- A level reset relay contact on the output terminal block allows, in case of emergency, the broadcasting of calls on 3 or 4-wire lines that need a 24V DC power supply.
- Input level: 0 dBu°(0.775V) 60 K balanced (1 Program input, 1 Priority input and 1 Slave input)
- The optional fault monitoring module enables the switchover to a standby amplifier or loudspeaker line in the event of an amplifier or loudspeaker line failure if the FS-3381 switching system is connected in between.
- RMS output powers: 600W, 720W, 1000W
- Total protection for reliability :
- Overload protection circuit and short circuit limiter
- Overvoltage protection circuit
- 24V DC output for external devices (max. 500mA)
- Terminal board for power supply remote control (stand-by led)

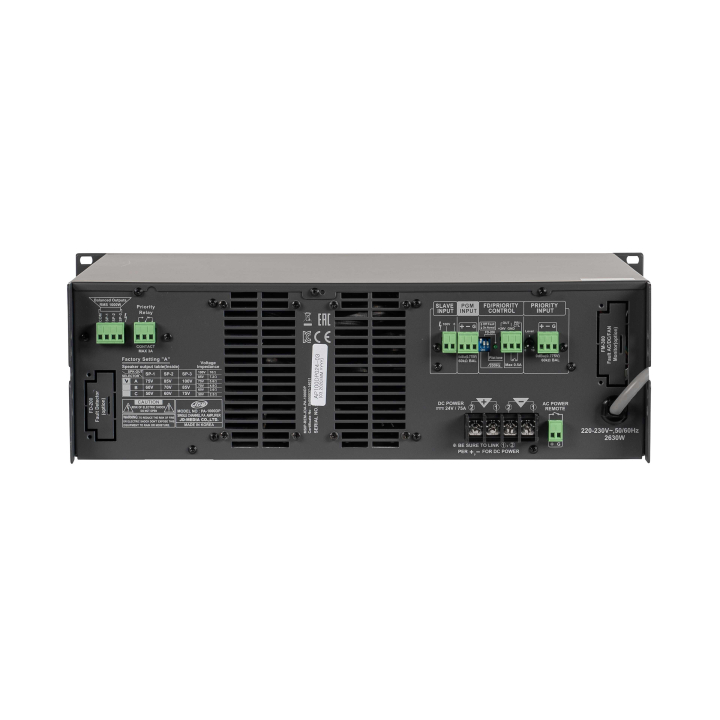

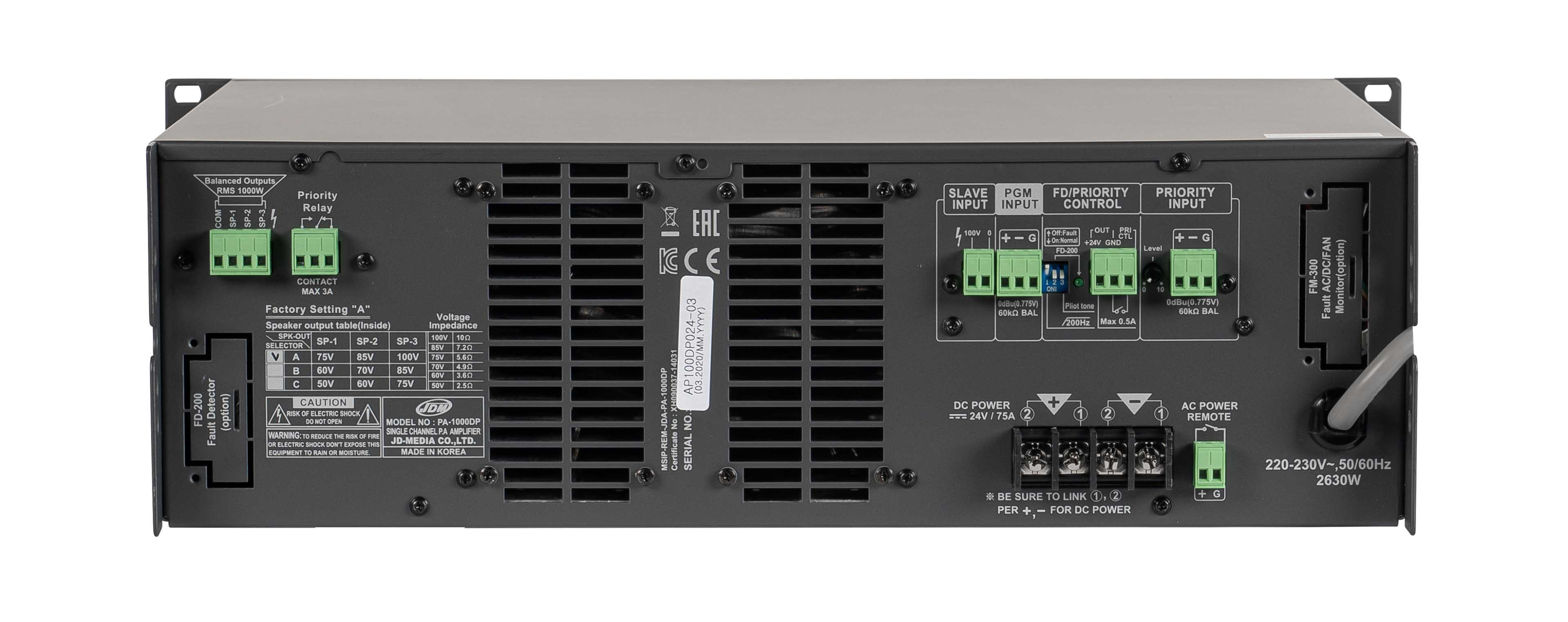

- Signal inputs on screw terminal block for easy installation
- Priority remote control via Talkover on PGM input
- Audio Priority input terminal and remote control terminal Priority
- Power-on noise reduction circuit
- 200 Hz high-pass filter to improve sound quality
- OPTION (FM-300)
Fault monitoring fan, AC fuse and DC fuse
P.C.L. Protection
| SPECIFICATIONS |
PA 148 DP |
PA 600 DP |
PA 720 DP |
PA 1000 DP |
|
|
RMS output power |
480 W |
600 W |
720 W |
1000 W |
|
|
Output impedance |
25V |
1,3 Ω |
|||
|
50V |
5,2 Ω |
4,2 Ω |
3,5 Ω |
2,5 Ω |
|
|
70V |
8,2 Ω |
6,8 Ω |
4,9 Ω |
||
|
100 V |
20,8 Ω |
16,7 Ω |
13,9 Ω |
10Ω |
|
|
Power consumption |
1420 W |
1650 W |
1890 W |
2630 W |
|
|
1/8 of the power |
1420 W |
1650 W |
1890 W |
2630 W |
|
|
Power consumption 230 V |
1/3 of the power |
5,5A/3,1A |
3A |
3,8A |
5,4A |
|
|
Power rating |
13,6A/7,4A |
8A |
9A |
12A |
|
Weight |
18 Kg |
20 Kg |
20 Kg |
25 Kg |
|
|
Frequency Response |
35 Hz – 20 000 Hz -3dB |
||||
|
Signal-to-noise ratio |
>100 dB |
||||
|
Harmonic distortion |
< 0,4 % at 1 KHz |
||||
|
High Pass Filter |
200 Hz / -3dB |
||||
|
Input Sensitivity/Impedance (PGM, PRIORITY) |
0 dBu (0,775V) / 60 KΩ symmetrical |
||||
|
Power supply |
AC 230V / 50 Hz / DC 24 V |
||||
|
Dimensions |
483 x 374 x 88 mm (2 U) |
483x374x133mm(3U) |
|||
