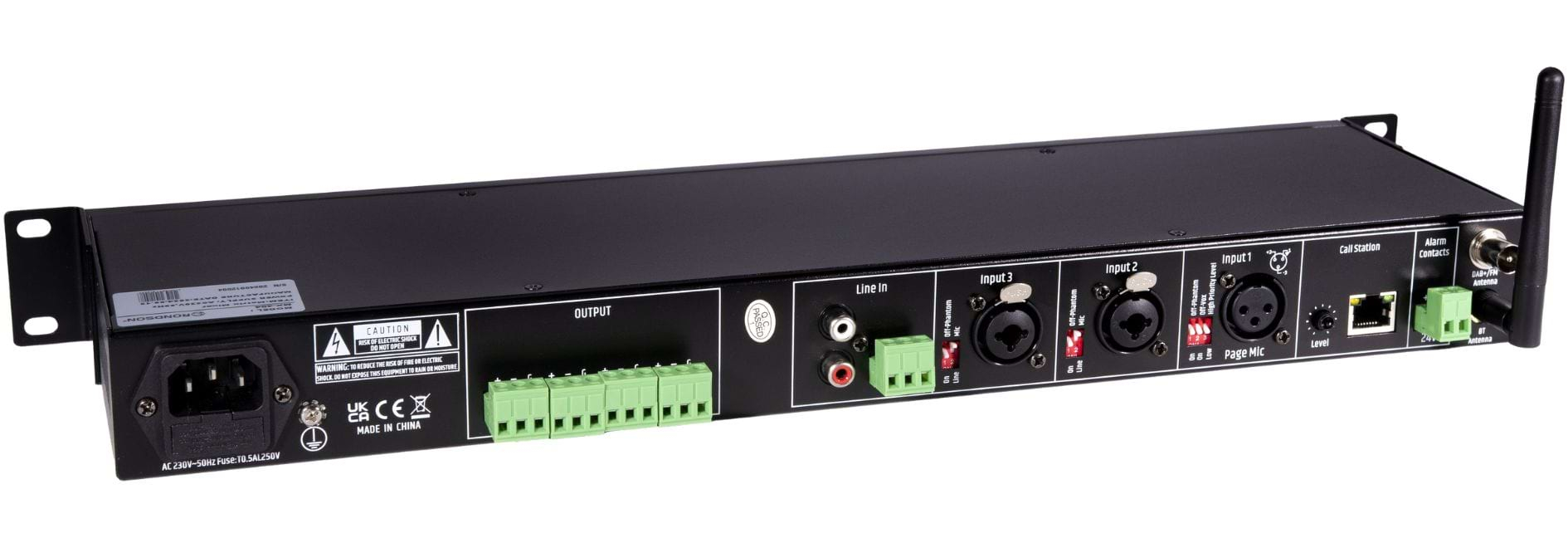

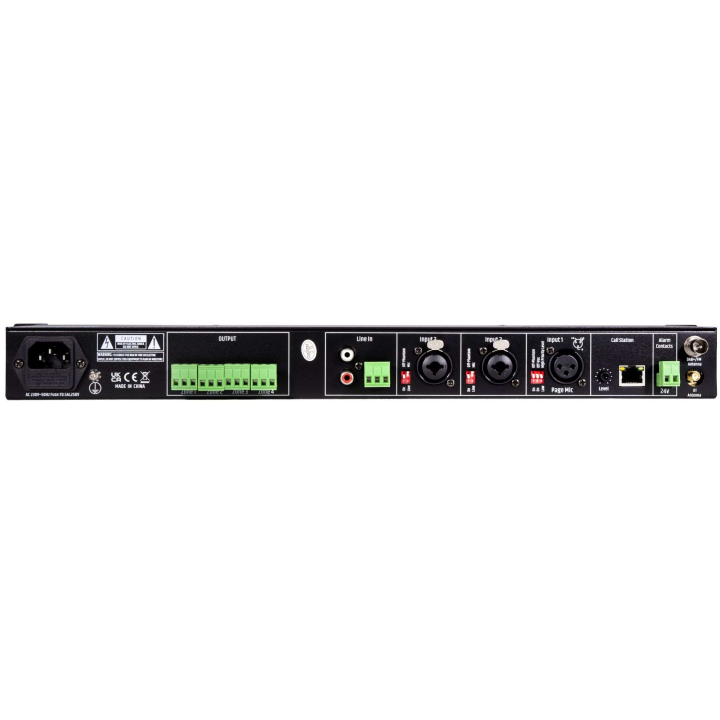

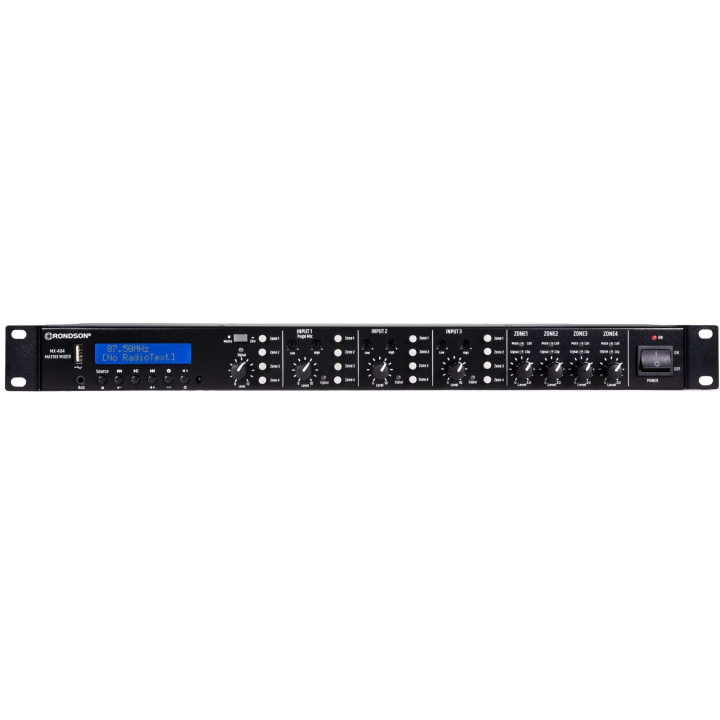

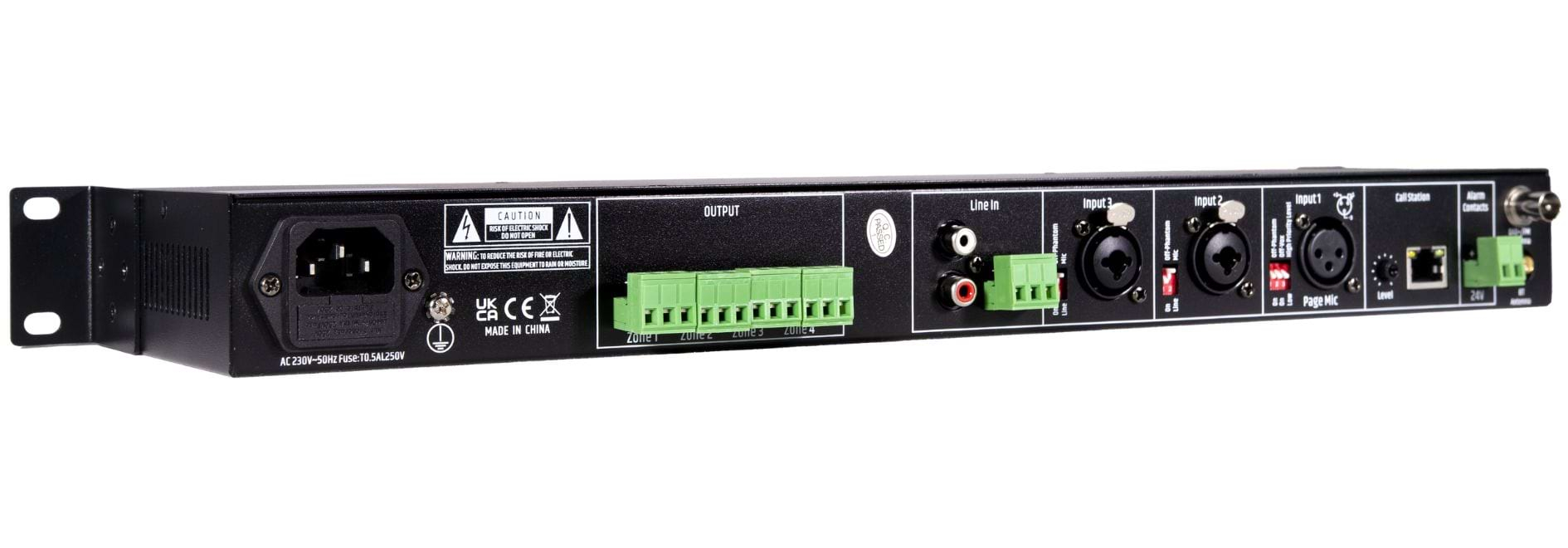

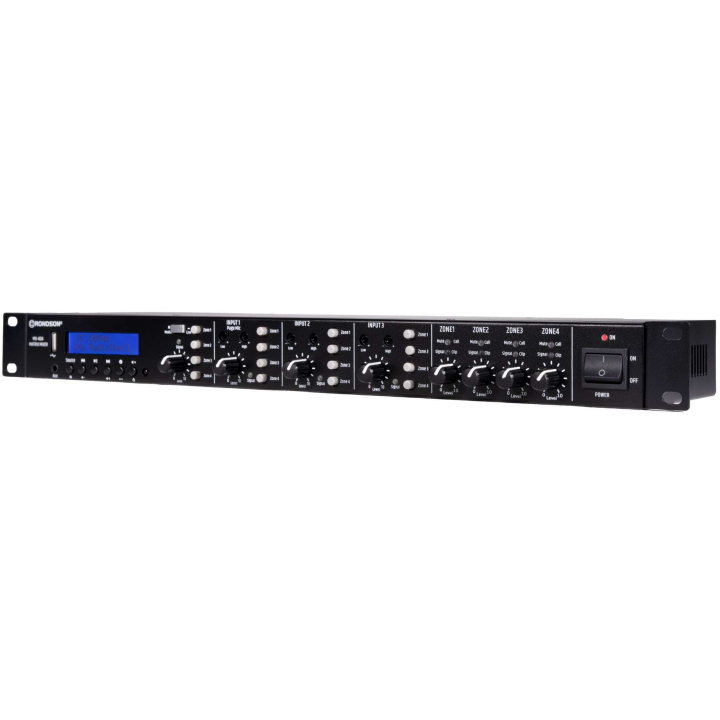

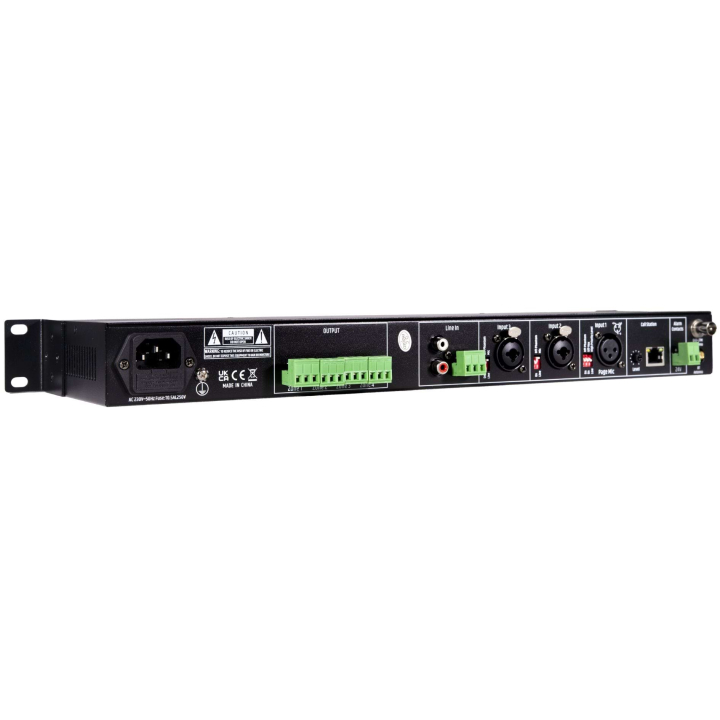

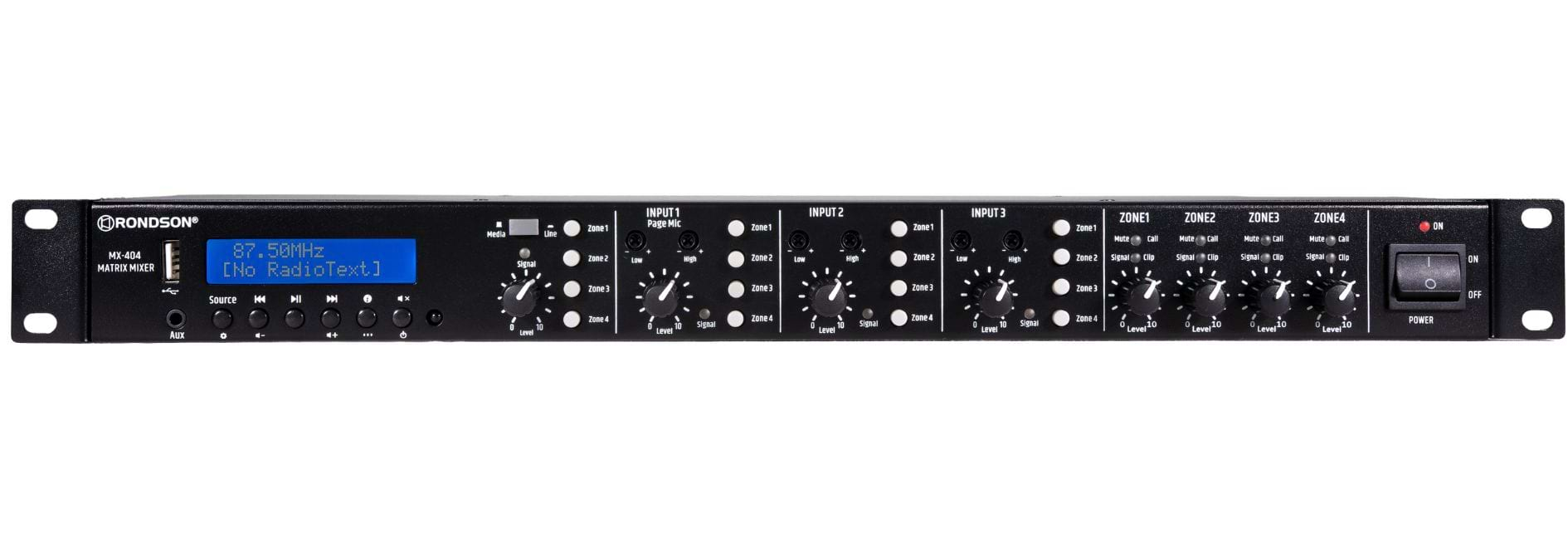

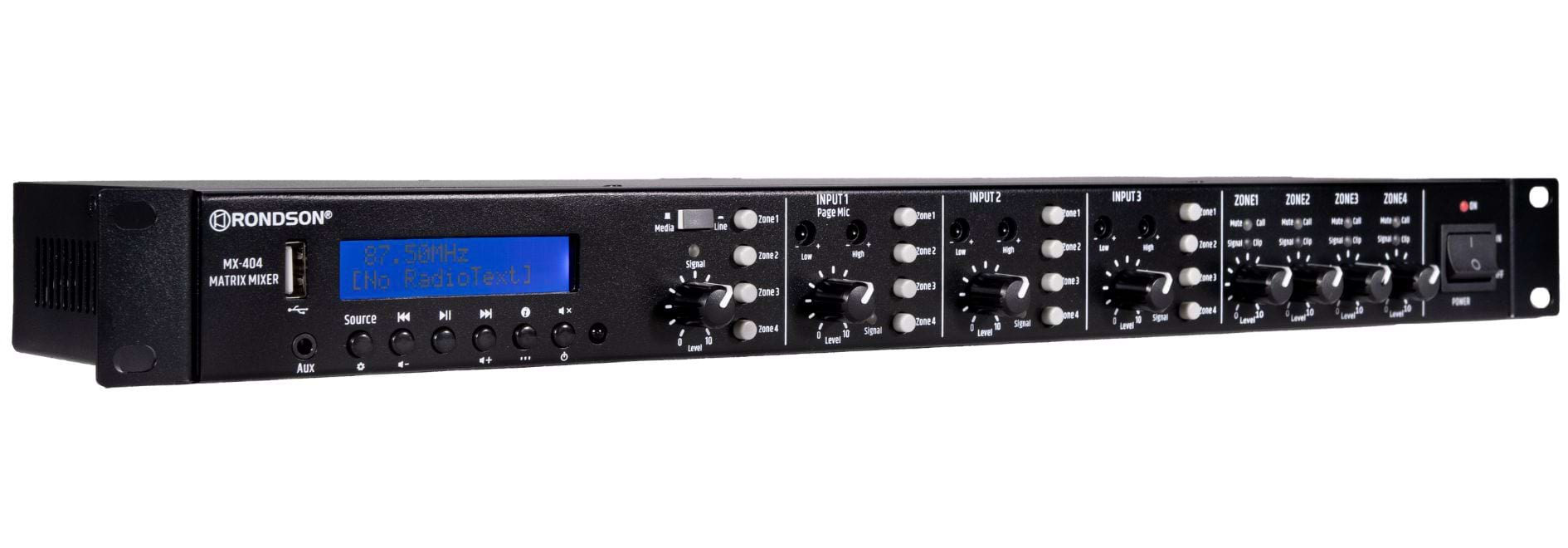

4-channel mixer preamplifier (4 inputs / 4 outputs)
Reference : MX-404
SKU : 02782
EAN13 : 3701567912498
4-channel preamplifier (4 inputs / 4 outputs)
115/230 V and 24 V DC
19" rack-mountable (1U)
Description

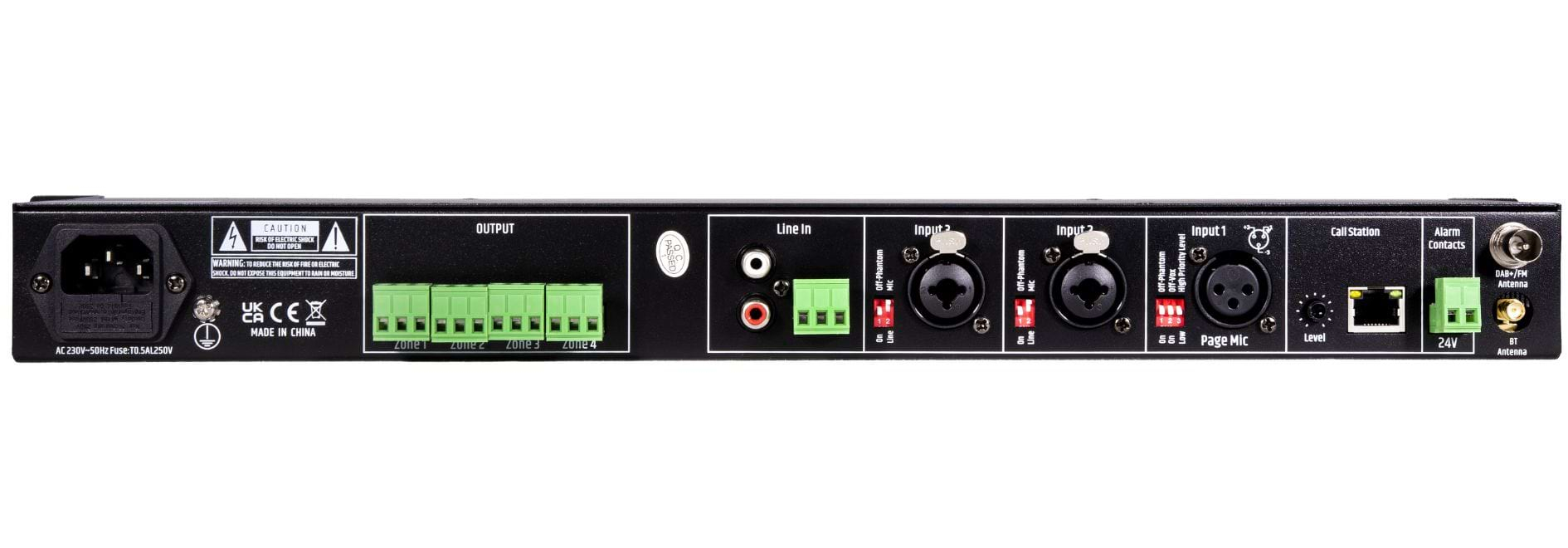

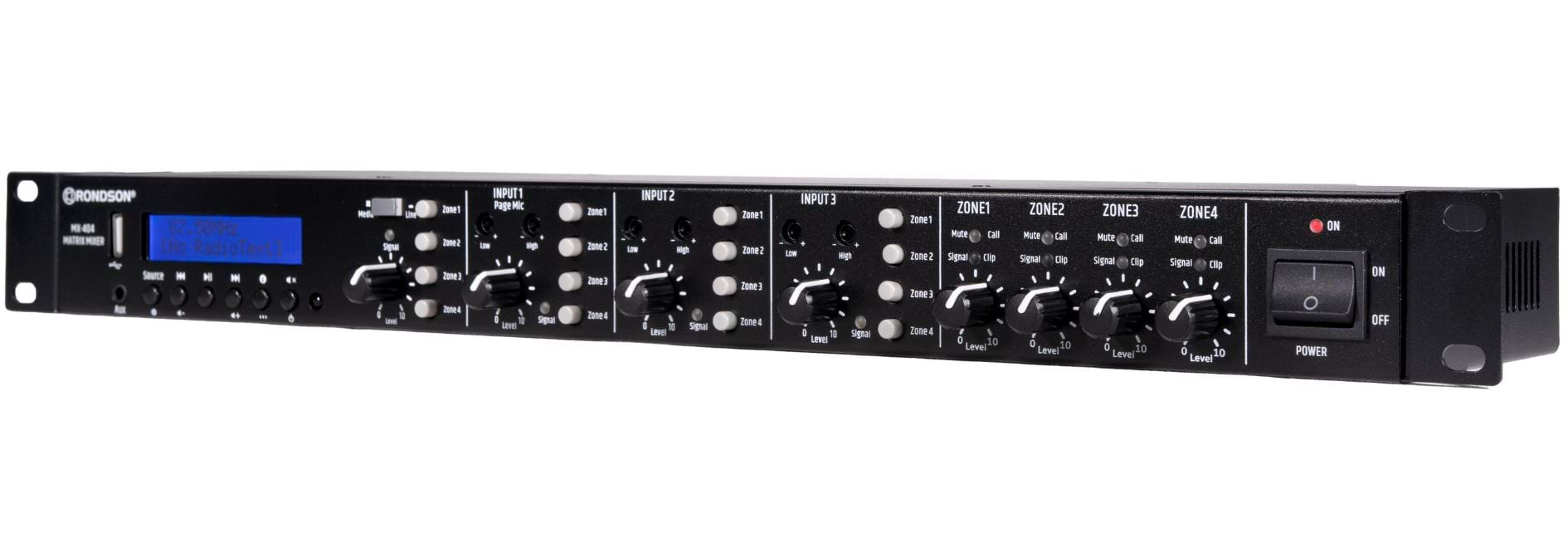

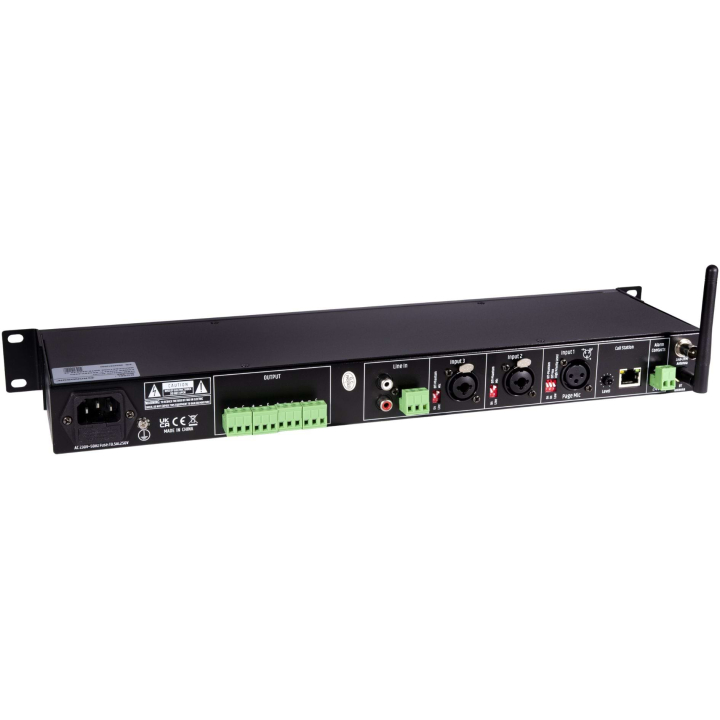

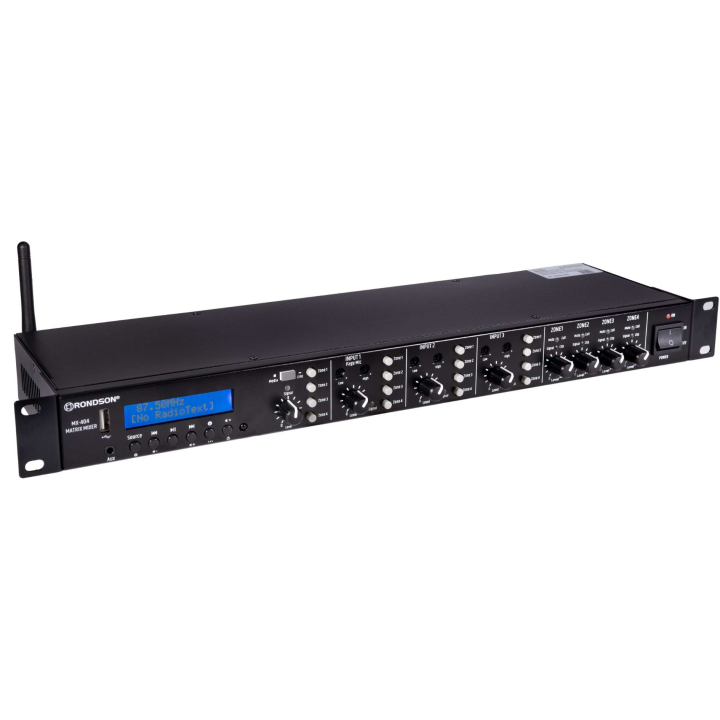

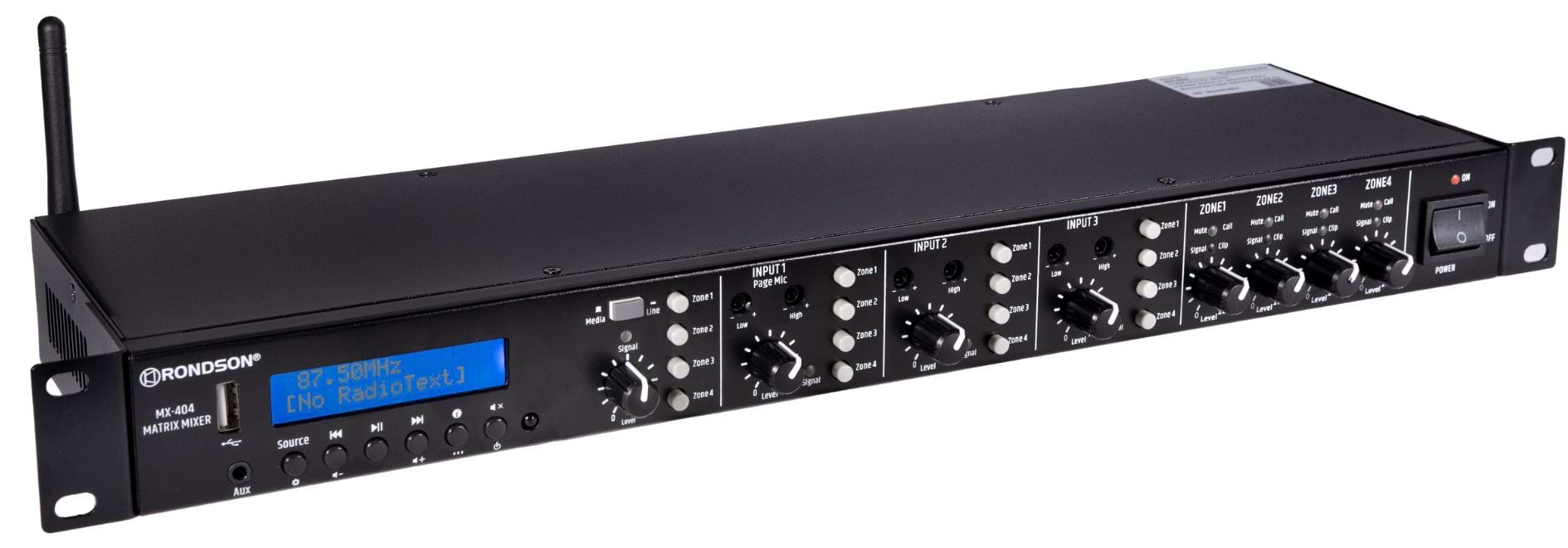

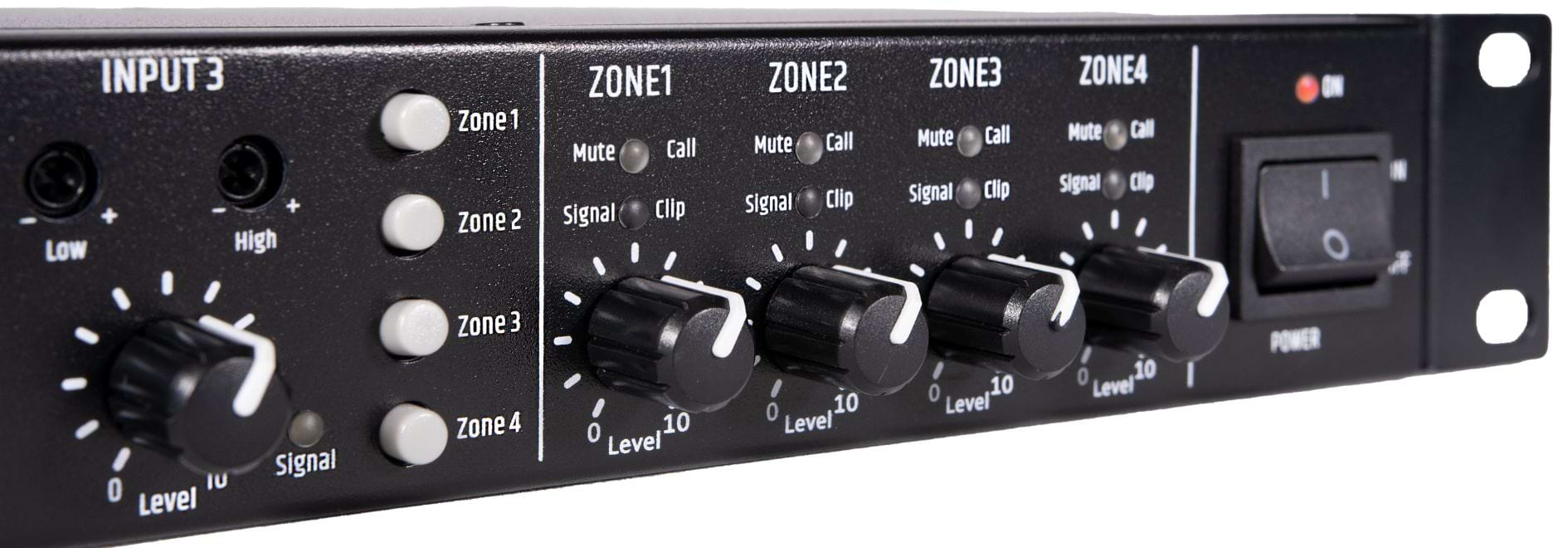

The MX-404 mixer preamplifier offers 4 routable inputs on 4 separately controllable output zones.
It is equipped with :

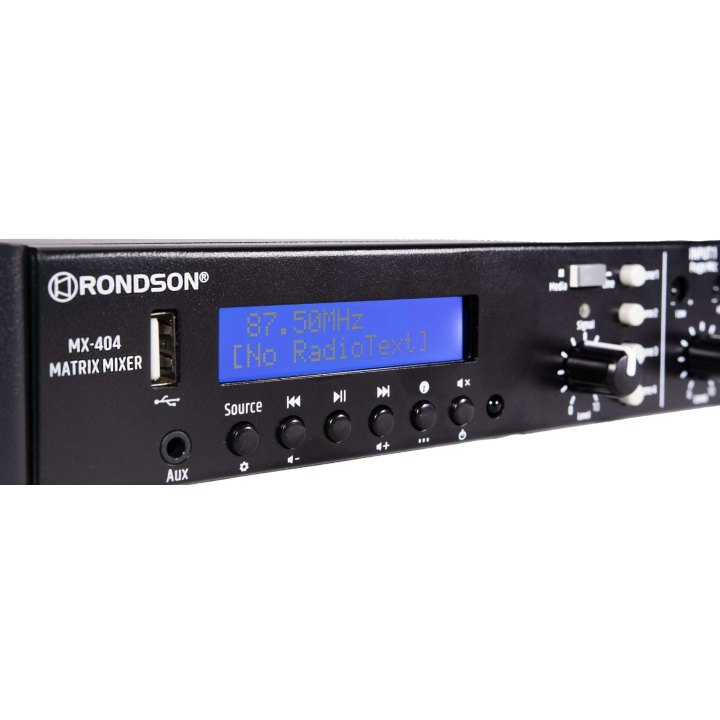

- Multimedia player: TUNER FM/ USB/ BLUETOOTH

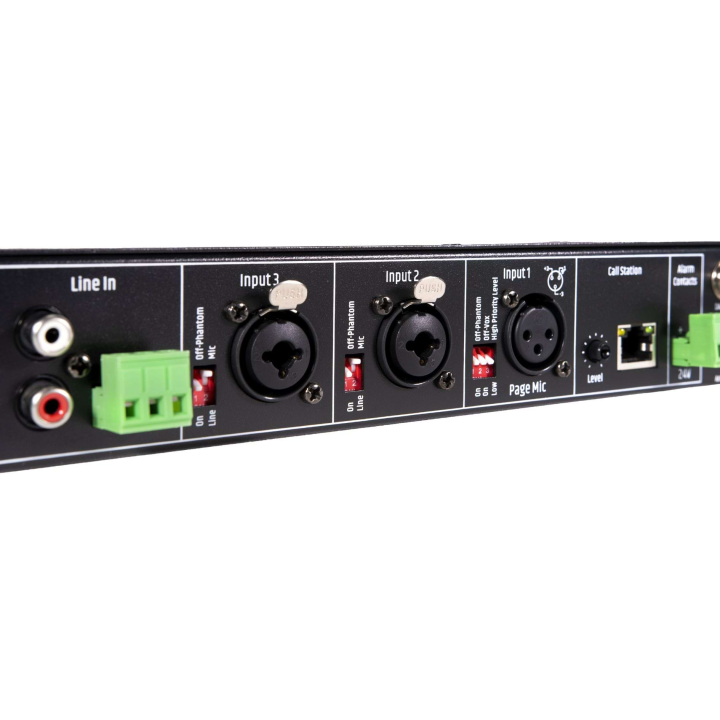

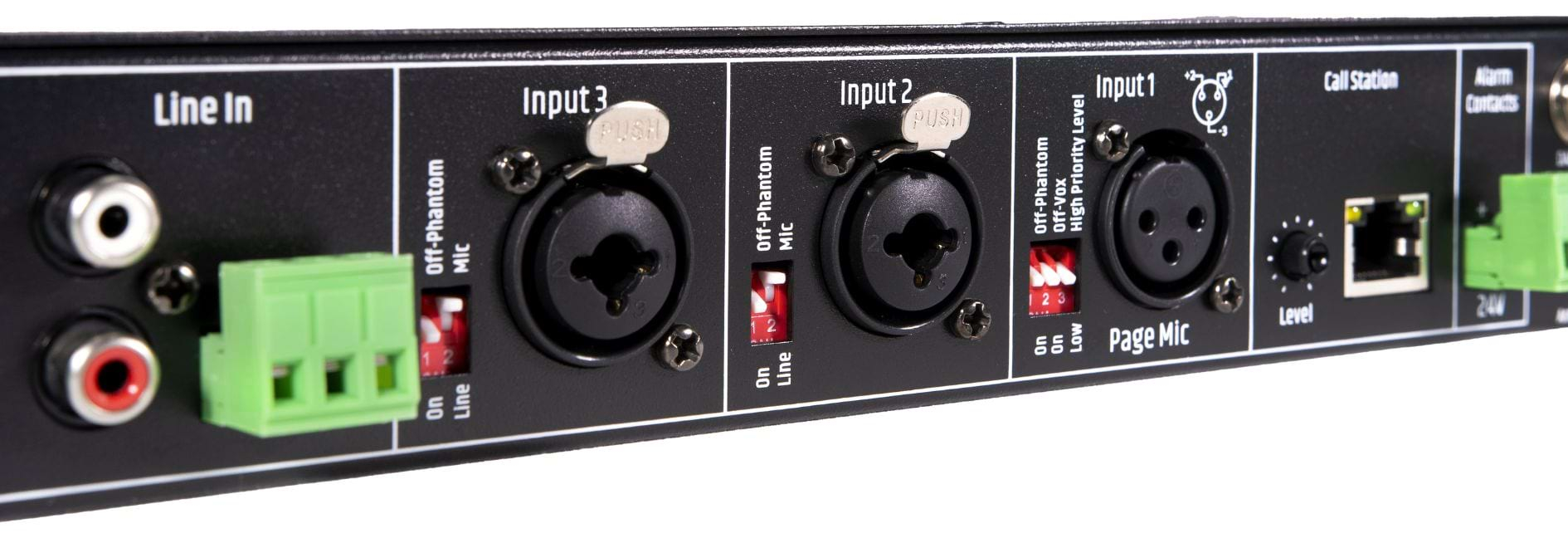

- 2 universal inputs on XLR & JACK 6.35 mm combo sockets, MICRO/LINE and configurable phantom powering
- 1 universal input on XLR MIC socket,
- 1 RCA LINE input
- 1 AUXmini 3.5 mm jack input (front panel)

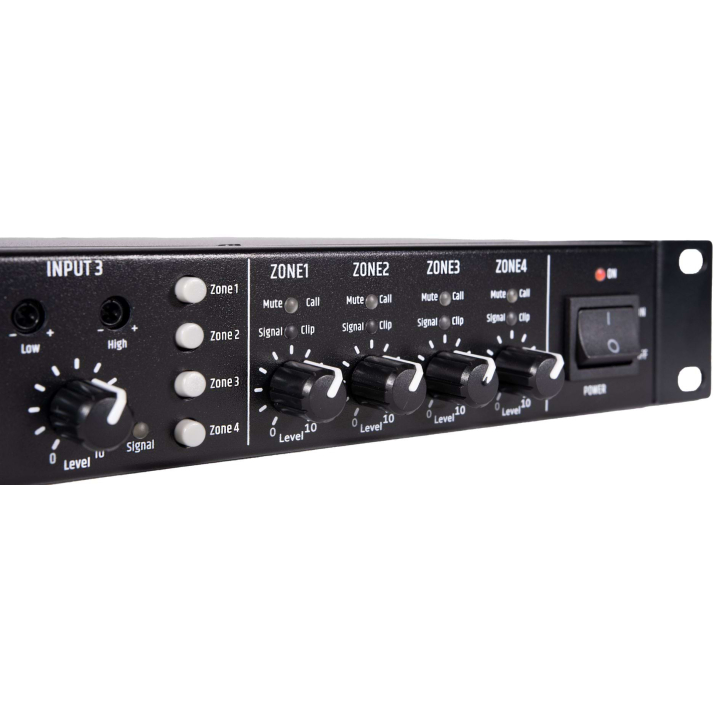

- 4 zone outputs, each with output level meter and volume control
- AC 115/230 V and DC 24 V switchable power supply
Product Details
-
Brand
-
ReferenceMX-404
-
SKU02782
-
EAN133701567912498
Data sheet
-
TypePréamplificateur matriciel 4 canaux
-
Power consumption4.8 W
-
Signal-to-noise ratioMIC 75 dB LINE/AUX : 85 dB
-
Audio output level+8 dBu (V.R MAX)
-
AlimentationAC 230V - 50/60 Hz - DC 24V
-
Alimentation fantôme15V
-
Distorsion harmonique totale0,03 %
-
Bande passante20 – 22 000 Hz (± 0,5 dB)
-
Entrées / SensibilitéMIC : 24 dBu (2,45 mV) 5 KΩ symétrique LINE : 10 dBu (775 mV) 5 KΩ asymétrique AUX : 60 dBu (245 mV) 15 KΩ asymétrique
-
Sortie / Sensibilité+4 dBu (V.R MAX)
-
Dimensions (W × D × H)482 x 122 x 44 mm
-
Weight1,8 kg
