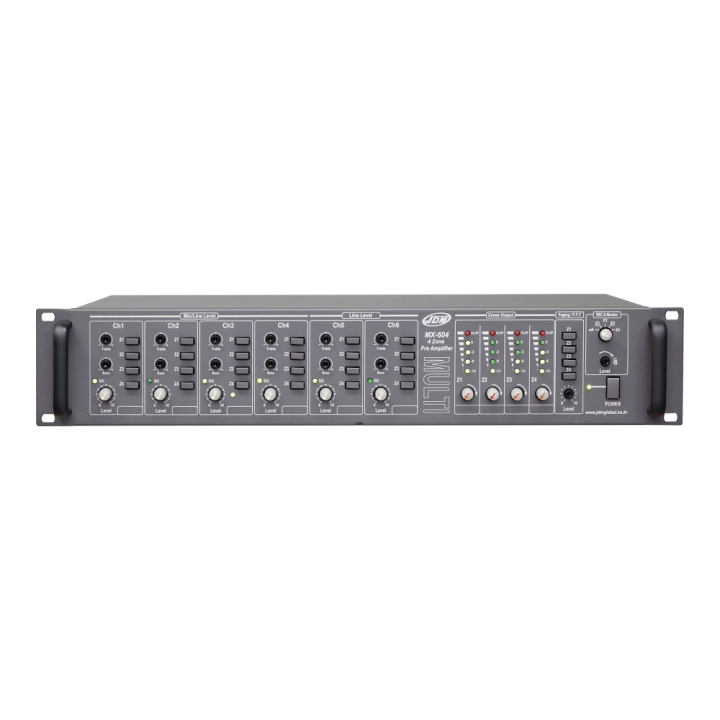

4 zone matrix preamplifier DC 24V

Name: 4 zone matrix preamplifier DC 24V
Brand: JD-MEDIA
SKU: MX-604

Reference : MX-604

SKU : 01152

EAN13 : 8809267793869

4 zone preamplifier (6 inputs / 4 outputs) - 230V/24V - 19" 3U

Ideal for multi-zone use such as in hotels, conference rooms, schools, sports and fitness centres.

Zones

MX-604

Download (5.99MB)

Description

Zone selection (Z1 to Z4) on each channel for multiple or individual broadcasting
Volume equalizer for each channel
Volume control and vumeter for each output
Exit monitoring for each zone
Inter ON/OFF phantom powering on microphone inputs

Option Microphone consoles :

The PTT 100N console is equipped with switchable chime, siren and priority functions. When the "Talk" button is pressed, the message is broadcast simultaneously in all zones. Three 100N PTT stations can be connected. The lectern is connected to the preamplifier via RJ45/Cat.5 socket (3m cable included).

The RM-400 Microphone Keypad provides remote control. The priority and chime function can be activated or deactivated. Equipped with switches to address the message to one, several or all zones. Up to 32 RM-400 stations can be addressed and connected in series up to 1.2 km long. The connection is made via CAT5 cable with RJ45 plugs.

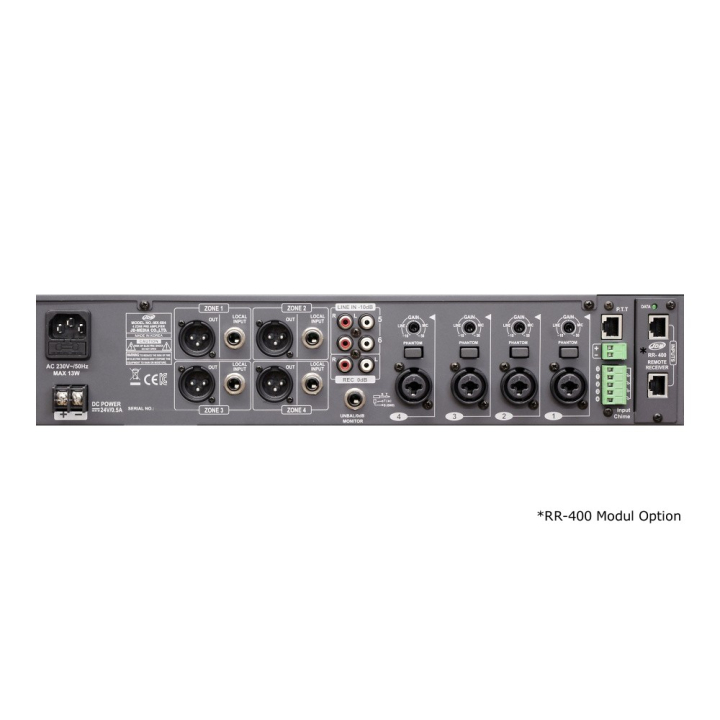

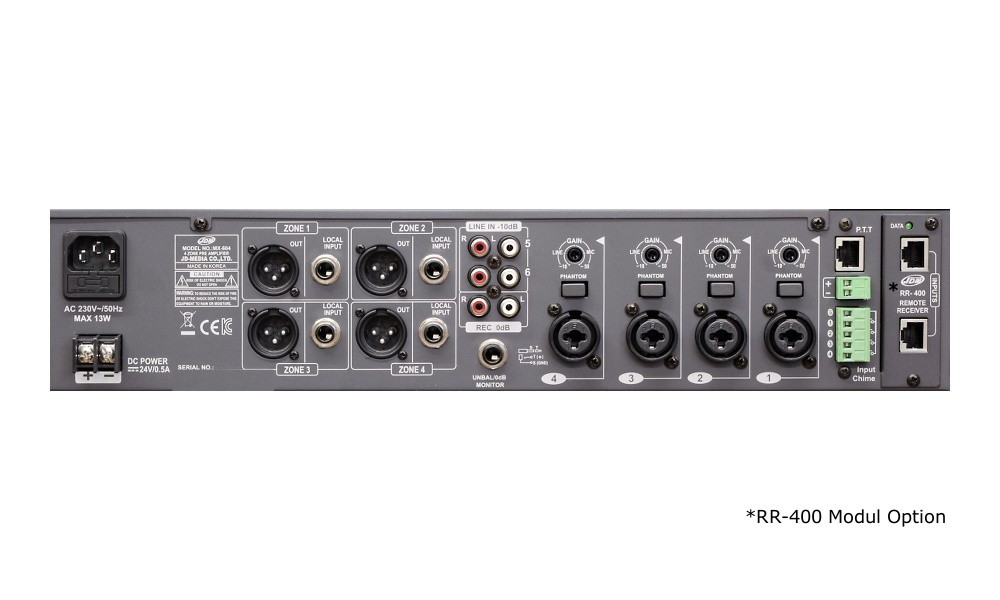

Input terminal for announcements (Inter selection Link for announcements on each zone)
Local input terminal block (Inter selection Link for emergency message on each zone) (use of announcement or local signal, interception of the signal for the main unit)
PTT micro console input terminal block for emergency announcements (RJ45 socket)
Type: RS-485, max. distance 1.2 km
Detector circuit for reducing consumption in stand-by mode or when the amplifier does not receive a signal
The device can be operated in emergency mode on DC 24V.

SPECIFICATIONS	MX-604
Input Sensitivity/Impedance	MIC/LINE 1~3	50 dBu (2,45 mV) kΩ symmetric 10 dBu (245 mV) - 15 KΩ symmetric
Input Sensitivity/Impedance	LINE /REC IN	10 dBu (245 mV) - 10 KΩ symmetric
Output level / Impedance	ZONE	NOR + 4 dBu (21,23 V) / 200 Ω symmetric
Output level / Impedance	REC	NOR 0 dBu (0,775 mV) 10 KΩ symmetric
Frequency Response		20 Hz – 20 000 Hz – 0,5 dB
Signal to Noise Ratio	MICRO	> 60 dB
Signal to Noise Ratio	LINE	> 75 dB
Harmonic distortion	MICRO	> 0,05 %
Harmonic distortion	LINE	> 0,03 %
Crosstalk	MICRO	> 60 dB
Crosstalk	LINE	> 75 dB
Power consumption 230 V	Rated power	10 W
Power consumption 230 V	Stand-by	1 W
Output impedance	70 V / 81,6 Ω 100 V / 166,6 Ω	70 V / 40,8 Ω 100 V / 83,3 Ω
Power supply	AC 230 V / 50 Hz / DC 24 V
Dimensions (L x P x h)	483 x 377 x 88 mm (2 U)
Weight	4 kg
